Sonnax Smart Sun Shell 7774902K 4L60E 700R4 4L65E 4L70E 1982up

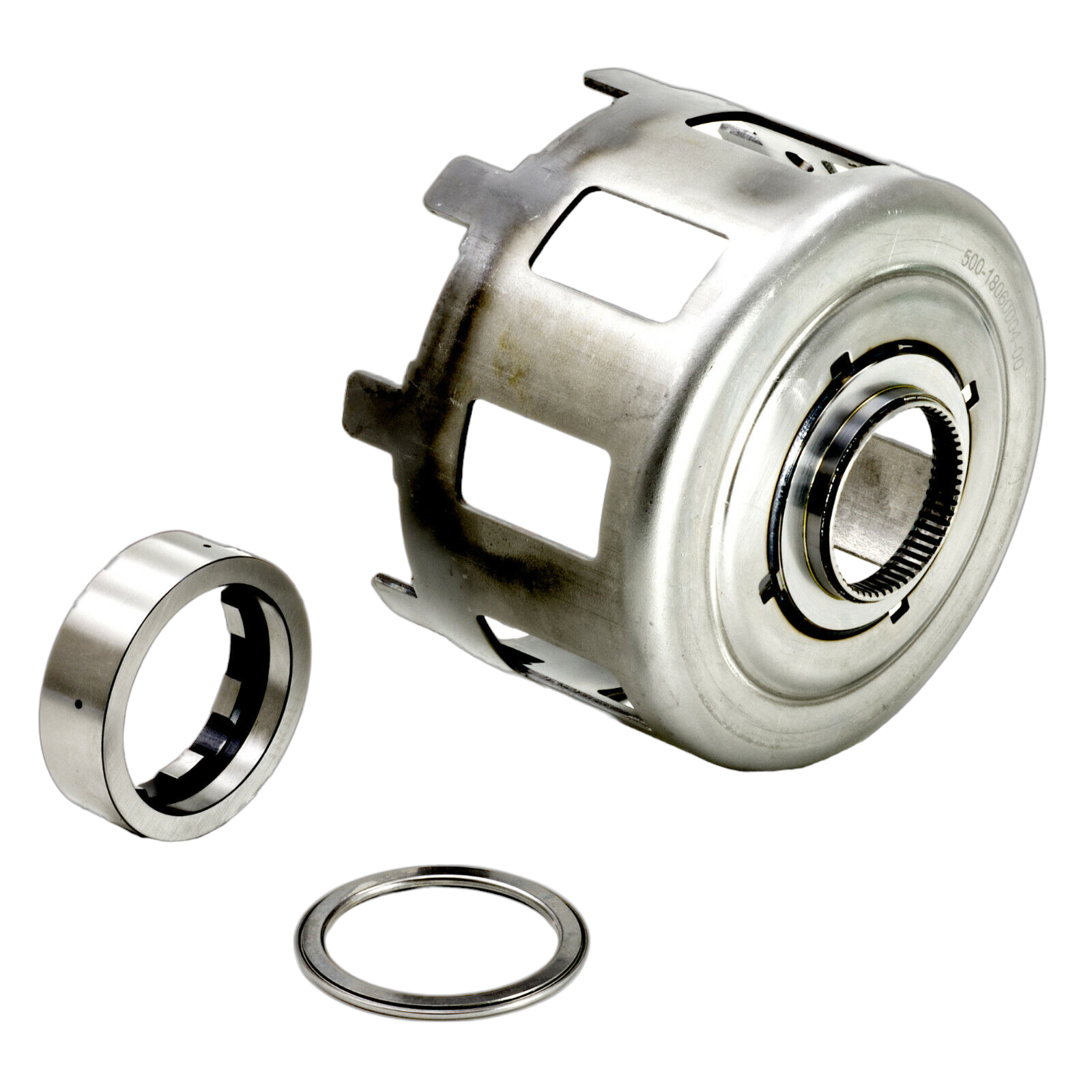

SmartShell® Heavy Duty Reaction Shell Kit

TH700R4 4L60E 4L65E 4L70E GM TRANSMISSION

Fits all varieties of these transmissions 1982-UP

In GM 4L60, 4L60-E, 4L65-E and 4L70-E units, bulky aftermarket shells often fall short when splines strip and shells break under stress.

A chronic issue with both OE and thicker aftermarket shells is rear planetary bearing failure. From daily drivers to extreme builds, the Sonnax SmartShell heavy-duty reaction shell kit (77749-02K) is the only solution that prevents shell failure and protects the bearing.

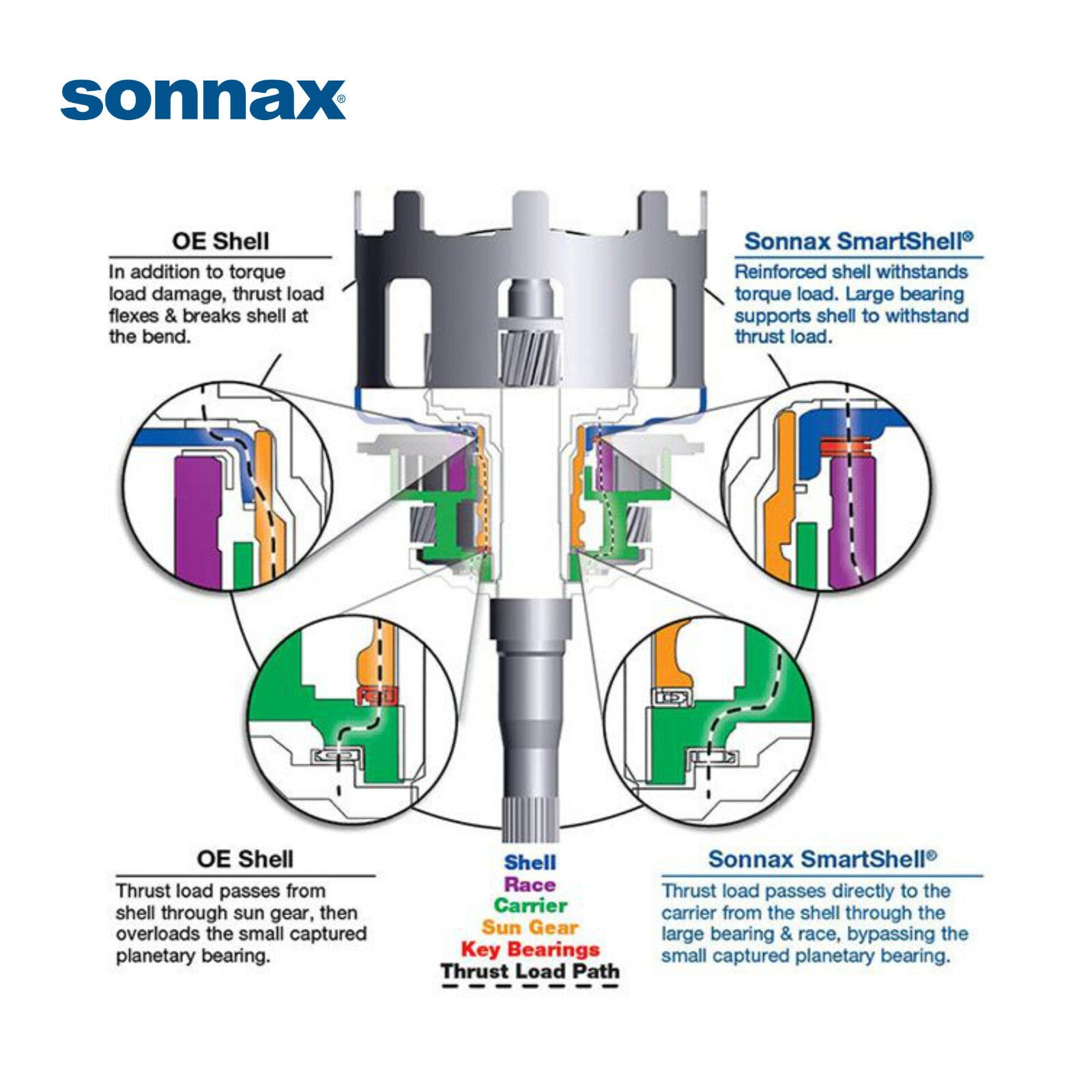

The SmartShell avoids the excess weight of traditional heavy-duty shells thanks to a unique design and manufacturing process. It’s only slightly bulkier than OE but far stronger. To prevent thrust loads from damaging the captured planetary bearing, the SmartShell features a larger bearing and custom roller clutch race that reroutes thrust loads through the carrier—bypassing the delicate bearing entirely.

• Stops spline stripping
• Prevents hub breakage
• Eliminates planetary bearing failure

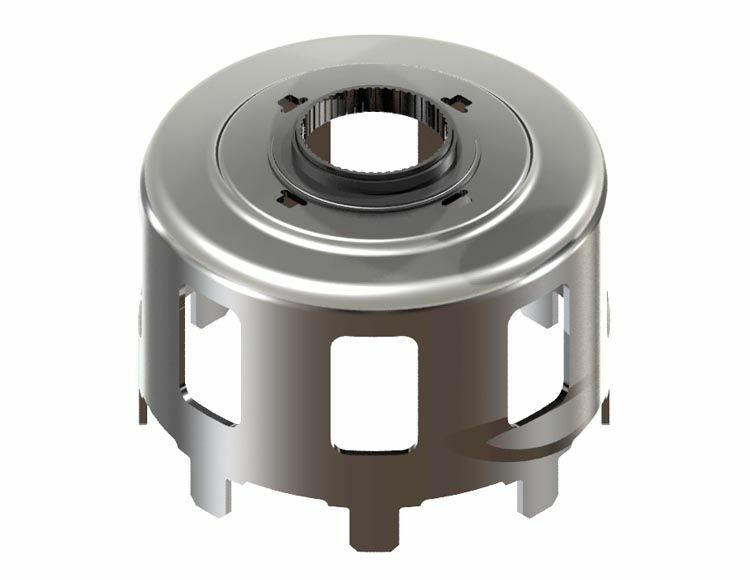

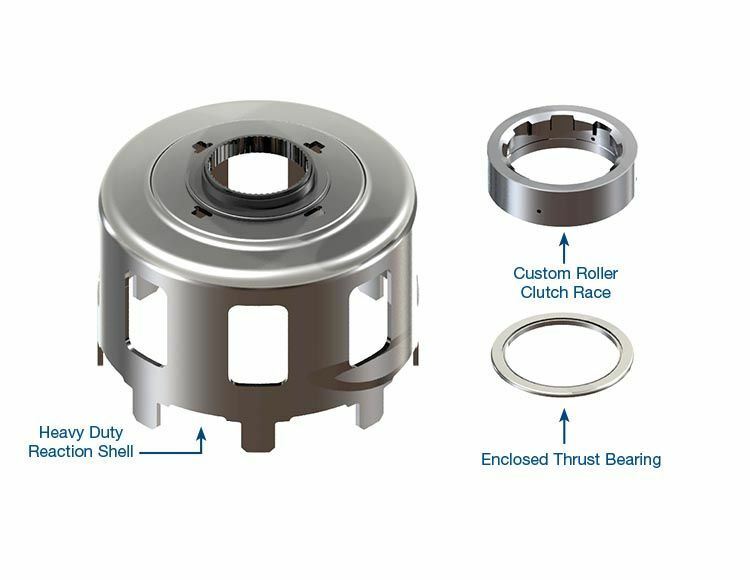

• Heavy Duty Reaction Shell

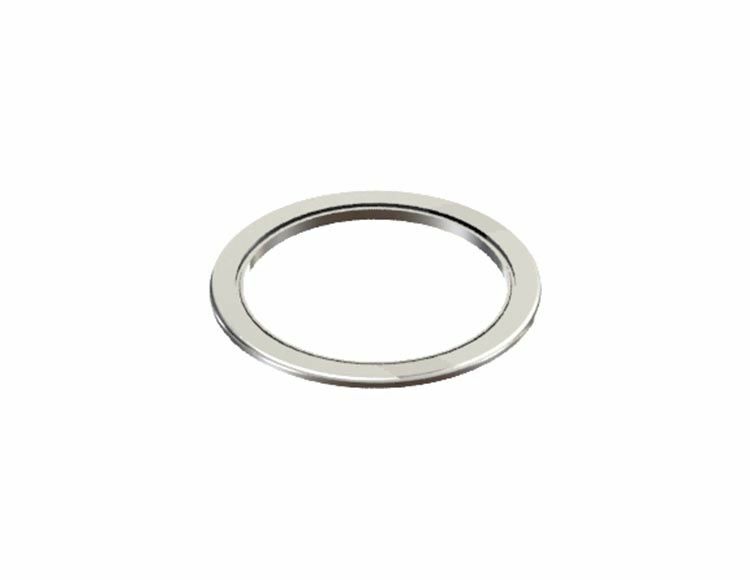

• Enclosed Thrust Bearing

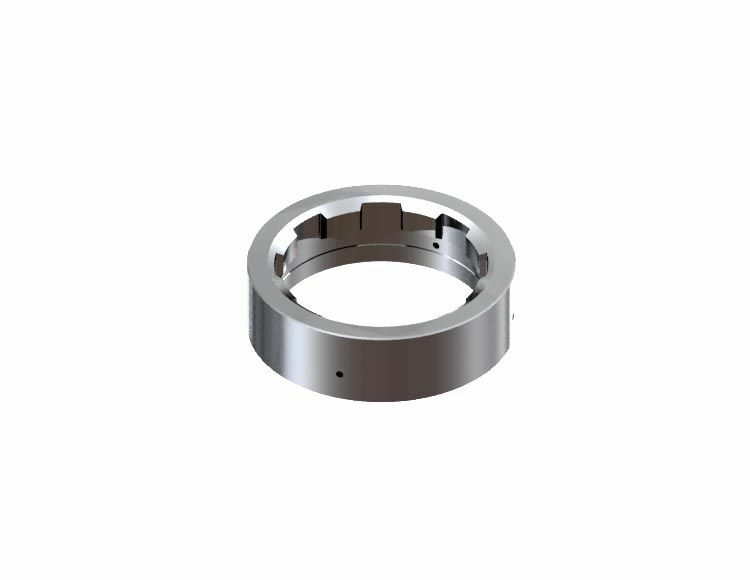

• Custom Roller Clutch Race
