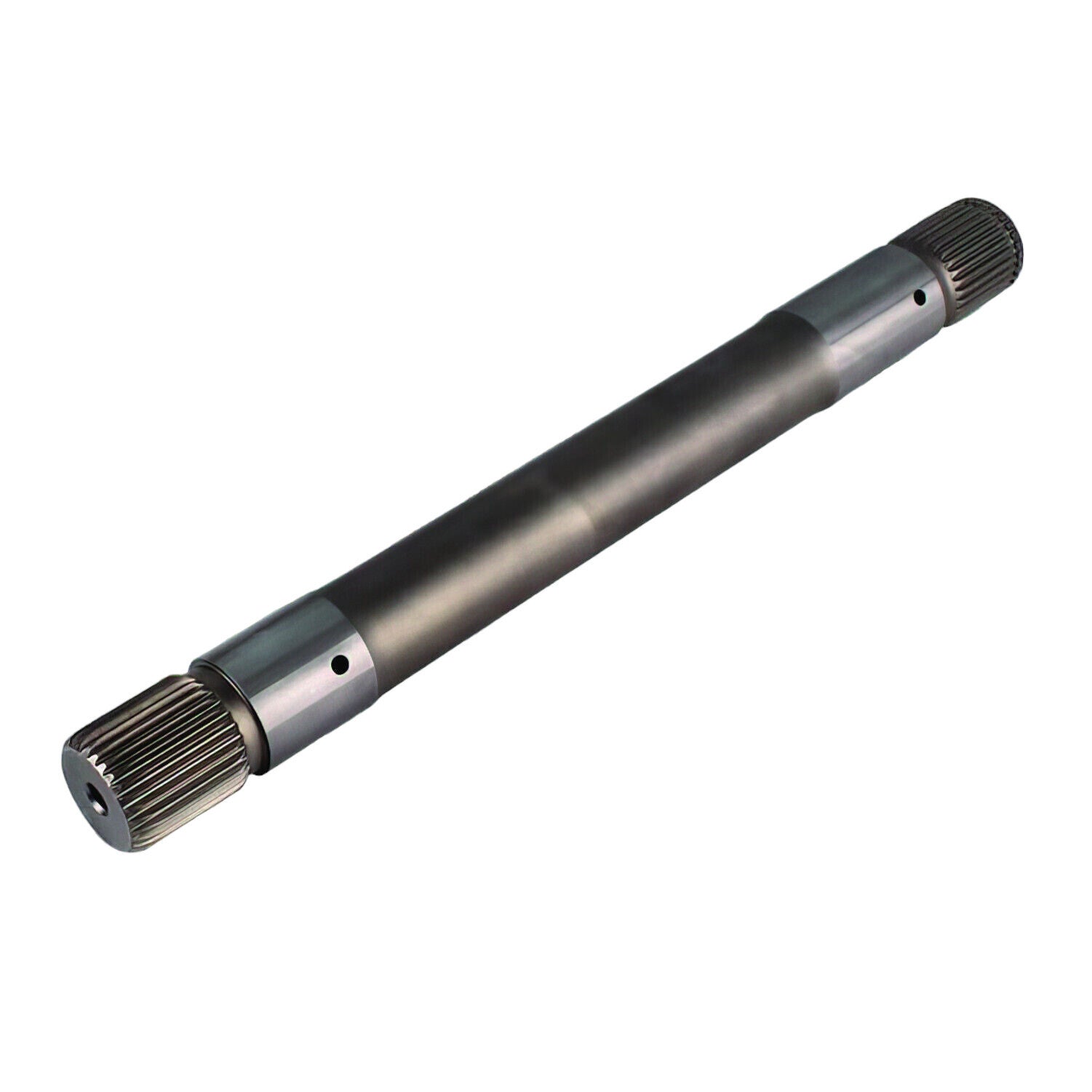

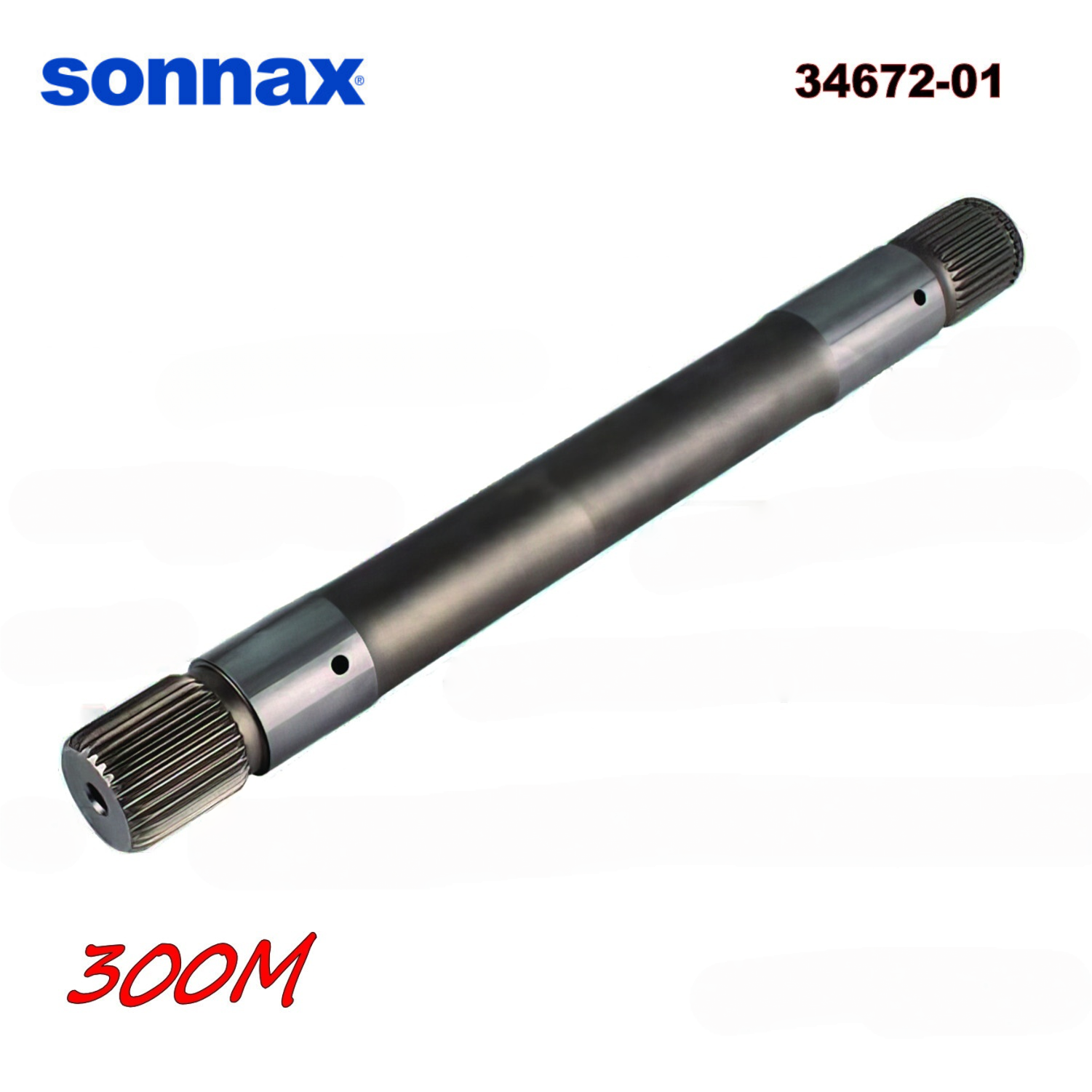

Sonnax Performance Main Shaft 300M 34672-01

Fits 1991-On 4L80E & 4L85E Models

Main shaft failure is a common problem in performance and heavy duty GM TH400, 4L80-E and 4L85-E units. Sonnax heavy duty main shaft 34672-01 is manufactured from high strength 300M with proprietary heat treatment and post heat treat processing for exceptional performance, durability and value.

This shaft is recommended for applications up to 1,000HP. For extreme horsepower builds, check out the Sonnax extreme duty main shaft 34672-05 — the most durable 1” main shaft available.

• Advanced torsional design with spline and cross hole refinements for added strength
• Direct replacement for OE shafts

Note:

Can be used to replace late 4L80-E solid shafts. However, check clearance between front of main shaft and rear of input shaft. It may be necessary to remove approximately .060" from front of main shaft or rear of input shaft.

Specs:

• Material: 300M

Installation recommendation: Experienced technician
Transmission removal necessary: YES
