Sonnax AODE SmartTech Direct Clutch Drum & Shaft Kit 7665602K F6AZ7F283AA

AODE Smart-Tech® Direct Clutch Drum & Shaft Kit

Part No: 76656-02K

Fits: All 2.40/1.46 gear sets

OE Part No: F6AZ-7F283-AA

Failure of the intermediate stub shaft and direct drum is common when Ford AODE transmissions are pushed to their limits. To maximize durability and clutch capacity in heavy-duty or performance vehicles, Sonnax developed the Smart-Tech kit — the first upgrade to eliminate every critical weakness.

Most failures occur at the connection between the direct drum and stub shaft. Even aftermarket upgrades with heavy-duty shafts can shear under extreme conditions. The Smart-Tech kit features a one-piece clutch drum with an integrated stub shaft, precision-machined from high-strength steel. This design eliminates splines that can strip and weak shaft connections. The shaft is significantly thicker and twice as strong as OE, and must be used with the kit’s custom heavy-duty sun gear.

To improve clutch holding power and reliability, the Smart-Tech drum and piston accommodate an OE backing plate and seven OE frictions — a 17% increase in clutch capacity over the standard six-friction stack-up. Unlike thinner aftermarket steels and plates, this setup reduces clutch pack flex and heat build-up.

The included sun gear features a 2.40/1.46 ratio, ideal for high-power racing applications. Compared to the 2.84/1.55 ratio in Sonnax 76656-01K, this lower ratio keeps engines in the optimal power band and allows longer pulls in first and second gears.

Key Benefits:

• One-piece design eliminates weak points where drum splines strip and shafts break
• Rugged shaft is 50% thicker and twice as strong as OE
• Custom drum and piston deliver 17% more clutch capacity
• Precision-machined from hardened 8620 steel
• Race-ready sun gear with 2.40/1.46 ratio made from 9310 heat-treated steel

Note:

To fit seven frictions, use (7) .068" frictions and (7) .075" steels with OE .219" thick backing plate.

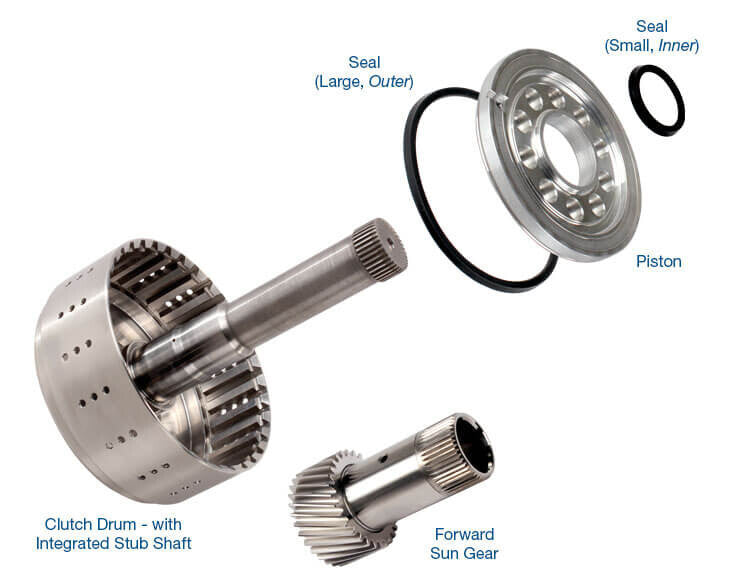

Kit Contents:

• Forward Sun Gear — 30 Tooth
• Clutch Drum — With Integrated Stub Shaft
• Piston
• Seal — Large, Outer
• Seal — Small, Inner
