PPE 228051000 HeavyDuty DEEP Alum Transmission Pan for Dodge Models Brushed

High Performance Transmission Pan DEEP by PPE Diesel

Fits all 46RH / 46RE / 47RH / 47RE / 48RE (1991-on)

Also fits all A727 (1966-up)

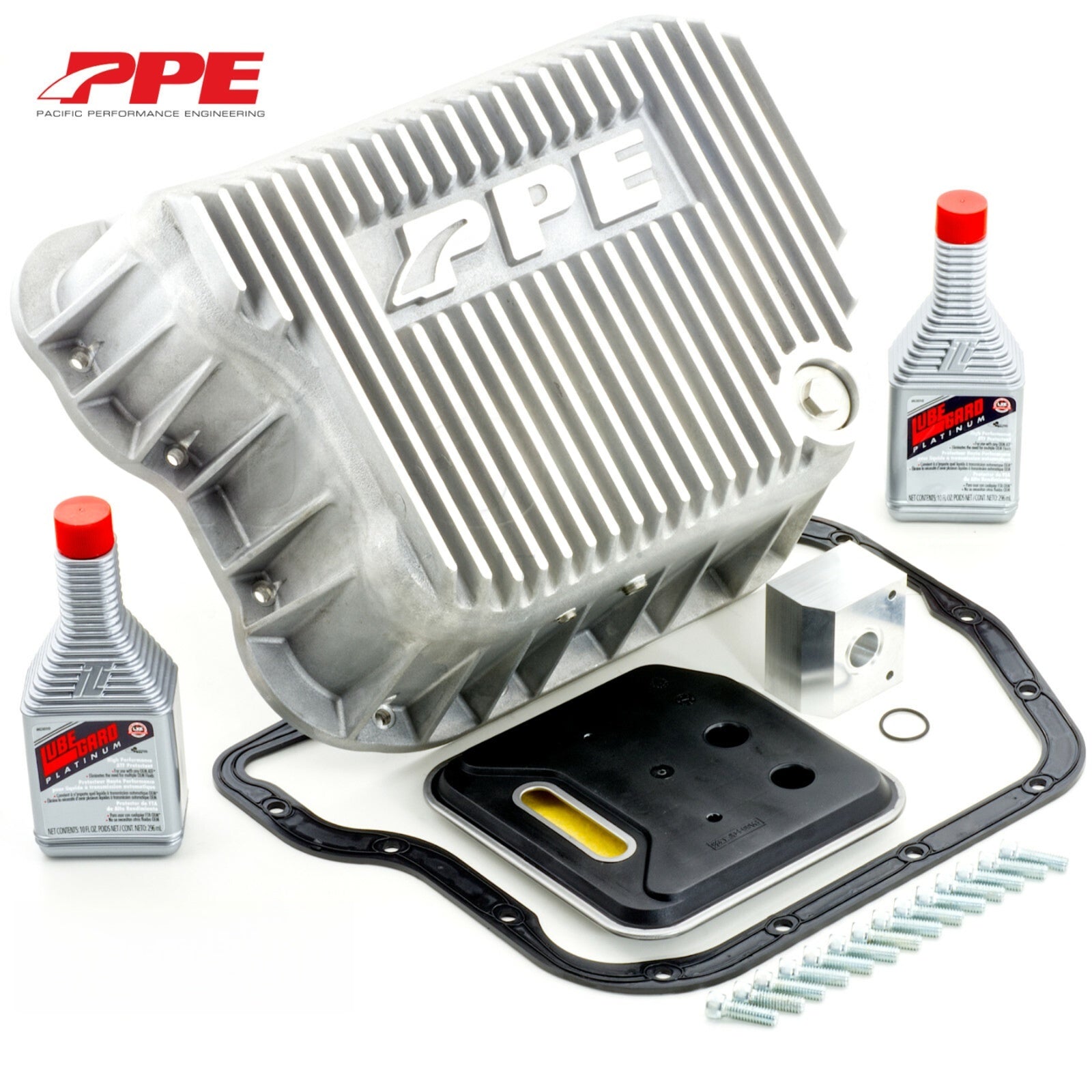

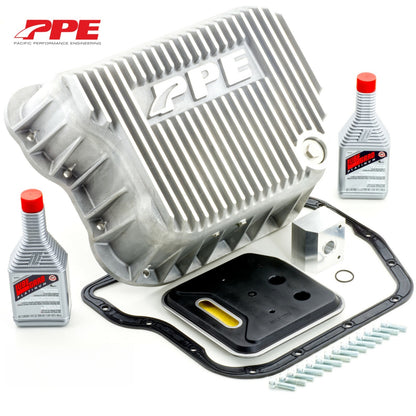

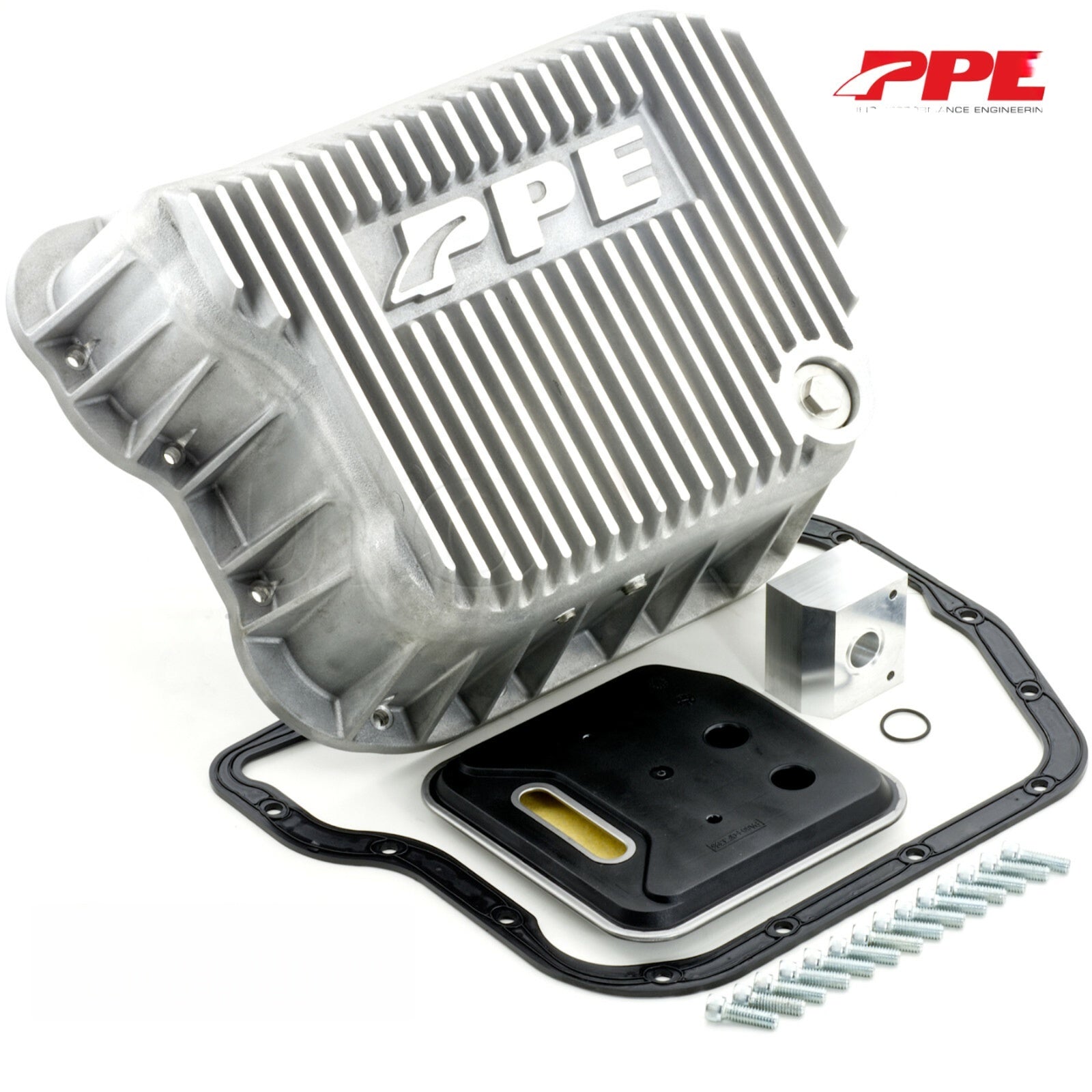

Includes Premium Bonded Pan Gasket and Latest Style Filter as pictured

Includes (2) 10oz LubeGard Platinum Fluid Protectant

Covered by a Limited Lifetime Warranty

Why More Fluid Matters:

Higher fluid volumes take longer to heat up, resulting in more stable transmission temperatures and extended transmission life.

PPE’s Heavy-Duty DEEP Transmission Pans hold an extra 4 quarts of fluid and are cast from high-strength aluminum for optimal heat dissipation.

Internal 1" and external 3/4" cooling fins help reduce operating temperatures by up to 40°F.

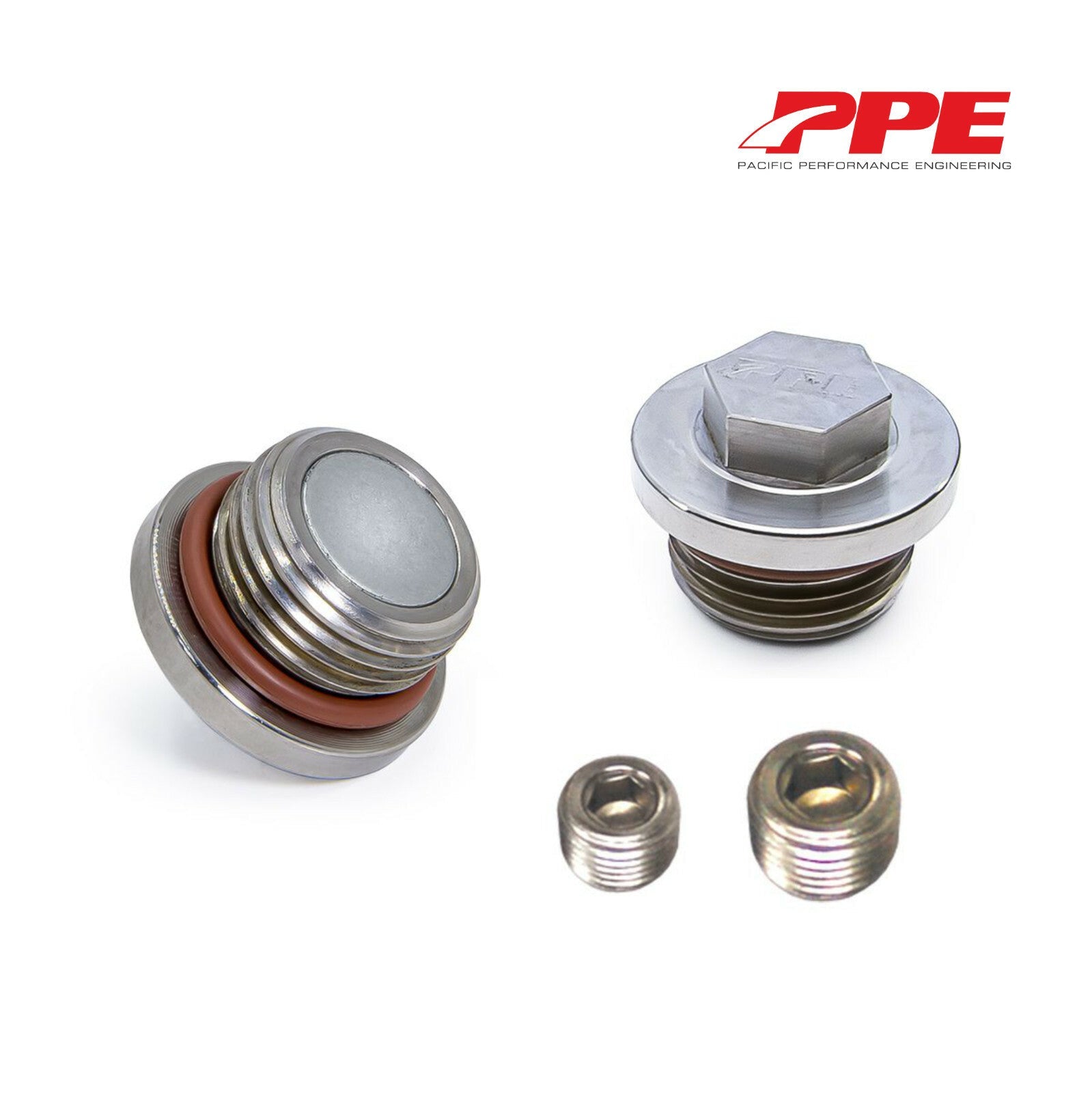

Includes a high-powered Neodymium magnet-equipped drain plug to trap harmful ferrous metal contaminants.

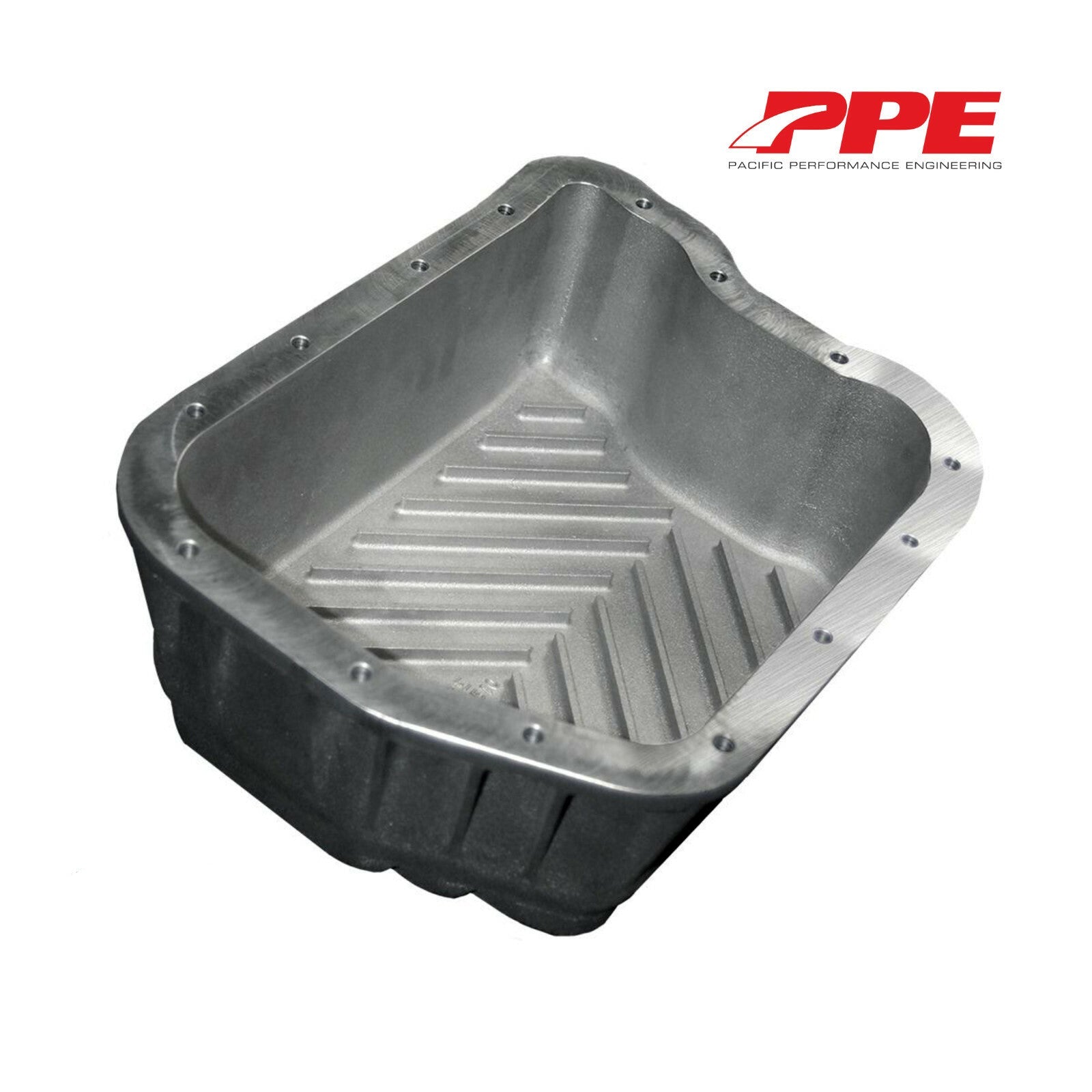

Built-in filter block keeps deep filters securely in place. Allen-head mounting bolts included.

Features:

• Stainless steel drain plug
• 1/8" and 1/4" NPT temperature access ports
• Robust side ribs for added strength
• Viton O-Ring sealed filter spacer block included
• Includes heavy-duty MP-15 gasket (for early models)
• 4 quarts additional fluid capacity
• Limited lifetime warranty

Applications:

• 1966–1989: 36RH, 37RH
• 1989–1995: 46RH, 47RH, A-518
• 1996–2001: 46RE, 47RE
• 2002–2007: 48RE
• All 727 transmission bodies to current
• All 5.9L Diesel engines

LubeGard Platinum ATF Protectant

High-Performance Automatic Transmission Fluid Protectant is a concentrated additive package infused with superior seal conditioners and friction modifiers. It restores additive content to used ATF and enhances new ATF for improved performance and smoother, more consistent shifting.

Safe for use with all ATF types including full synthetic, semi-synthetic, and conventional fluids.

Engineered to:

• Raise thermal and oxidative stability of ATF
• Prevent thinning, burning, and deposit formation at high temperatures
• Utilize proprietary Liquid Wax Esters (LXE®) for natural lubricity and high flash points (up to 570°F)
• Improve heat conductivity and suppress foaming
• Reduce transmission operating temperatures

Usage: 1 ounce per quart of ATF

Note: PPE Deep Pan adds 4 quarts capacity, bringing total to up to 17 quarts in 2003-up diesel applications
