Ford 5R110W Torqshift Transmission Tool: Bushing Driver Set Direct Drum 2003up

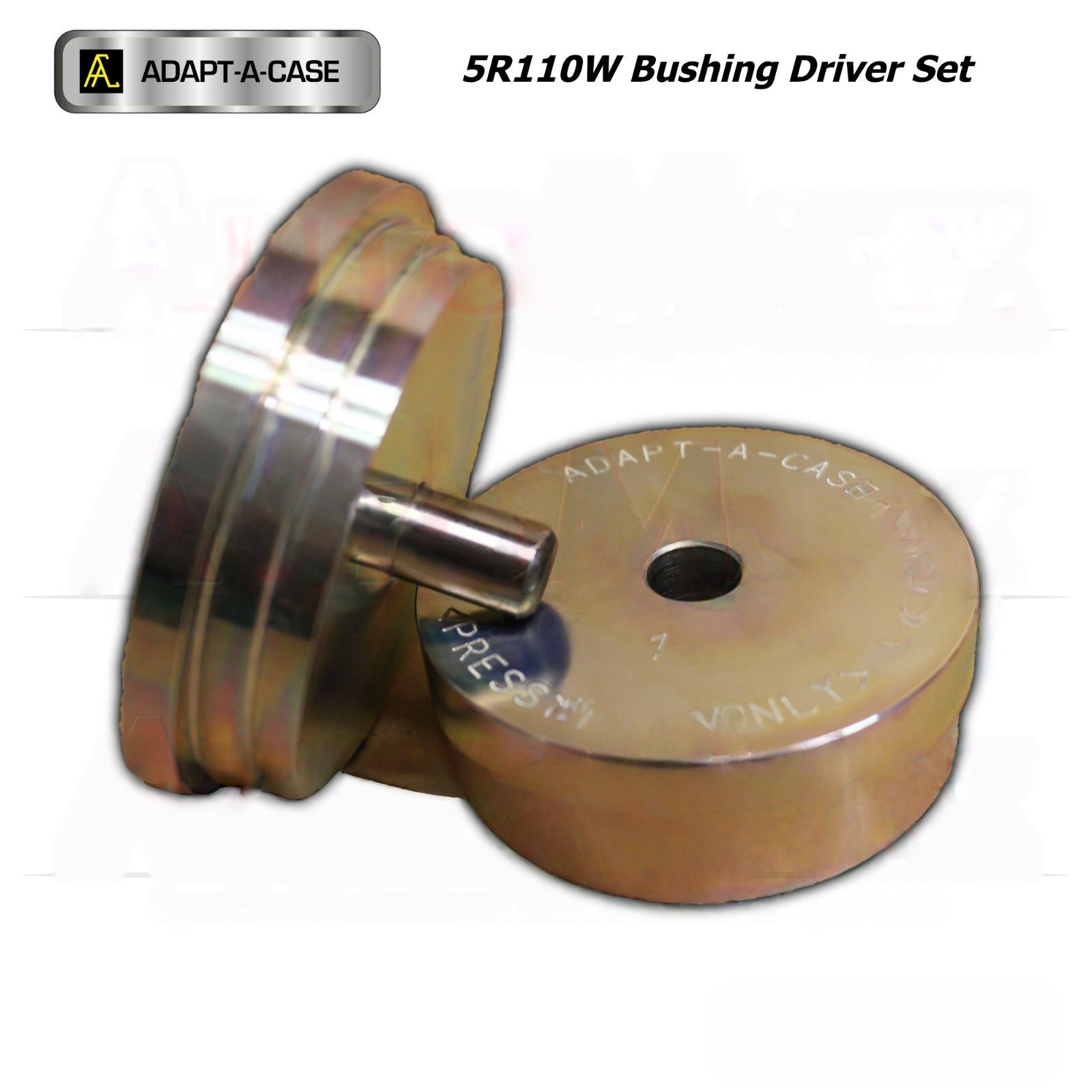

5R110W Torqshift Tool - Bushing Driver Set for Direct Drum NEW

Fits Gas and Diesel transmissions

2003-on 5R110W Torqshift

Adapt-A-Case # T-9009AC

-----------NO HAMMER!!!! ------ FOR USE IN PRESS ONLY!-----------

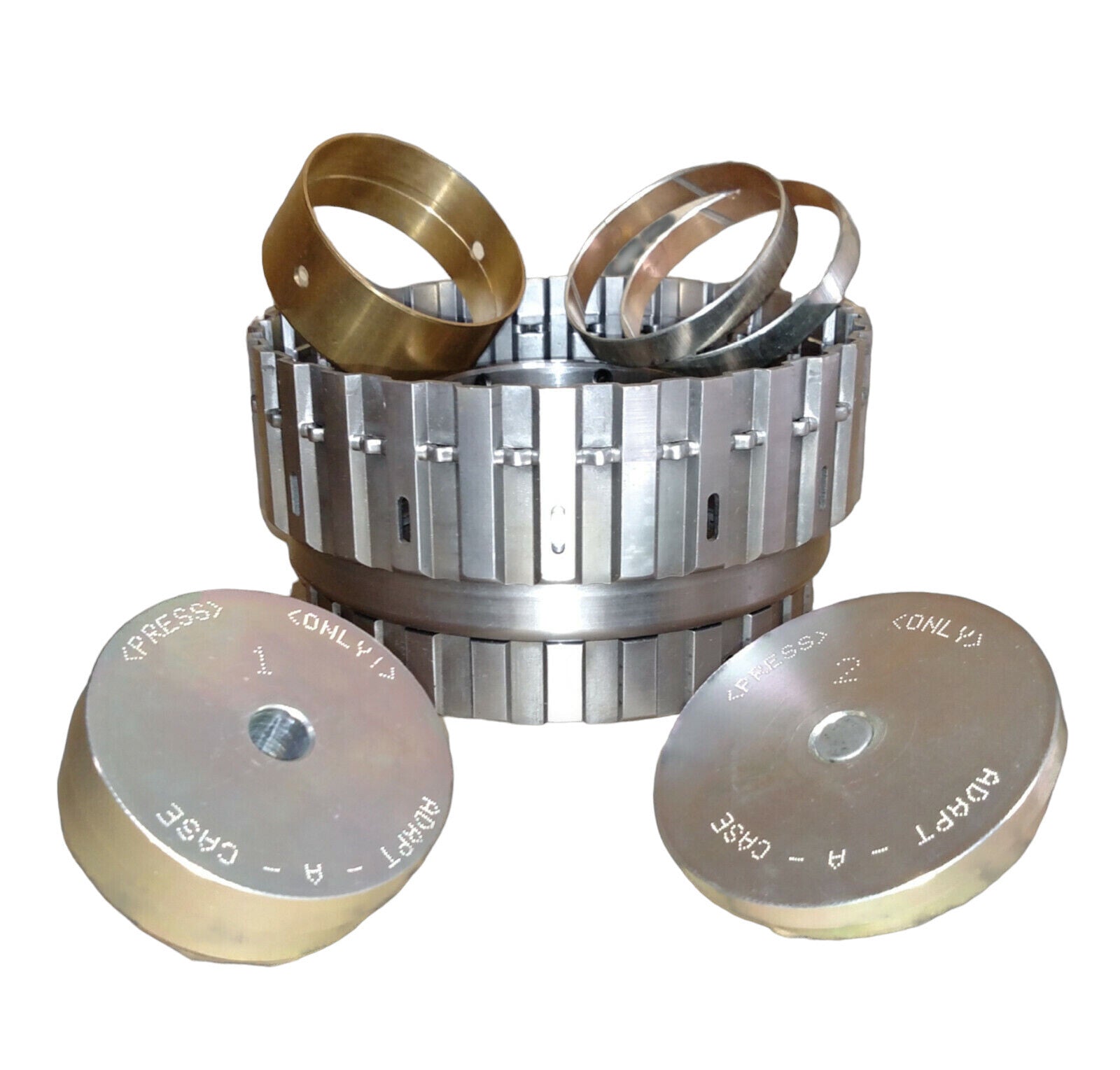

DRUM AND BUSHINGS IN PICTURE are for reference only - not included!

This driver set can be used on the 1 or 2 piece style direct drum bushings.

It is designed to easily install them to the proper depth.

1.) Use tool #1 to PRESS out old bushing(s). 1 or 2 piece design.

2.) Use tool #1 & #2 to install (PRESS) lower bushing. Tool #2 stops bushing at the proper depth.

3.) Before PRESSING one piece design bushing, make sure to align lube hole in bushing with lube hole in drum.

4.) Use tool #2 to PRESS 2nd bushing or to PRESS 1 piece bushing. Tool #2 provides positive stop for proper depth.

Proudly made in Grand Rapids, Michigan!
