Ford 5R110W Deep Transmission Pan HeavyDuty Cast Aluminum PPE 328051000 2003+

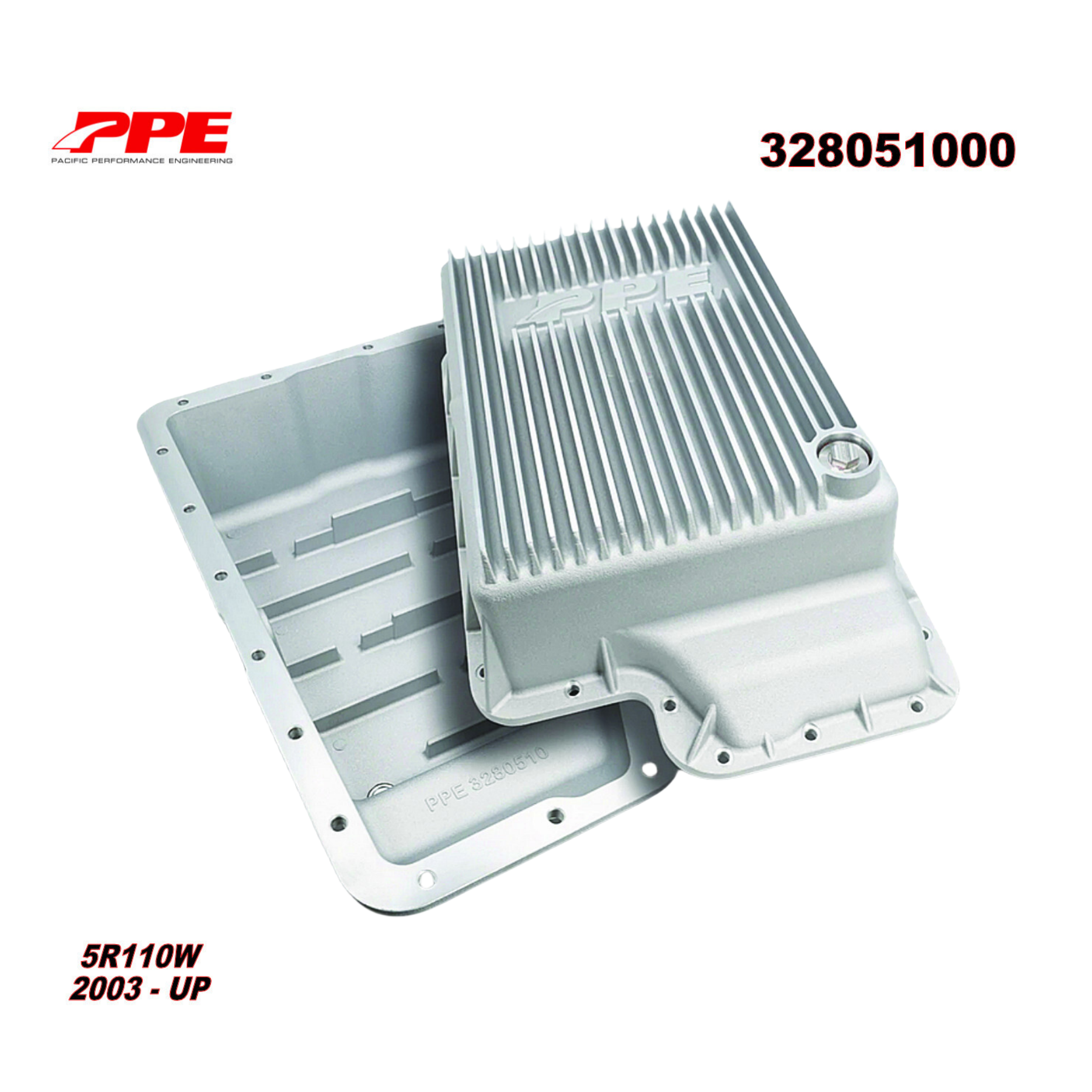

5R110W Deep Transmission Pan – Heavy-Duty Cast Aluminum

Fits Gas and Diesel transmissions

2003-on 5R110W Torqshift

Covered by a limited lifetime warranty.

Features:

• 6 quarts additional capacity
• Robust side ribs provide additional strength
• Billet stainless steel, 17mm hex, Neodymium-equipped drain plug
• 1/8 inch and 1/4 inch NPT temperature access ports
• Limited lifetime warranty

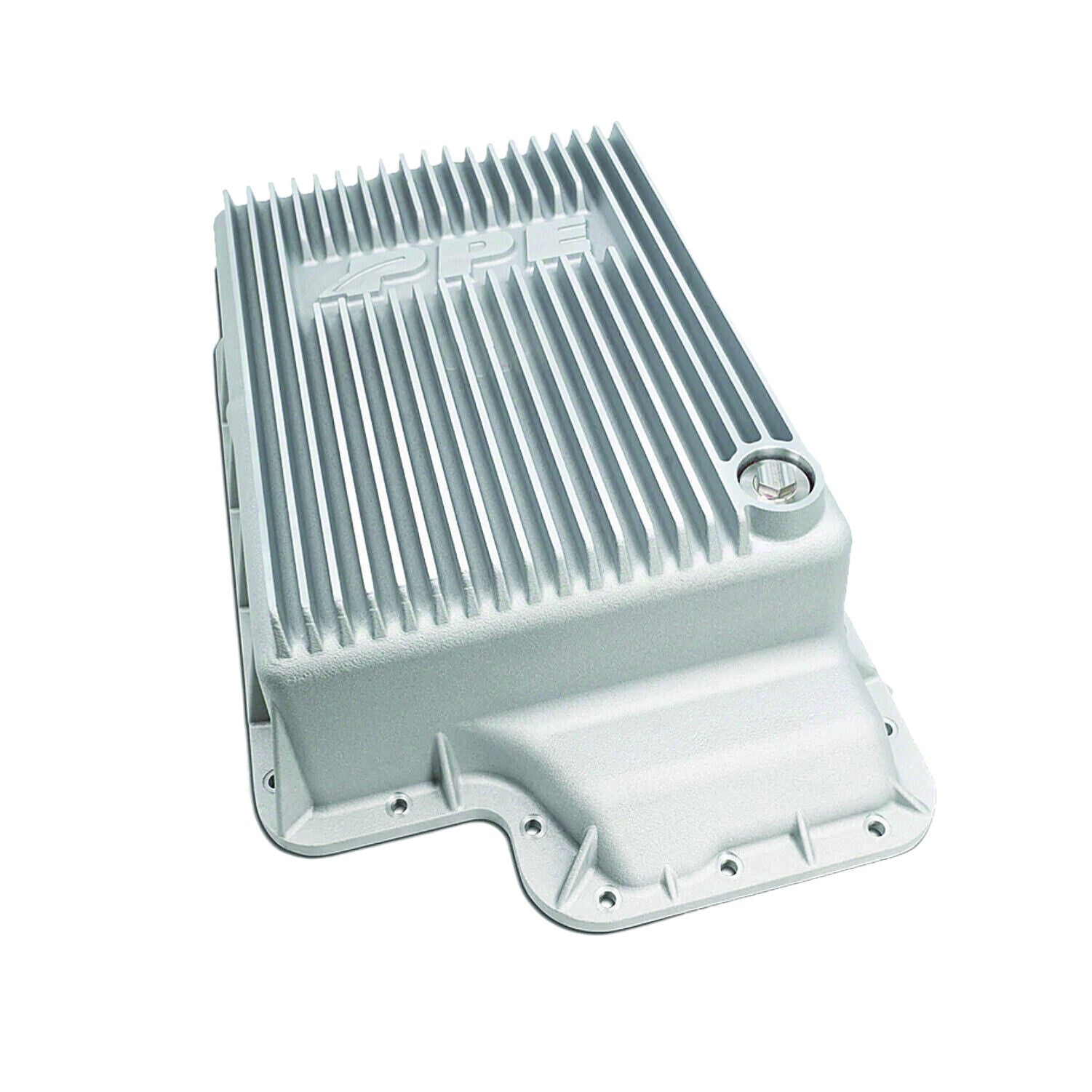

The new PPE Heavy-Duty DEEP Transmission Pan for the Ford 5R110 offers increased transmission fluid capacity, resulting in lower operating temperatures and extended transmission life. Cast from high-strength aluminum for optimal heat dissipation, this pan features internal baffles and external fins to transfer heat and keep your transmission running cool.

Also included is a PPE drain plug machined from stainless steel, featuring a 17mm hex fitting for easy installation and removal. The plug is equipped with a high-powered Neodymium magnet that extracts harmful ferrous metals from the fluid and is easy to clean during fluid changes.

New PPE Ford DEEP Transmission Pans are available in your choice of three finishes to match your build. Allen-head mounting bolts are included. Retains use of factory oil filter: Ford part number 3C3Z-7A098-AA.
