Ford 10R140 Transmission Master Rebuild Kit OEM Clutches Gaskets Pistons Filtr

Name: Ford 10R140 Transmission Master Rebuild Kit OEM Clutches Gaskets Pistons Filtr
Brand: Ford
SKU: E256826764447
Price: 1439.5 USD
Availability: OutOfStock

E256826764447

Out of stock

$1,439.50

Fully secure checkout
Trusted by thousands
Rated and reviewed

Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out

10R140 Ford Super Duty Transmission

Master Rebuild Kit from Ford

Fits 6.2L - 7.3L V8 Gas Trucks

2020-on 10R140

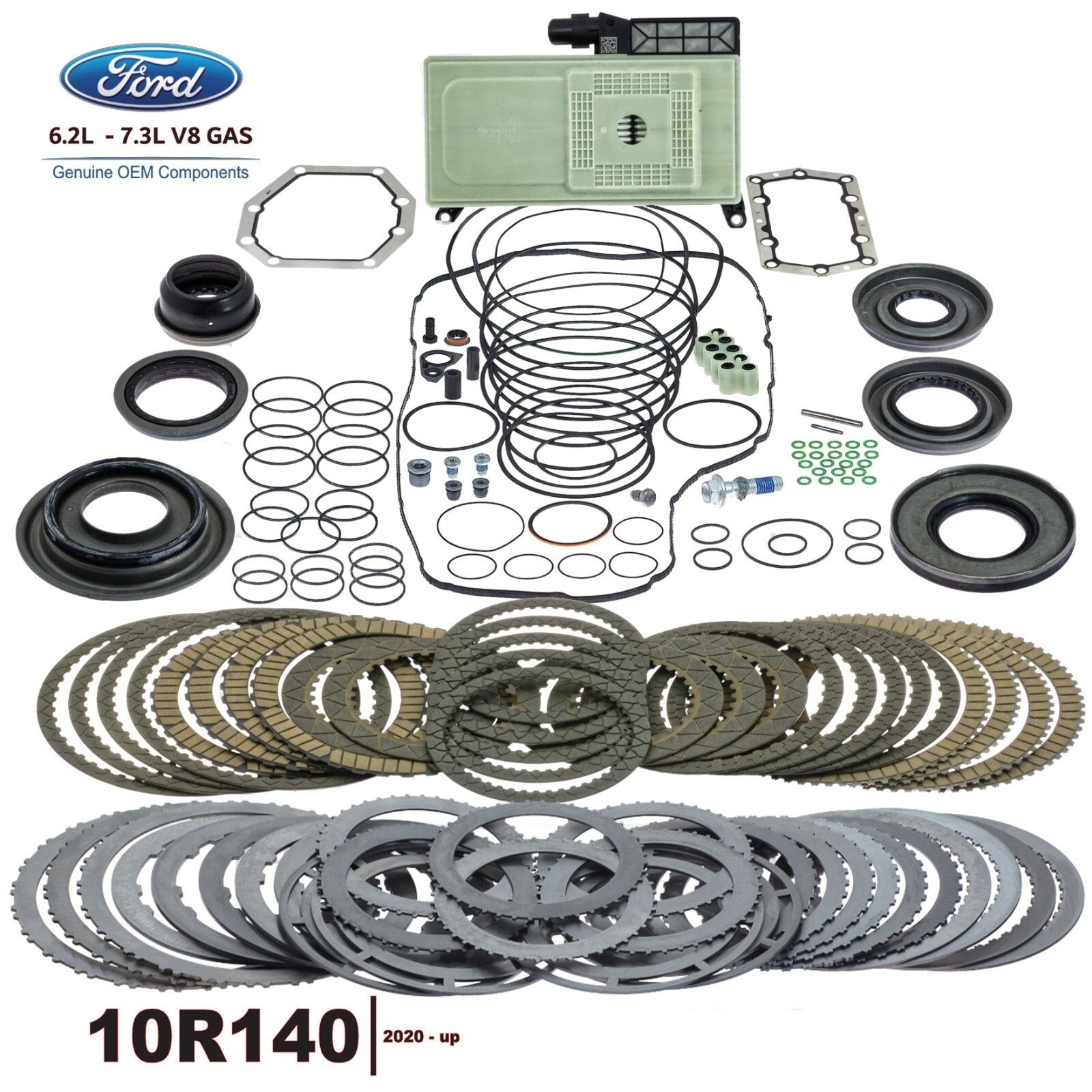

This Master Kit includes:

(1) Overhaul Kit
(1) OEM Friction Clutch Kit
(1) Raybestos (Allomatic) Steel Clutch Kit

Details:

Gasket Set - Overhaul Kit - Contains everything FoMoCo pictured!
2 Bonded Clutch Drum Pistons

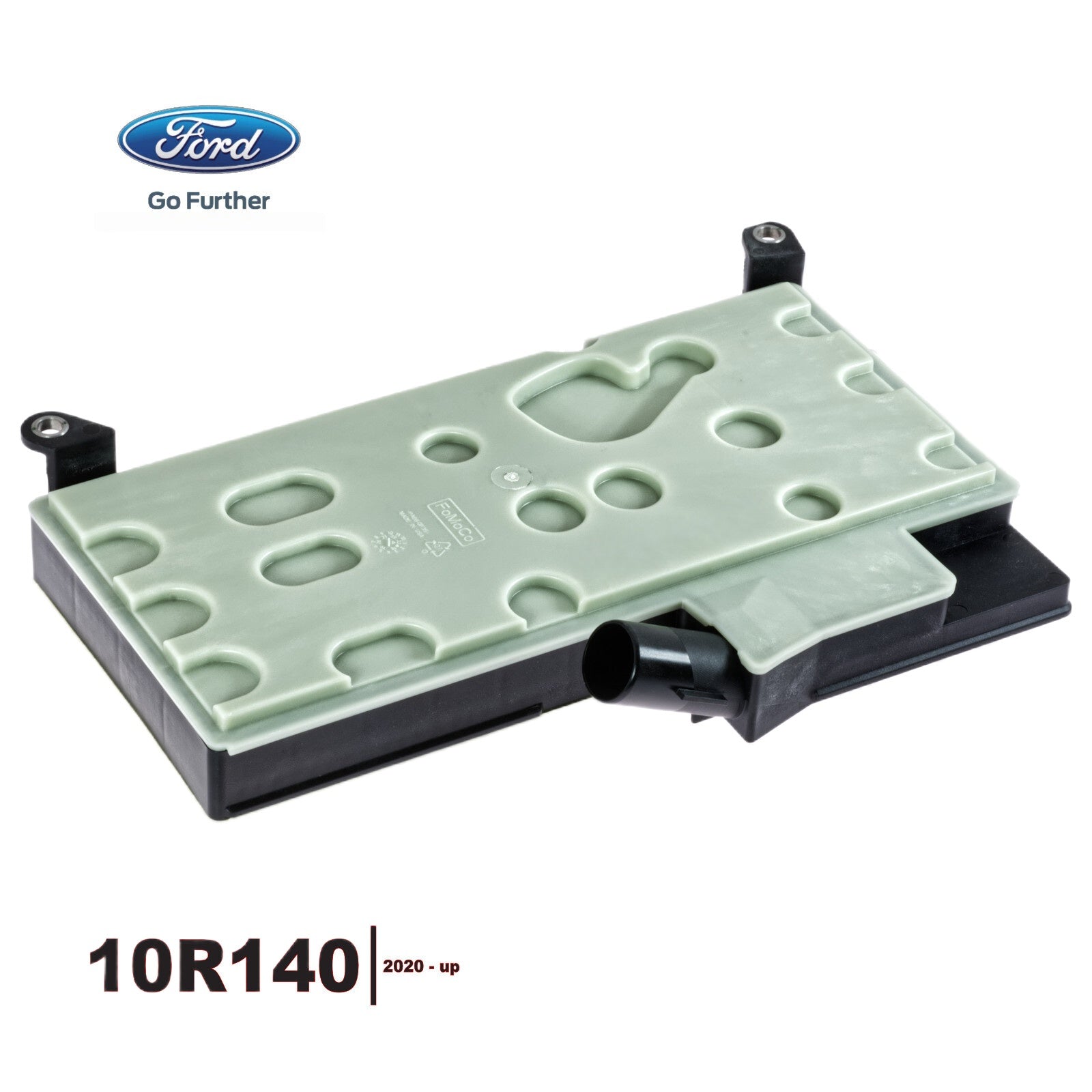

(1) Filter Assembly
Rubber Pan Seal/Gasket
Valve Body Seals Set
(4) Huge Metal-clad Seals
(1) Small Metal Clad Seal
Pump O-ring
Extension Housing O-ring
26-piece Sealing Ring Kit
Hardware: (5) Allen-Head plugs, (1) Hex-Head plug, (1) bolt, (2) Cotter Pins
Clutch Apply Piston Lip Seals
Small Parts Kit

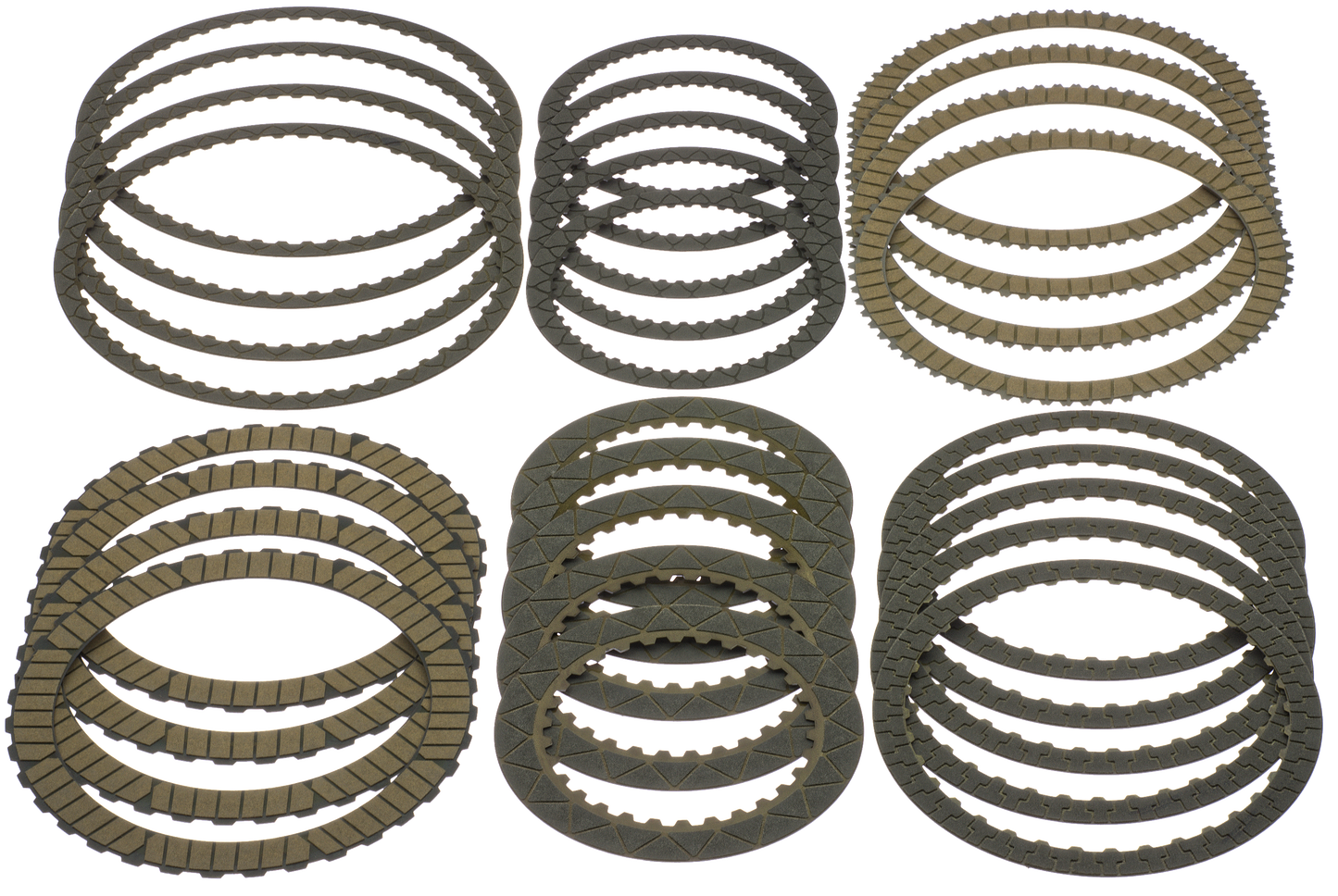

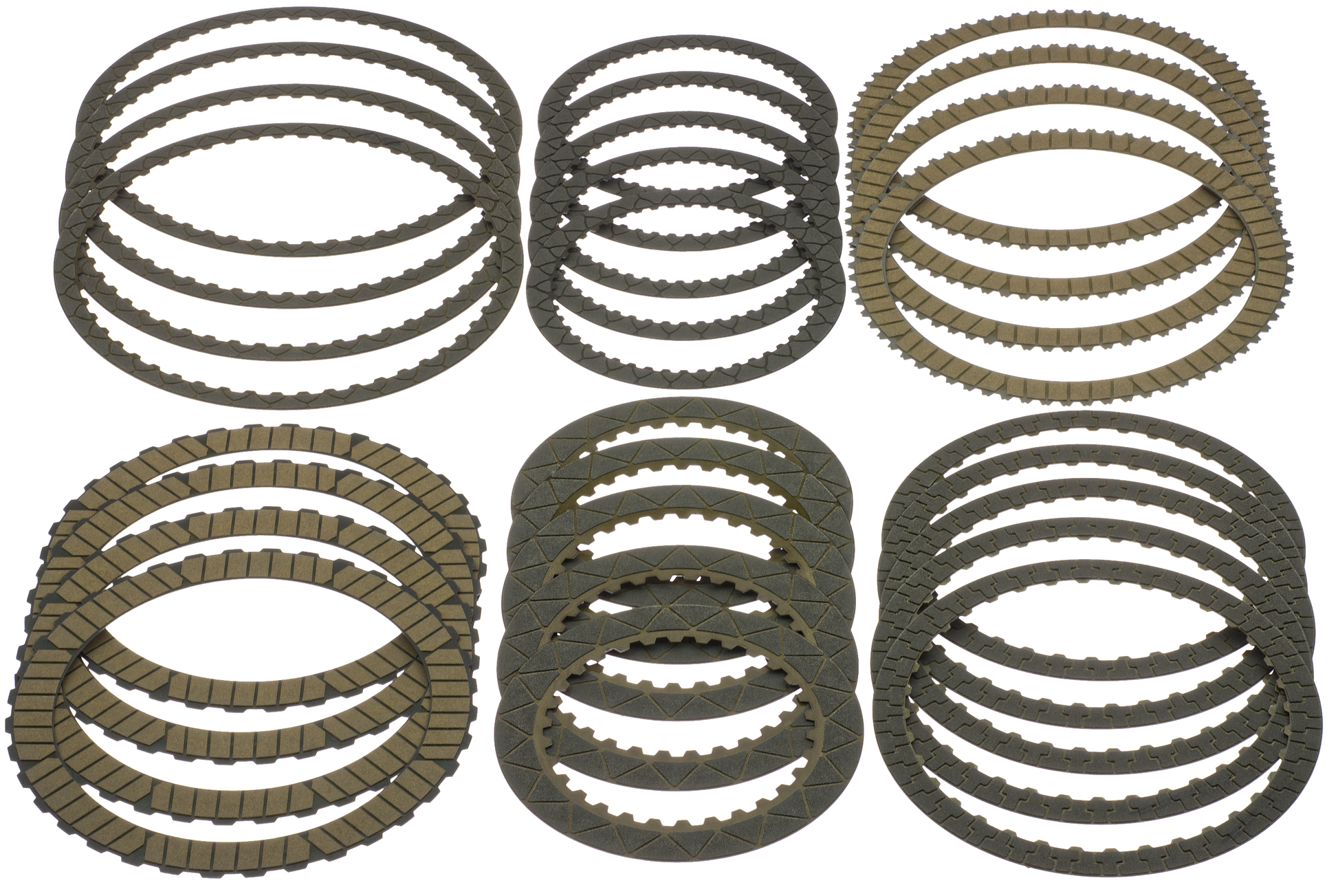

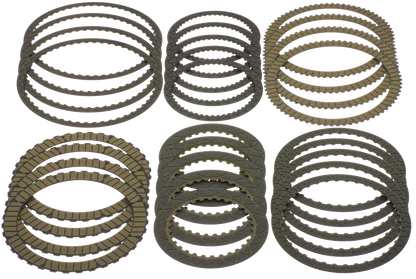

OEM Friction Clutch Plate Set

The Exact Friction Plates installed at the factory of your 2020-ON Ford Super Duty Truck w/ 10R140 transmission 6.2L-7.3L Gas V8 includes:

(4) A Brake (0.068"/1.73mm)(52T)(9.401" OD)
(5) B Brake (0.066"/1.68mm)(48T)(6.416" OD)
(5) C Clutch (0.084"/2.13mm)(36T)(7.695" OD)
(5) D Clutch (0.061"/1.55mm)(30T)(6.394" OD)
(4) E Clutch (0.081"/2.06mm)(36T)(6.482" OD)
(4) F Clutch (0.083"/2.11mm)(70T)(7.367" OD)

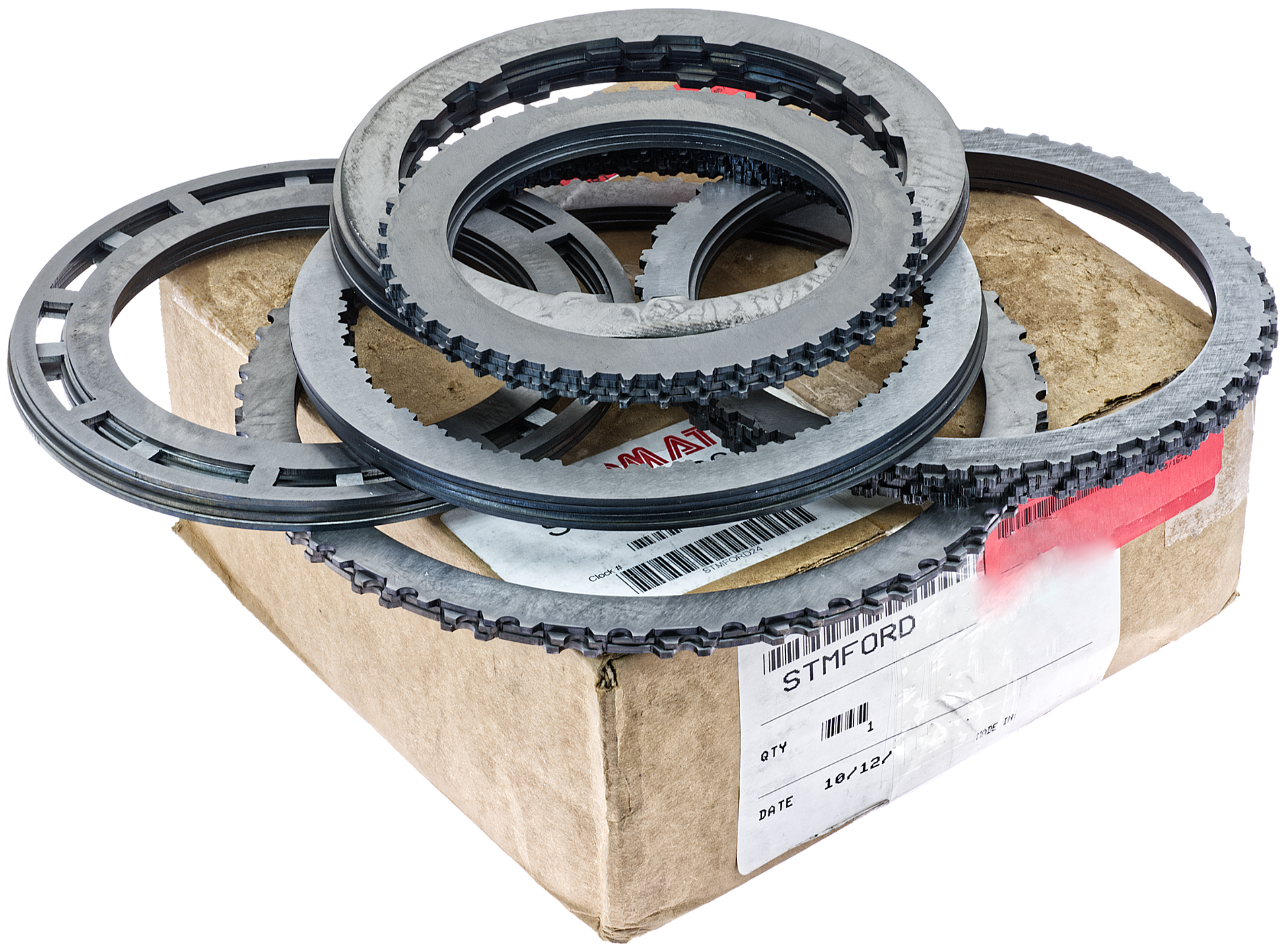

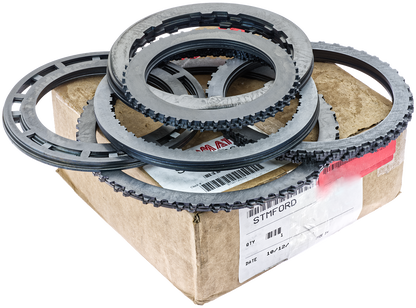

Raybestos (Allomatic) Steel Clutch Plate Set

Part No.: STMFORD21

Advantages:

OE thickness for maximum heat sink
Superior surface finish for greater apply area and friction clutch life
Meets or exceeds OE specifications for flatness and parallelism
Flawless fit without binding
Better shift performance and clutch durability
Made in USA

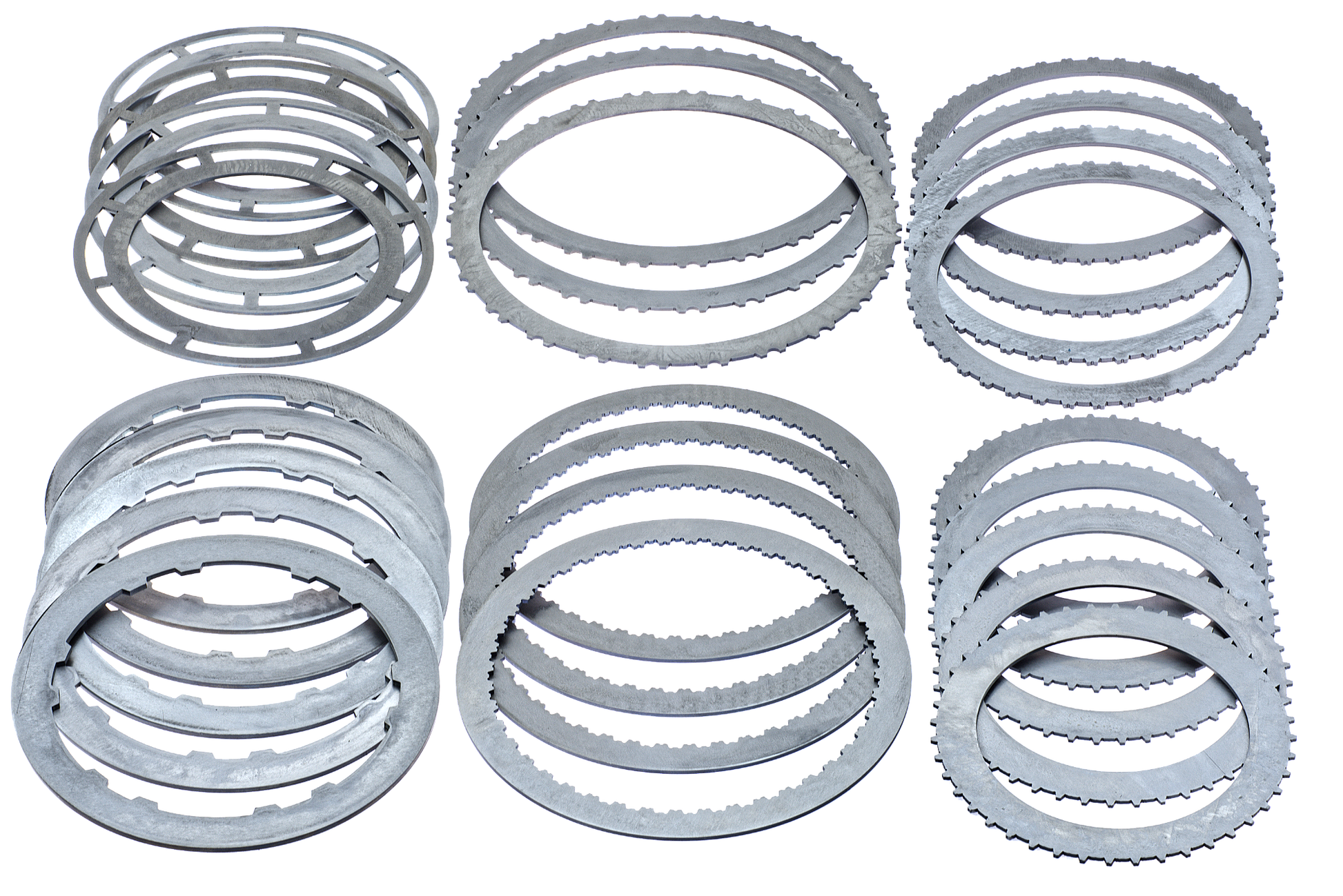

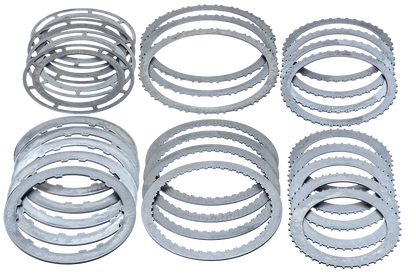

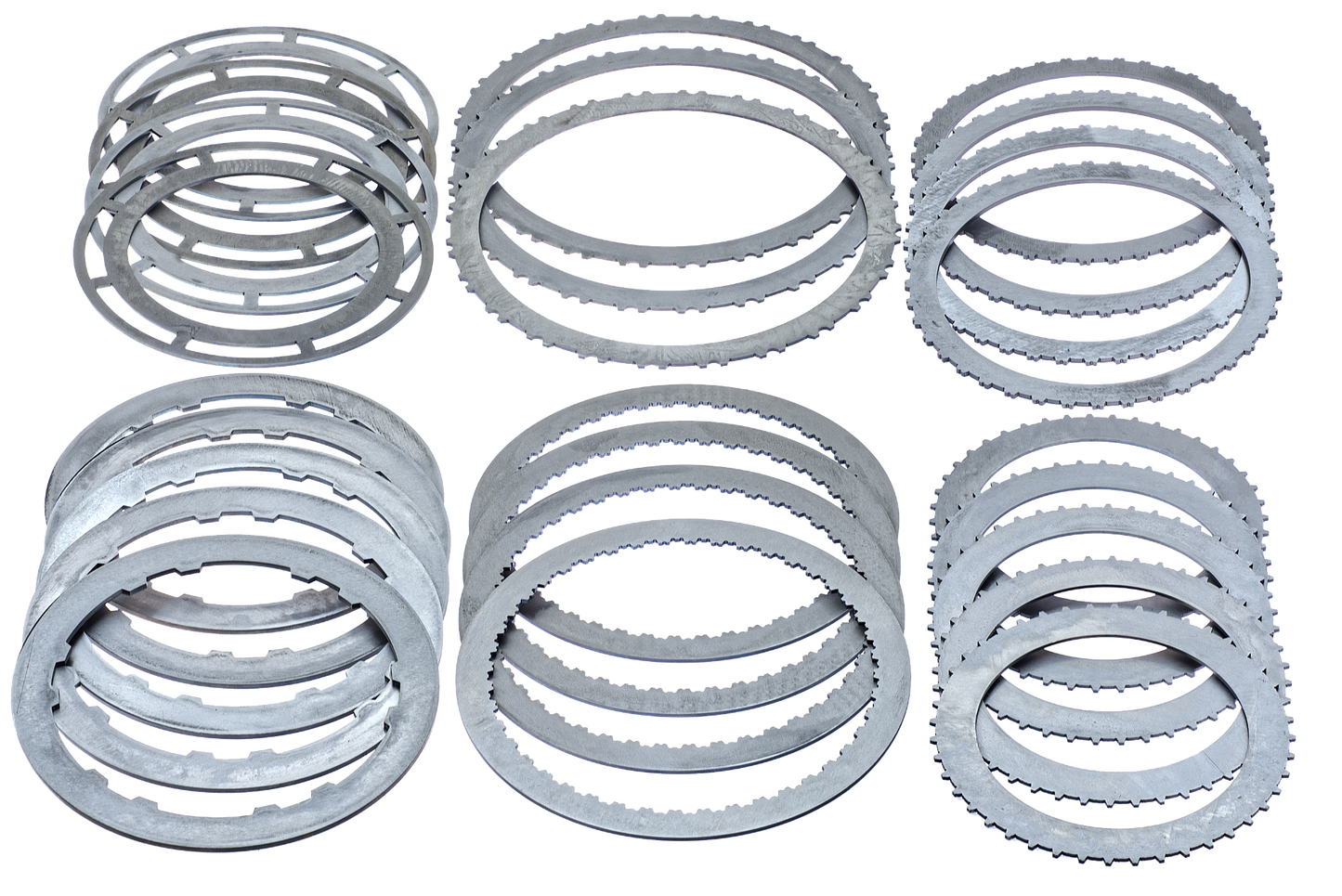

Raybestos Steel Plate Specs:

(3) 5111324 A Brake (0.100"/2.54mm)(24T)(8.537" ID)
(4) 5111326 B Brake (0.101"/2.57mm)(8 Cutouts/T)(5.400" ID)
(6) 5111328 C Clutch (0.100"/2.54mm)(40T)(6.640" ID)
(6) 5111329 D Clutch (0.068"/1.73mm)(44T)(4.963" ID)
(5) 5111330 E Clutch (0.138"/3.51mm)(12/18T)(4.963" ID)
(4) 5111332 F Clutch (0.094"/2.39mm)(44T)(8.559" ID)

Premium Steel:

Raybestos Powertrain steel clutch plates are high quality, application-engineered products at a price you can afford. Manufactured with attention to critical tolerances and quality control, our steel plates meet or exceed OE specifications and have a superior surface finish that supplies a greater apply area and friction clutch life. Raybestos steel plates give better shift performance and clutch durability, lowering noise and shudder, extending the life of your transmission.
