Ford 10R140 Transmission Master Rebuild Kit OEM Clutches Gaskets Pistons Filtr

10R140 Ford Super Duty Transmission

Master Rebuild Kit from Ford

Fits Gas and Diesel

2020-on 10R140

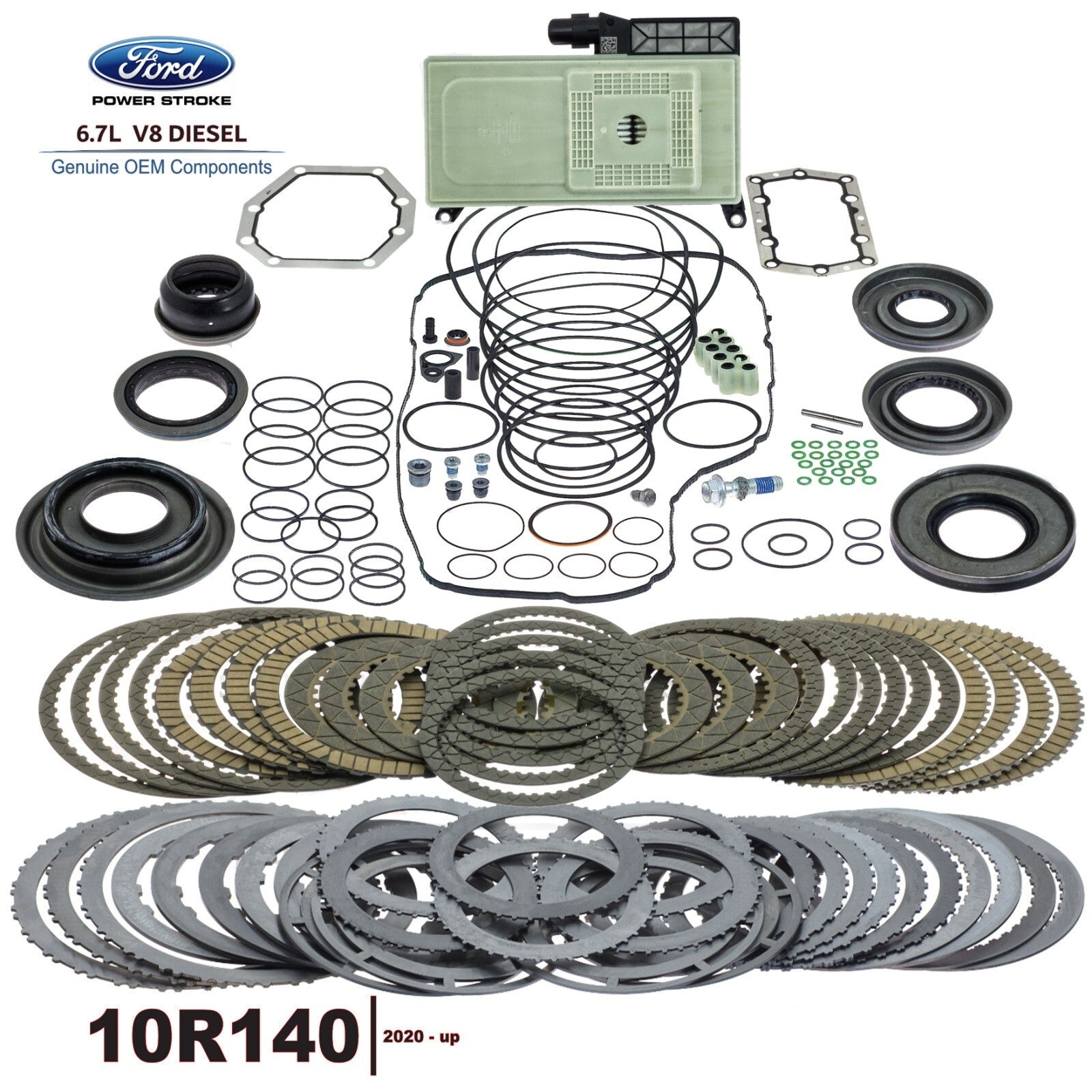

This Master Kit Includes:

• (1) Overhaul Kit
• (1) OEM Friction Clutch Kit
• (1) Raybestos (Allomatic) Steel Clutch Kit

Details:

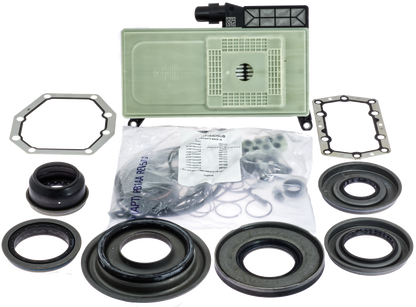

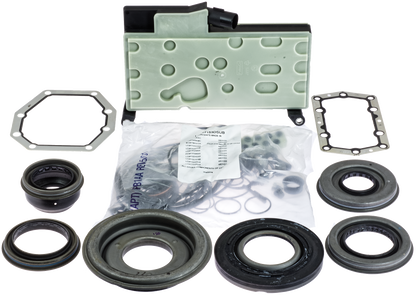

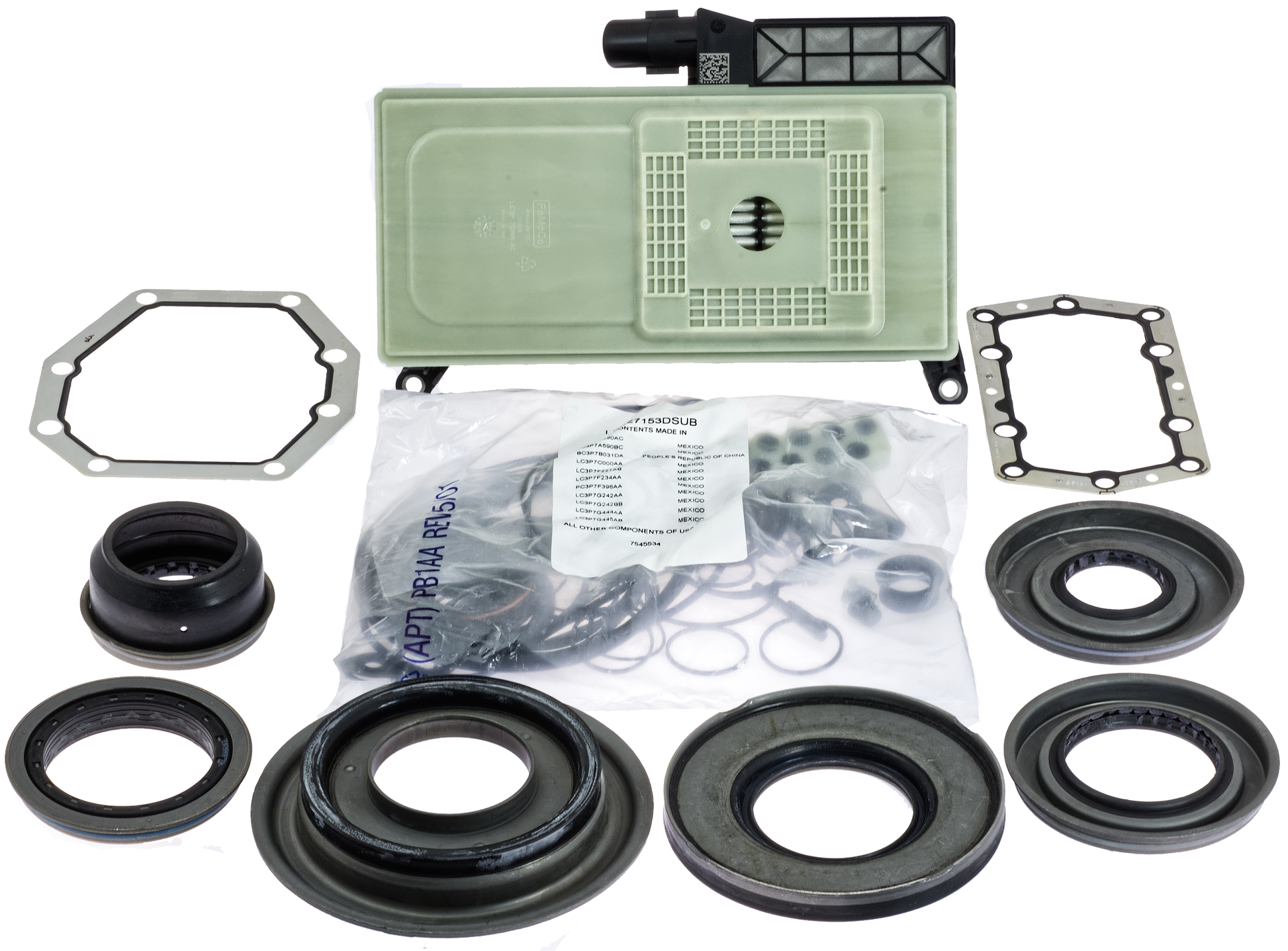

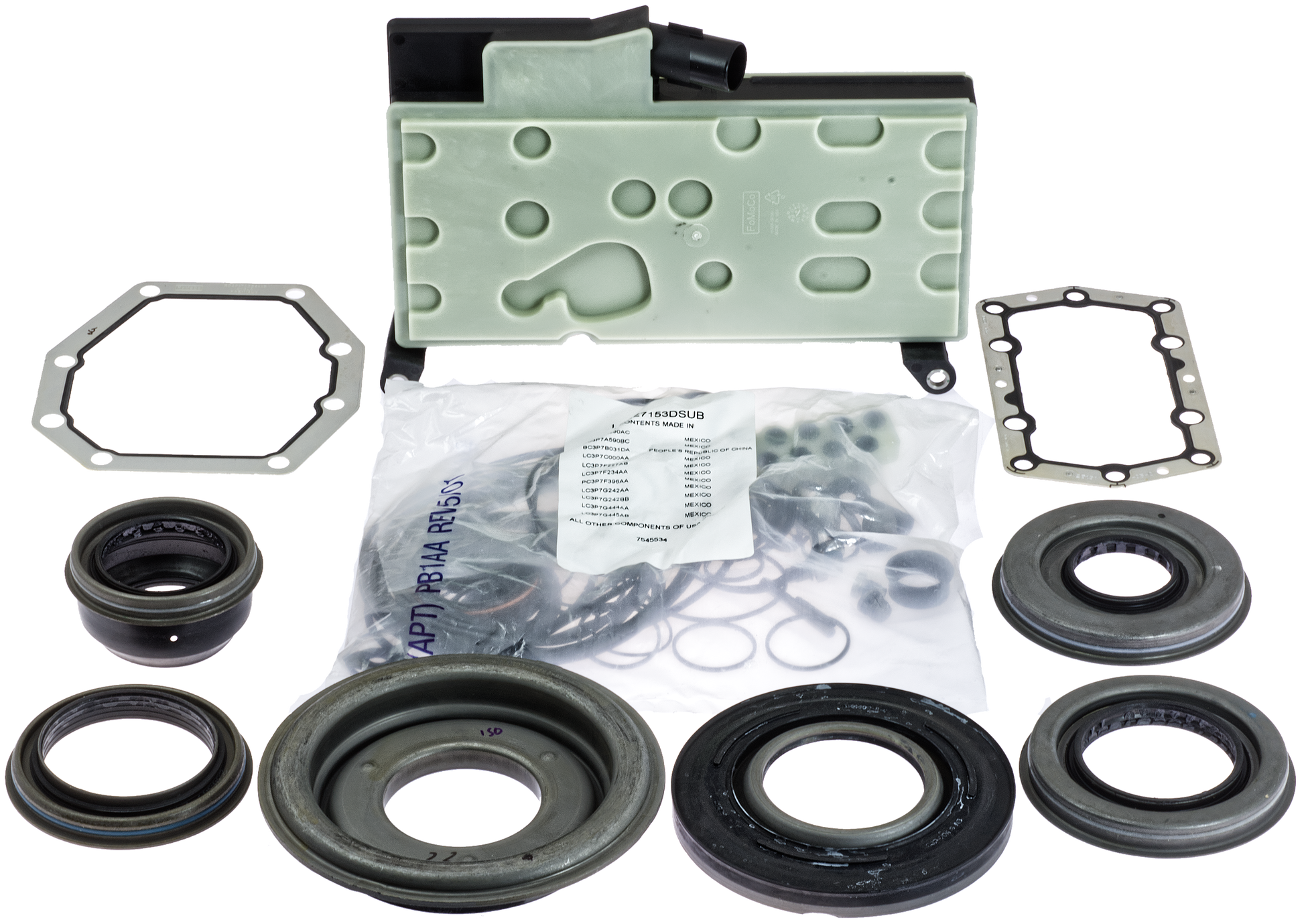

• Gasket Set - Overhaul Kit - Contains everything FoMoCo pictured!
• 2 Bonded Clutch Drum Pistons
• (1) Filter Assembly
• Rubber Pan Seal/Gasket
• Valve Body Seals Set
• (4) Huge Metal-clad Seals
• (1) Small Metal Clad Seal
• Pump O-ring
• Extension Housing O-ring
• 26-piece Sealing Ring Kit
• Hardware: (5) Allen-Head plugs, (1) Hex-Head plug, (1) bolt, (2) Cotter Pins
• Clutch Apply Piston Lip Seals
• Small Parts Kit

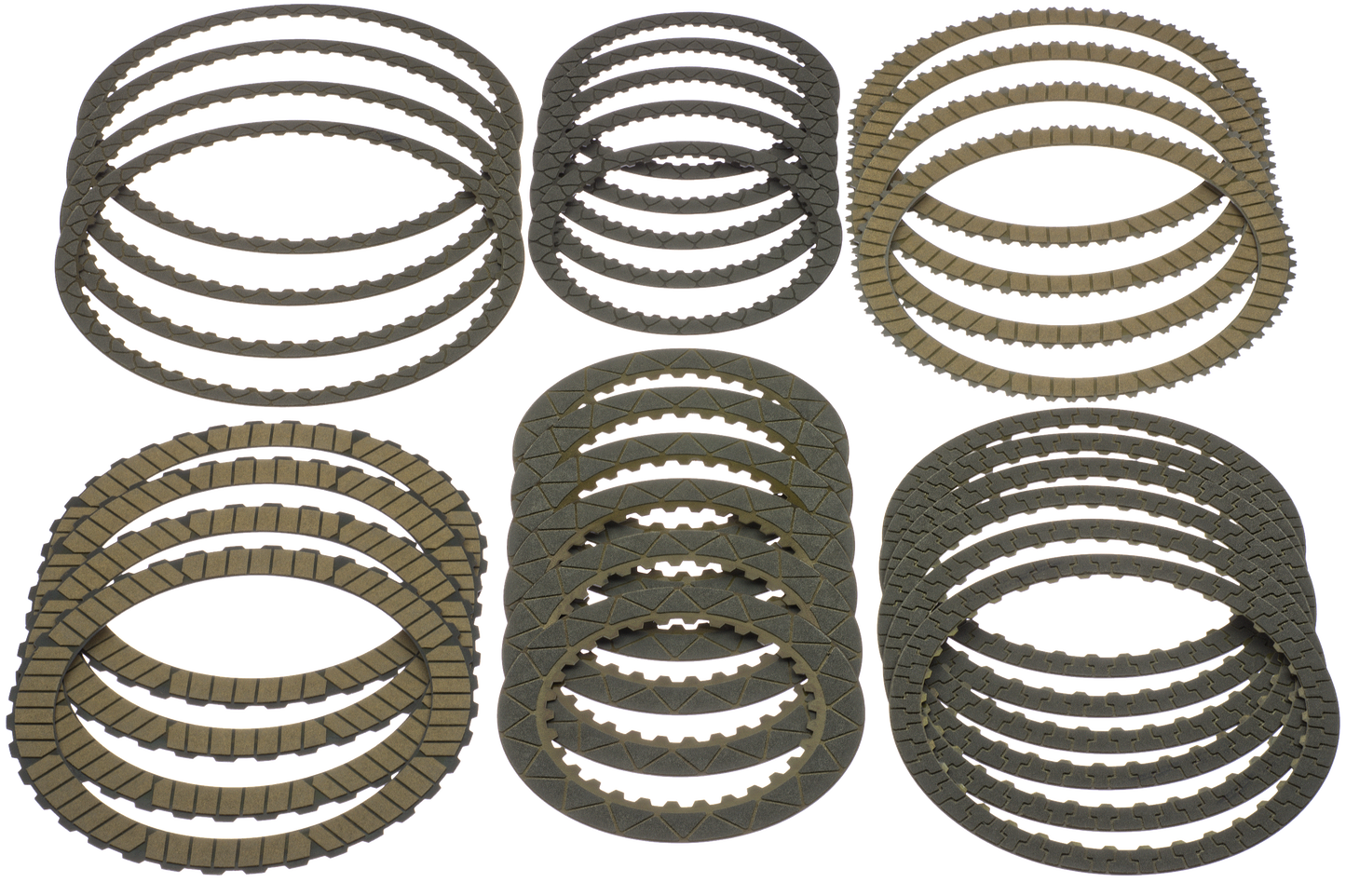

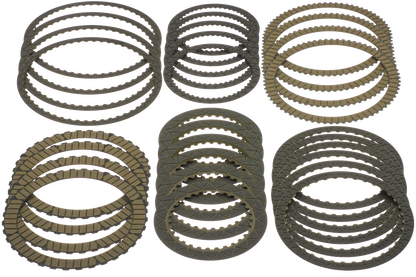

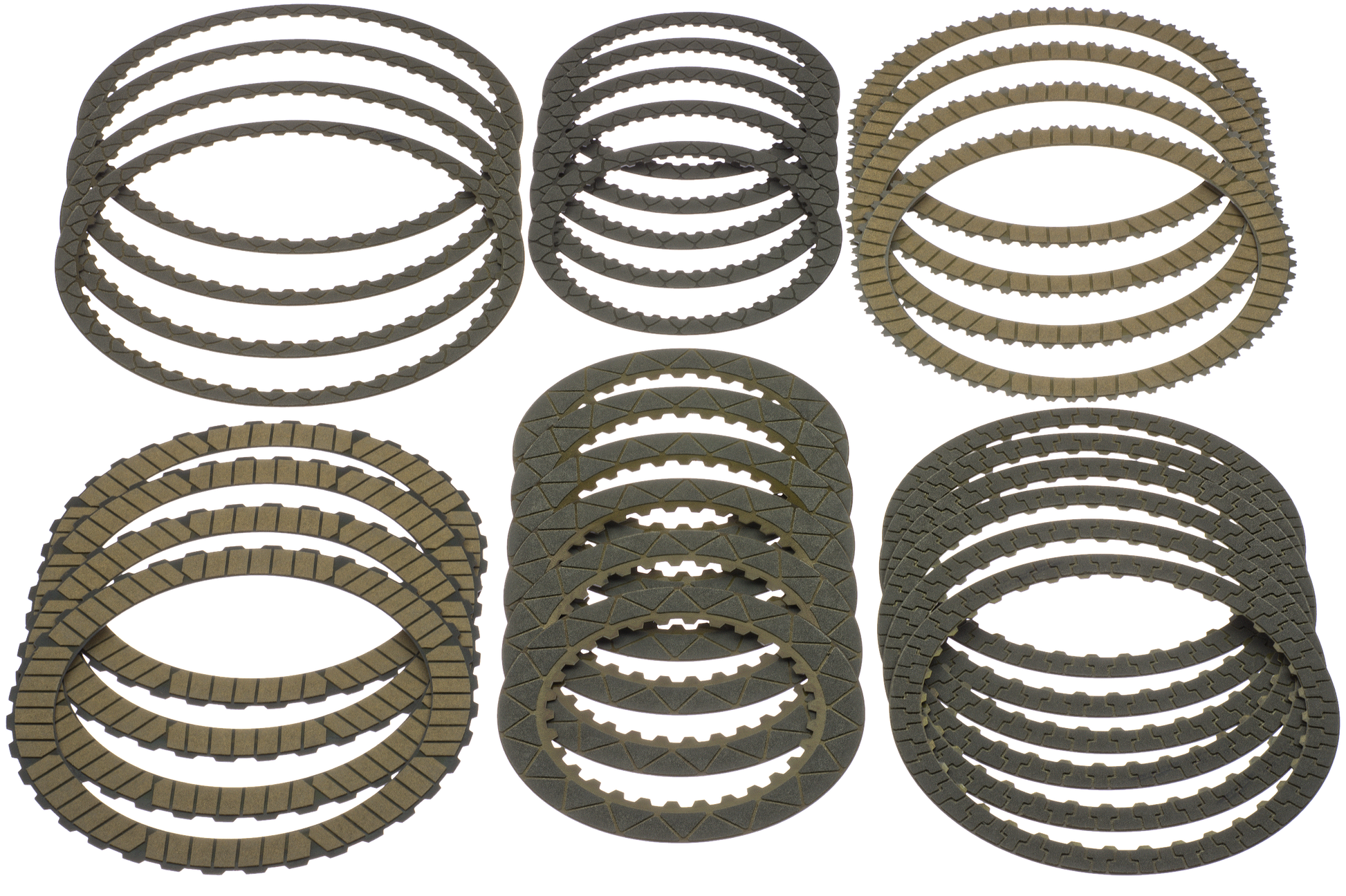

OEM Friction Clutch Plate Set

The Exact Friction Plates installed at the factory of your 2020-ON Ford Super Duty Truck w/ 10R140 transmission 6.7L Diesel includes:

• (4) A Brake (0.068"/1.73mm)(52T)(9.401" OD)
• (5) B Brake (0.066"/1.68mm)(48T)(6.416" OD)
• (6) C Clutch (0.084"/2.13mm)(36T)(7.695" OD)
• (6) D Clutch (0.061"/1.55mm)(30T)(6.394" OD)
• (4) E Clutch (0.081"/2.06mm)(36T)(6.482" OD)
• (4) F Clutch (0.083"/2.11mm)(70T)(7.367" OD)

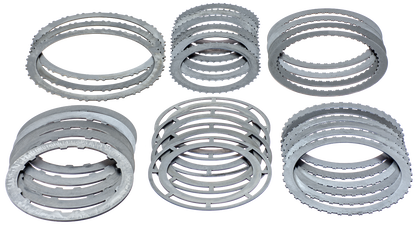

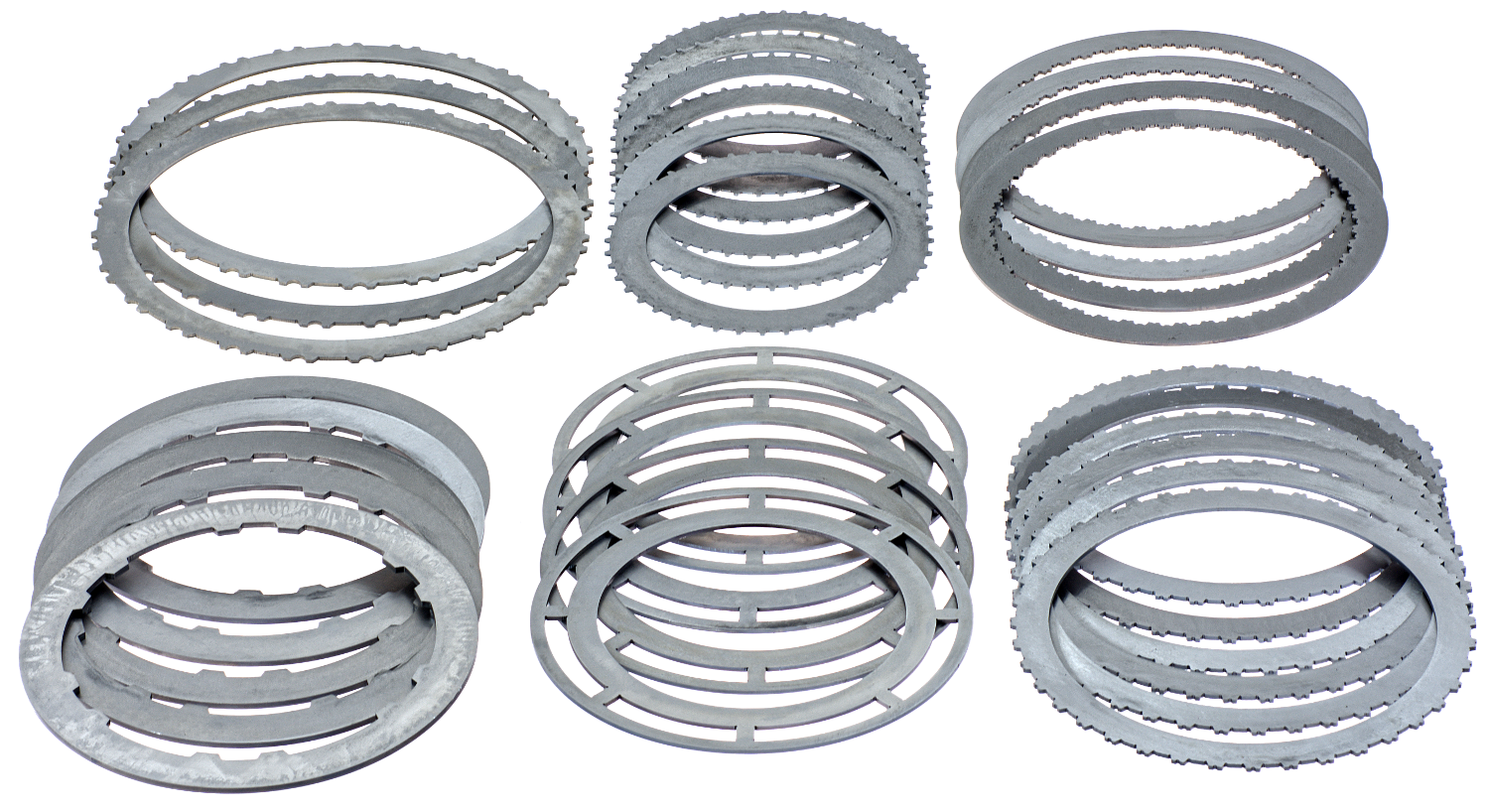

Raybestos (Allomatic) Steel Clutch Plate Set

Part No.: STMFORD21

Advantages:

• OE thickness for maximum heat sink
• Superior surface finish for greater apply area and friction clutch life
• Meets or exceeds OE specifications for flatness and parallelism
• Flawless fit without binding
• Better shift performance and clutch durability
• Made in USA

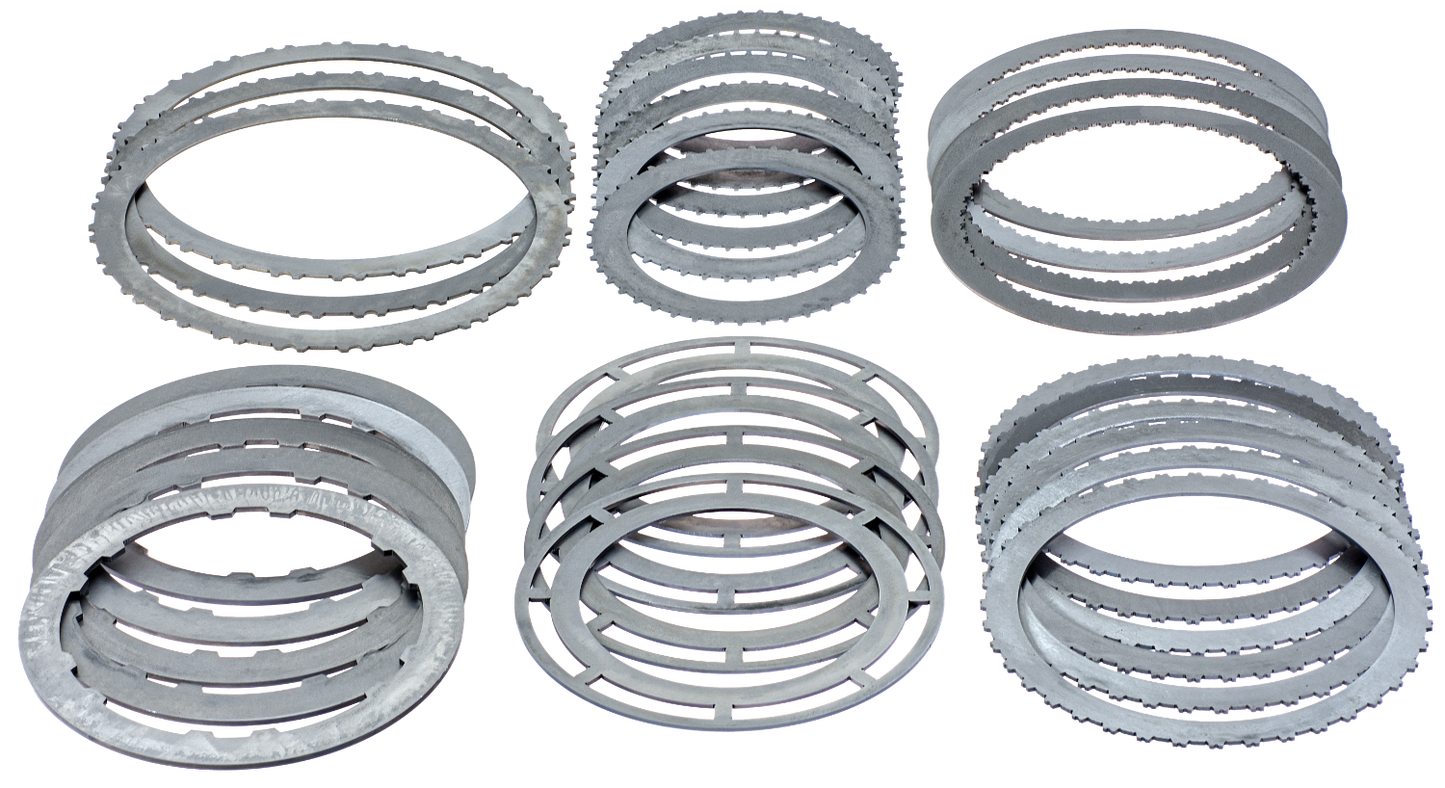

Raybestos Steel Plate Specs:

• (3) 5111324 A Brake (0.100"/2.54mm)(24T)(8.537" ID)
• (4) 5111326 B Brake (0.101"/2.57mm)(8 Cutouts/T)(5.400" ID)
• (6) 5111328 C Clutch (0.100"/2.54mm)(40T)(6.640" ID)
• (6) 5111329 D Clutch (0.068"/1.73mm)(44T)(4.963" ID)
• (5) 5111330 E Clutch (0.138"/3.51mm)(12/18T)(4.963" ID)
• (4) 5111332 F Clutch (0.094"/2.39mm)(44T)(8.559" ID)

Premium Steel:

Raybestos Powertrain steel clutch plates are high quality, application-engineered products at a price you can afford. Manufactured with attention to critical tolerances and quality control, our steel plates meet or exceed OE specifications and have a superior surface finish that supplies a greater apply area and friction clutch life. Raybestos steel plates give better shift performance and clutch durability, lowering noise and shudder, extending the life of your transmission.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Recommended Use:

6.7L Diesel F-250, F-350, F-450, F-550 heavy-duty, commercial, towing and high-stress driving enhanced performance applications with a 10R140 transmission.
