fits Ram 200725 68RFE Transmission 6.7 Cummins Diesel Performance Cooling Pack

DODGE RAM 68RFE PERFORMANCE COOLING COMBO

FITS 2007–2025

6.7L CUMMINS DIESEL PICK-UP TRUCKS

Hyper-effective cooling for your hard-working rigs!

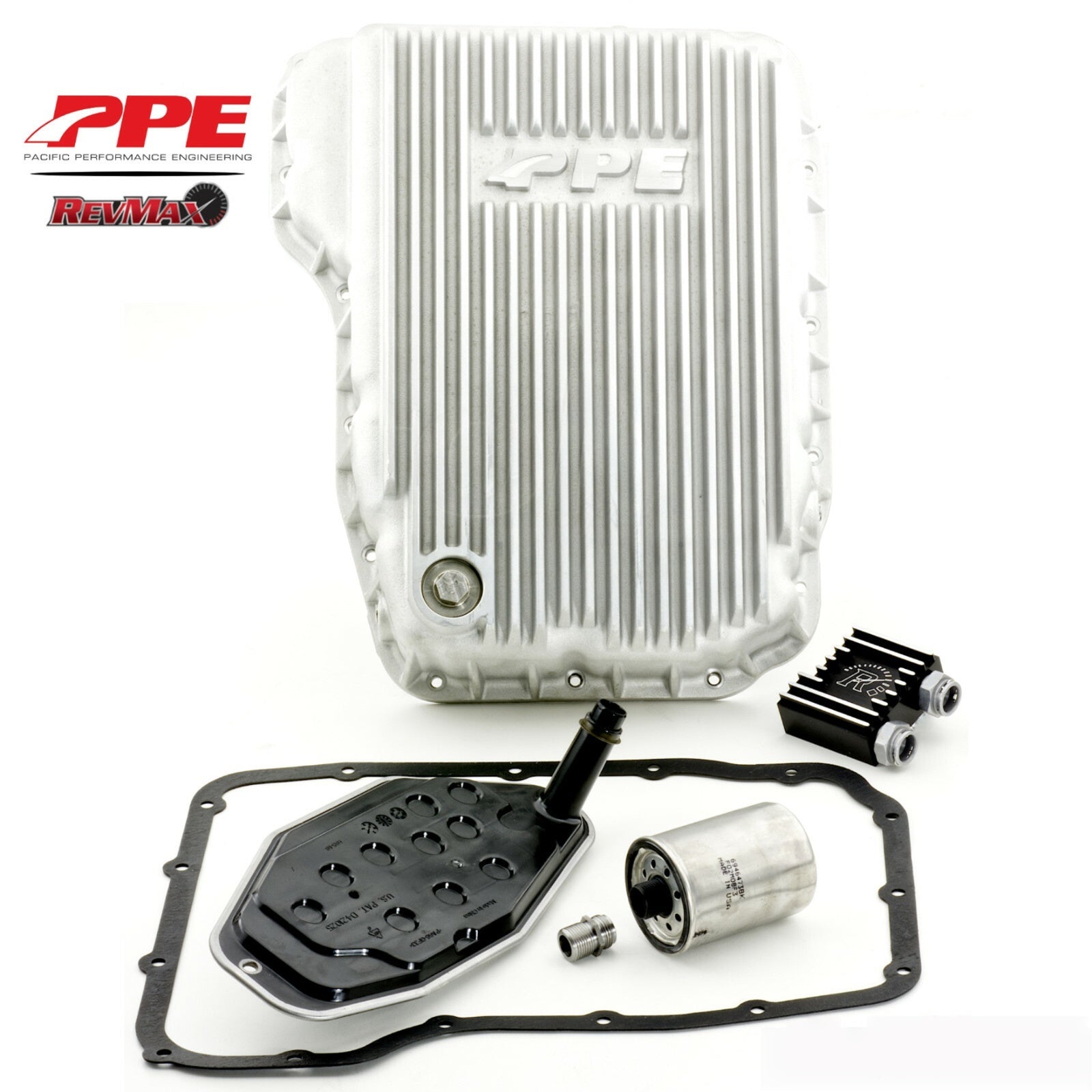

This combo listing includes:

• (1) PPE Performance Deep Aluminum Pan with internal Heat Sink
• (1) RevMaxx Hi-flow Thermal Bypass
• (1) RevMaxx Billet Filter Screw Fitting
• (1) OE Spin-on Filter
• (1) Deep-pan Main Filter to Match Pan
• (1) Highest Quality Farpak Fiber Pan Gasket

So, what's so great about this setup???

Features of the above:

• High-grade A356.0-T6 heat-treated cast aluminum alloy
• Increases fluid capacity by 3 quarts
• ¾" external fins improve heat dissipation and housing strength
• 1" internal baffles reduce sloshing and enhance cooling
• Neodymium-magnet-equipped 304 stainless steel drain plug with Viton O-ring
• Dual NPT ports (1/8" and 1/4")
• Gussets for added support and durability
• Compatible with OEM gasket and PPE Premium Filter (228052150)
• Limited lifetime warranty

PPE Deep Pan – Brushed Aluminum Fins

PPE’s new transmission pan for the Ram 68RFE is made in the USA from high-quality cast aluminum. Internal heat sinks and external cooling fins reduce transmission oil temperatures, improving lubrication and extending service life.

Includes a Neodymium-equipped stainless steel drain plug to capture ferrous metals, dual NPT ports, and access for temperature probes. Retains factory filter for easy service.

In testing, a 2013 Ram towing 13,000 lbs over 900 miles never exceeded 200°F. Temps dropped faster after hill climbs and ran 10°F cooler unloaded compared to the factory pan.

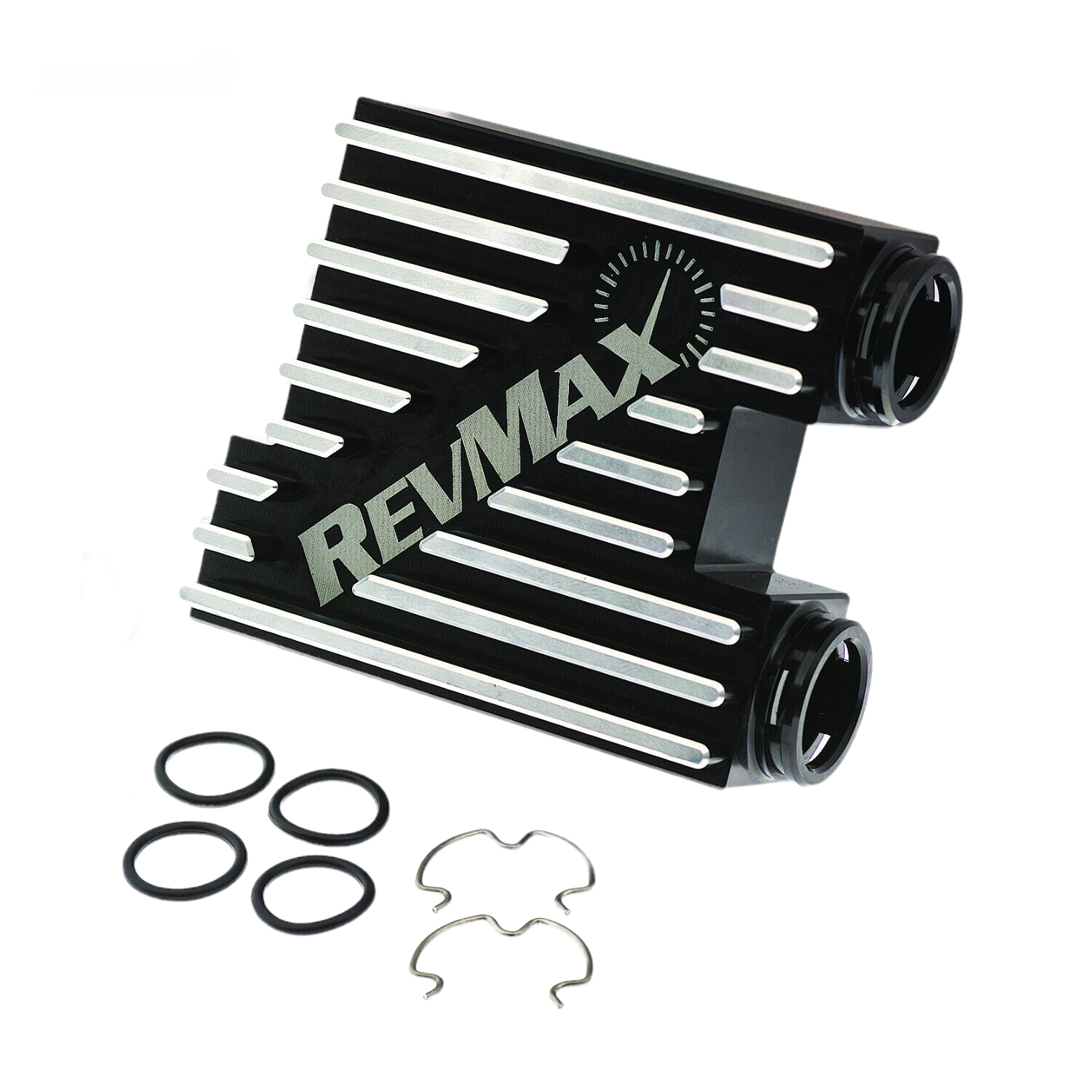

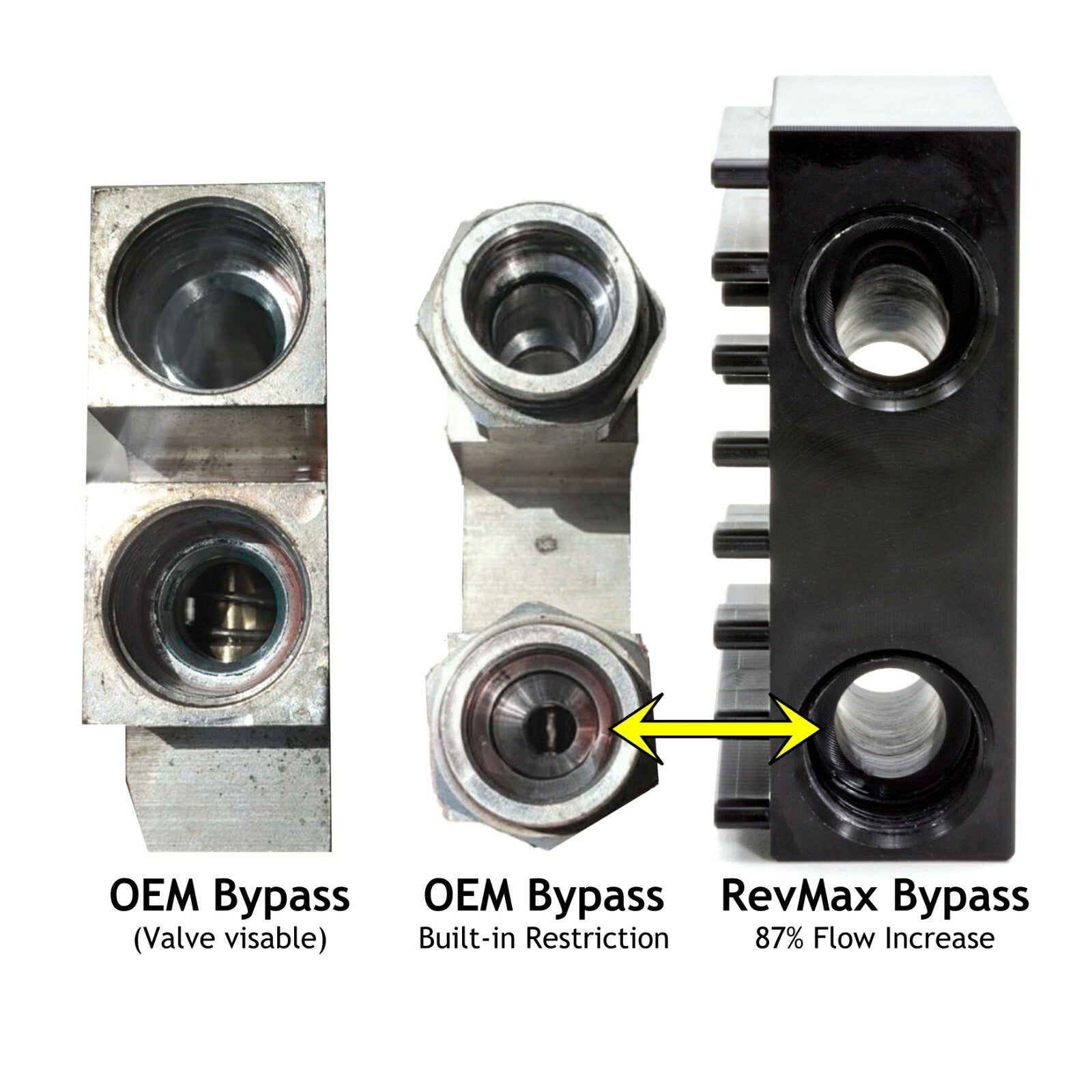

RevMax Thermostatic Bypass Delete Replacement

Per RevMax:

• 87% increase in cooler flow by removing the factory orifice restriction
• Eliminates thermal bypass valve failure risk
• Allows immediate cooling from startup—no delay
• Enables cooler line flushing with room-temp fluid—no special tools needed
• Integral aluminum cooling fins aid passive cooling

Direct bolt-in replacement—no cutting or modification required. Located under the truck on the passenger side near the transmission housing.

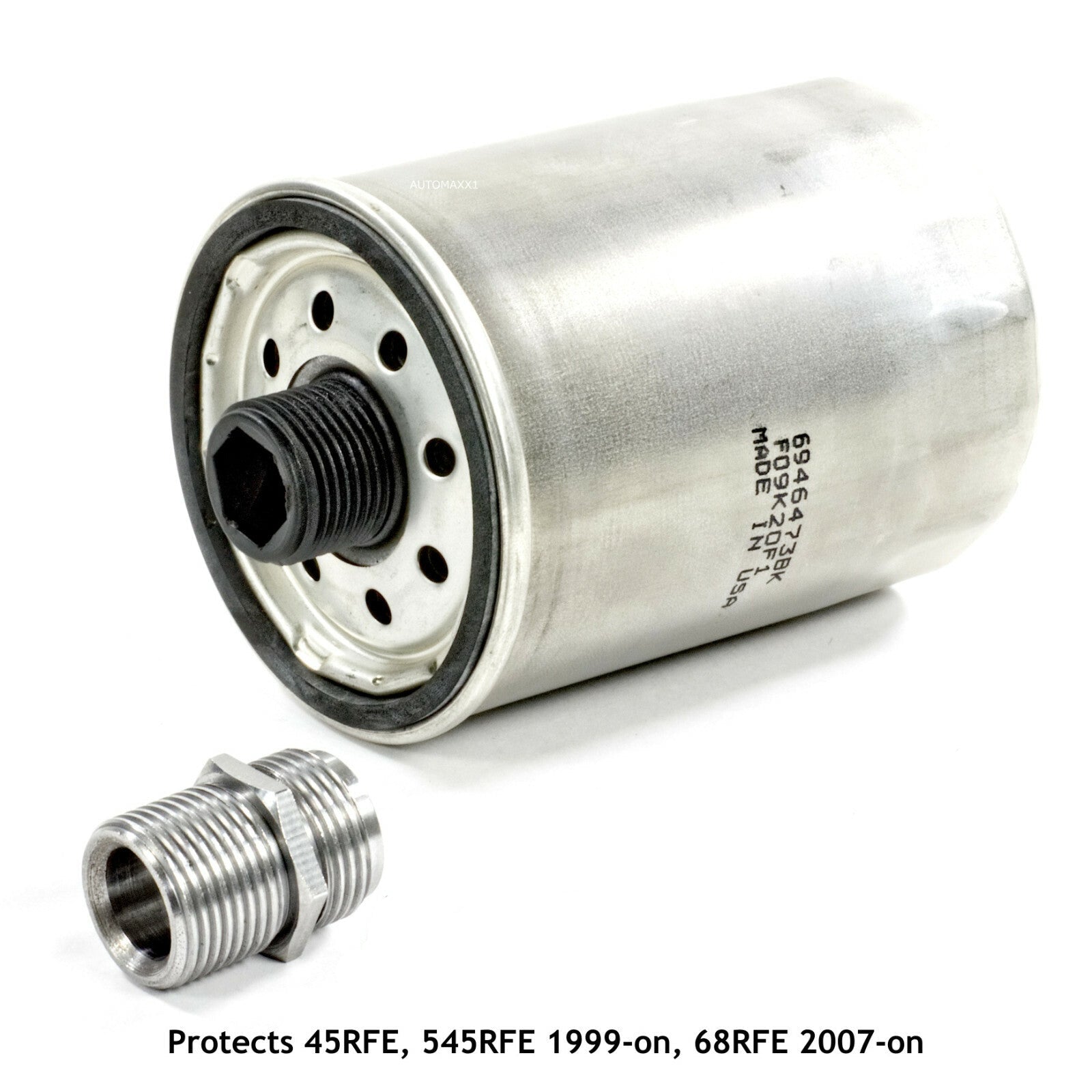

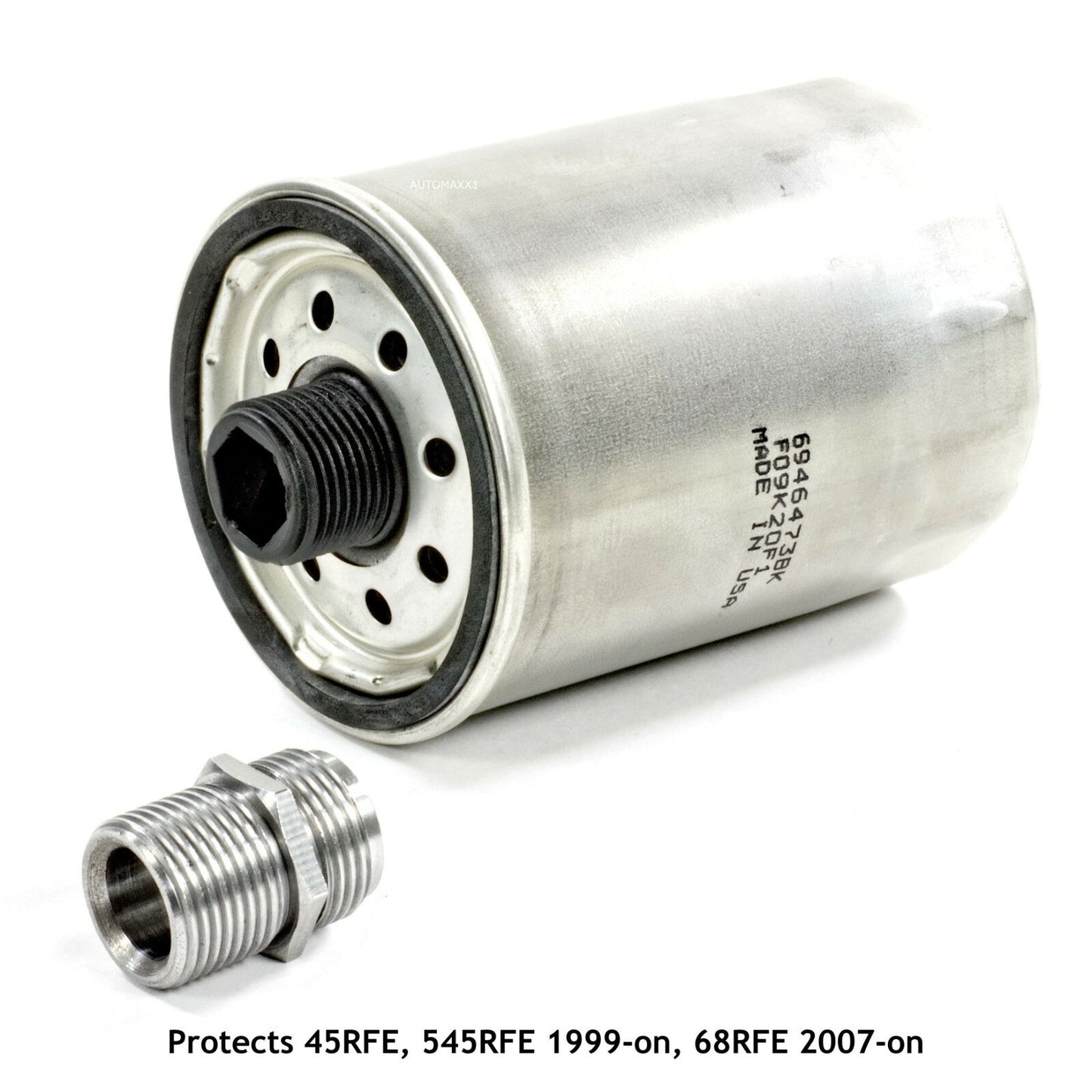

RevMax Steel Filter Screw/Fitting

Billet steel threaded filter adapter (replaces fragile plastic)

Plastic style is prone to cracking from heat or overtightening, leading to no-movement conditions and costly towing. This upgrade is cheap insurance and a great reason to change your fluid!
