fits Dodge 6.7L Cummins Diesel 68RFE Inner Drum Clutch Housing Upgrade 2007-17

DODGE RAM 68RFE BILLET INPUT CLUTCH HOUSING

FITS 2007–17

6.7L CUMMINS DIESEL PICK-UP TRUCKS

Product Description

Many builders like to use the Sonnax SmarTech drum 72960-16K in some of their 68RFE builds. Over time, builders have also found that the clutch setup provided in the off-the-shelf kit tends to squawk and even worse, dig into the factory inner drum assembly. Some builders have also tried to increase clutch count by running clutches upside down. This practice causes the first clutch to only get partial apply and leads to premature failures as well as cooling issues due to the change in oil dispersion. Furthermore, in order to run 16 clutches upside down, the UD/OD pressure plate must be machined down. This plate is already thinner out of the box when compared to the factory plate. Machining it even more leads to warping and a non-flat apply surface. Lastly, the off-the-shelf kit requires a ring to be pressed on and staked in order to convert the factory inner drum to work with the billet outer drum. This area is prone to leakage and can be damaged during installation of the ring.

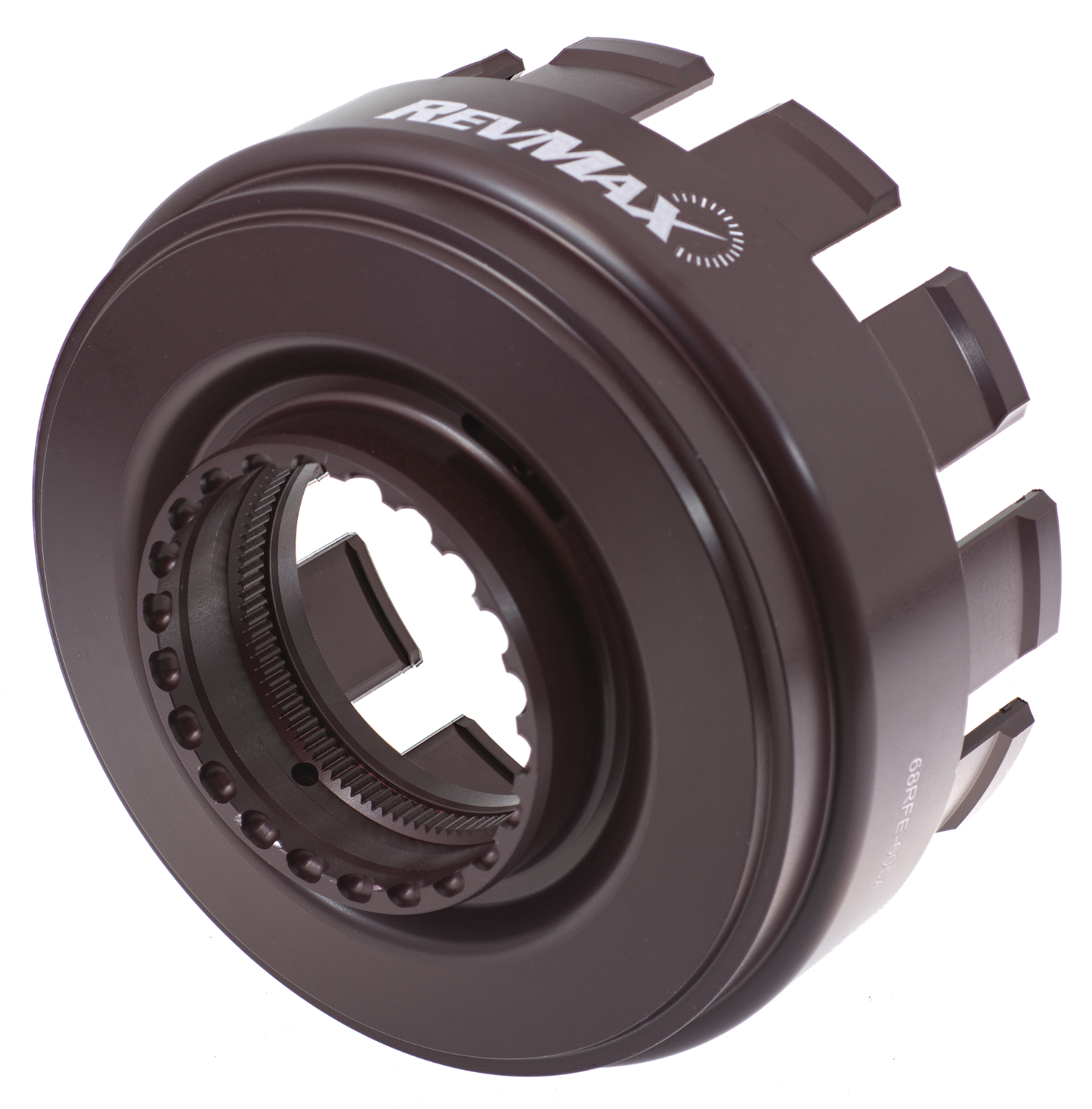

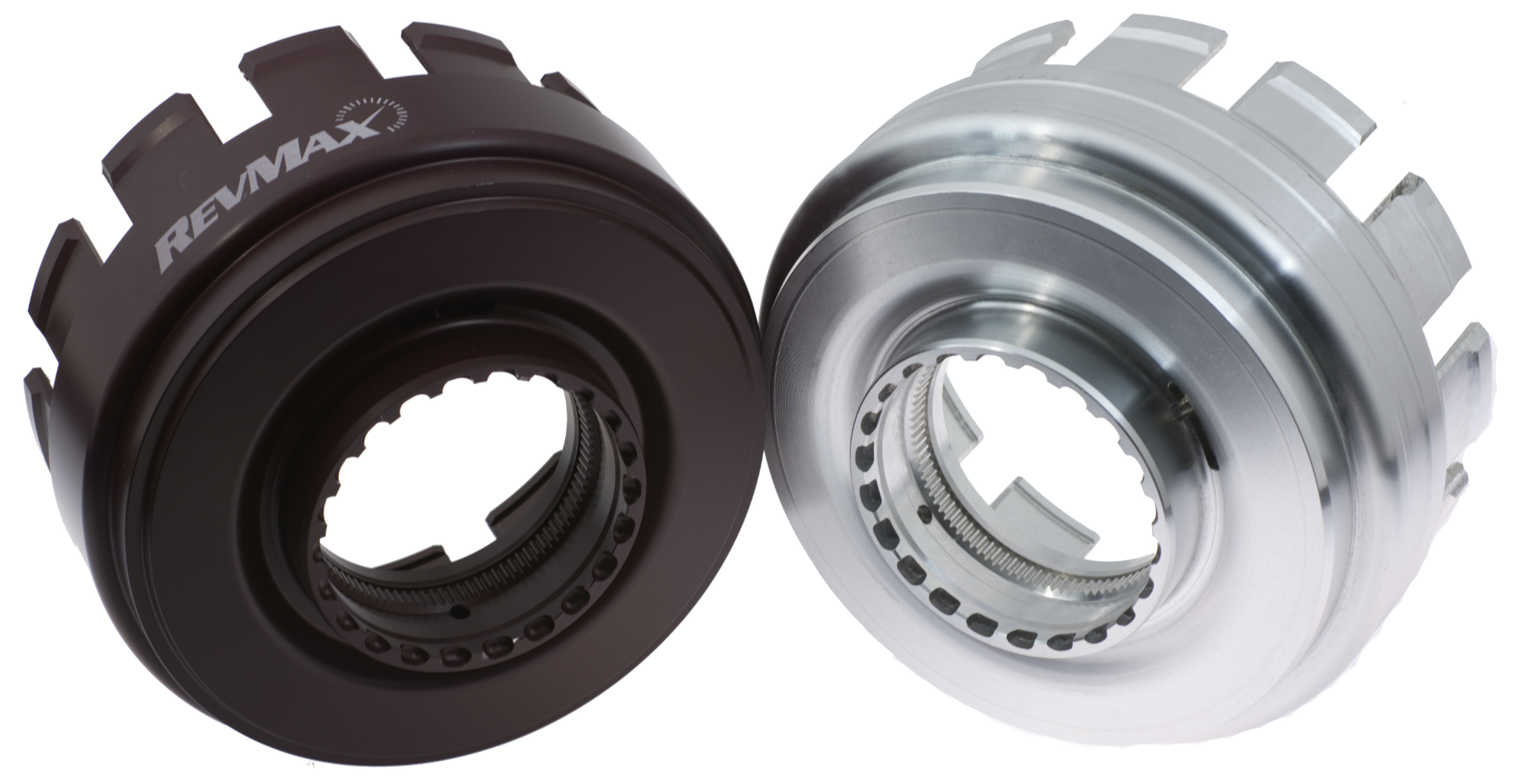

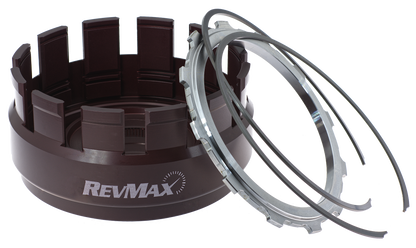

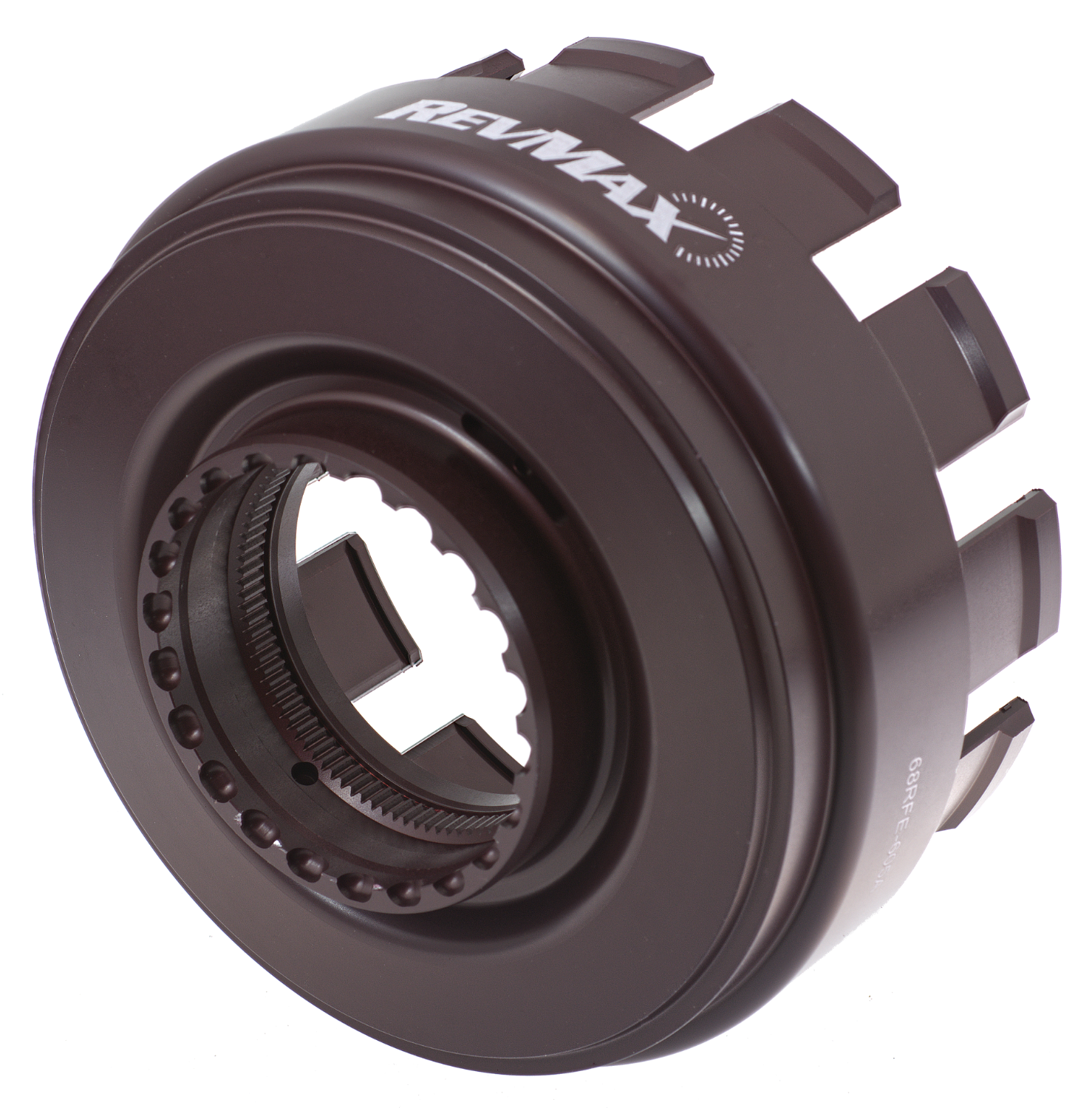

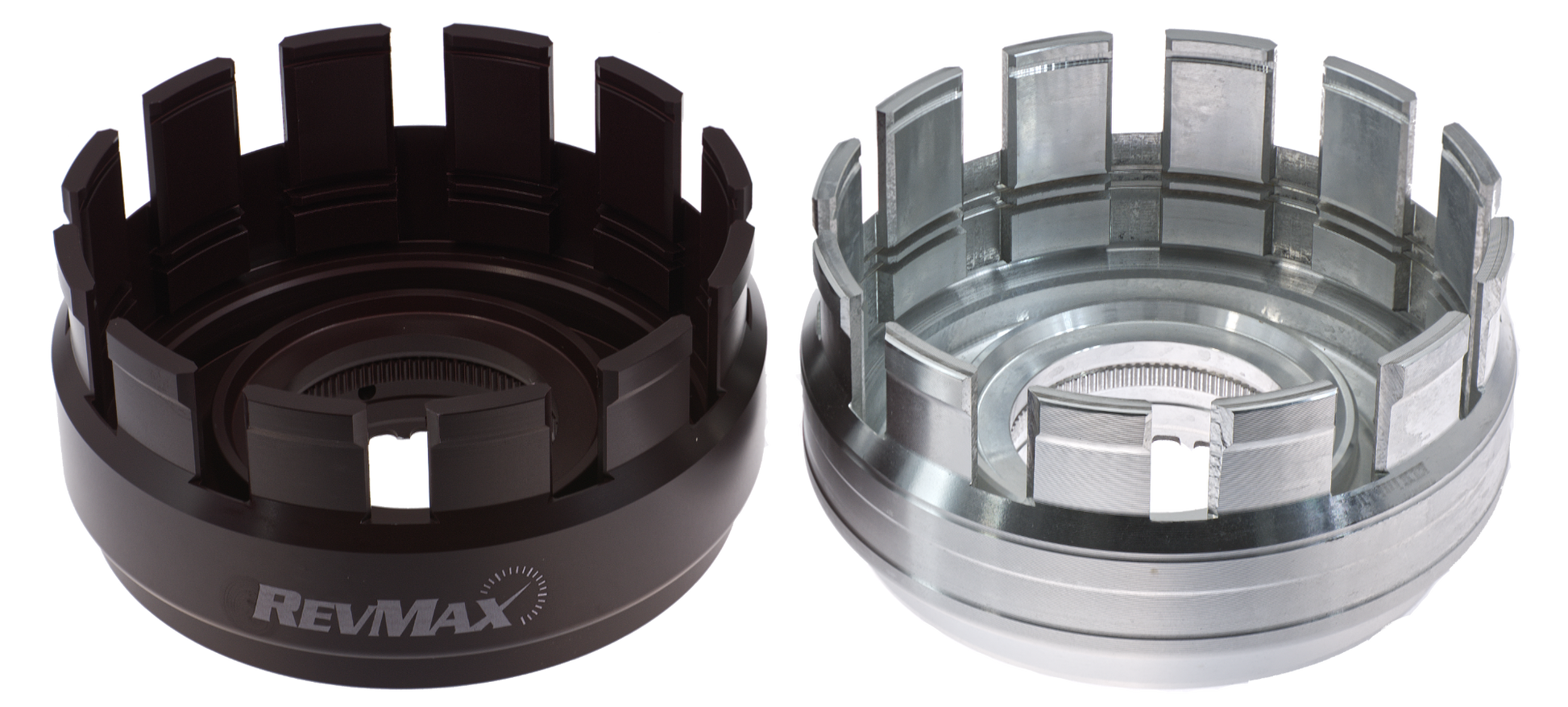

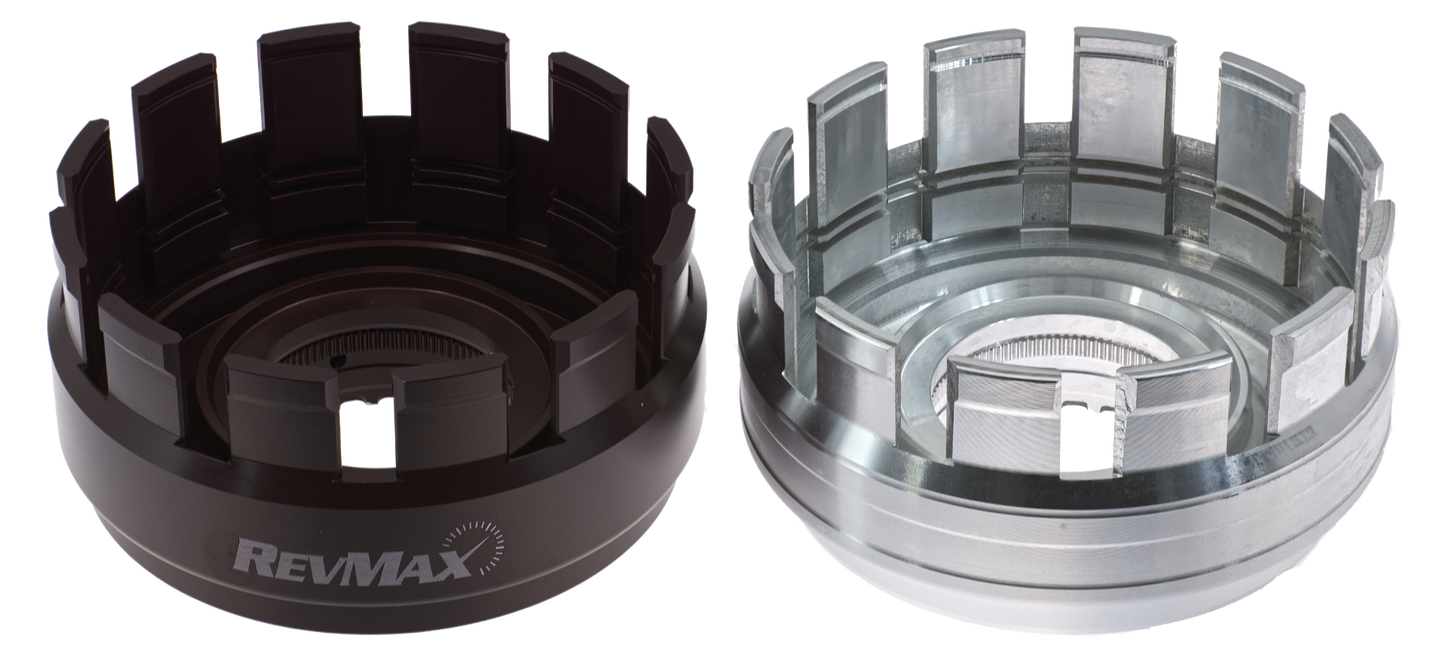

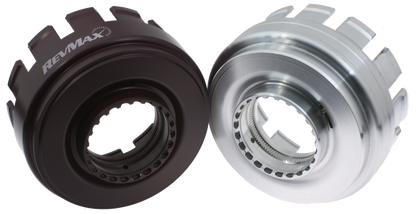

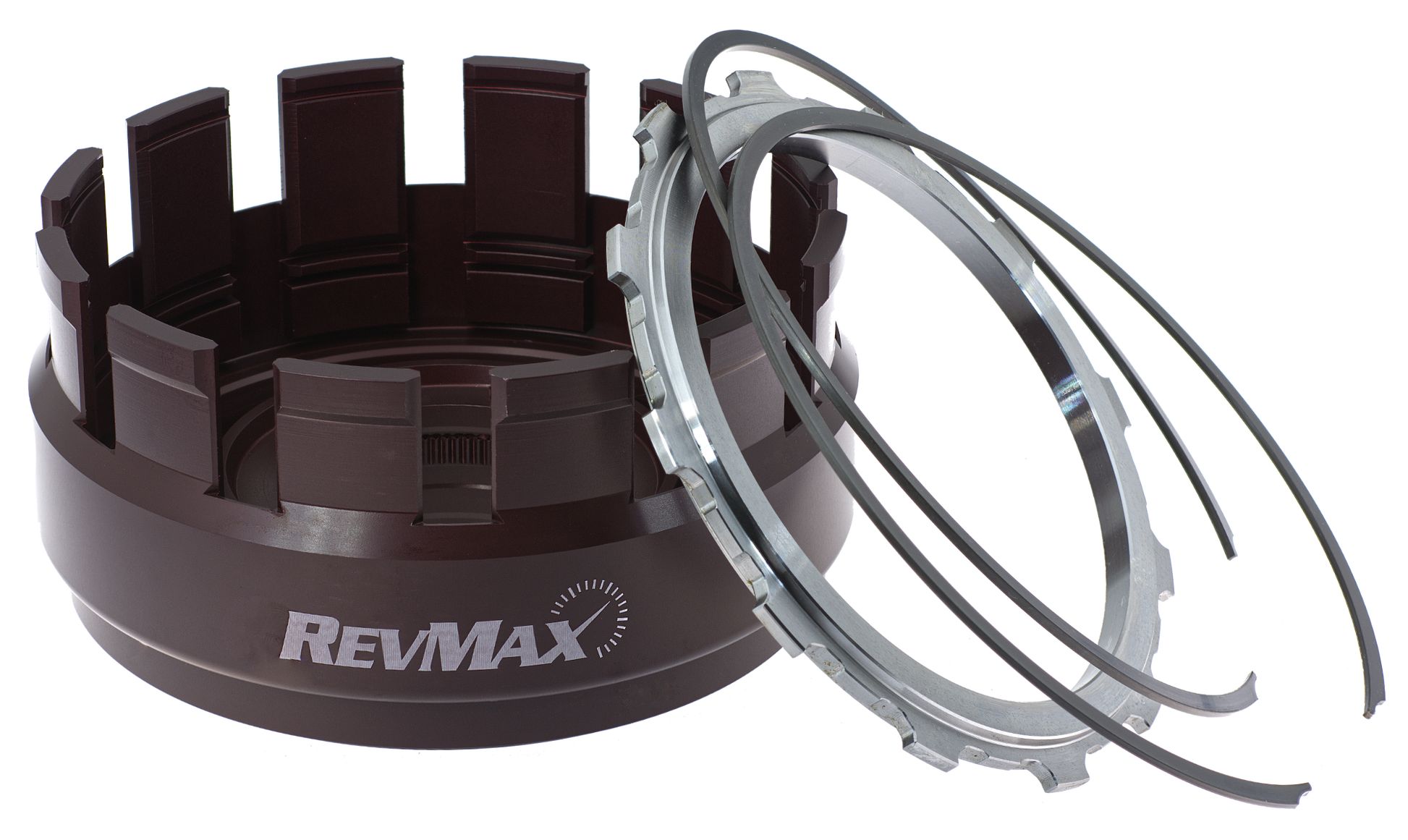

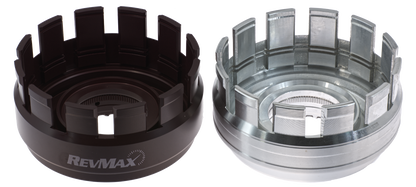

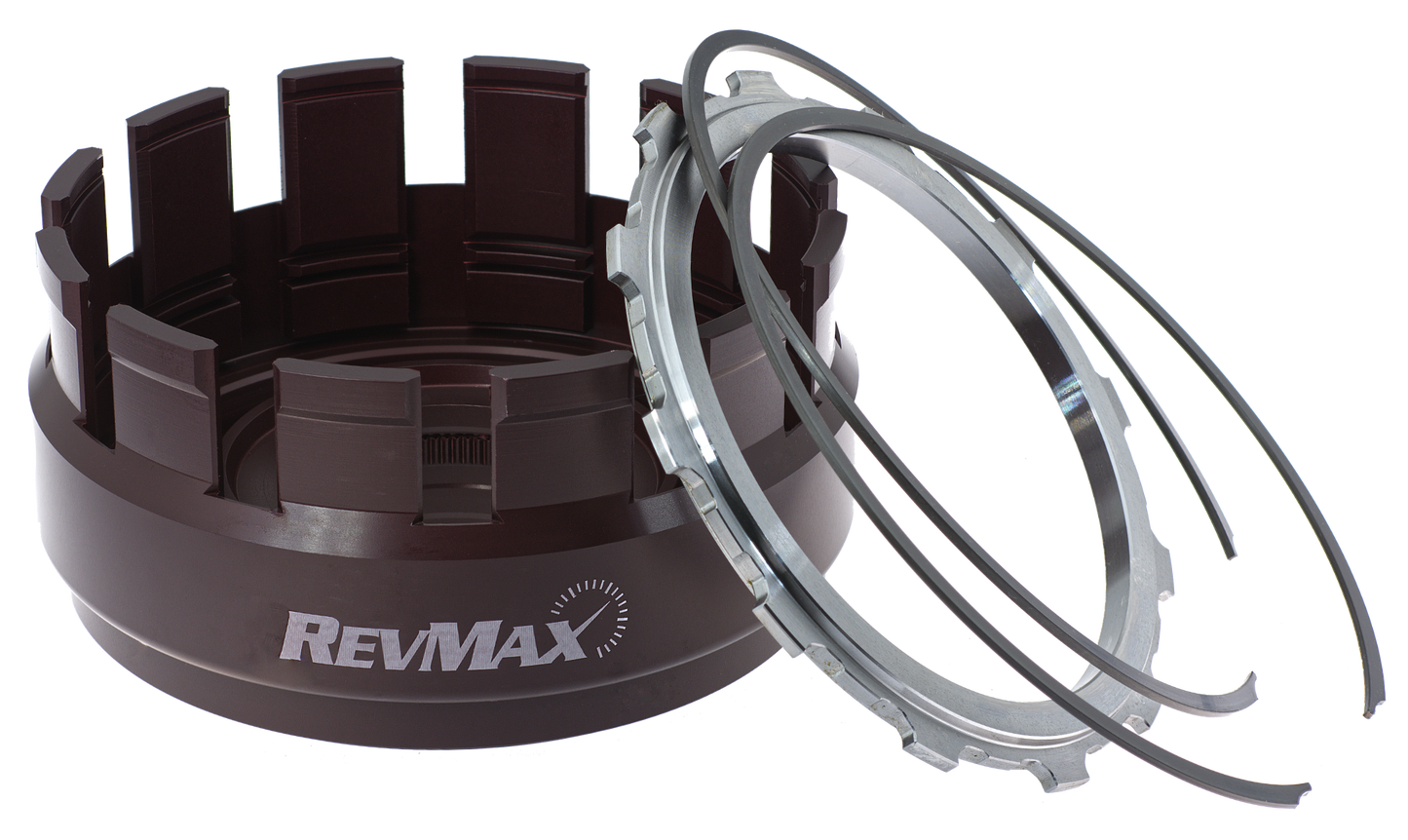

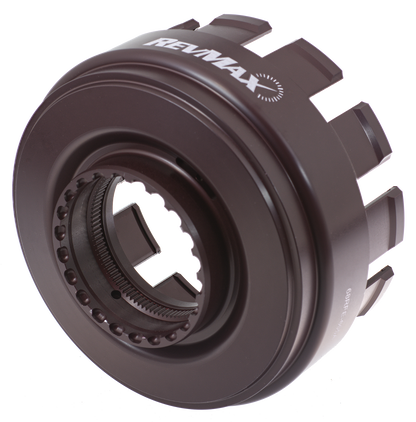

The RevMax 700S inner drum assembly fixes all of these complaints and adds additional clutch capacity. Our drum requires no adapter ring to be installed as the drum is machined to match the Sonnax drum perfectly. Using this drum allows the builders to run 16 single side OD clutches in the factory direction (facing up). The RevMax inner drum is coated with a Mil-Spec hard coat anodizing that resists steel impregnation. The drum can be built using factory full thickness UD/OD pressure plates or our billet UD/OD pressure plates. This drum will NOT work with a factory OD drum!

Design Upgrades:

• Hard Mil-Spec anodized surface
• Allows up to 16 frictions in the OD clutch while keeping correct clutch facing
• Drop-in design, no adapter ring needed with the Sonnax OD drum*
• Allows full thickness UD/OD pressure plate to be used with increased clutch counts

Prevents or Eliminates:

• Inner drum damage from steel plates impregnating the surface
• Erratic actual line pressure due to leaks in the OD clutch circuit
• Unexplained Overdrive Clutch failure
• Unexplained Underdrive Clutch failure
• Increased transmission operating temperatures
