Dodge 6.7L Cummins Diesel 68RFE Overdrive Hub and Clutch Housing Upgrade 2007-17

DODGE RAM 68RFE

Overdrive Hub (72570-01) and Clutch Housing Upgrade (72960-16K)

FITS 2007–2017 6.7L CUMMINS DIESEL PICK-UP TRUCKS

72960-16K – Sonnax Smart-Tech® Overdrive Clutch Housing Kit

Dodge trucks pulling heavy loads or boosted to 400–600HP are at high risk for overdrive burnup due to the stock transmission’s insufficient clutch capacity and fragile OE clutches.

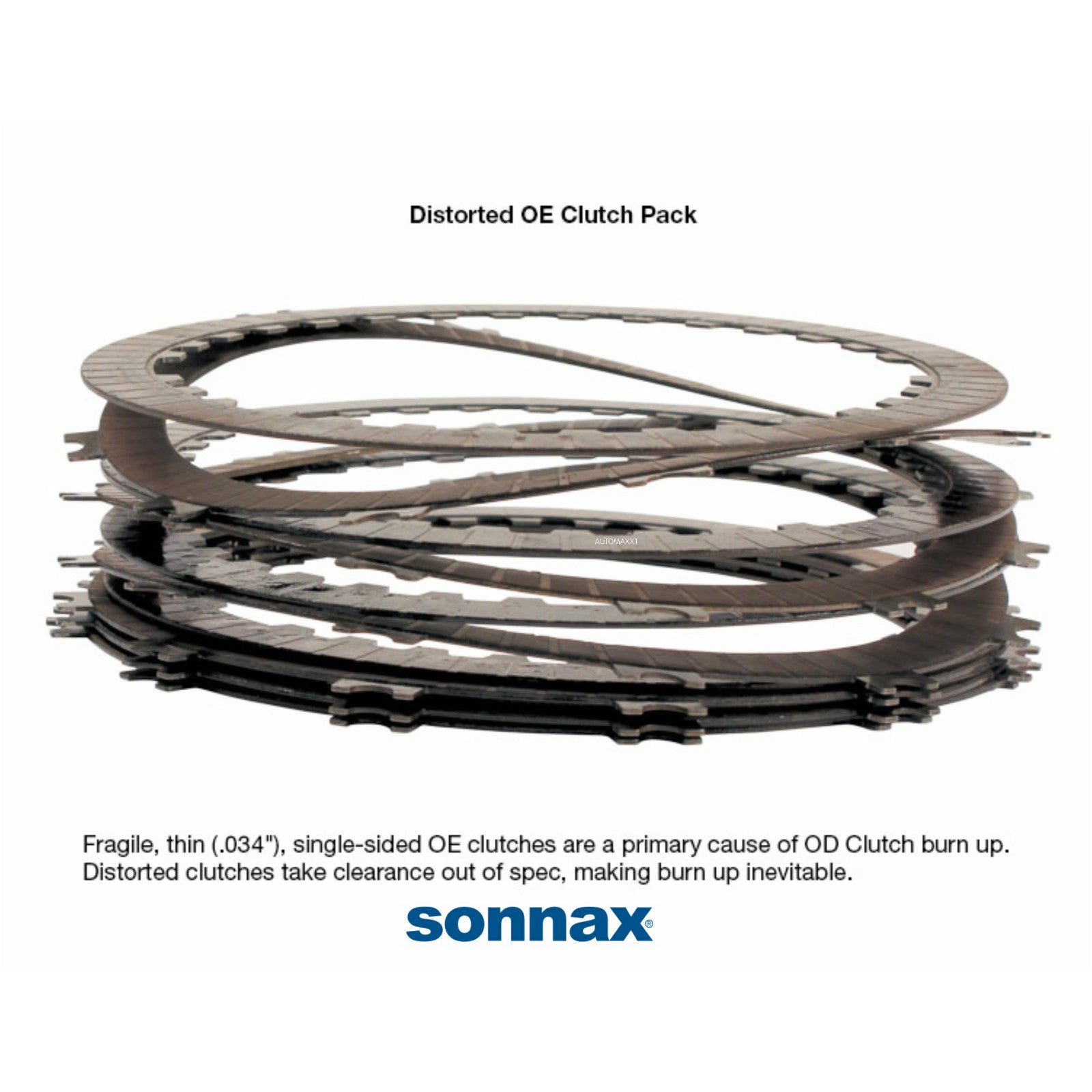

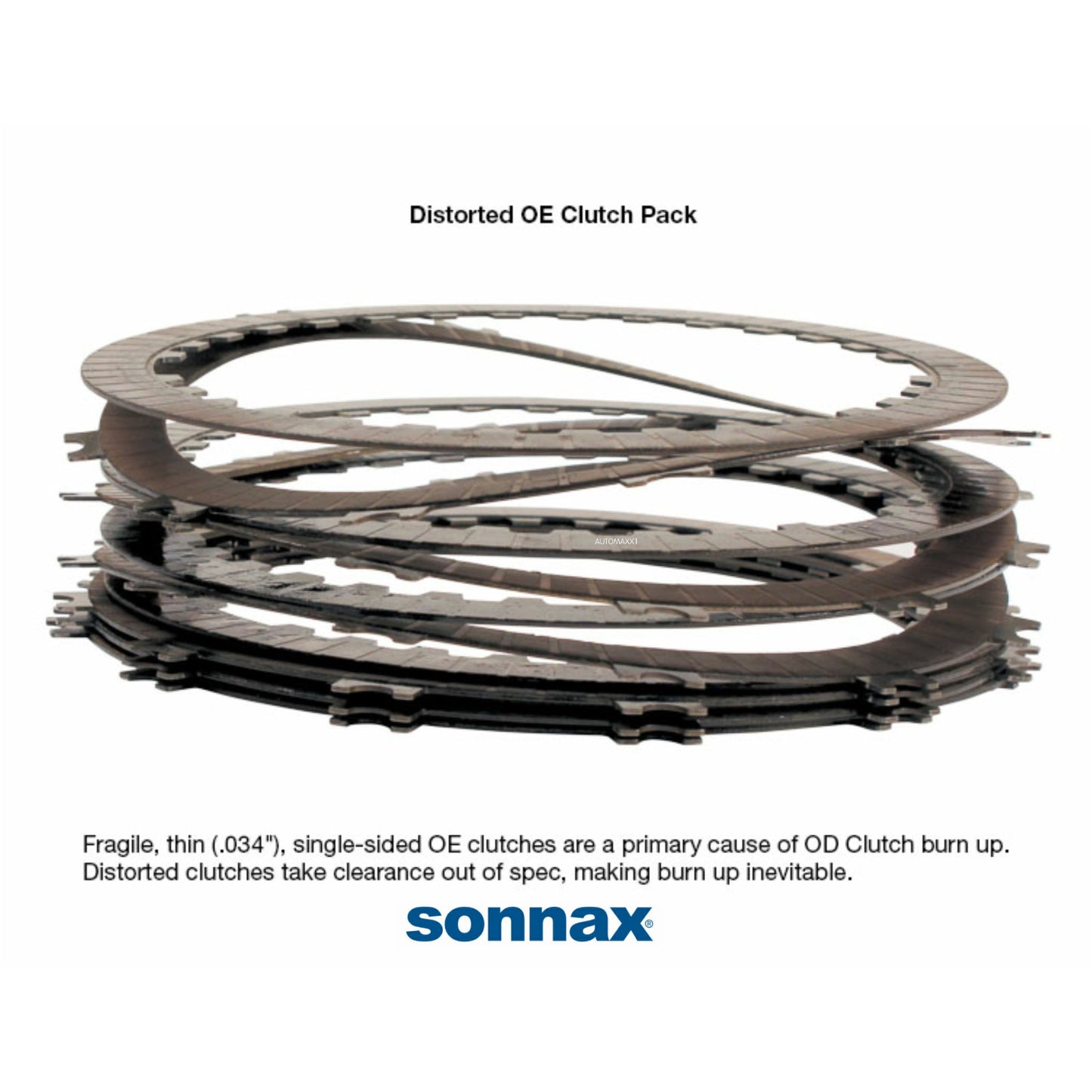

Even small amounts of heat and extra torque can distort the thin (.034") single-sided clutches, pushing the clutch pack out of spec and leading to inevitable failure.

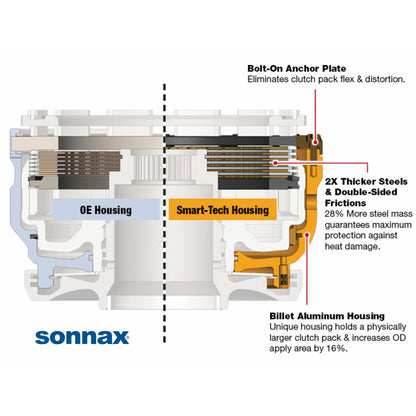

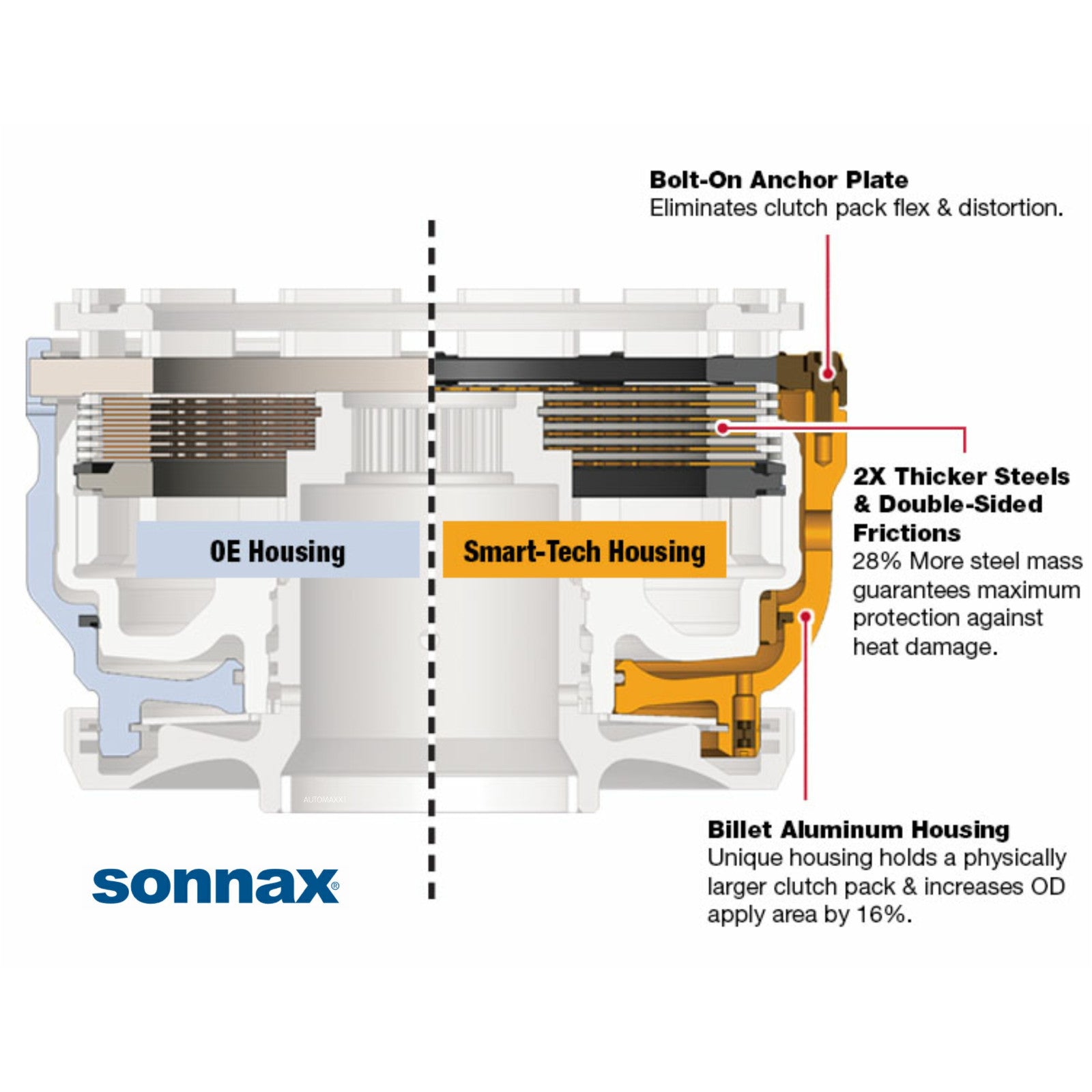

The Sonnax Smart-Tech® kit features a billet aluminum housing that holds a taller clutch pack and increases OD apply area by 16%. Thicker clutches boost steel mass by 28% for superior heat dissipation.

This upgrade eliminates clutch problems without requiring valve body or pump modifications.

• Custom housing holds larger clutch pack for 20% more clutch capacity
• 16% more OD apply area for firmer, more controlled shifts
• 2X thicker steels and double-sided clutches for 28% more steel mass
• Custom BorgWarner clutches with advanced squawk resistance
• Bolt-on anchor plate prevents clutch pack flexing and heat buildup
• Compatible with Sonnax line pressure booster kit RFE-LB1

Note: This kit replaces Sonnax 72960-06K. The updated version includes optimized clutches and longer flange-head screws for improved fit and clamping force.

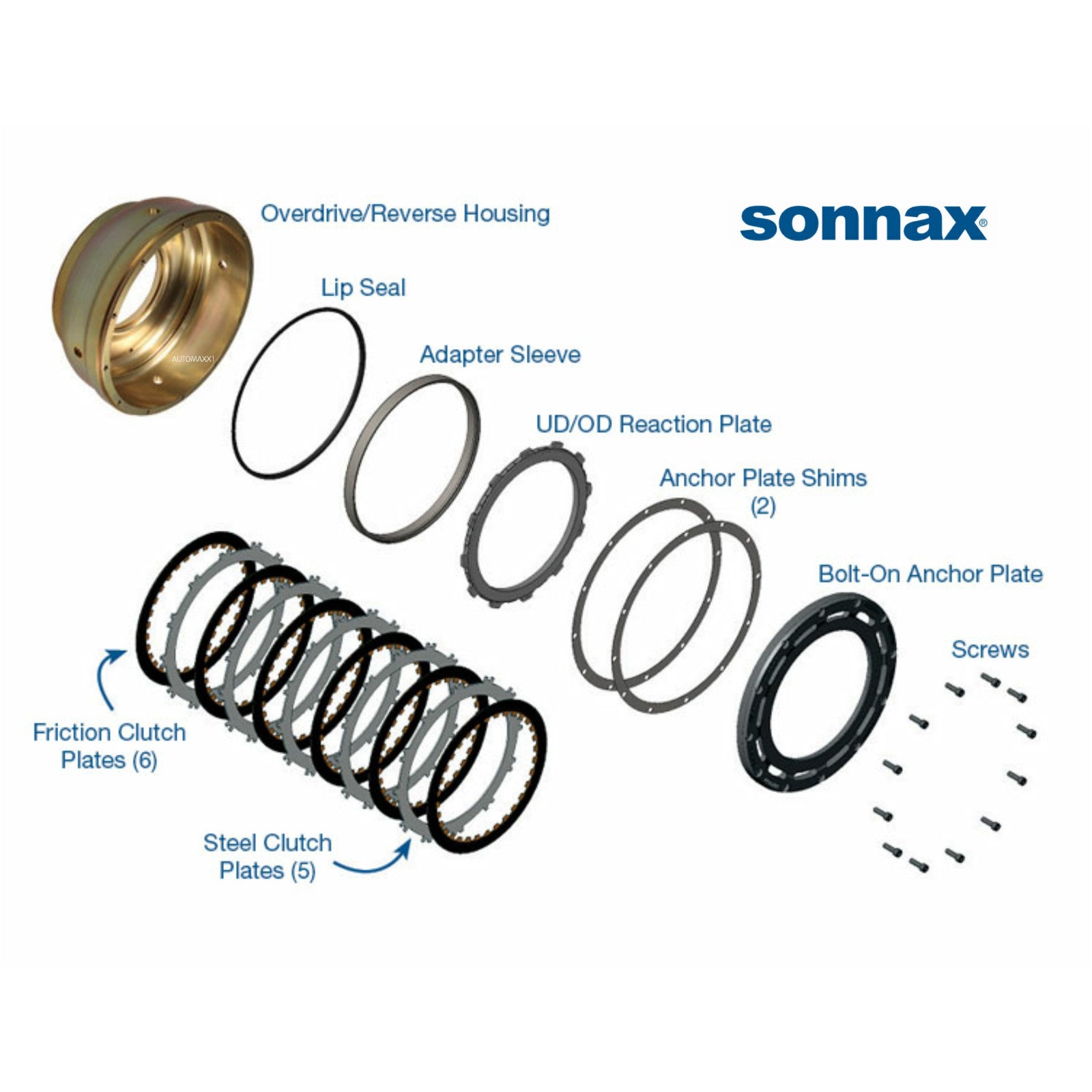

Kit Contents:

• Overdrive/Reverse Housing
• Lip Seal
• Adapter Sleeve
• UD/OD Reaction Plate
• Steel Clutch Plates (5)
• Friction Clutch Plates (6) – Custom BorgWarner
• Anchor Plate Shims (2)
• Bolt-On Anchor Plate
• Screws (12)
• Chisel

72570-01 – Heavy Duty Overdrive Clutch Hub

OE Part No.: 52119776AA

Failure of the OE clutch hub and shaft is common in Chrysler 66RFE and 68RFE transmissions. Cracks at lubrication cross holes can lead to catastrophic gear train failure.

The Sonnax 72570-01 upgrade is cryogenically treated and shot-peened to reduce crack formation and increase load capacity. It’s a direct replacement for all 66RFE and 68RFE units.

• Cryogenically treated clutch hub and shaft
• Shot-peened lubrication cross holes
• Greater crack resistance than OE components
