AS69RC RAM Transmission Solenoid Wire Harness Black Connector Genuine Mopar OEM

DODGE RAM 3500 4500 5500 Wiring Harness

AS69RC Aisin Transmission Internal Solenoid Wiring Harness

Fits 2013-up • 6.4L V8 Gas • 6.7L Cummins Diesel • CAB & CHASSIS Trucks

🔧 Part Description

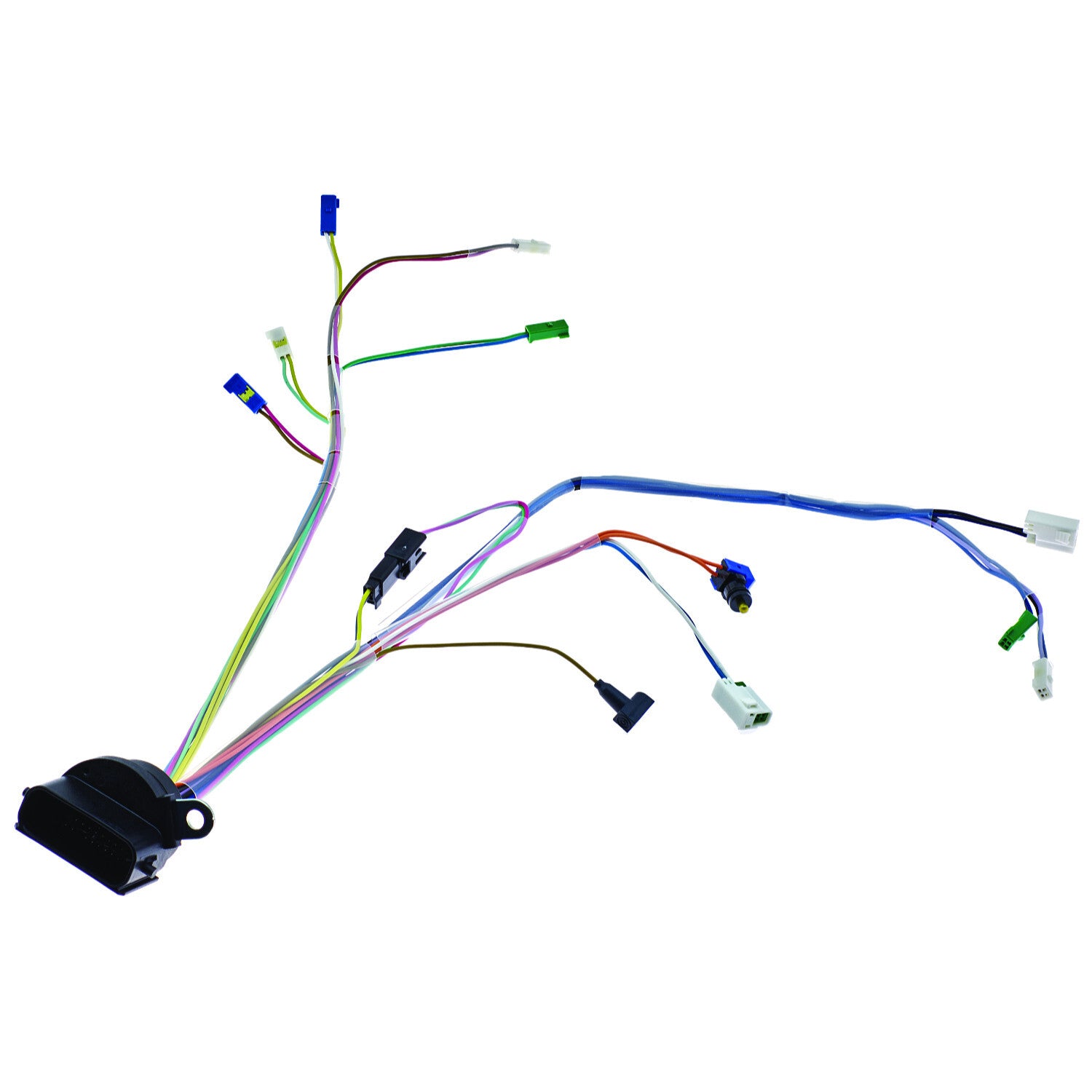

• Internal Solenoid Wiring Harness Assembly

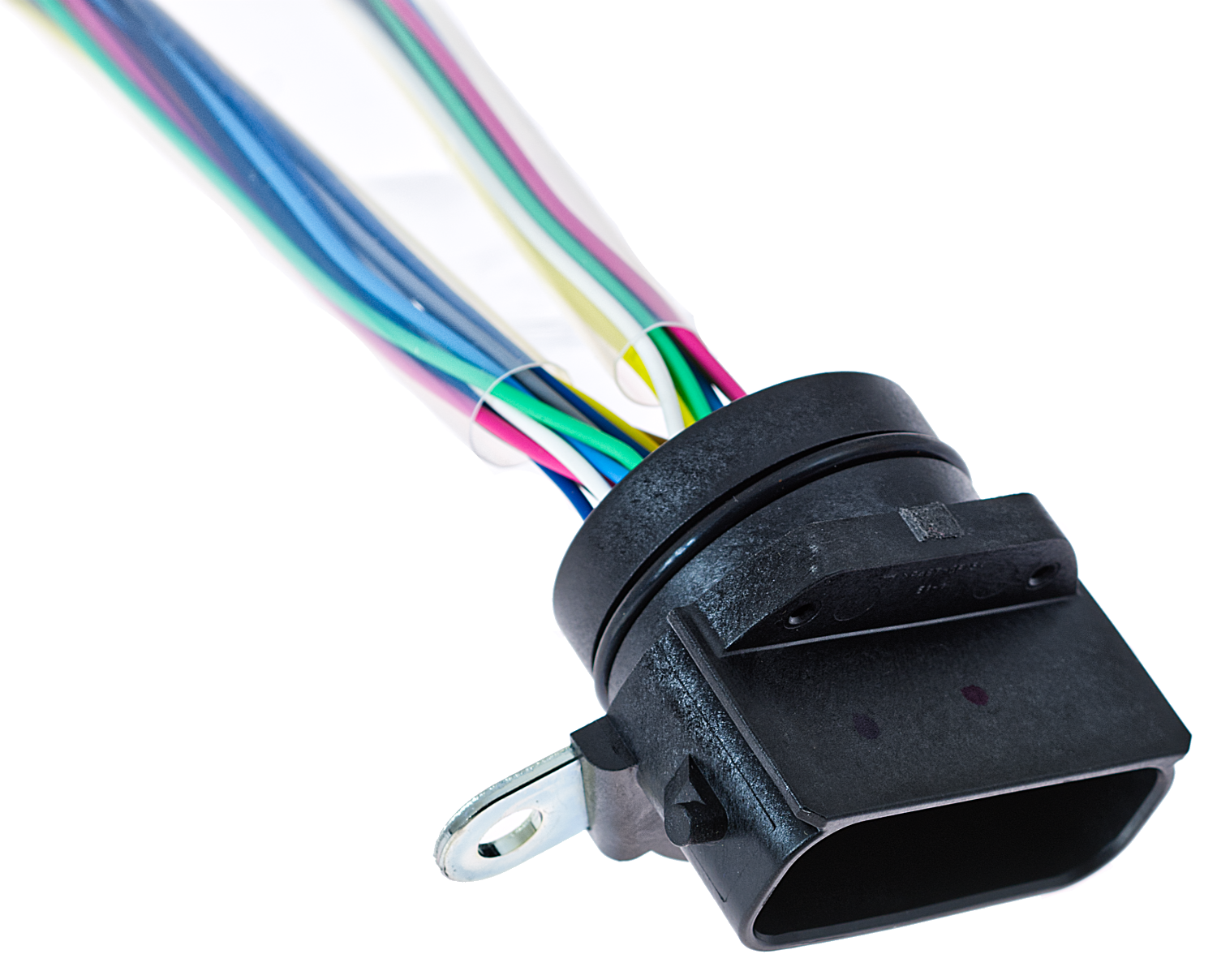

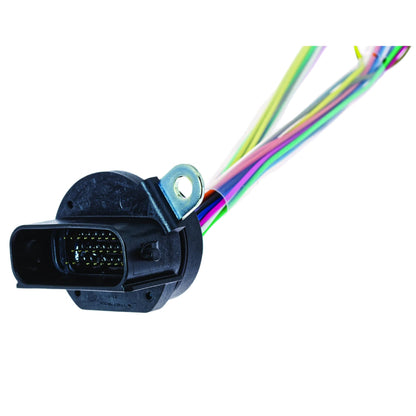

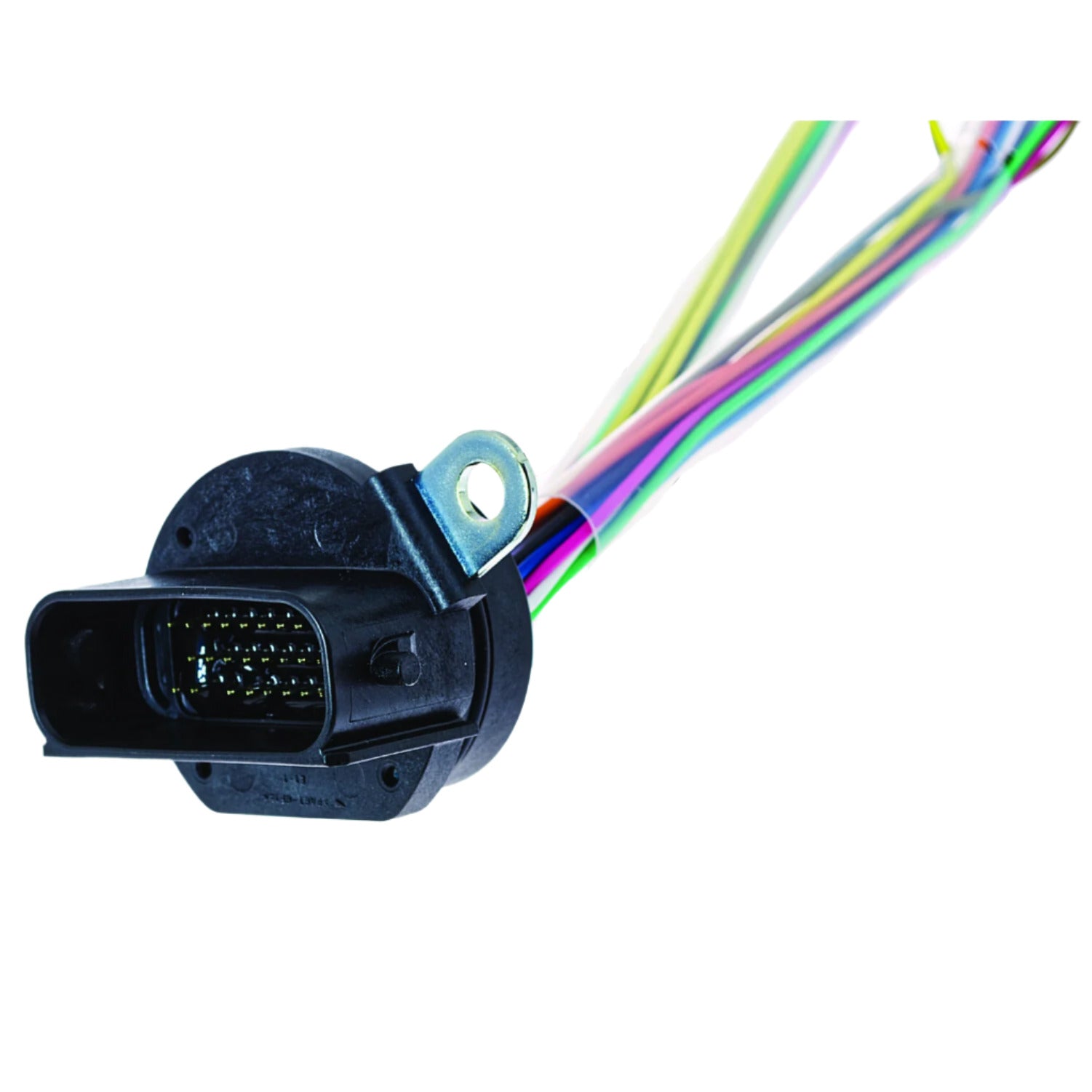

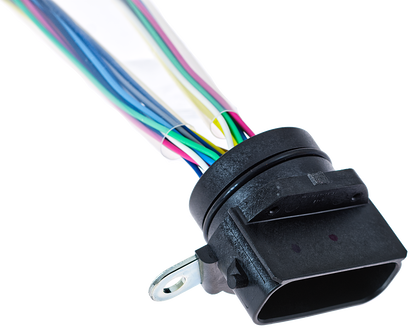

• Black pass-through connector for seamless fit
• Brand new in Mopar OEM packaging

🚛 Vehicle Applications

• 60" CA Regular Cab 4x2 and 4x4
• 84" CA Regular Cab 4x2 and 4x4
• 60" CA Crew Cab 4x2 and 4x4

🧵 Wiring Details (Per Gears Magazine)

• Brown/Red → Linear Solenoids 5 and 2
• Light Green/Yellow → Linear Solenoid 4
• Sky Blue/Green → Linear Solenoid 3
• Yellow/White → Linear Solenoid 1
• Black/Blue → On/Off Solenoid
• Blue/Gray → Linear Solenoid SLU

Professionally routed and color-coded for easy installation and reliable performance.
