Allison Diesel Trans Oil Pan Upgrade package w oil Original Equipment 29536522

Allison Diesel Trans Oil Pan Upgrade package w oil Original Equipment 29536522

E254848128702

Out of stock
$338.44
$338.44
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.
Sold out

Duramax Allison 1000–2000 Oil Pan – Deep Style Pan Upgrade

Fits Gas and DIESEL Chevy HD and GMC HD 2000-UP

(Will Retro-Fit to 2000)

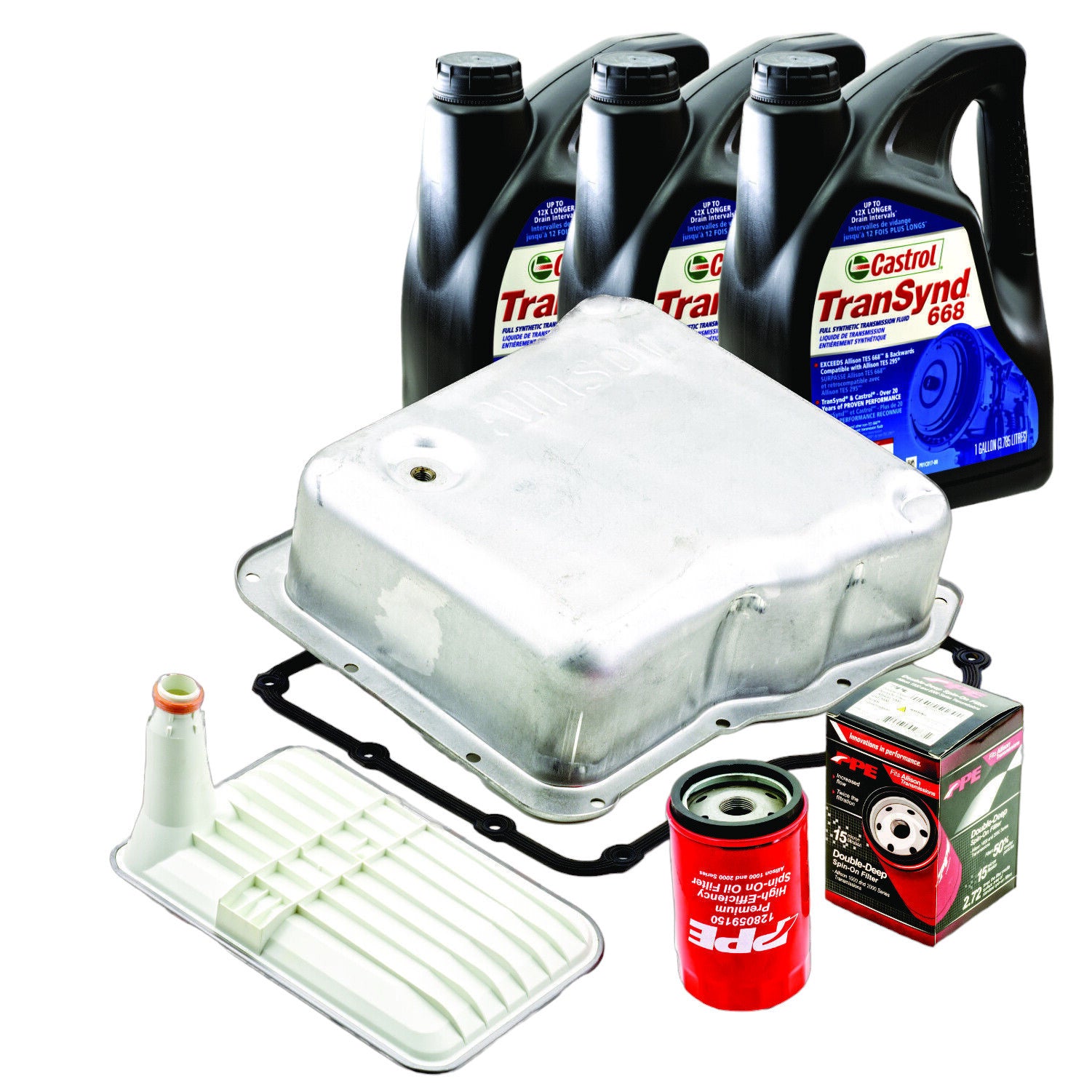

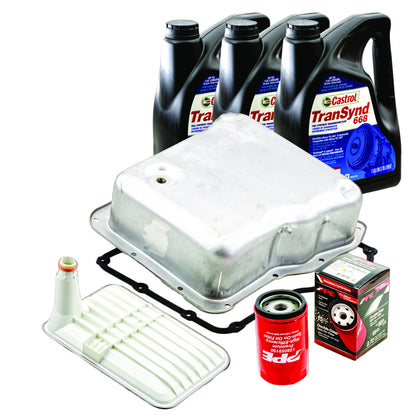

This Genuine Allison Upgrade kit includes the following all new:

  • (1) Brand new oil pan – 4 7/16" deep at the drain plug end
  • (1) Internal sump filter (White) for deep pan applications
  • (1) External spin-on cooler filter by PPE (see below for details)
  • (1) Bonded rubber-metal pan gasket
  • (3) Gallon jugs of OE Allison-specified Transynd TES 668 Synthetic Transmission Fluid
  • (Enough to complete the job!)

PPE Double-Deep External Spin-on Cooler Filter

Stock spin-on transmission filters come up short.

PPE recognized the need for better filtration for the hard-working Allison 1000 and 2000 transmissions, so a superior filter was developed which addresses limitations of the standard "shorty filter".

Inside the PPE Double-Deep Spin-On Filter is 2.72 times more filter media surface area. This increased surface area allows improved fluid flow and filtering. The PPE Double-Deep Filter actually traps particles down to 15 microns—half the size of what the standard spin-on filter catches. These improvements help create a cleaner flow of oil to vital internal components, resulting in smooth, more responsive shifts.

Do more to protect your Allison transmission and realize better performance. Don't come up short. Spin-on a PPE Double-Deep Premium Filter today.

*Note: Must reuse drain plug and magnet(s) from original pan and external filter.

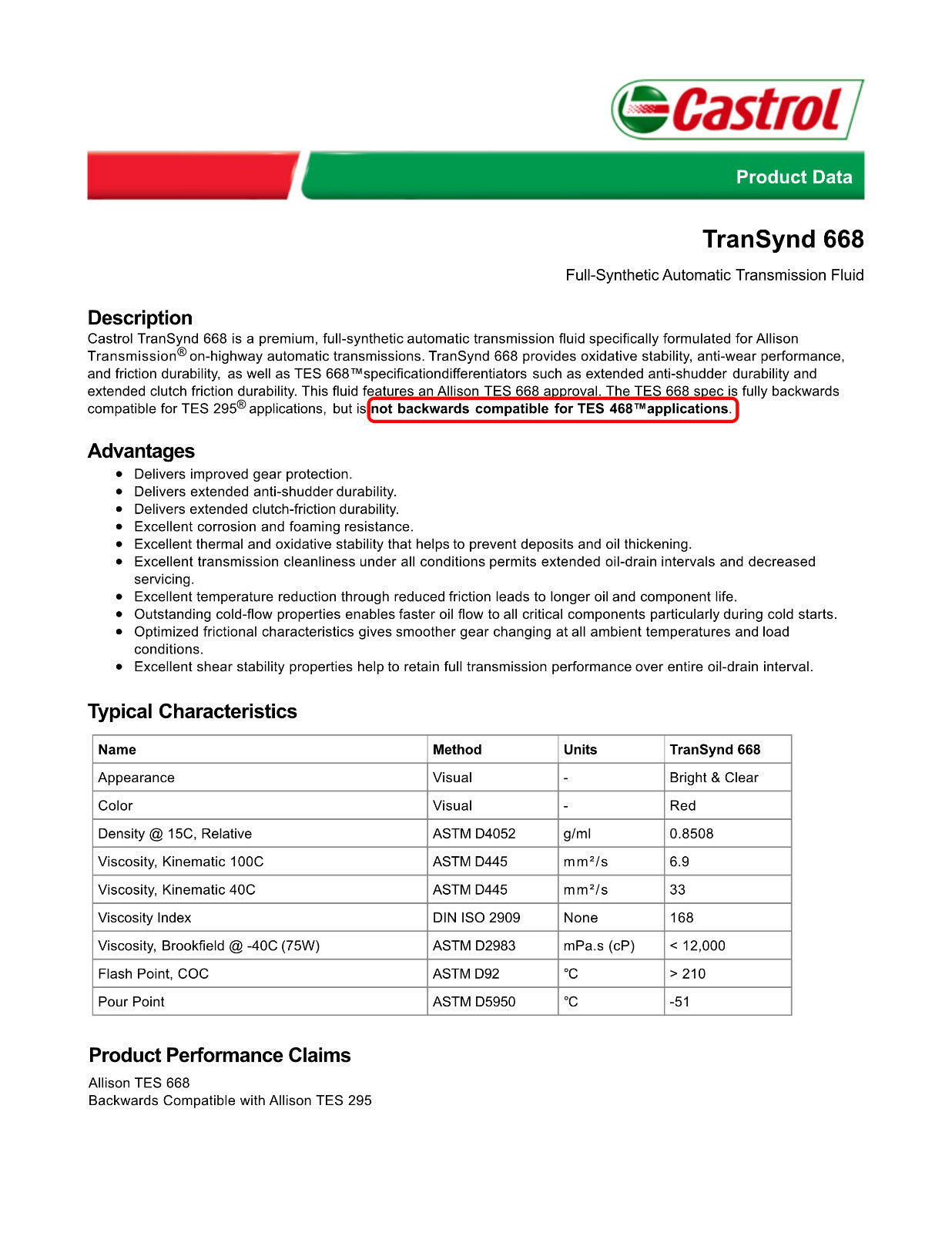

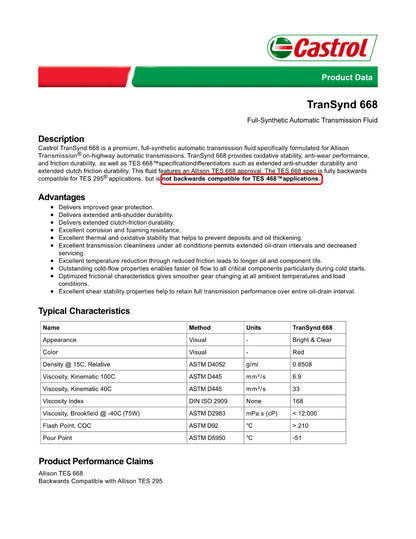

Castrol TranSynd 668 Fluid

Castrol TranSynd 668 is a premium, full-synthetic automatic transmission fluid specifically formulated for Allison Transmission® on-highway automatic transmissions.

TranSynd 668 provides oxidative stability, anti-wear performance, and friction durability, as well as TES 668™ specification differentiators such as extended anti-shudder durability and extended clutch friction durability.

This fluid features an Allison TES 668 approval. The TES 668 spec is fully backwards compatible for TES 295® applications, but is not backwards compatible for TES 468™ applications.

Advantages

  • Delivers improved gear protection
  • Delivers extended anti-shudder durability
  • Delivers extended clutch-friction durability
  • Excellent corrosion and foaming resistance
  • Excellent thermal and oxidative stability that helps prevent deposits and oil thickening
  • Excellent transmission cleanliness under all conditions permits extended oil-drain intervals and decreased servicing
  • Excellent temperature reduction through reduced friction leads to longer oil and component life
  • Outstanding cold-flow properties enable faster oil flow to all critical components, particularly during cold starts
  • Optimized frictional characteristics give smoother gear changing at all ambient temperatures and load conditions
  • Excellent shear stability properties help retain full transmission performance over the entire oil-drain interval
