Allison 1000 / 2000 Performance Rebuild Kit 2001-05 Premium High Energy Clutches
Allison 1000 / 2000 Performance Rebuild Kit 2001-05 Premium High Energy Clutches
E256137361686
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Sorry, it's out of stock.
But we can let you know when it's back in.
Question about this product?
We're happy to help.
Allison LCT1000/2000 Transmission Master Rebuild Kit - Less Steels
Chevy GMC Gas and Duramax Diesel Applications
2001-2005
fits:
Chevy GMC Duramax Diesel, Gas Applications
6-speed Transmissions 2001-2005

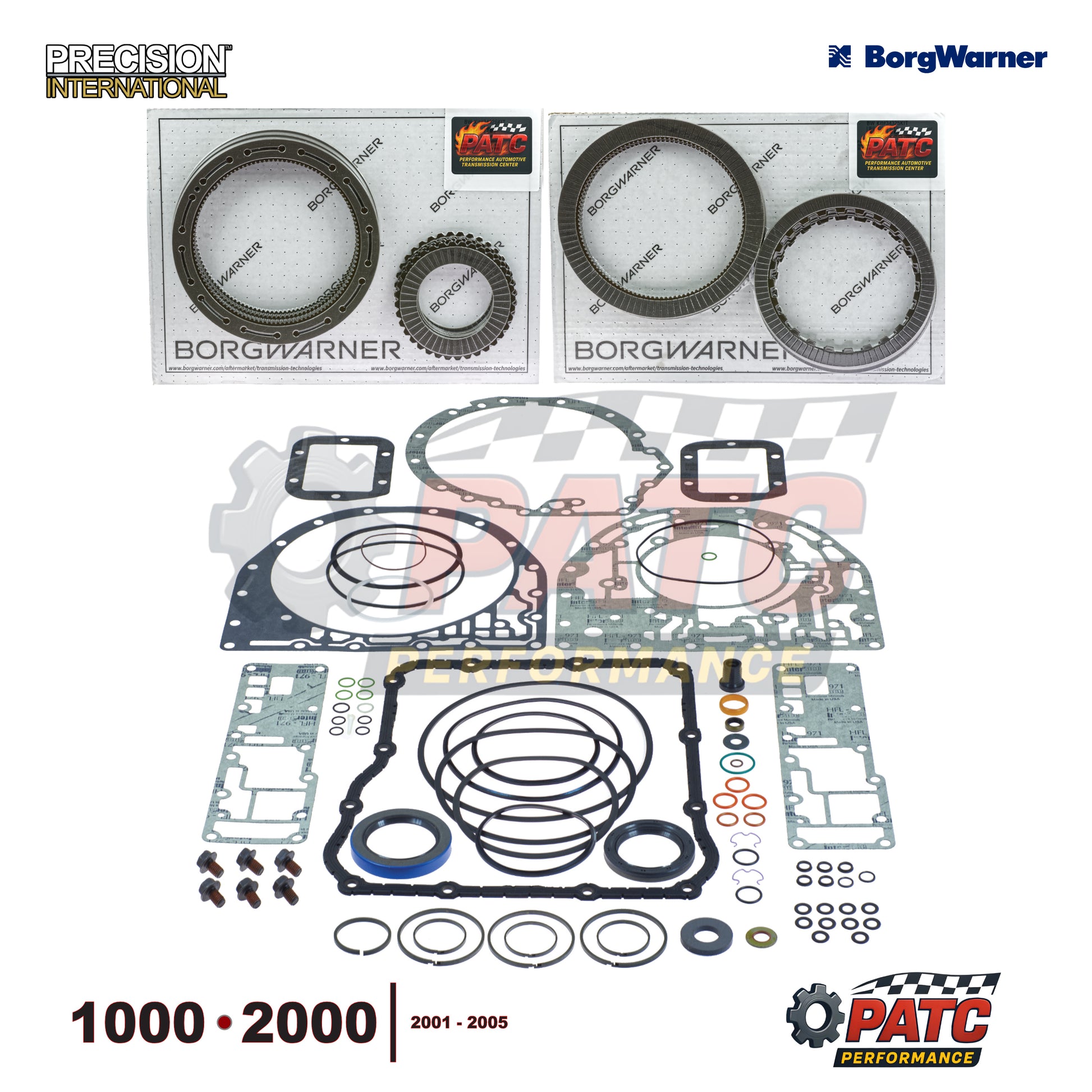

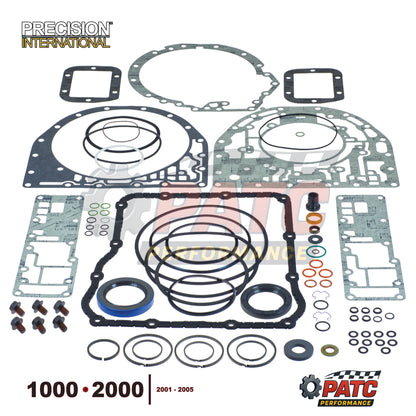

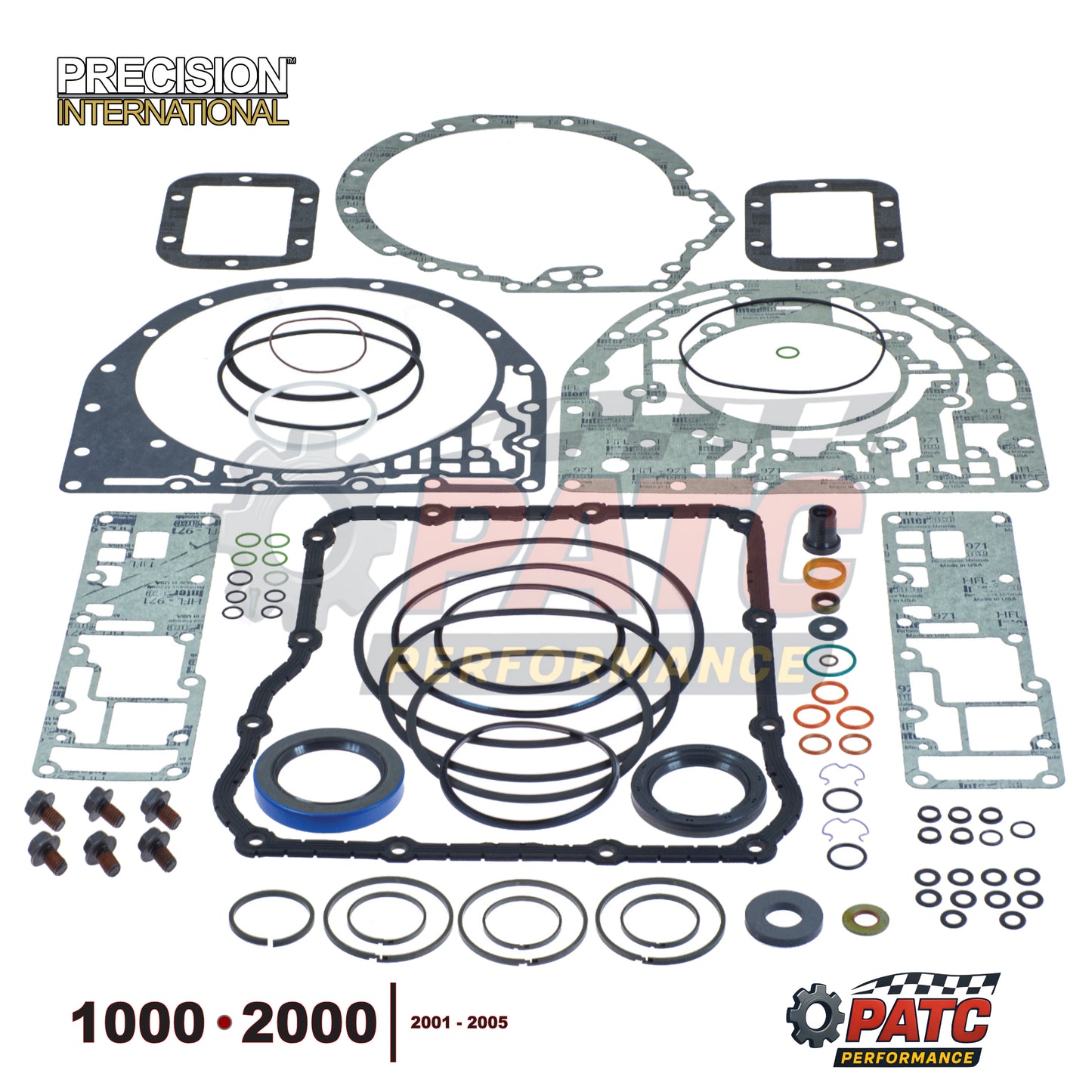

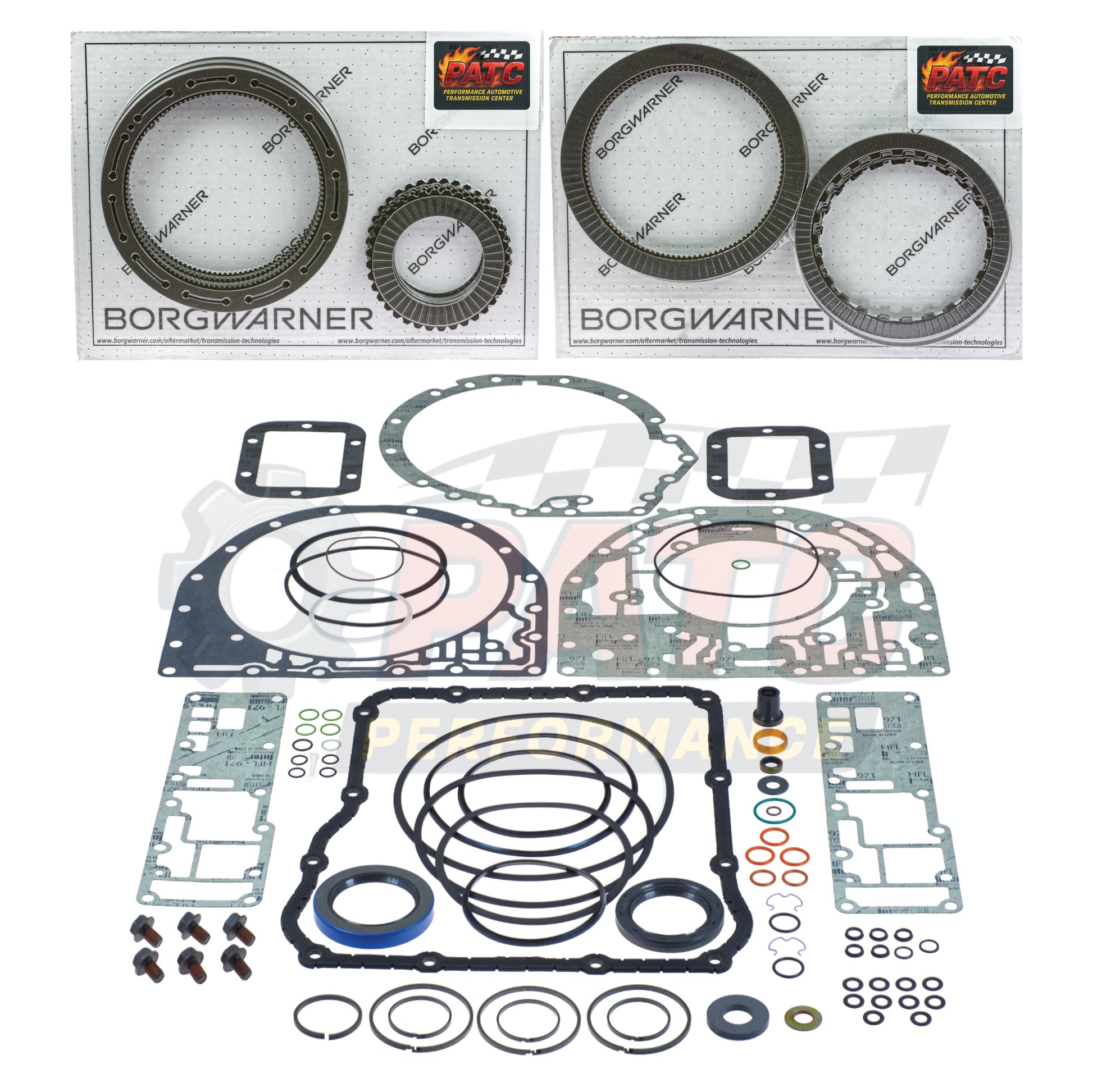

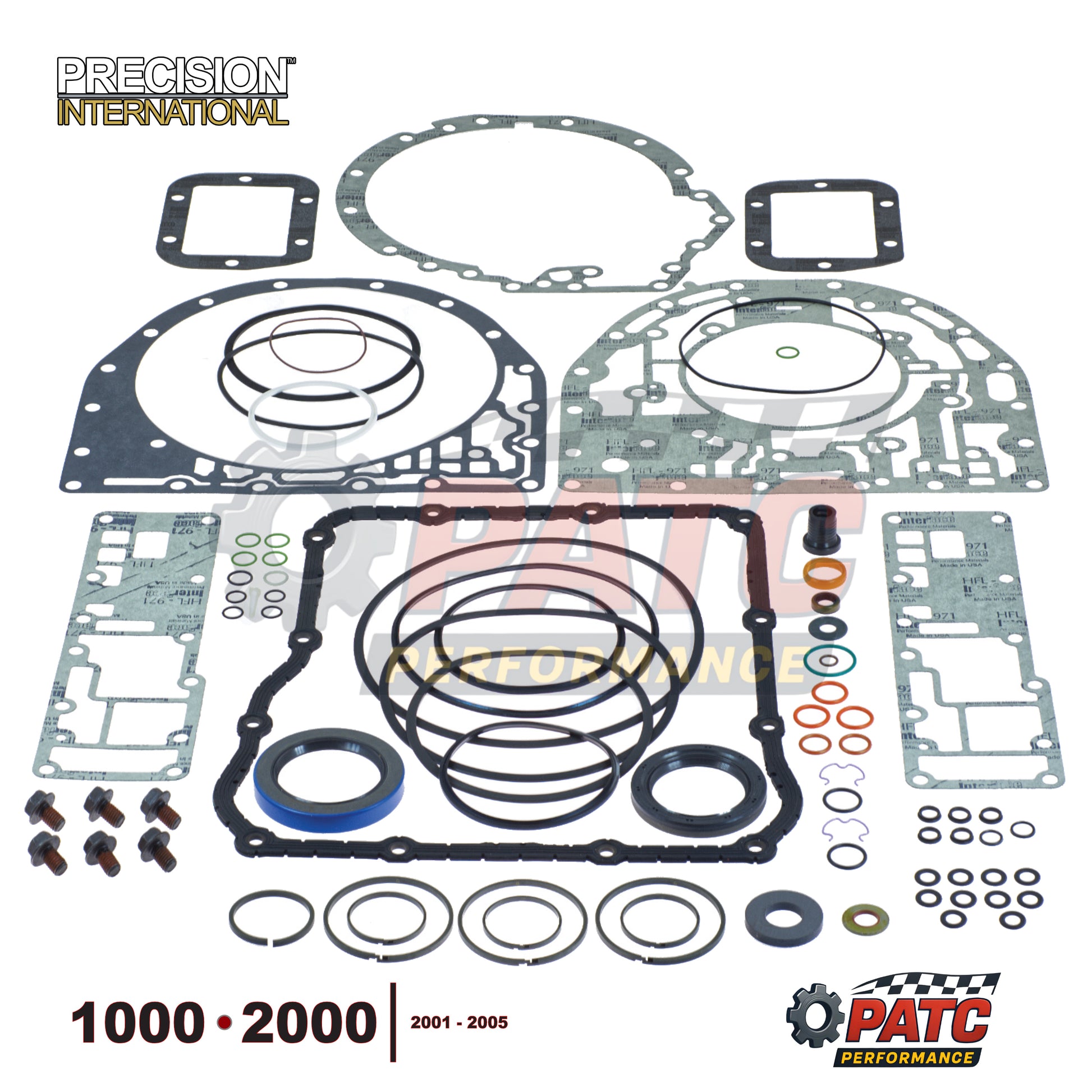

This OEM-Level Professional Kit from Precision International and BorgWarner
includes all Highest-Quality pieces pictured:
(1) Bonded Rubber-metal pan gasket (29536526)
(3) Clutch Piston Seal sub-packs
(1) Torque Converter Housing/Bellhousing Spacer Plate to Case gasket (29536478)
(1) Torque Converter Housing/Bellhousing to Spacer Plate gasket (29537329)
(1) Extension Housing gasket (29536941)
(2) PTO Gasket (Armstrong)(29501161)
(2) Cooler Manifold gaskets (29531189)
(1) Complete 7-piece Sealing Ring Kit
(1) Torque Converter Hub-to-Pump Seal ("Front Seal")(Black)(29546682)
(1) Extension-housing Seal ("Rear Seal)(Blue)(29536379)
(1) Manual Control Shaft/Shifter rod (23010610)
(6) Torque Converter Bolts w/threadlocker installed
(1) Magnet (for spin-on filter)
(2) Cooler Line Clips (purple)
Other small parts and O-rings
BorgWarner HP Friction Sets:
34325KIT - C2 and C5 Clutches
(6) C2 Friction Clutches High Performance (0.105")(24T)
(6) C5 Friction Clutches High Performance (0.105")(115T)(8-11/16" OD)
34326KIT - C1, C3 and C4 Clutches
(6) C1 Clutches High Performance (0.098")(36 External Teeth)(3.230" ID)
(9) C3/C4 Friction Clutches High Performance (0.098")(8-11/16"OD)(Slots)
(PACKAGING CAN VARY, BW UPDATED LOGO)
