Allison 1000 / 2000 Performance C3 Clutch Kit PowerPack® Alto G3 Frictions (152757B)

Allison LCT1000/2000 C3 Clutch PowerPack Kit

Chevy GMC 8.1L and Duramax Diesel Applications
2000-on

C3 Clutch PowerPack®
ALTO PART # 152757B, 1999-to Date

This great upgrade package includes the following

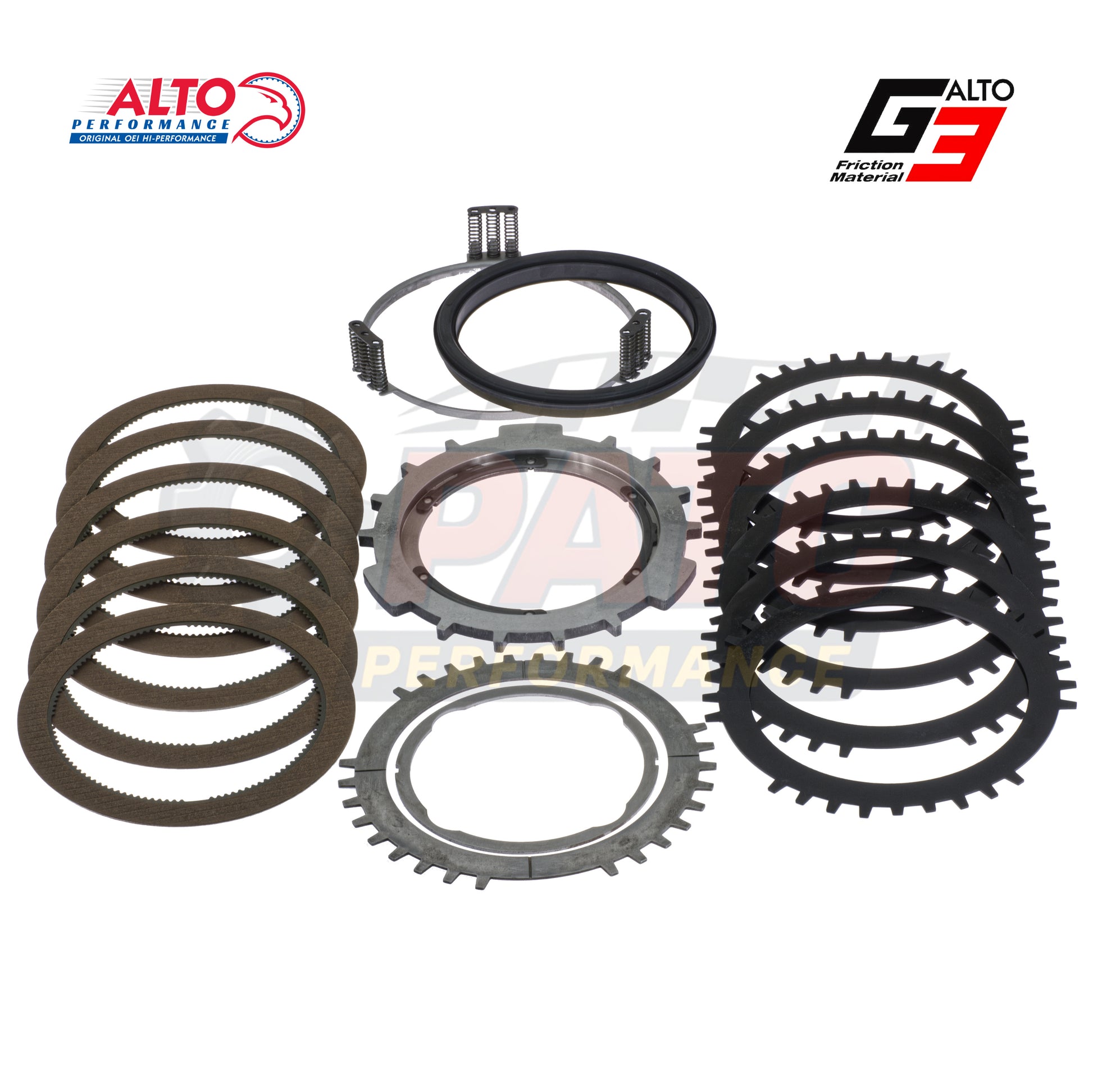

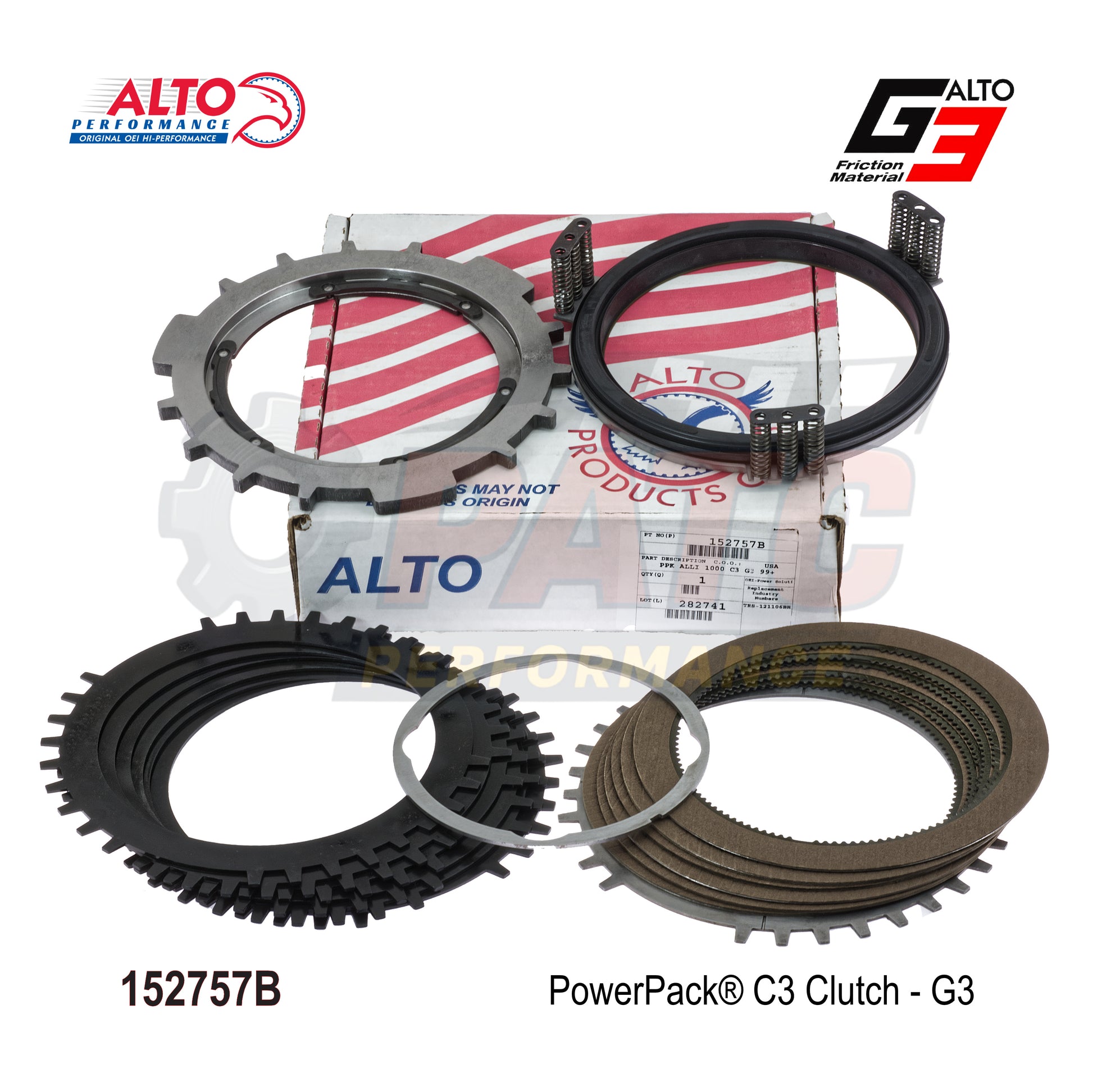

POWERPACK® CONTENTS:

(6) 152704A216 (.085”) G3 Friction Plates

(3) 152705AK218 (.086”) Performance Steel Separator Plates

(3) 152705AK250 (.097”) Performance Steel Separator Plates

(1) 152705DK218 (.086”) Performance Steel Grooved Apply plate

(1) 152763B (.4725”) C3 Top Pressure Plate

(1) 152764-250 (.102”) P1 Ring Gear Thrust Element Spacer

(1) 152303A C3/C4 Apply Piston

(1) 152309X C3/C4 Piston Return Spring Assembly

G3™ Friction

Alto Red Eagle invented Performance material but G3™ revolutionized it. G3™ Friction Material is our highest energy material available. It was engineered to meet the demands of high horsepower diesel performance market.

The friction material is specially formulated with graphitic carbon-based particles for minimizing wear and maximizing heat resistance. G3™ is engineered to be the most durable product for high horsepower high torque applications.

G3™ clutches:

    Higher torque capacity
    Improved shift - less noise and lower vibration (NVH)
    Consistent performance despite vehicle use and driver style
    Higher Energy capacity
    Reduced clutch burn out
