6L80 - 6L90

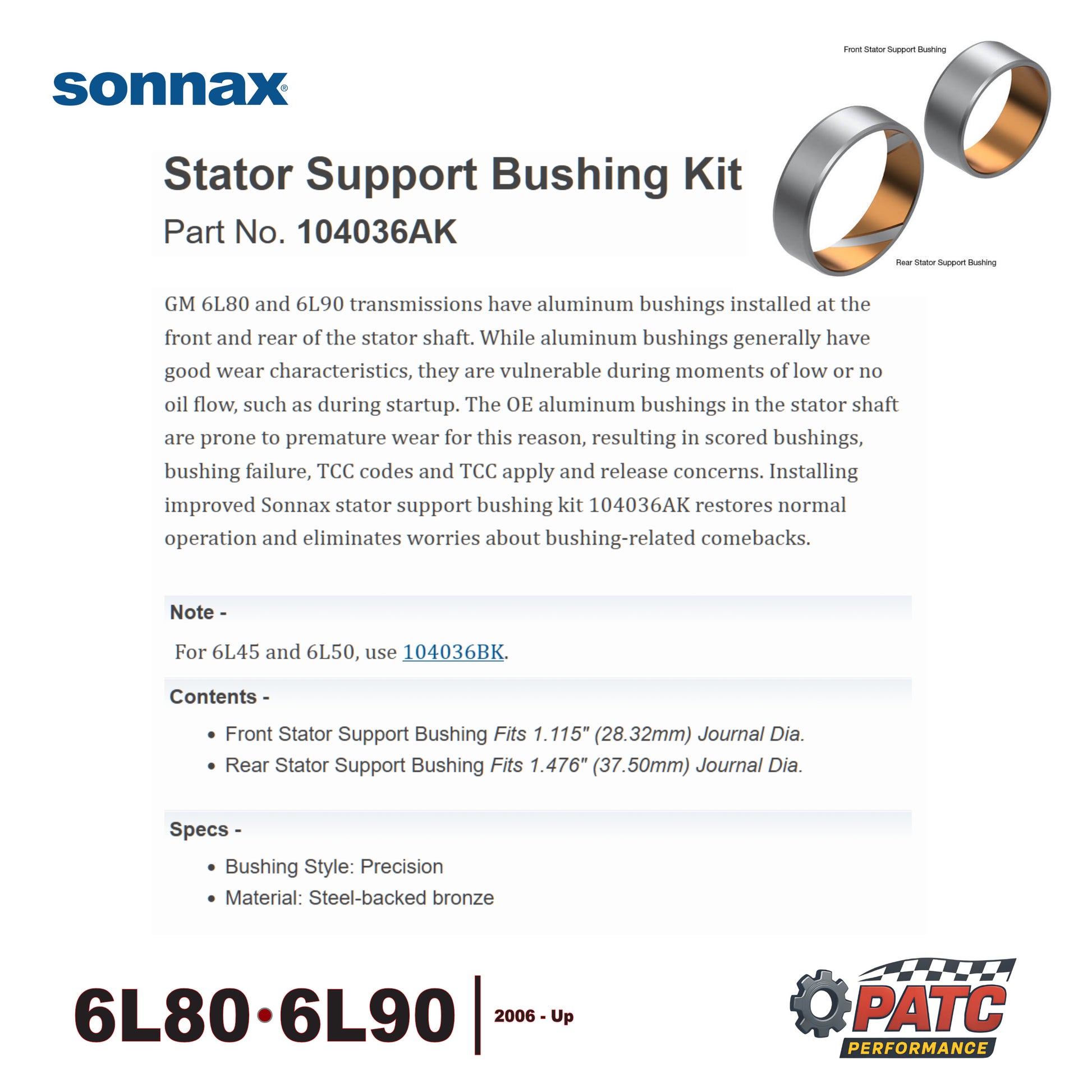

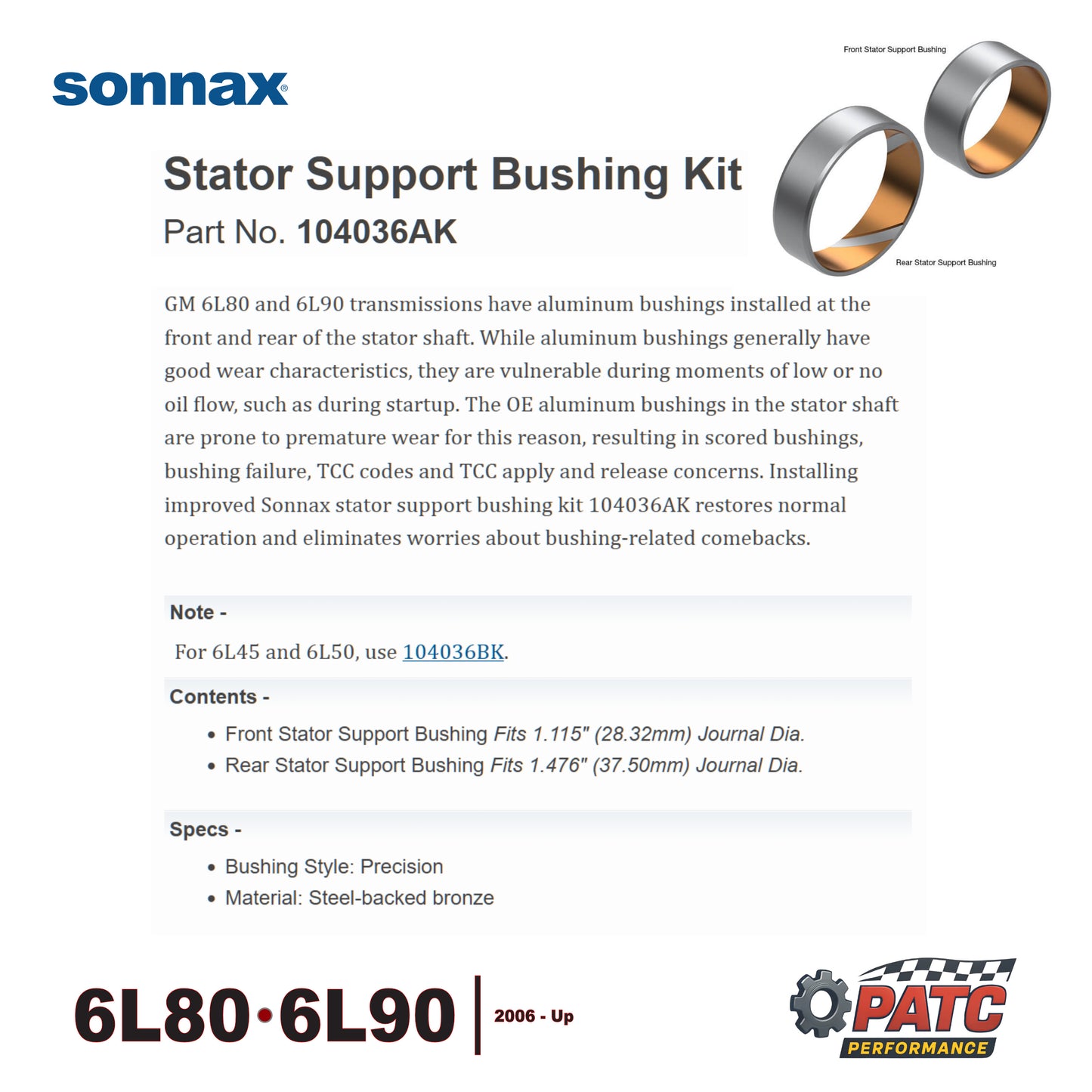

Stator Support Bushing Kit
Part No. 104036AK

GM 6L80 and 6L90 transmissions have aluminum bushings installed at the front and rear of the stator shaft. While aluminum bushings generally have good wear characteristics, they are vulnerable during moments of low or no oil flow, such as during startup. The OE aluminum bushings in the stator shaft are prone to premature wear for this reason, resulting in scored bushings, bushing failure, TCC codes and TCC apply and release concerns. Installing improved Sonnax stator support bushing kit 104036AK restores normal operation and eliminates worries about bushing-related comebacks.

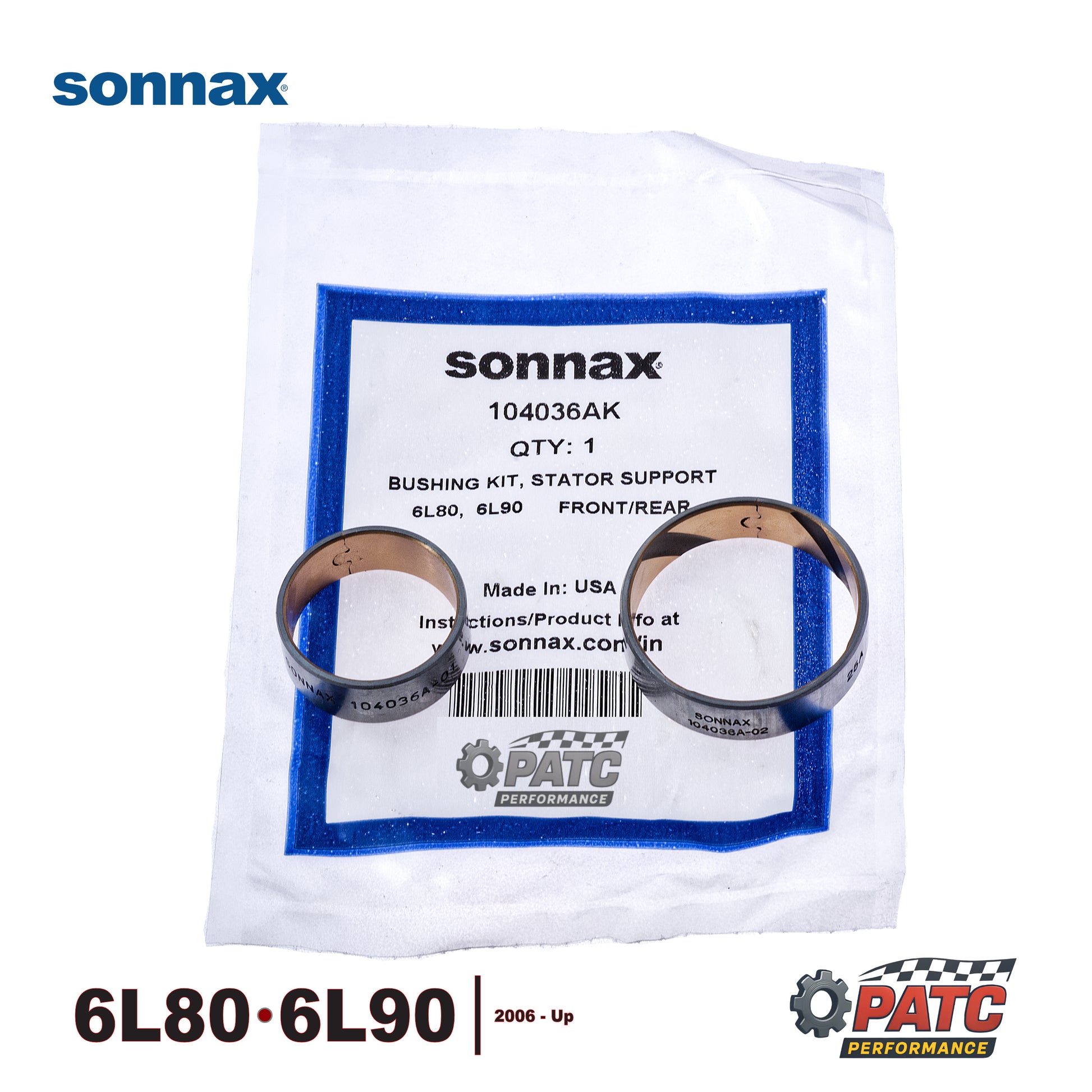

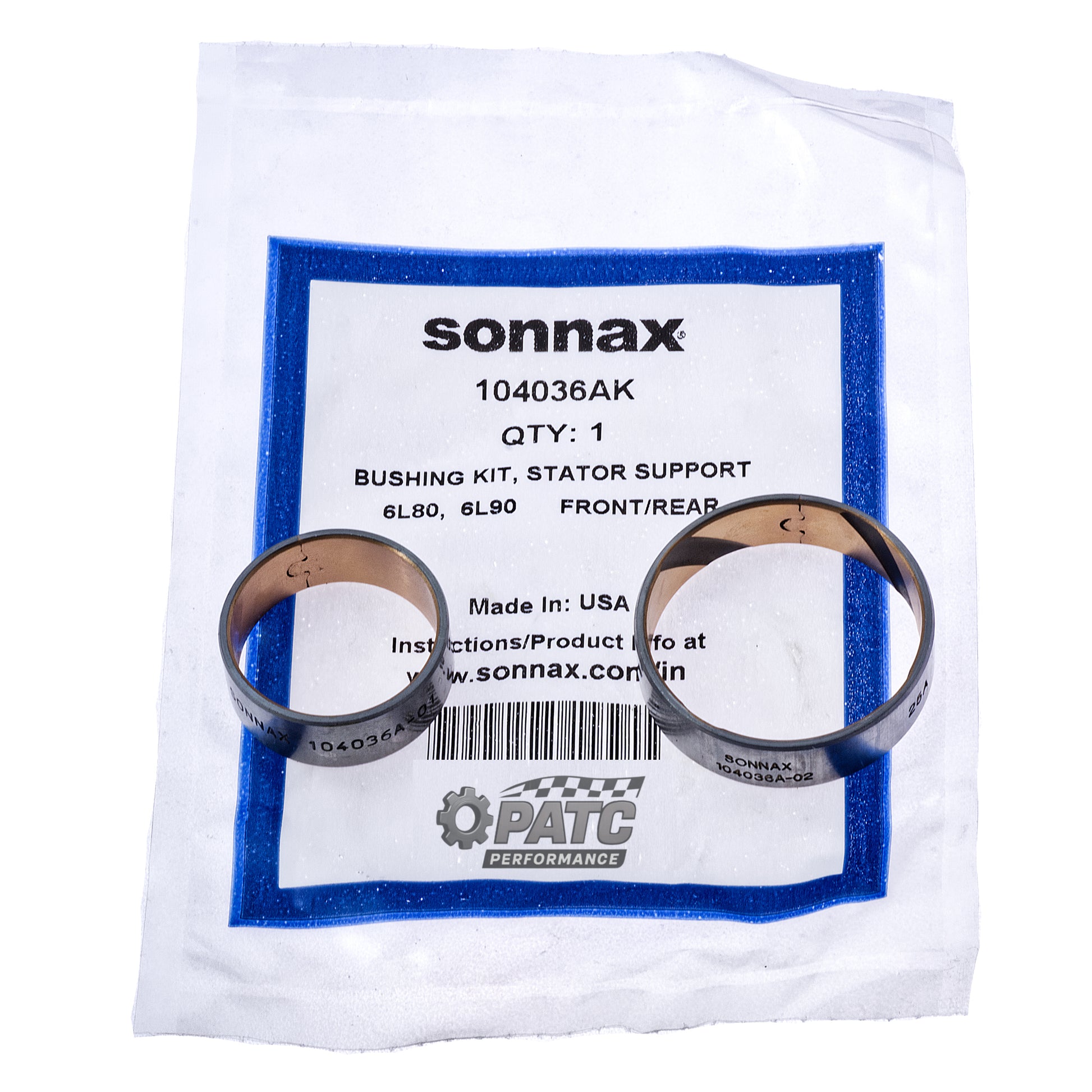

Contents

    Front Stator Support Bushing Fits 1.115" (28.32mm) Journal Dia.
    Rear Stator Support Bushing Fits 1.476" (37.50mm) Journal Dia.

Specs

    Bushing Style: Precision
    Material: Steel-backed bronze
