68RFE Transmission Pan Aluminum Deep for 200725 Ram 6.7 Cummins Diesel

DODGE RAM 68RFE PERFORMANCE TRANSMISSION PAN

FITS 2007–2020

6.7L CUMMINS DIESEL PICK-UP TRUCKS

Features:

• High-strength, durable A356.0-T6 aluminum alloy
• Precision cast using permanent steel molds
• 3 quarts additional fluid capacity

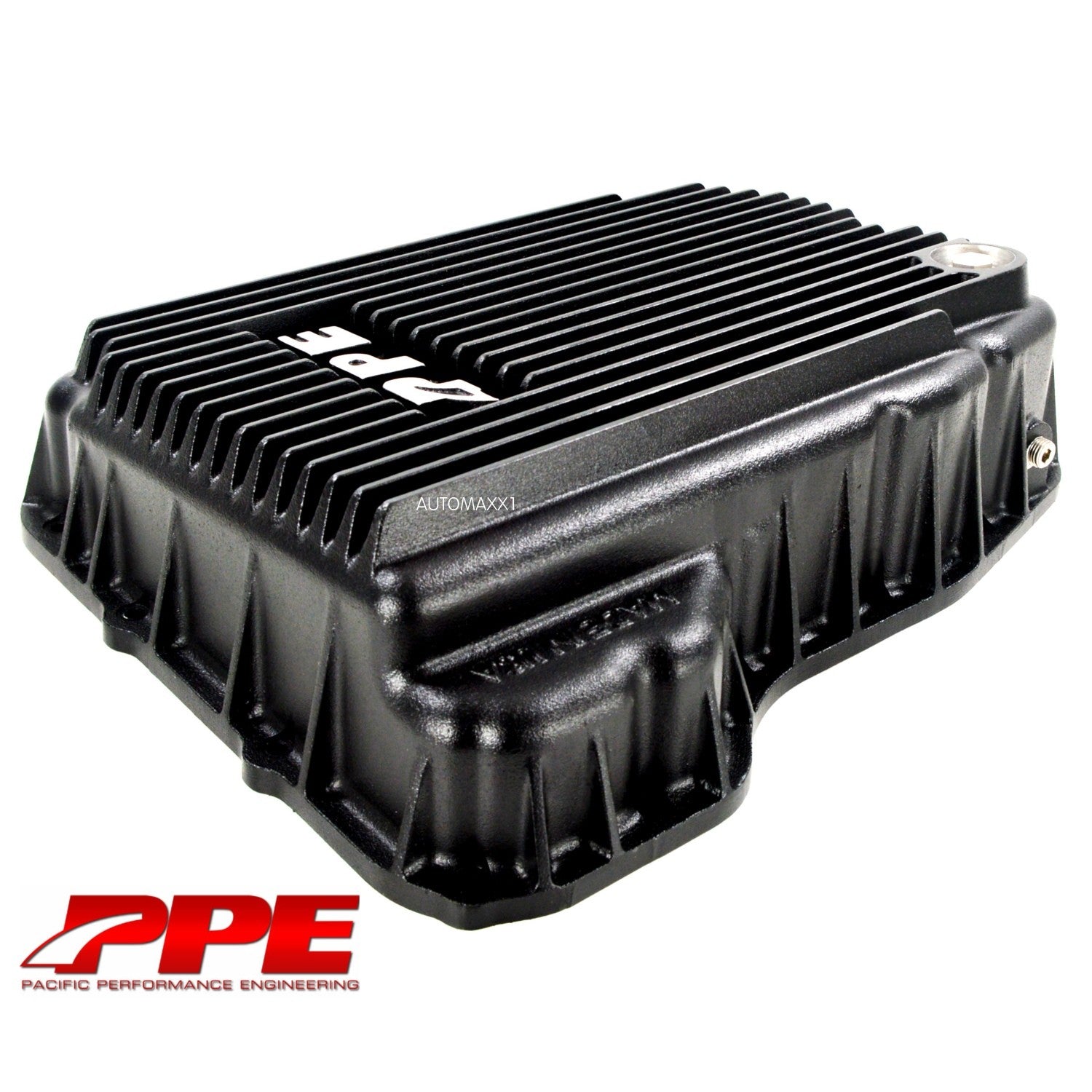

• External cooling fins enhance heat dissipation and increase impact resistance

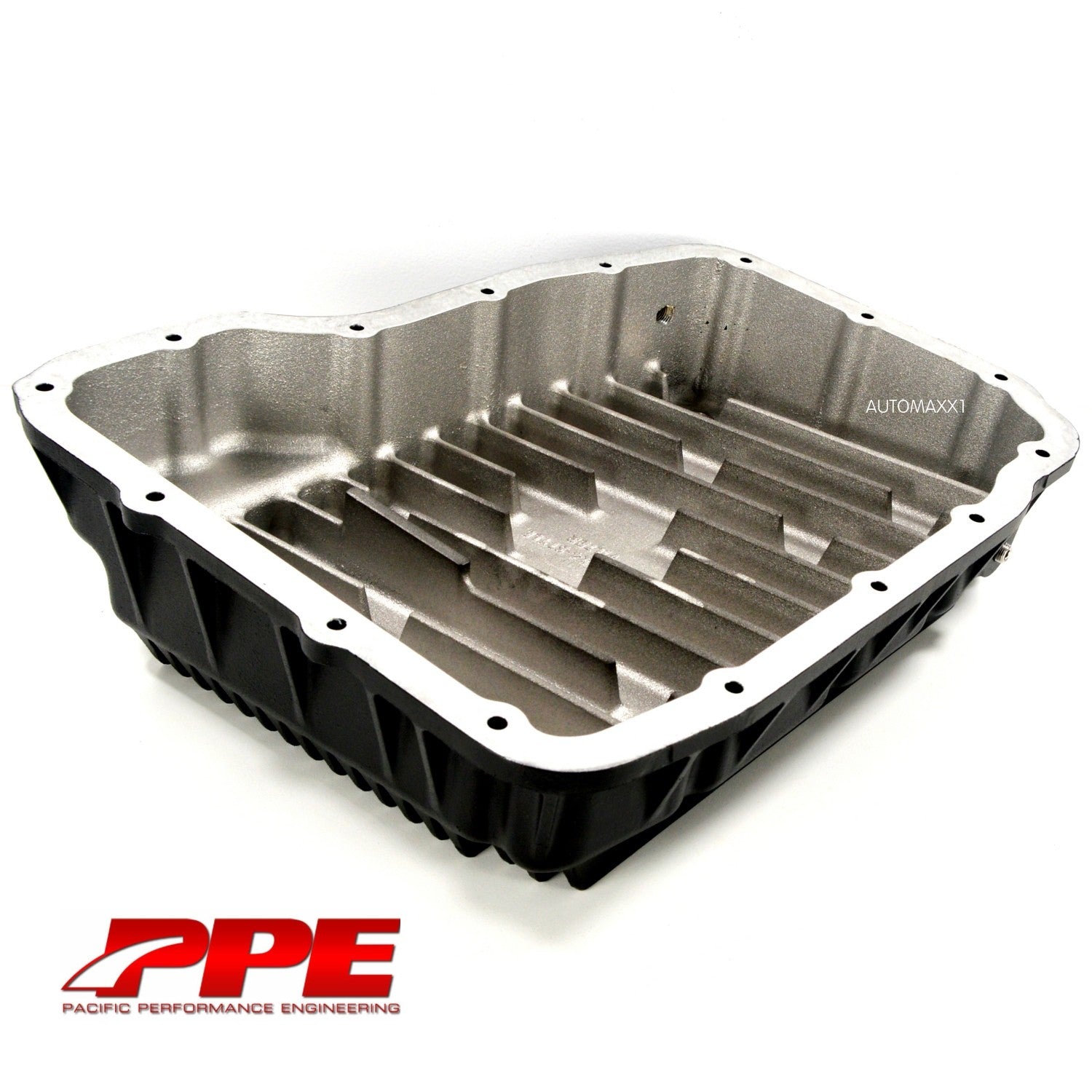

• Internal baffles enhance cooling and reduce fluid sloshing
• Billet stainless steel drain plug with built-in high-temp neodymium magnet and Viton O-ring
• Dual NPT ports (1/8-in and 1/4-in)
• Triangular gussets add rigidity and provide extra support for transmission case
• PPE Deep Spin-On Transmission Filter (228052150) included

This pan features internal heat sinks and external cooling fins. These cooling fins, combined with the aluminum construction, promote reduced transmission oil temperatures.

Cooler oil lubricates better which helps increase transmission service life!!!

This new pan comes with a Neodymium-equipped, 1-inch stainless steel drain plug to remove harmful ferrous metals from the oil. Kit includes two NPT plugs and access ports for temperature probes. The factory filter is retained, making future transmission service a cinch.

In testing, a 2013 2500 Cummins-powered Ram towing a 13,000 lb travel trailer was used. The pair was taken on a 900 mile loop through city traffic, steep hill climbs as well as wide-open, flat highway runs. Transmission temperatures never went over 200 degrees. After cresting the top of hills, transmission temperatures also dropped much quicker than they did with the factory-installed stamped steel pan.

Unloaded temperatures were consistently 10 degrees (or lower) below those measured with a factory pan.
