DODGE RAM 68RFE
Billet Valve Body Channel Plate Upgrade Package
FITS 2007-18
6.7L CUMMINS DIESEL PICK-UP TRUCKS
Also 545RFE 2006-11

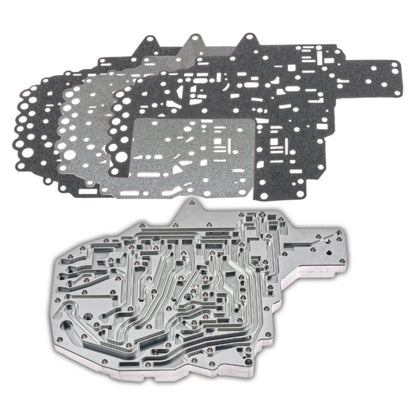

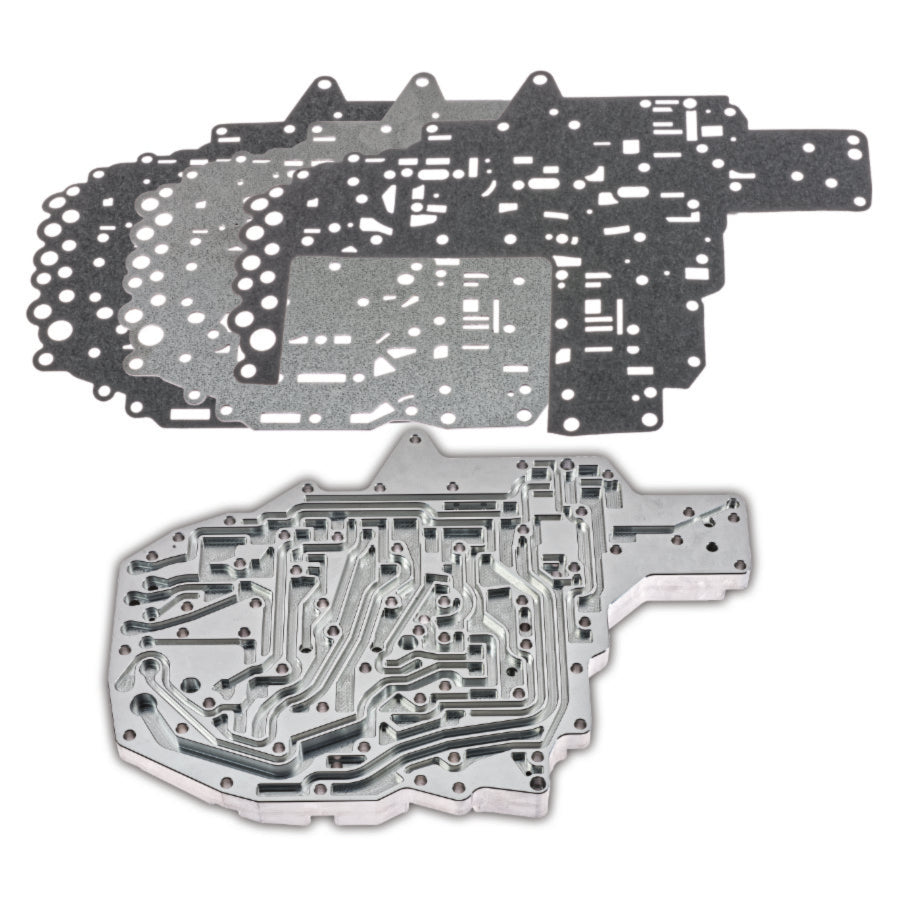

Includes:

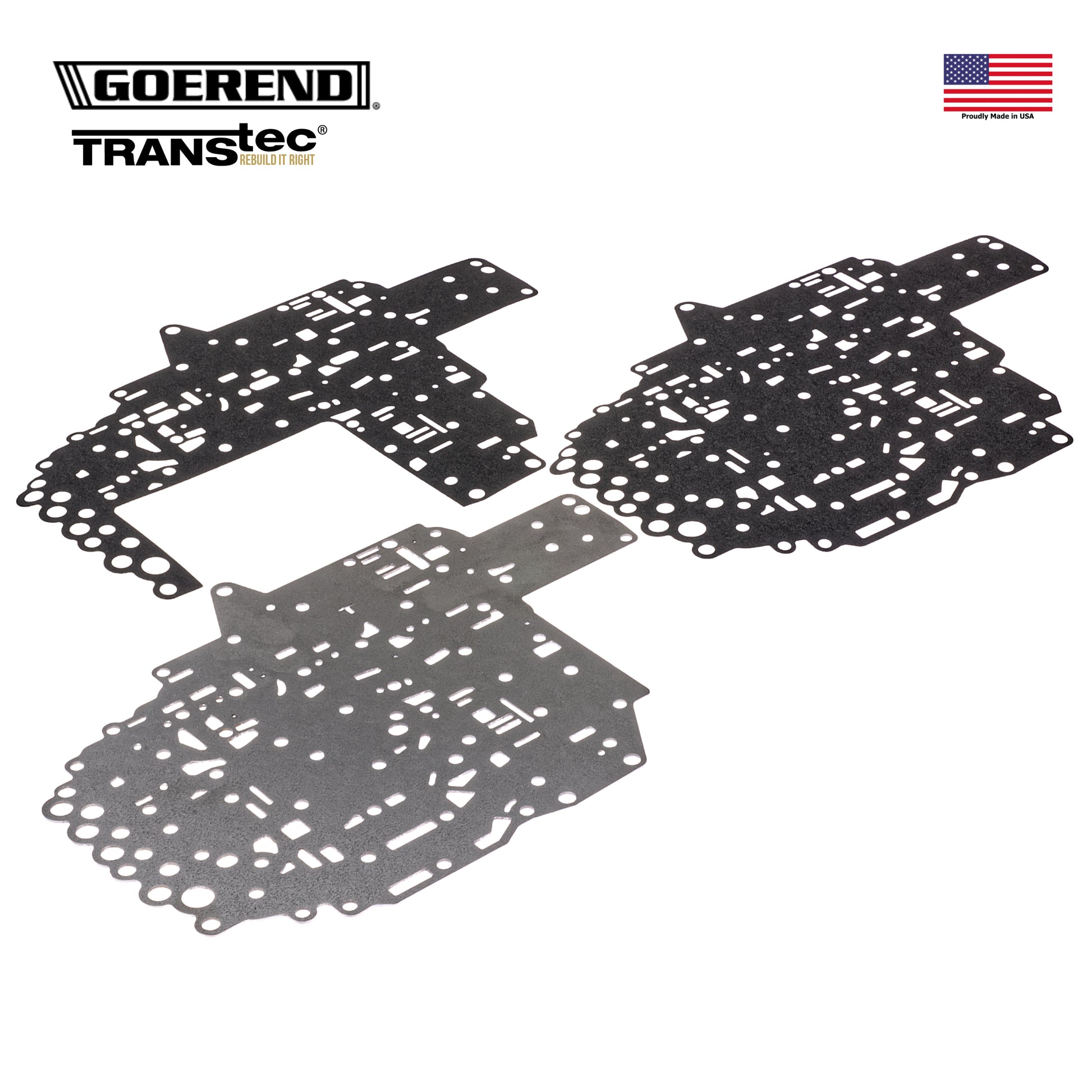

(1) Set upper and lower valve body gaskets by TransTec

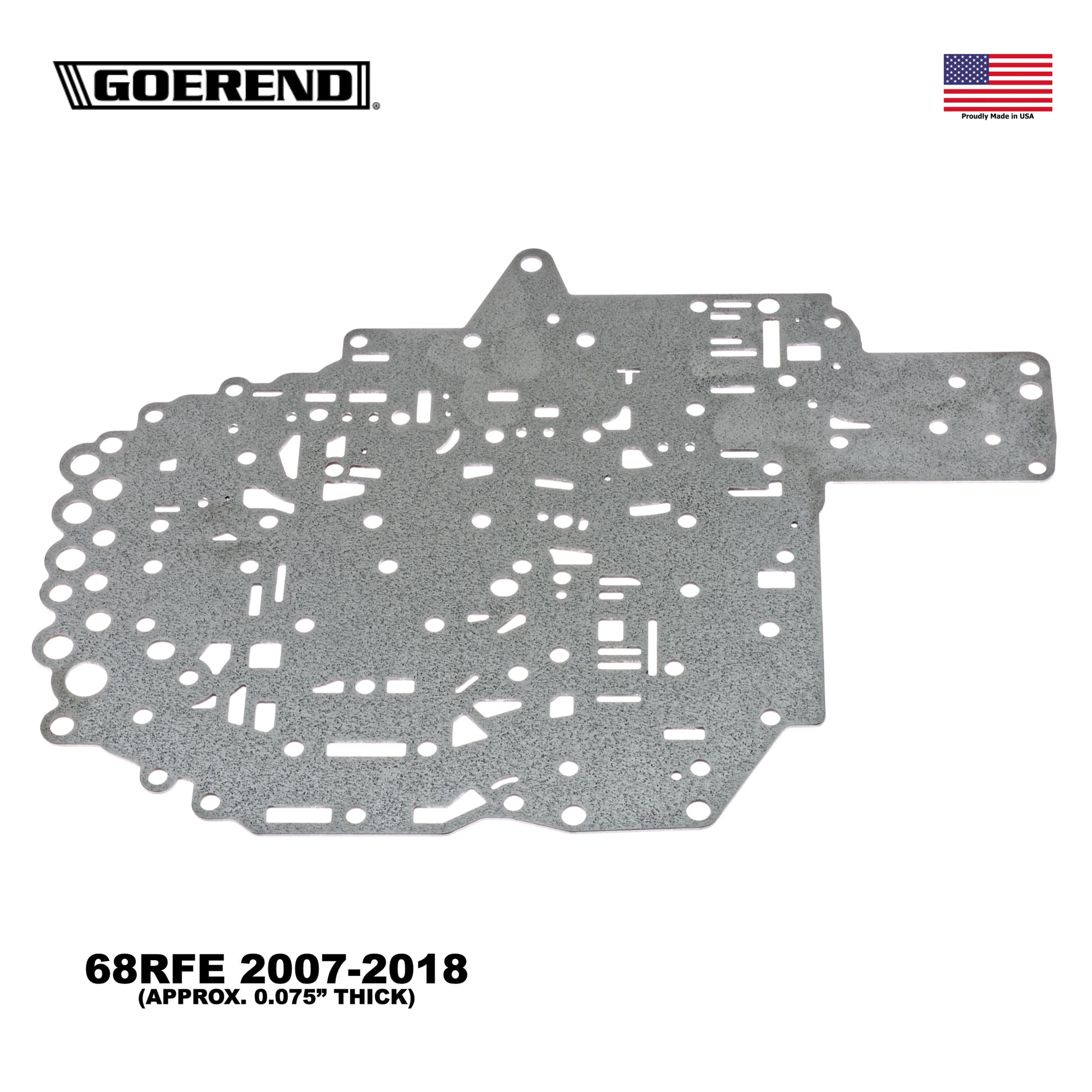

(1) Steel Separator Plate (Goerend R120-301)

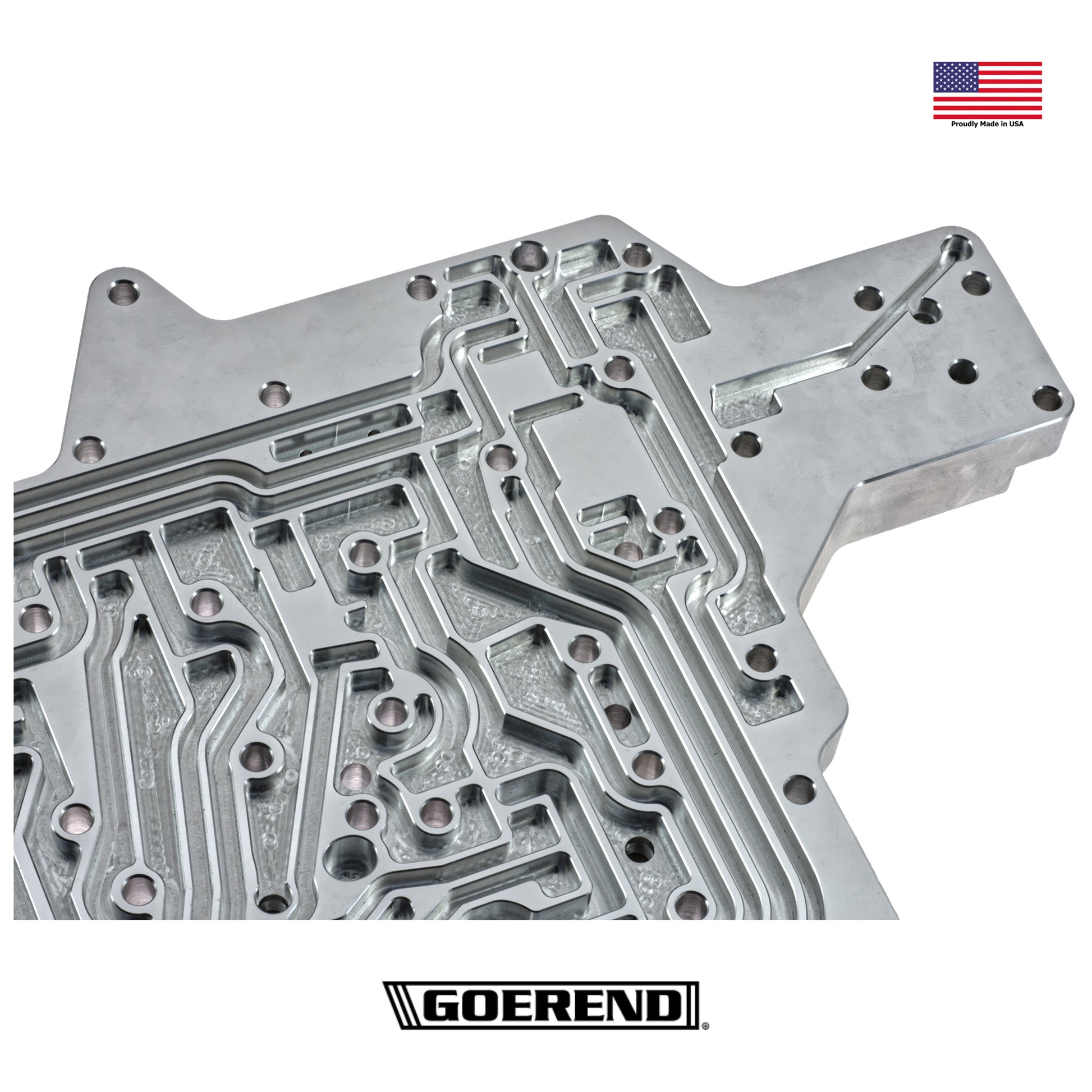

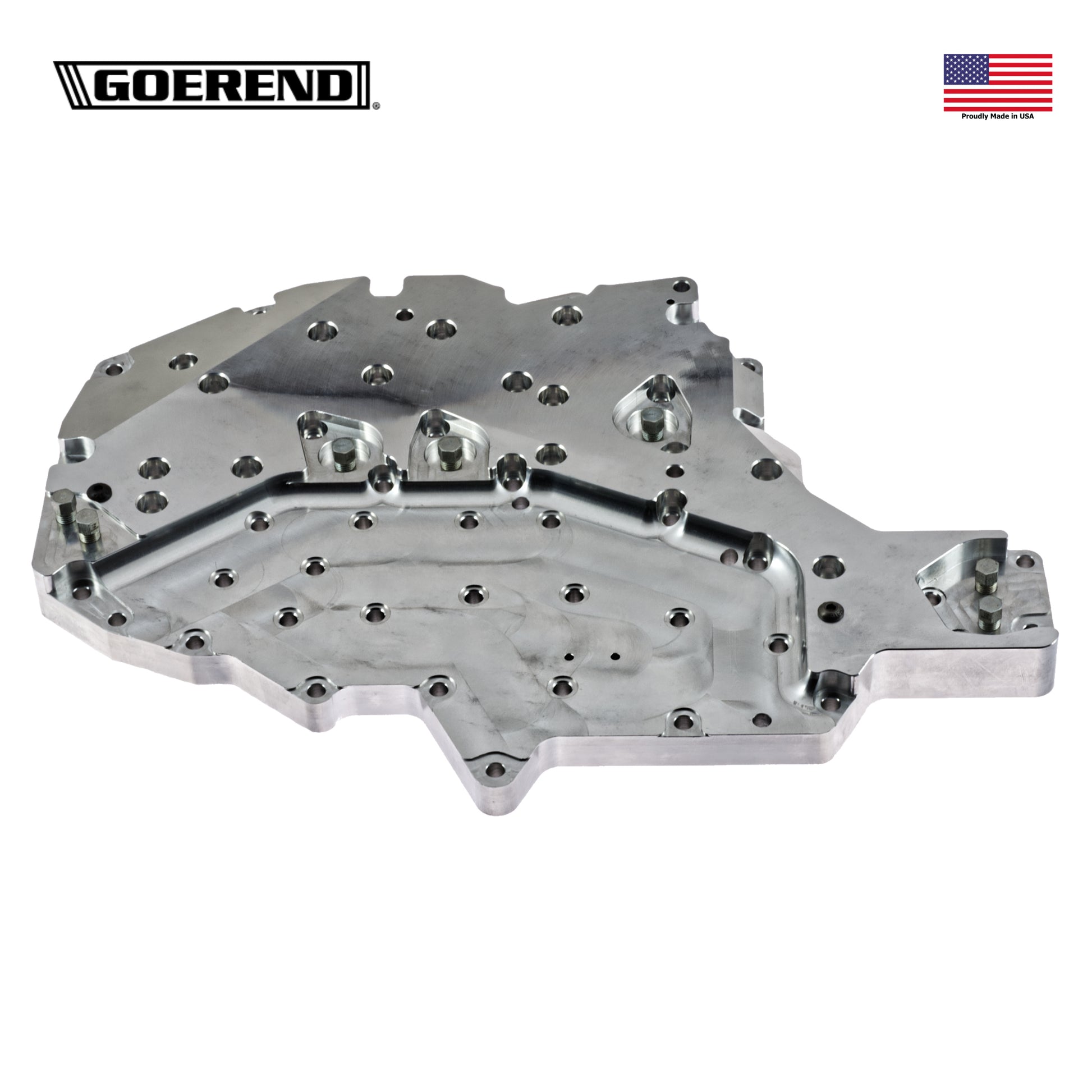

(1) Billet Aluminum channel plate (Goerend R120-302)

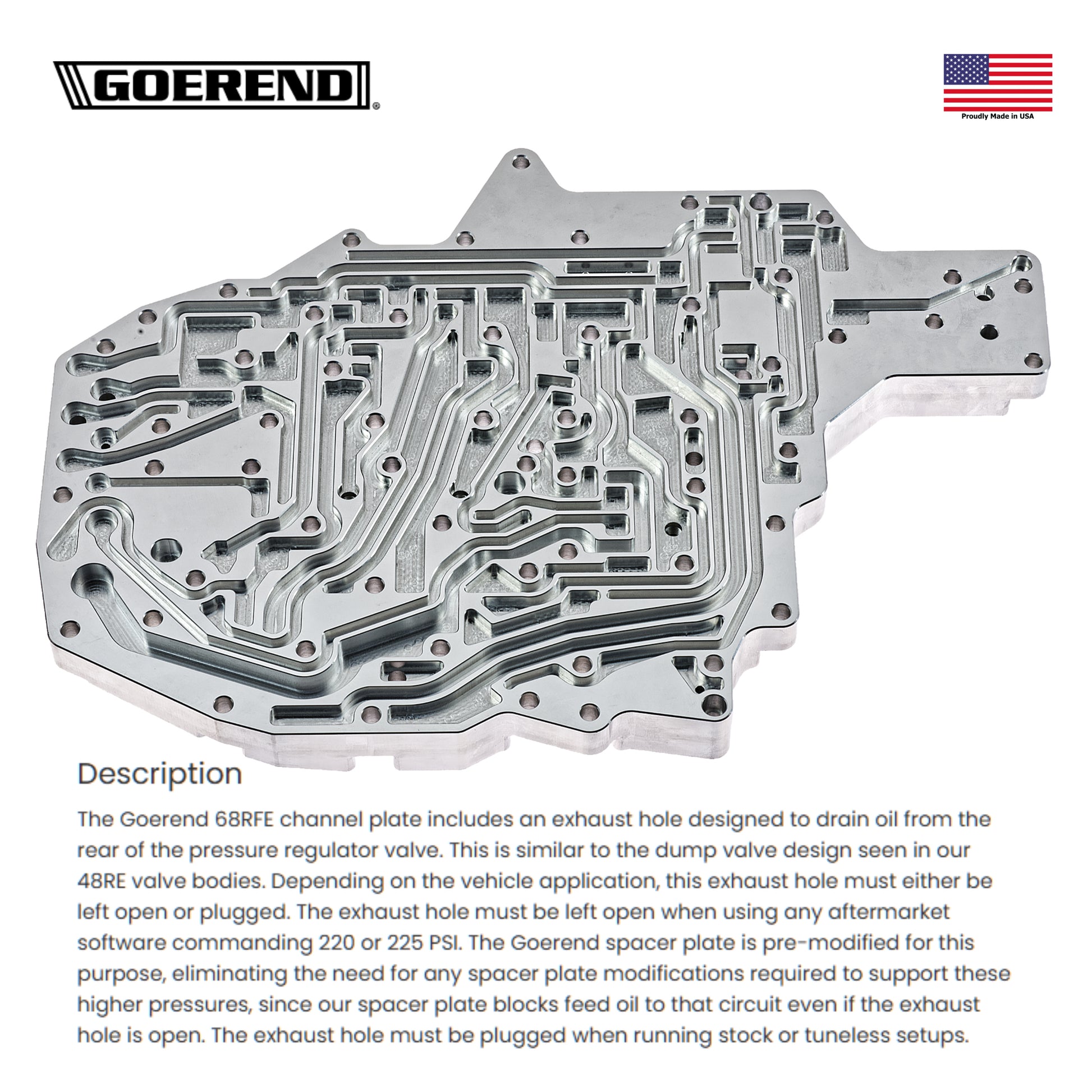

The Goerend 68RFE channel plate includes an exhaust hole designed to drain oil from the rear of the pressure regulator valve. This is similar to the dump valve design seen in our 48RE valve bodies. Depending on the vehicle application, this exhaust hole must either be left open or plugged. The exhaust hole must be left open when using any aftermarket software commanding 220 or 225 PSI. The Goerend spacer plate is pre-modified for this purpose, eliminating the need for any spacer plate modifications required to support these higher pressures, since our spacer plate blocks feed oil to that circuit even if the exhaust hole is open. The exhaust hole must be plugged when running stock or tuneless setups.

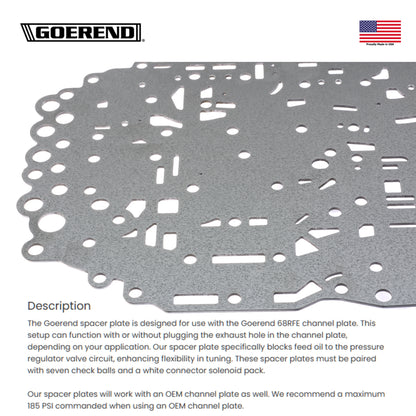

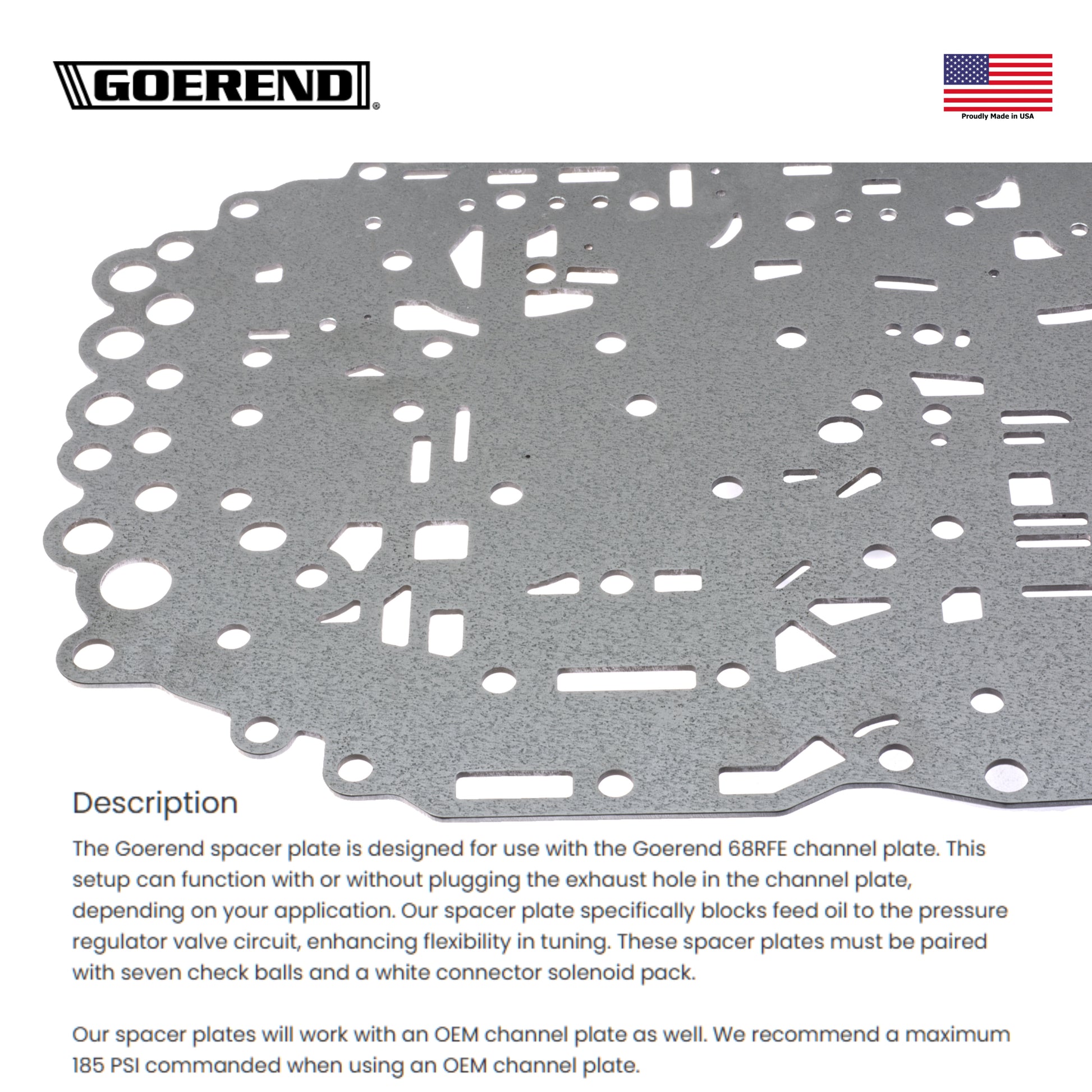

The Goerend spacer plate is designed for use with the Goerend 68RFE channel plate. This setup can function with or without plugging the exhaust hole in the channel plate, depending on your application. Our spacer plate specifically blocks feed oil to the pressure regulator valve circuit, enhancing flexibility in tuning. These spacer plates must be paired with seven check balls and a white connector solenoid pack.

Our spacer plates will work with an OEM channel plate as well.
We recommend a maximum 185 PSI commanded when using an OEM channel plate.
