4L60E, 4L65E, 4L70E Pressure Boost Valve Kit .500" | TransGo 4L60E-BOOST

Drop-in Pressure Boost Valve and Bushing
.500" Boost Valve and Bushing Steel Replacement Kit
Fits all 4L60E, 4L65E, 4L70E, 4L75E 1993-on

TransGo 4L60E-BOOST

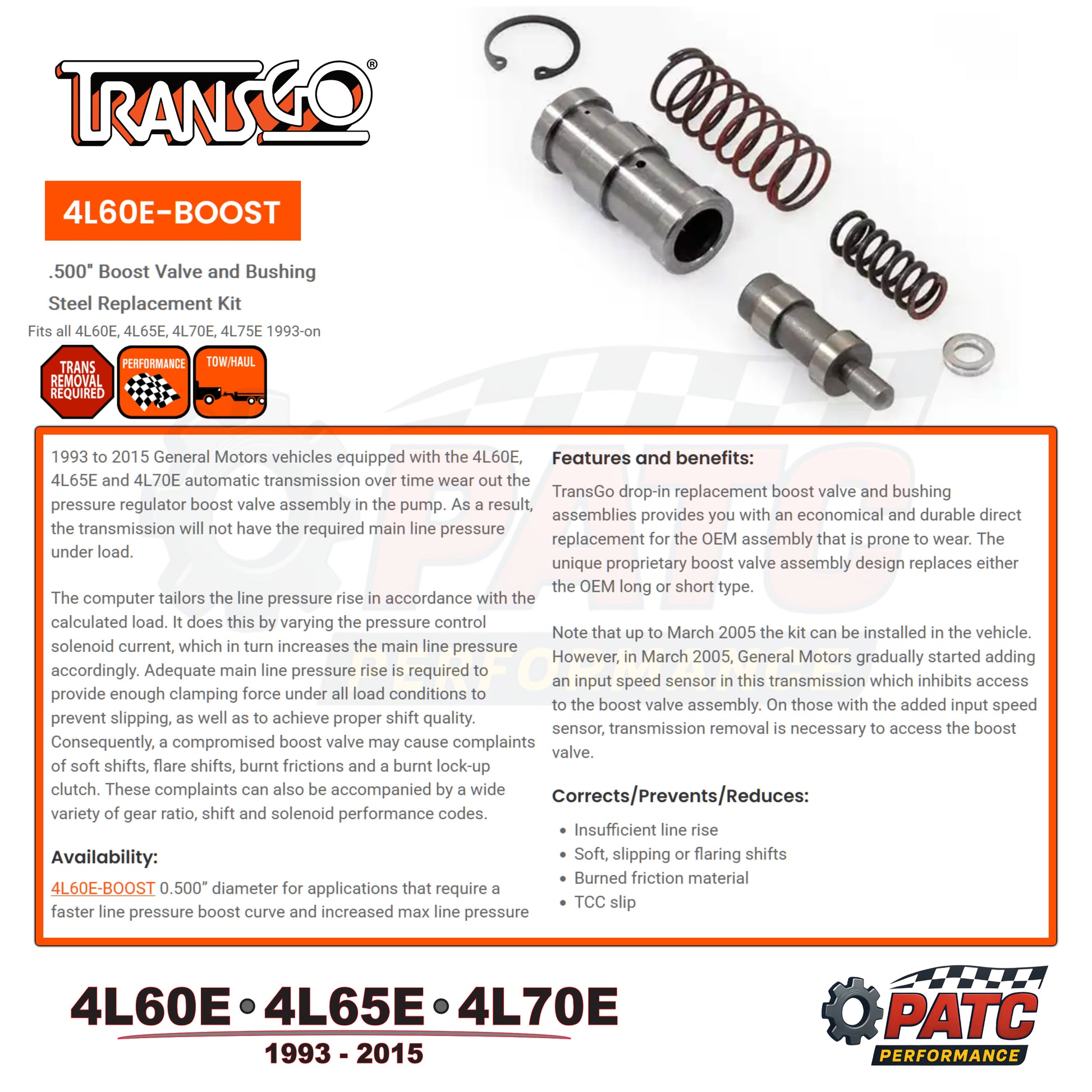

High performance .500″ diameter boost valve and bushing kit for applications requiring a faster line pressure boost curve and increased max line pressure

Features:

• Increases pressure rise response for use in trucks, police, taxis, delivery vehicles and high performance applications
• Replaces both early 1.910 (long) and late 1.810 (short) bushing and valves (fits both types)

Corrects/Prevents/Reduces:

• Reduces 3-4 clutch failure
• Band failure
• Low reverse clutch slip

Note that up to March 2005 the kit can be installed in the vehicle.  However, in March 2005, General Motors gradually started adding an input speed sensor in this transmission which inhibits access to the boost valve assembly. On those with the added input speed sensor, transmission removal is necessary to access the boost valve.

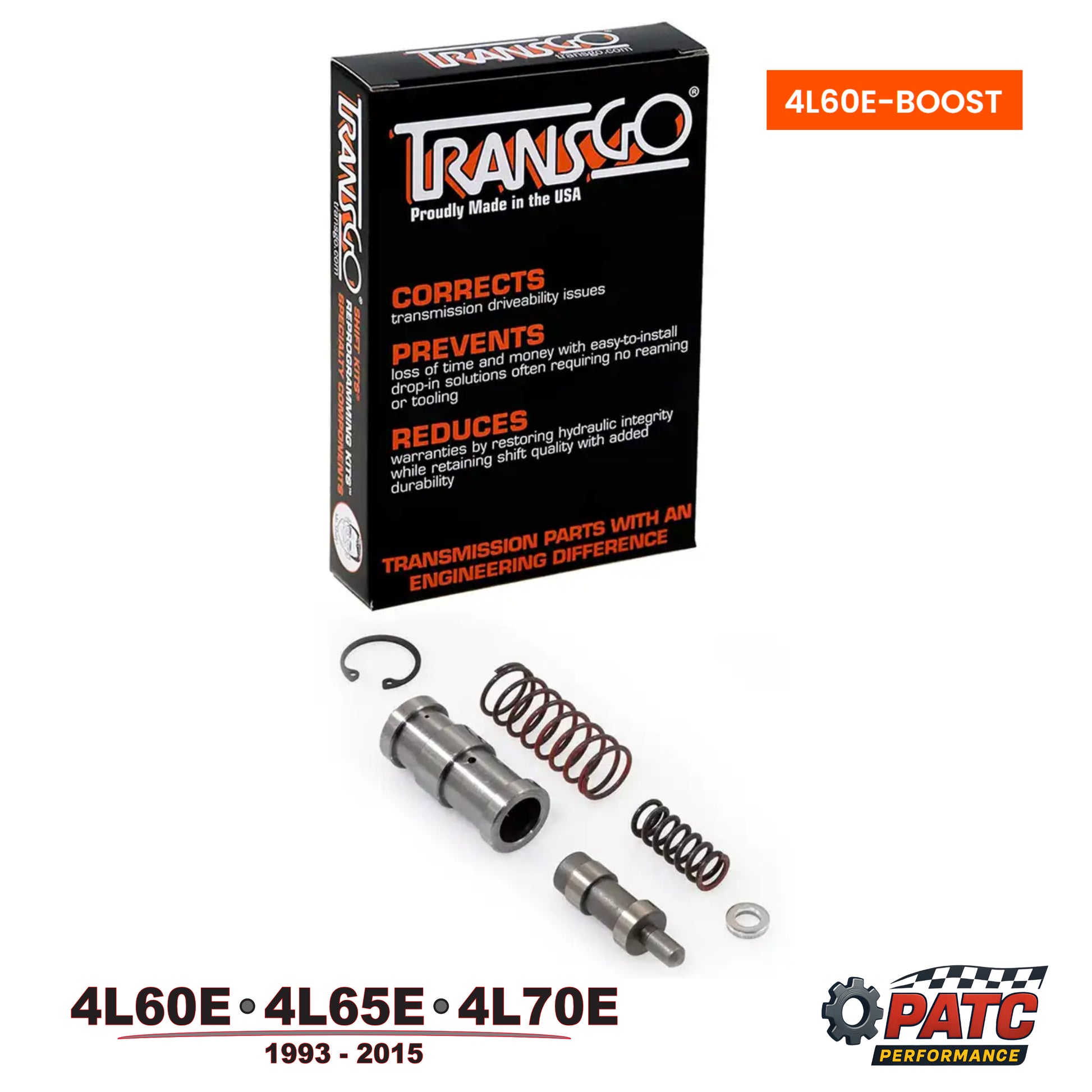

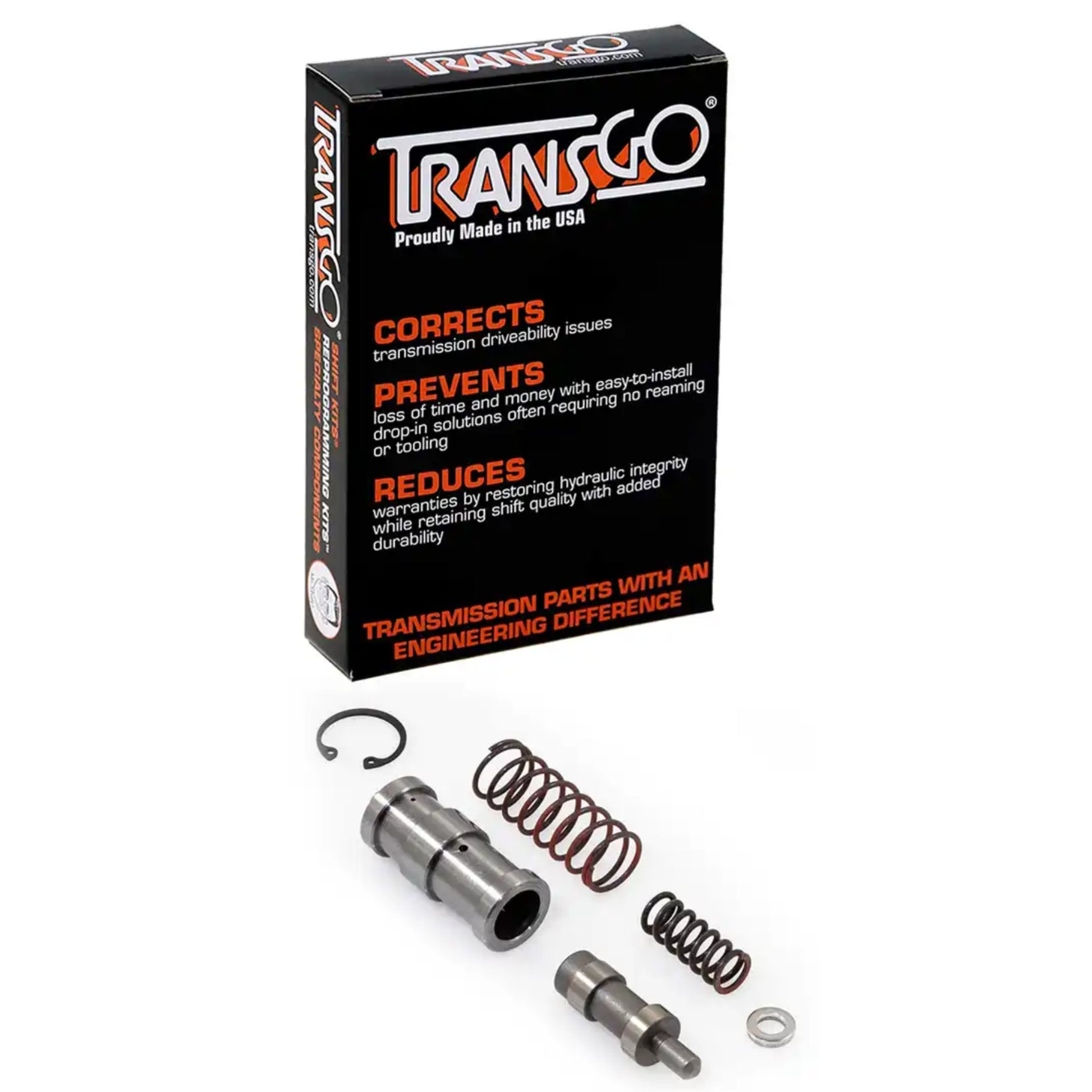

Includes:

• USA-made hardened steel boost valve and bushing
• Spacer
• (2) Springs
• Snap ring
