A518 46RE - A618 47RE Ram Transmission

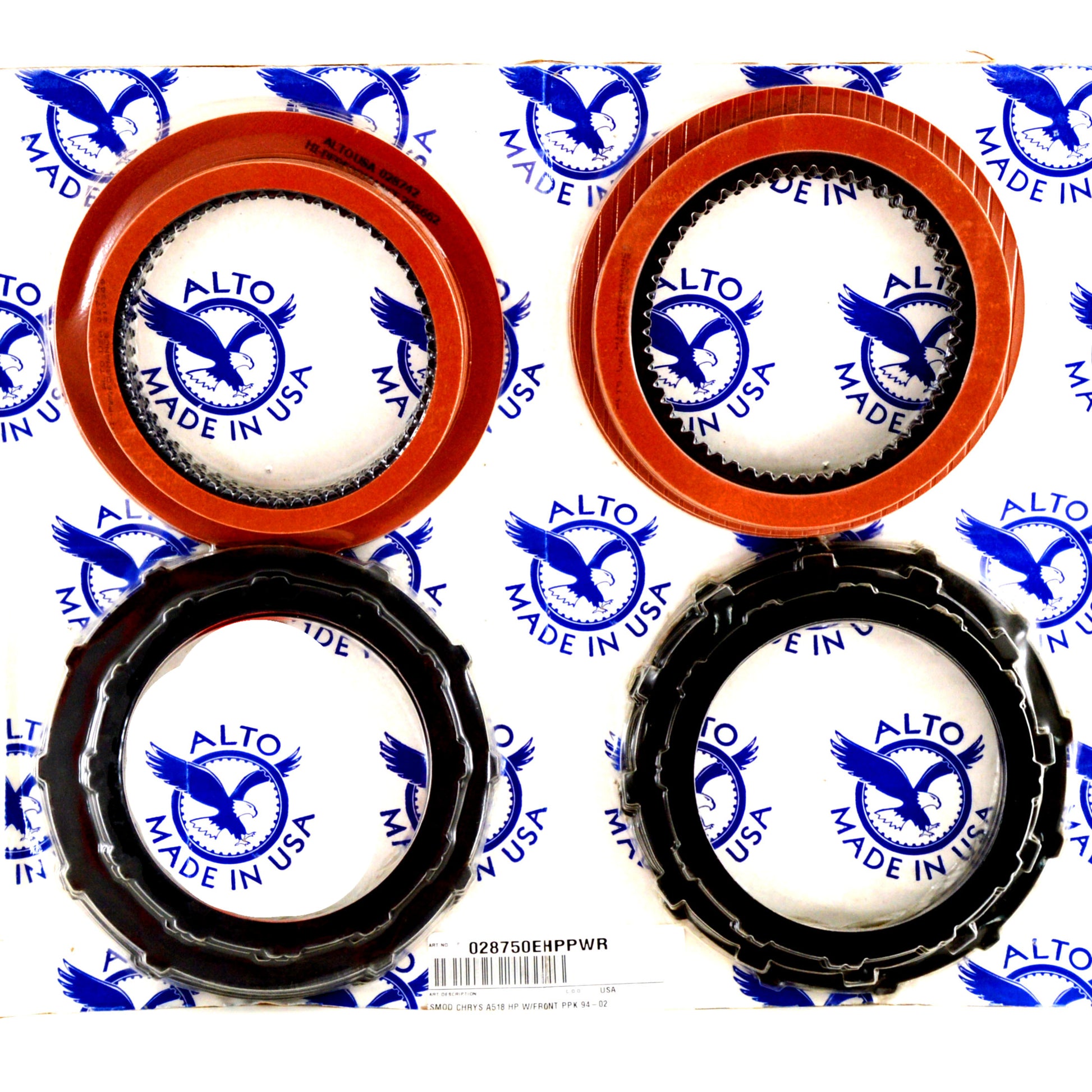

Alto Extreme Performance Friction and Steel Kit
028750EHPPWR
Fits 1994-up
This awesome setup includes Direct PowerPack!
028755 Direct (Front Clutch) PowerPack:
(7) 028742A155 (.061" / 1.55mm) Red Eagle Friction Plates
(6) 028701K (.068" / 1.72mm) Kolene Steel Plates
(2) 028701K216 (.085" / 2.15mm) Kolene Steel Plates
(1) 028761X (0.170" / 4.32mm) Pressure Plate
Forward (Rear Clutch):
(4) Red Eagle Friction Plates
(3) 028701K (0.068" / 1.73mm) Kolene Steel Plates
Overdrive Brake Clutch Pack:
(5) Red Eagle Friction Plates
(5) Kolene Steel Plates
Overdrive Direct Pack:
(10) Red Eagle Friction Plates
(8) Kolene Steel Plates
Red Eagle Friction
Red Eagle Friction is the go-to material for most performance applications.
The lining has a unique dual saturation, which imparts high friction coefficients and high heat resistance. Red Eagle clutches are designed to limit the amount of "slip" by providing a shorter lock-up time, generating less heat.
Our proprietary process starts with the friction paper saturated in a phenolic resin, cured, and then saturated a second time in a silicate. The silicate imparts high heat resistance.
Red Eagle clutches:
Are designed with a softer, more resilient base paper.
Assure less wear against opposing steel plates.
Reduce the incidence of steel plates burning and warping.
Kolene® Steel
Kolene® is a salt bath nitriding process. In generic terms, it is a thermochemical diffusion process, whereby ferrous parts are processed in molten salt with a specific nitrogen potential. In plain English, it provides a surface treatment that enhances wear and fatigue resistance from 200% to 500% which offers higher heat resistant and increased lubricity.
Kolene® Steel
Strengthen wear characteristics
Increase fatigue strength
Enhance lubricity
Kolene is a registered trademark of Kolene Corporation.
PowerPacks®
Alto created extra capacity clutches. The concept was originally developed for the TH700R4 3/4 pack.
It has since been enhanced for many of todays High Energy applications.
PowerPacks®
Increased surface area for increased holding
Increased surface area for increased heat absorption
Increased surface area for shorter lock-up time - decreasing "slippage"
Made In USA
