48RE Ram Transmission Rebuild Kit Raybestos Stage1 HD Friction Clutch Set 2003+

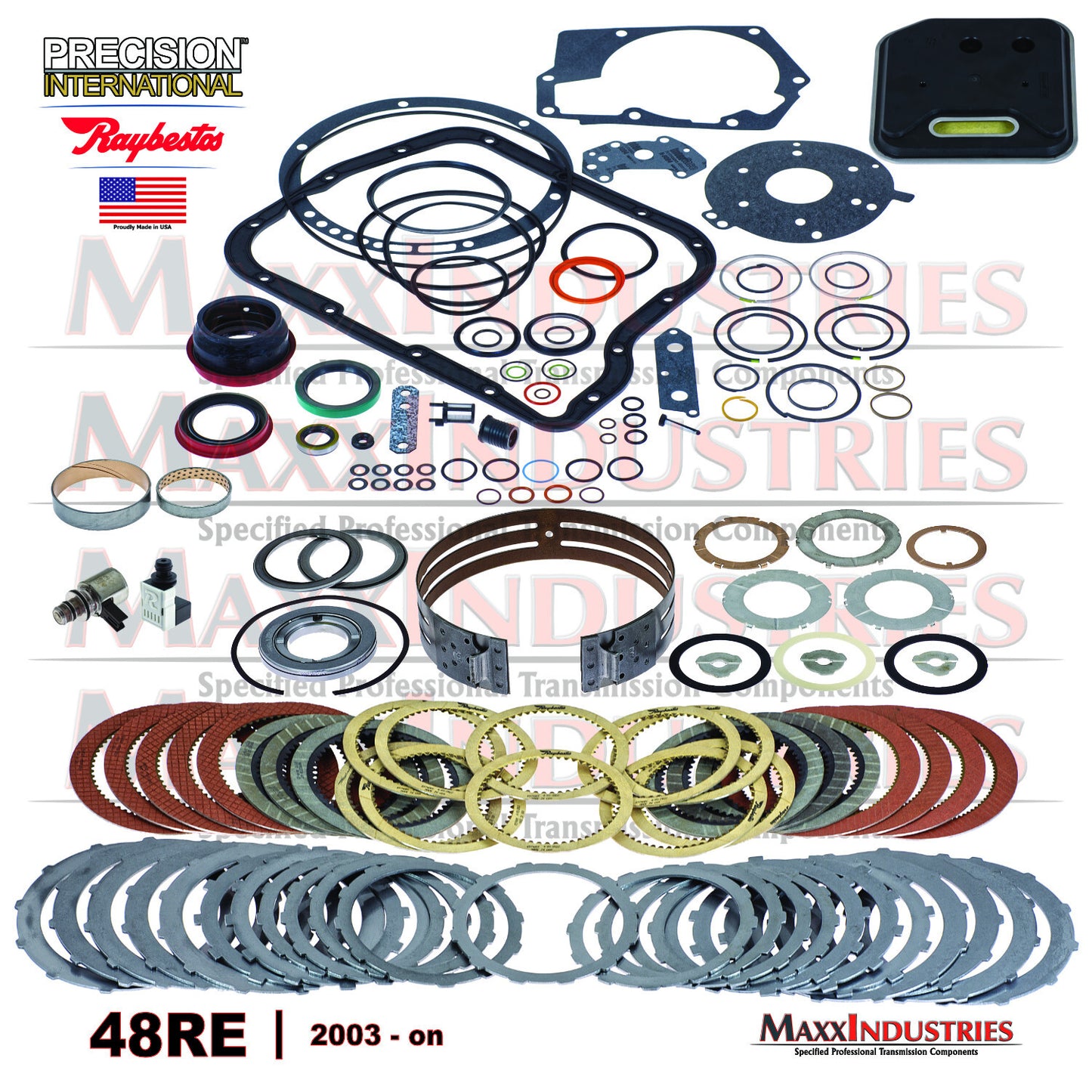

48RE Ram Truck Transmission Performance Rebuild Kit

Precision and Raybestos Stage 1 RCPS-49

Fits 2003–2008 Dodge Ram 5.9L Cummins and V10

Professional OE-Spec Quality from Famous USA Manufacturers!

Fits V10 and Cummins Diesel RAM Truck Applications 2003-on

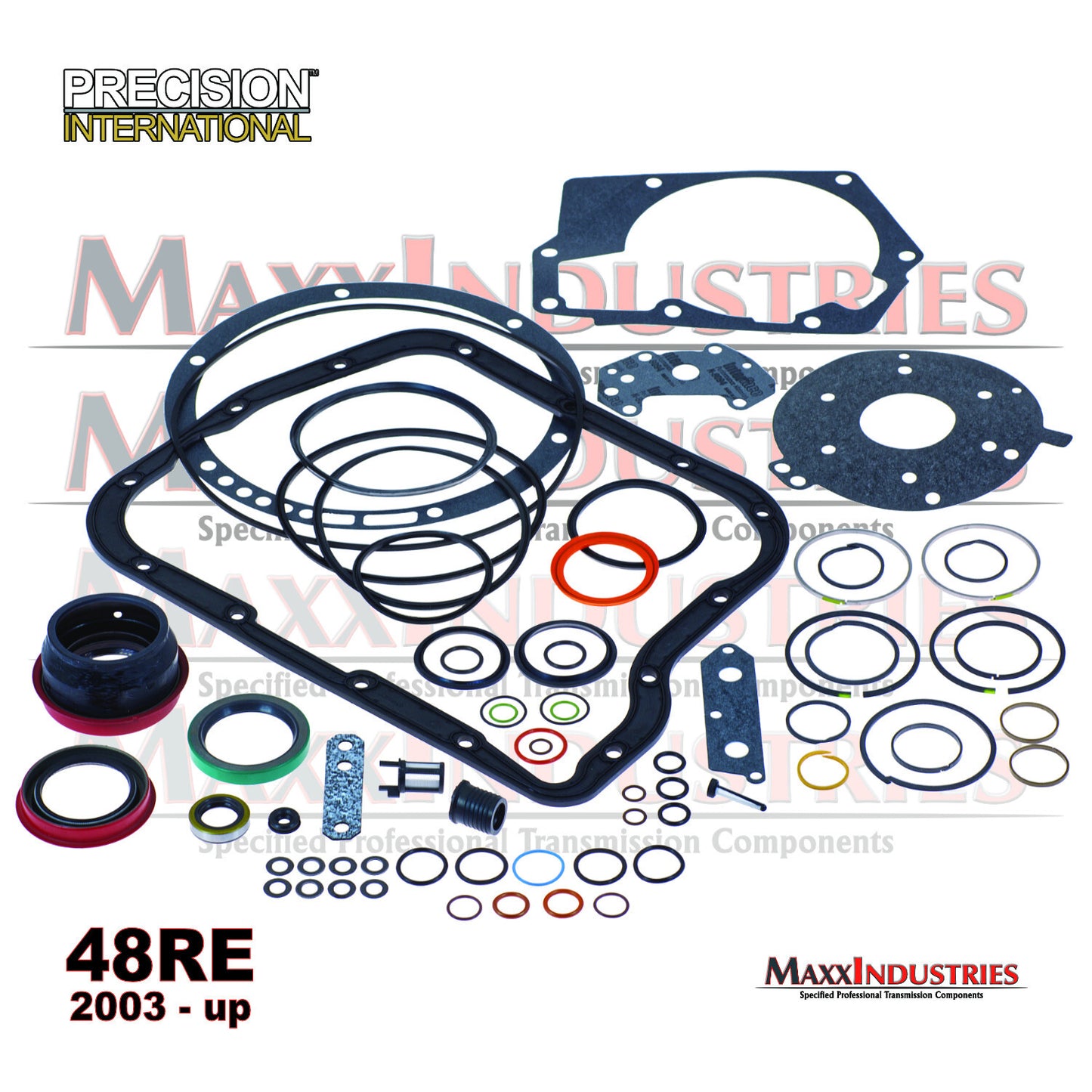

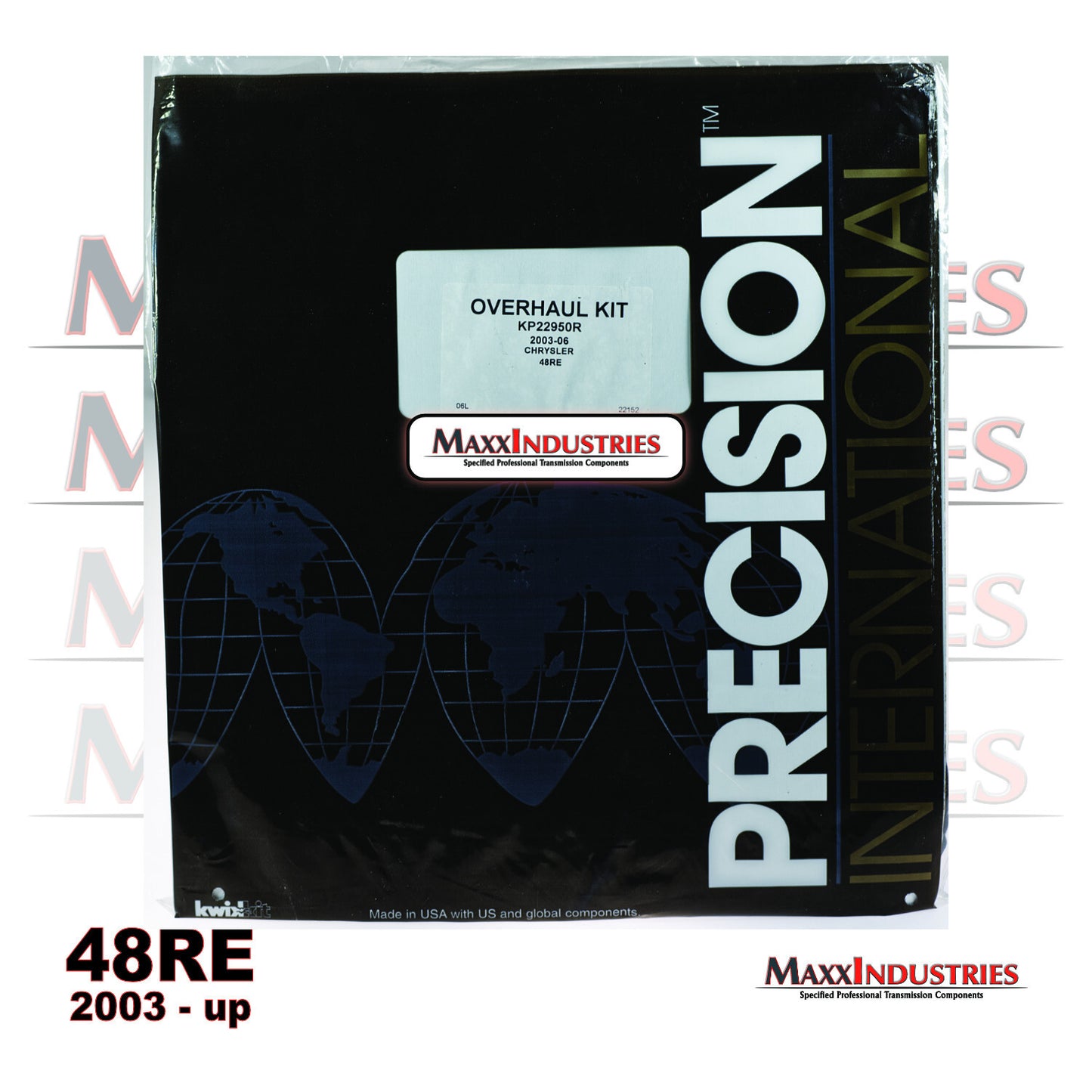

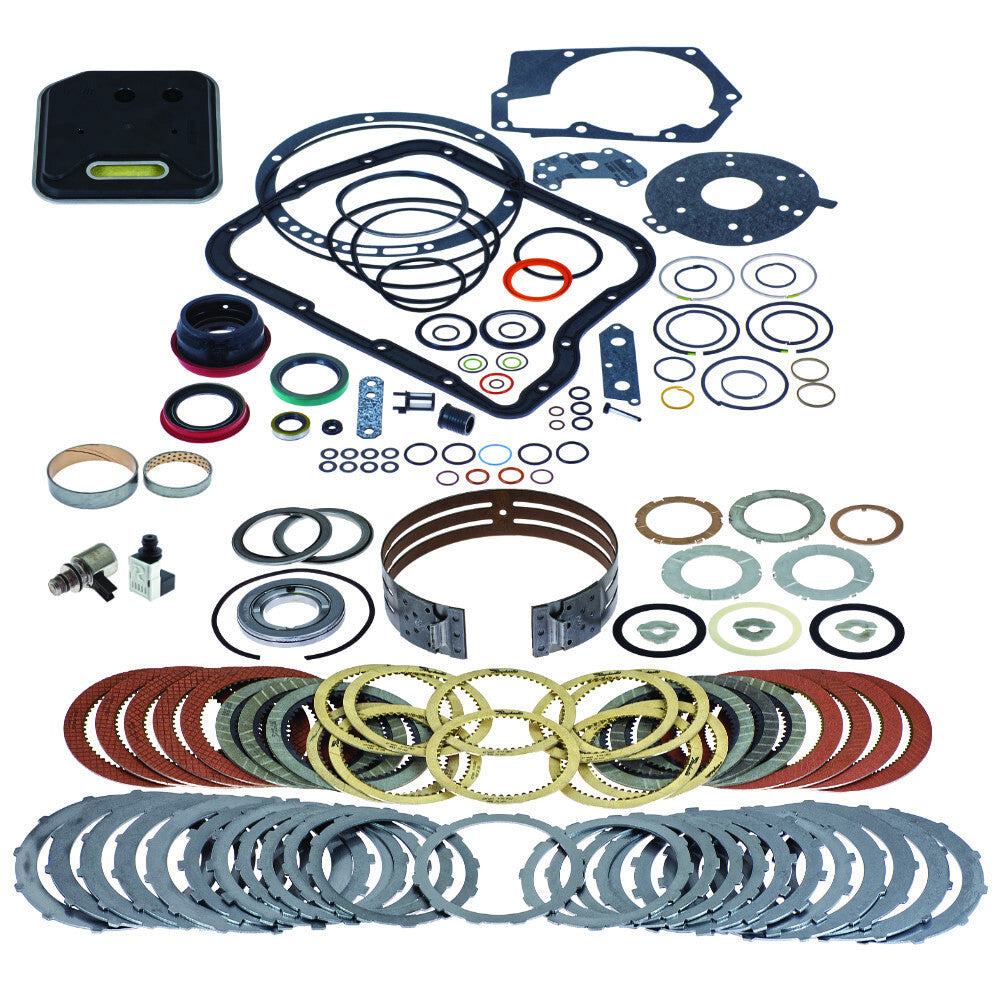

• (1) Precision International Overhaul Kit (New York)

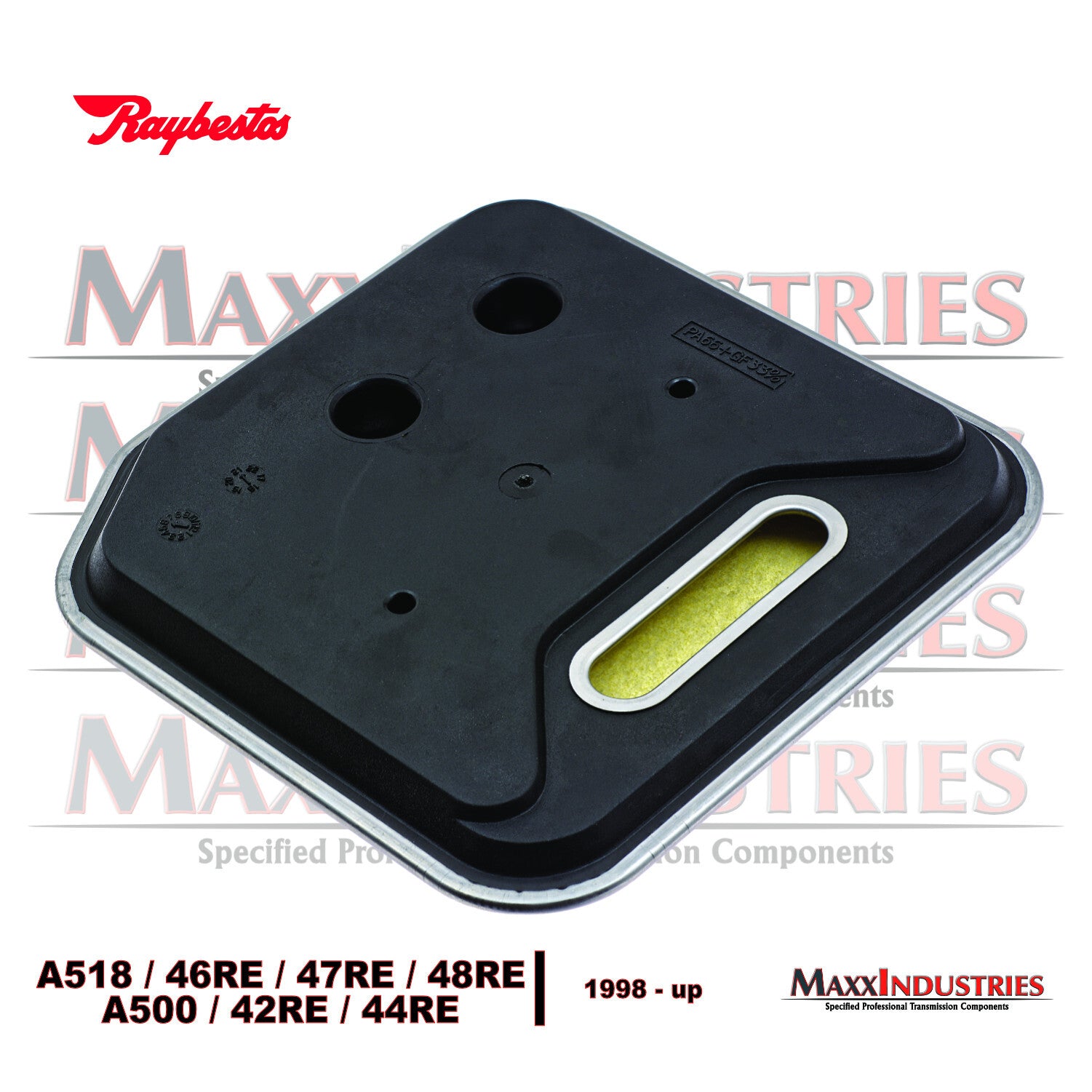

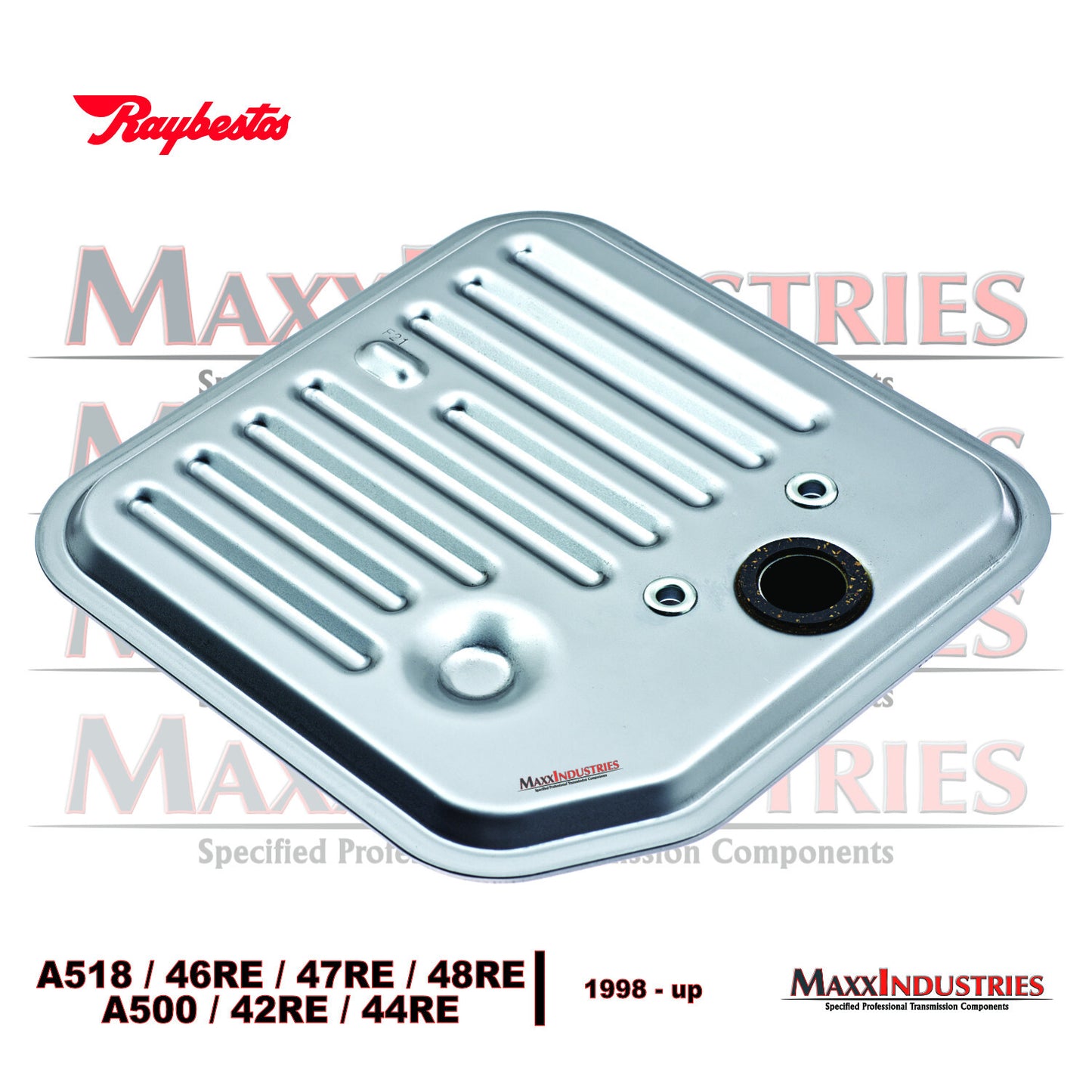

• (1) Raybestos/Allomatic Filter
• (1) Raybestos Stage 1 Performance Friction Clutches with OE-Spec Steel Plates

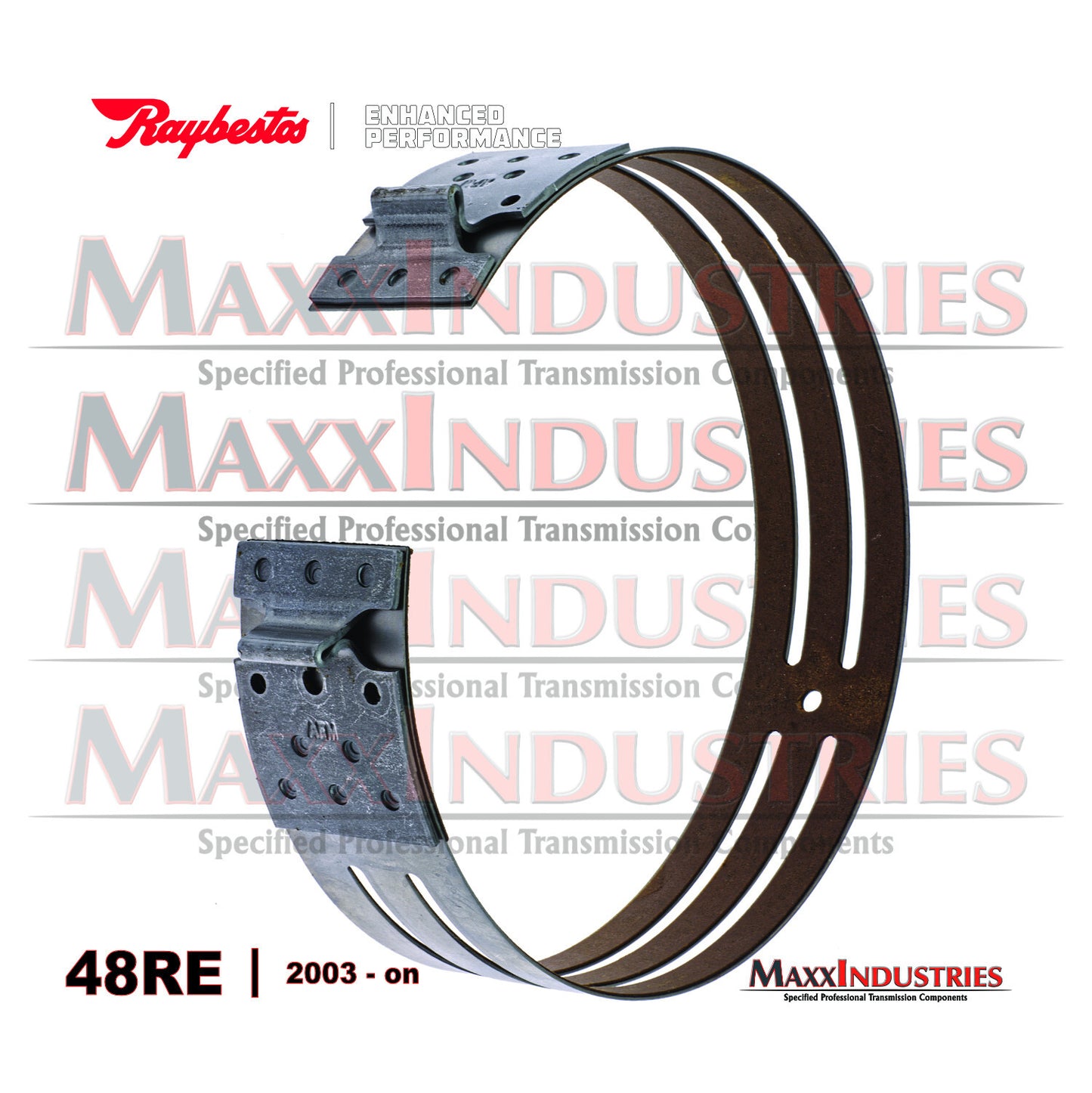

• (1) Flex Band (Raybestos/AFM OE)

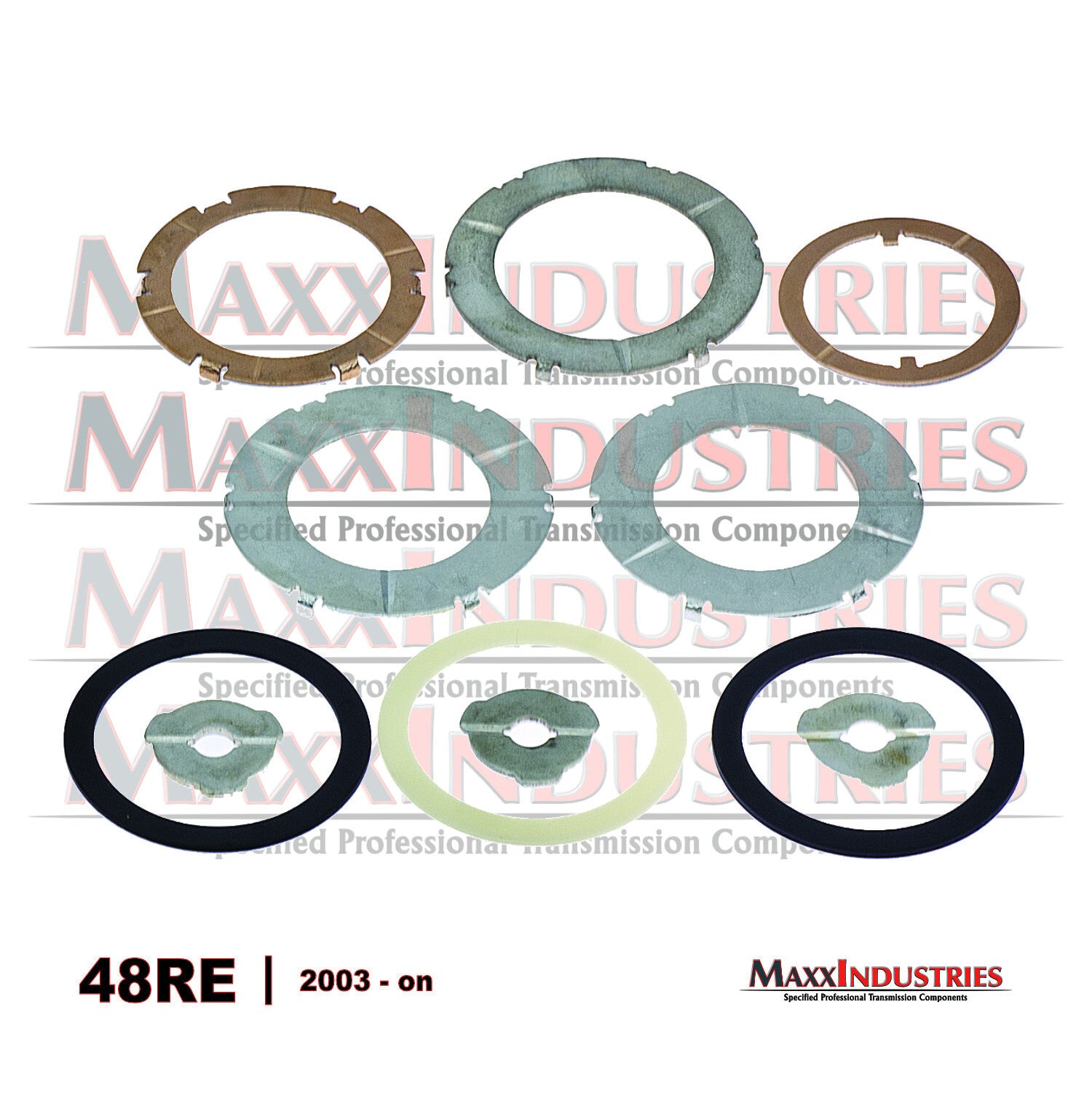

• (1) 11-Piece Thrust Washer Kit
• (1) 3-Piece Thrust Bearing Kit (Sonnax)
• (1) New Snap Ring (WAVED) Overdrive Direct

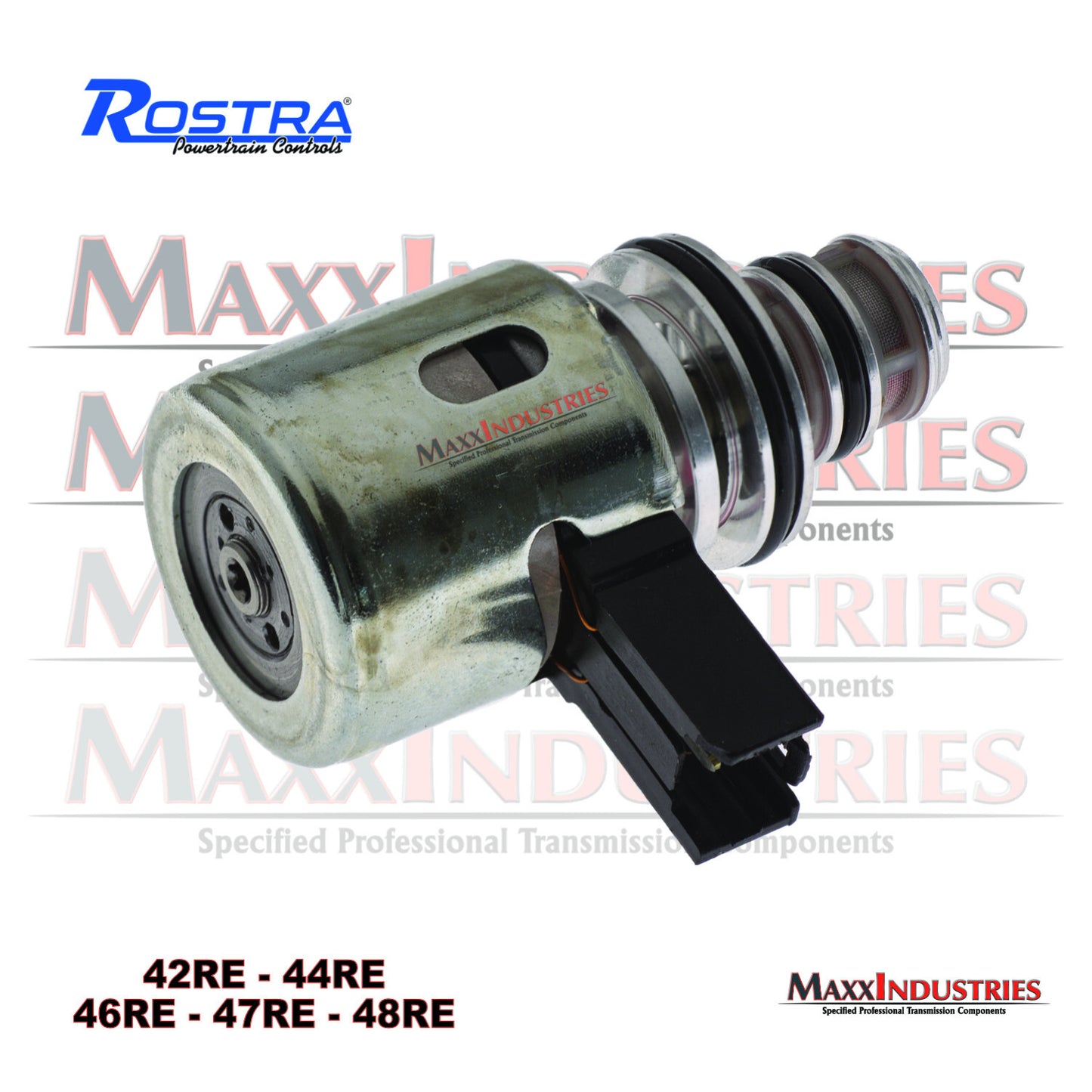

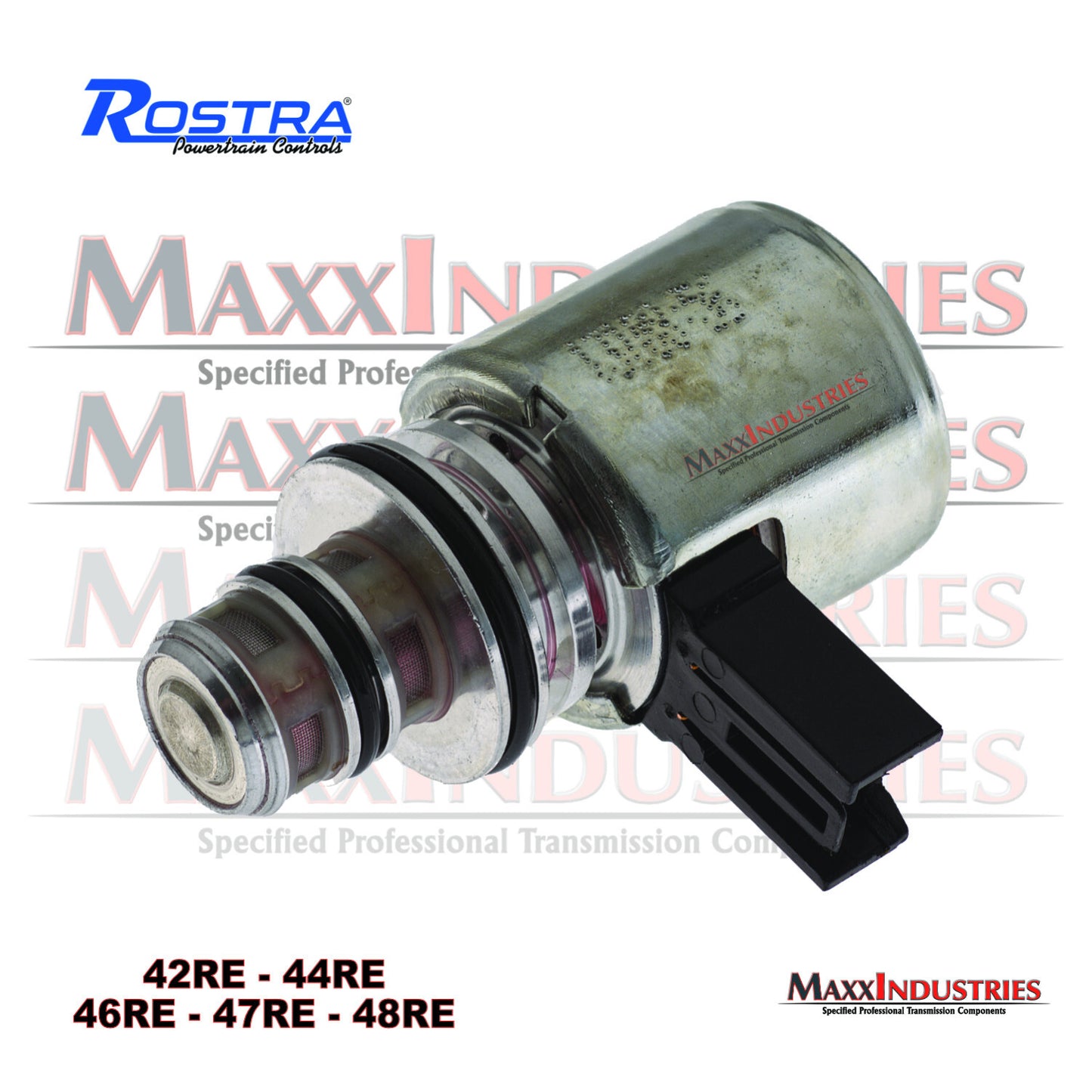

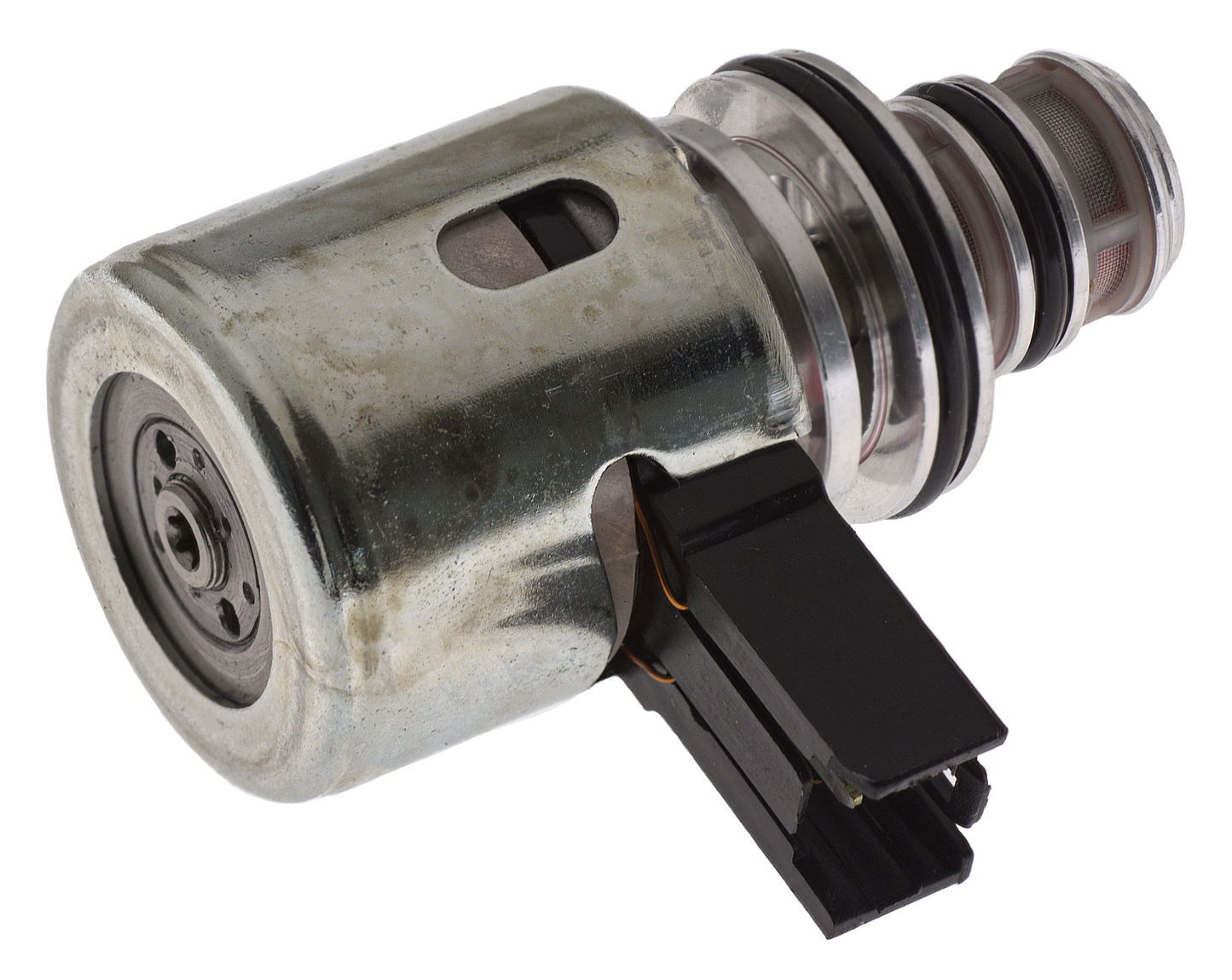

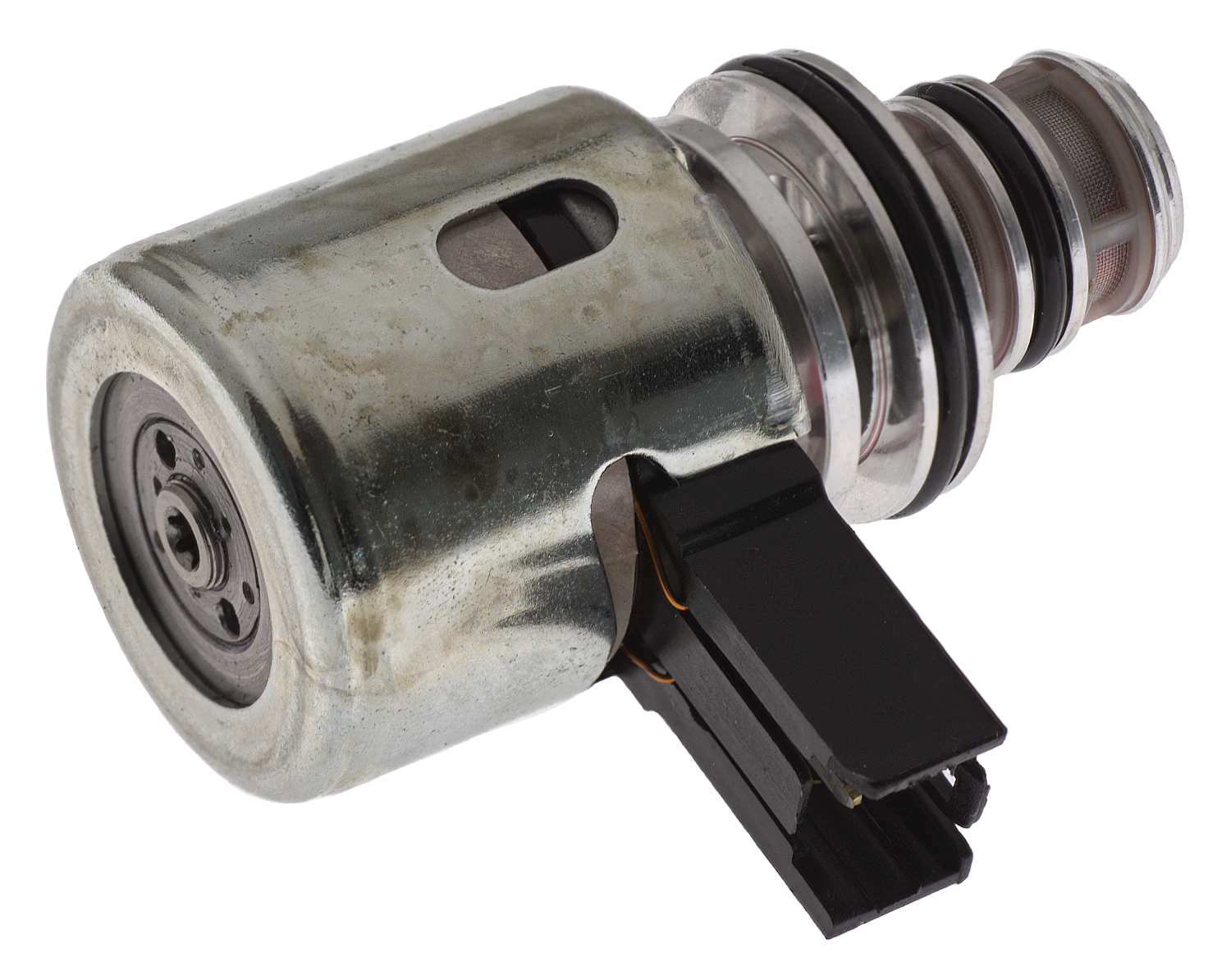

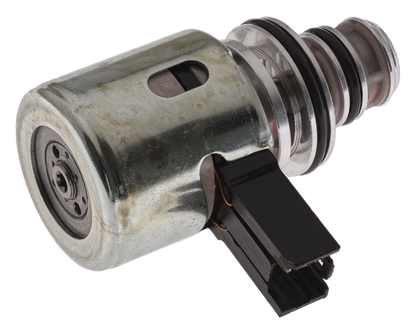

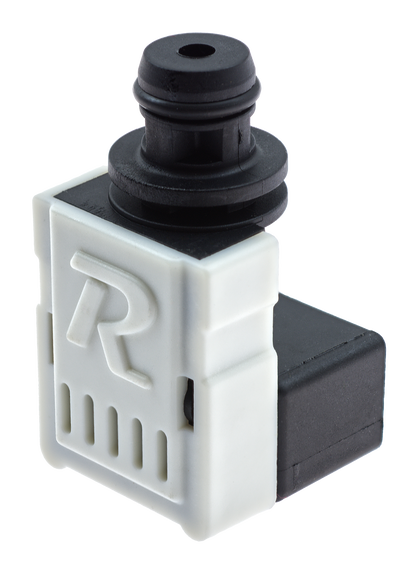

• (1) Governor Pressure Solenoid (Rostra, BW adjustable type)

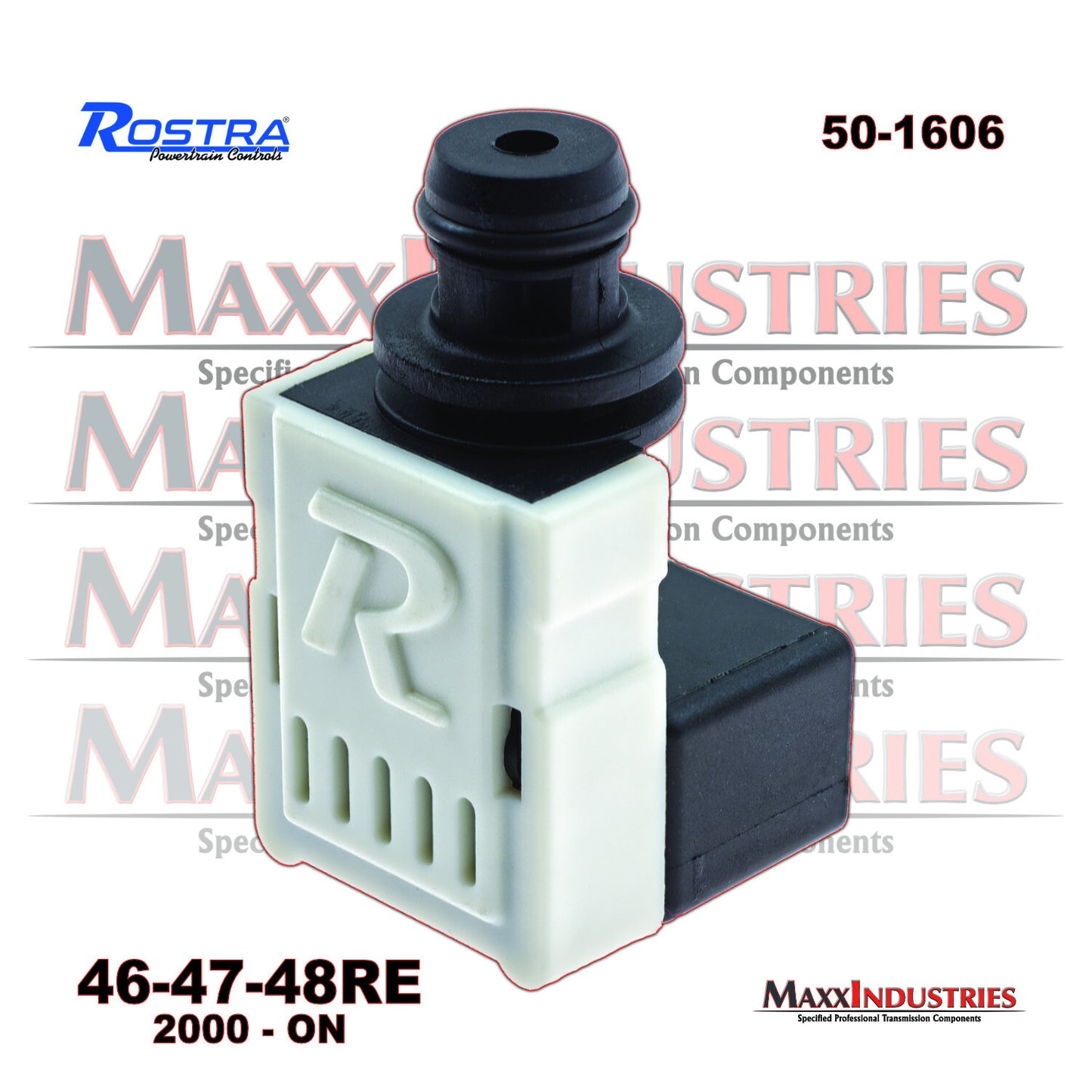

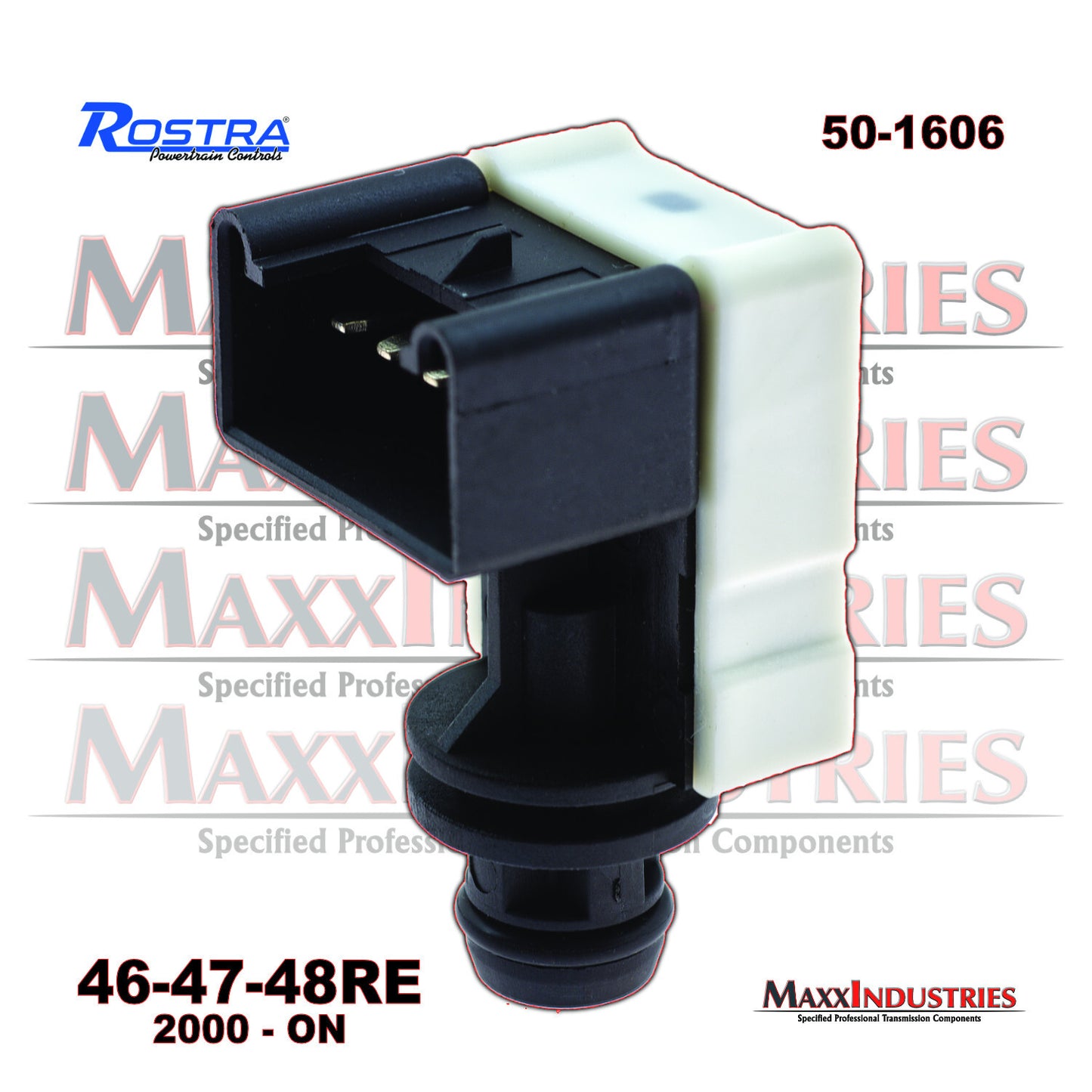

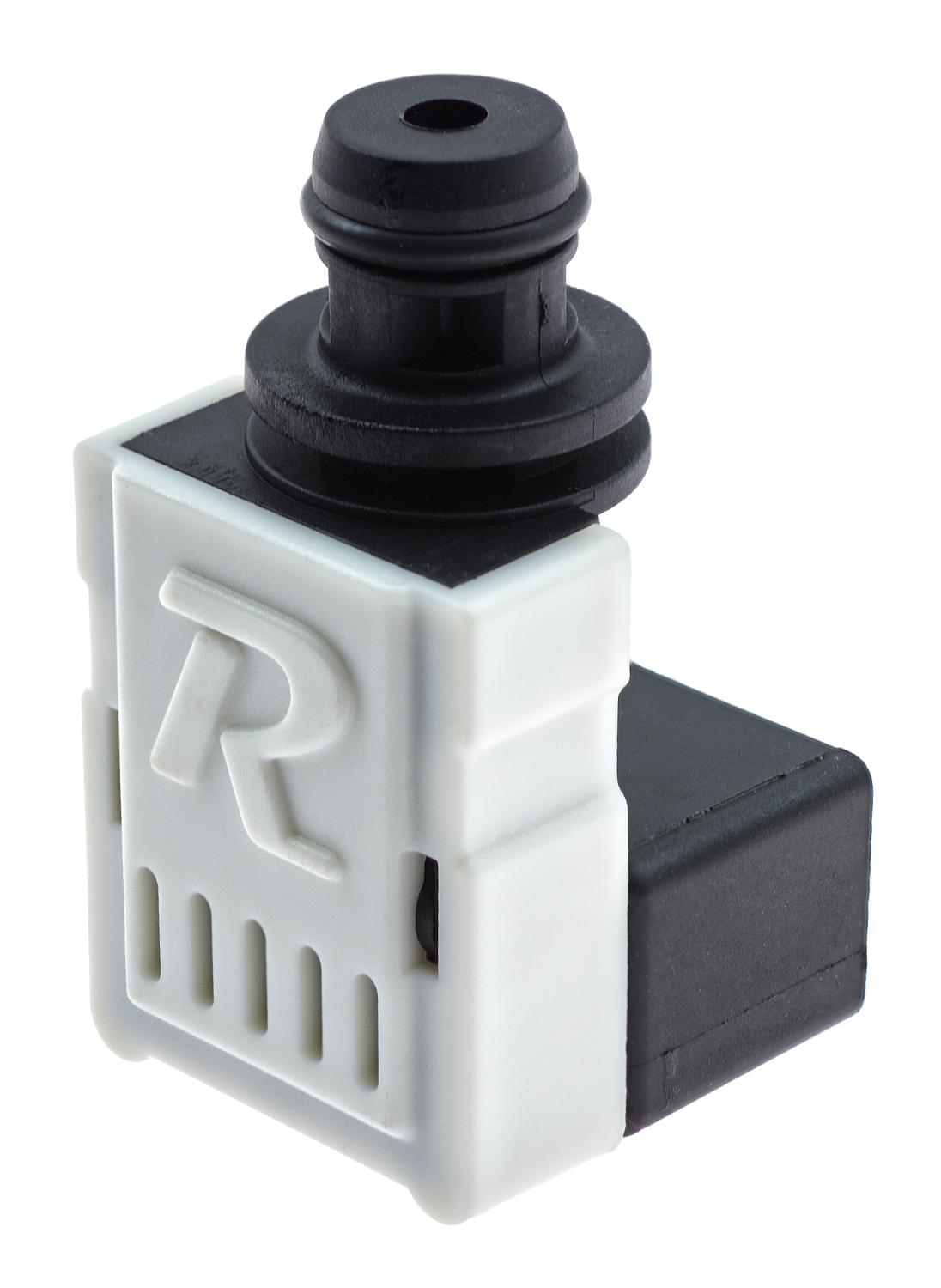

• (1) Governor Pressure Sensor/Transducer – High Pressure-Capable (Rostra)

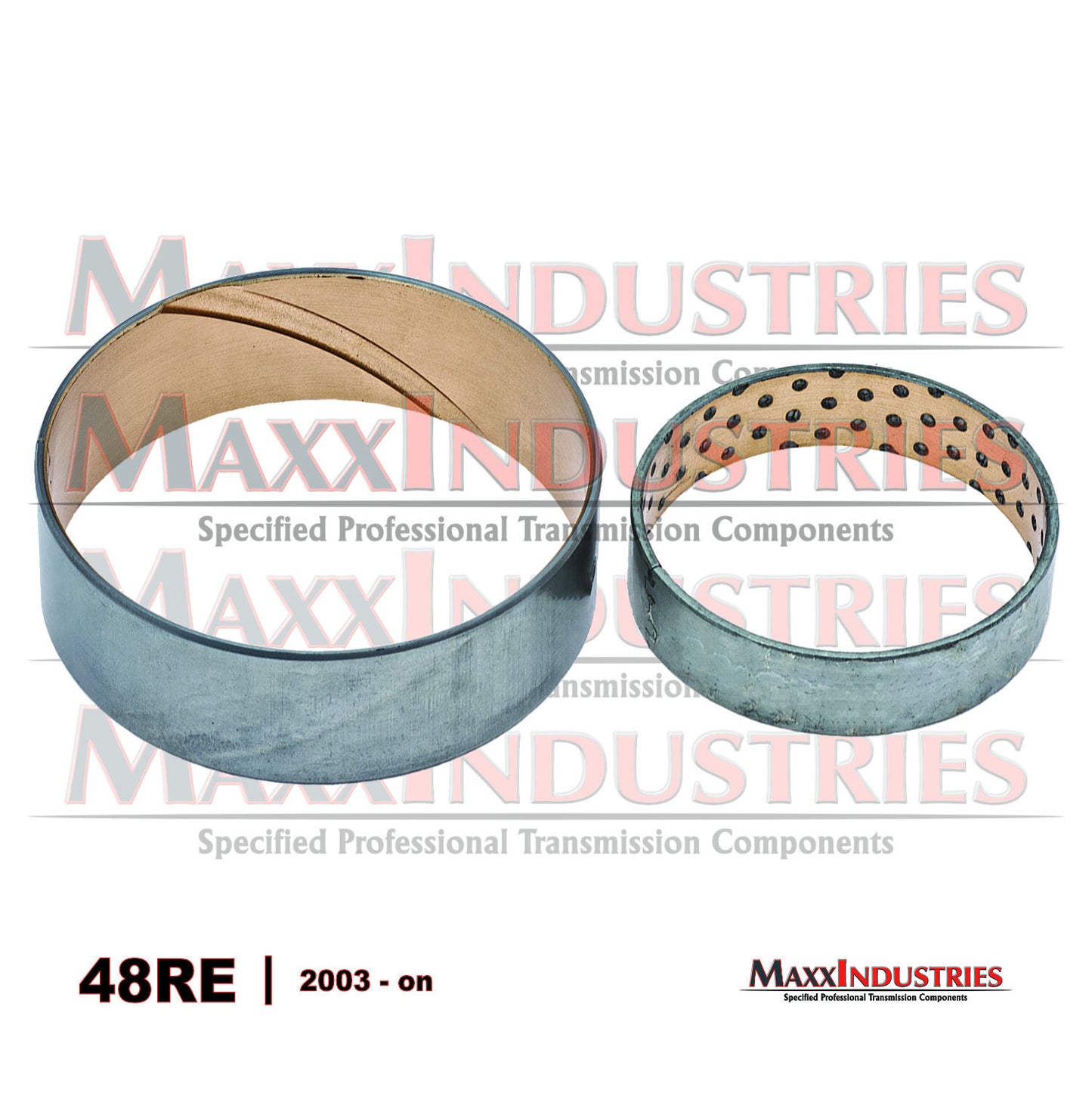

• (1) Dimpled Bronze Pump Bushing
• (1) Direct Drum Bushing (WIDE type)

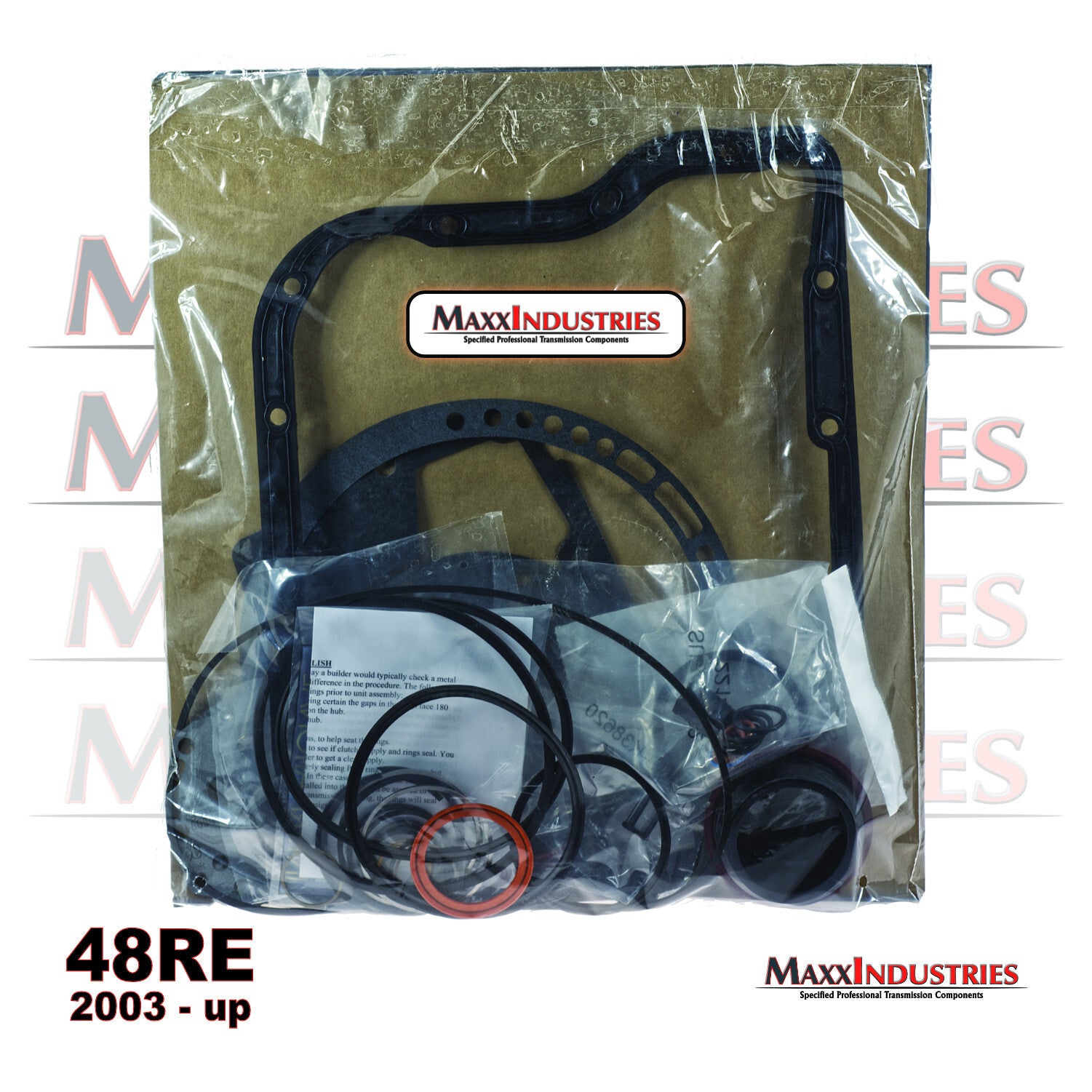

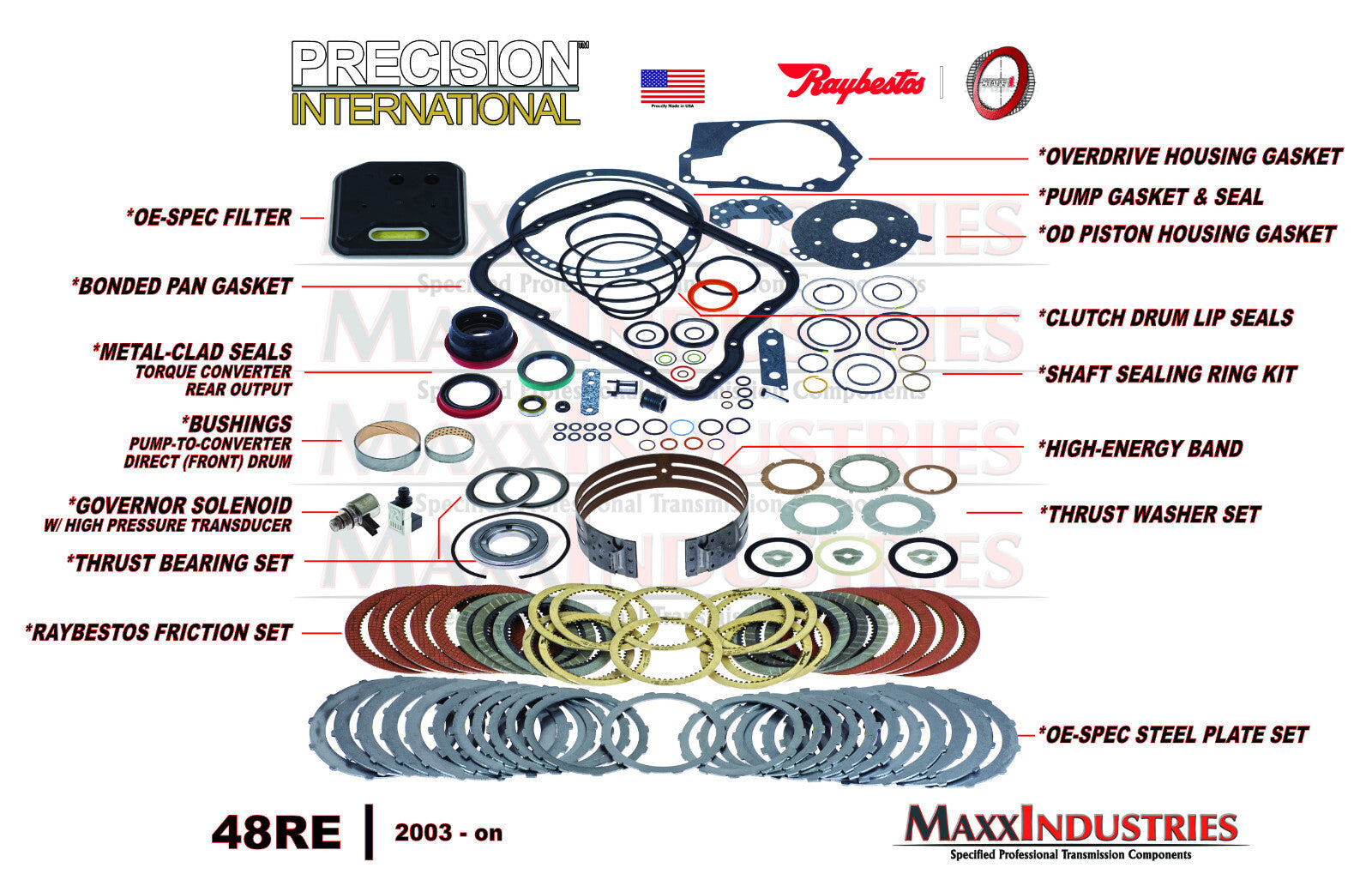

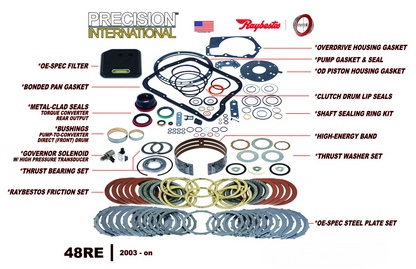

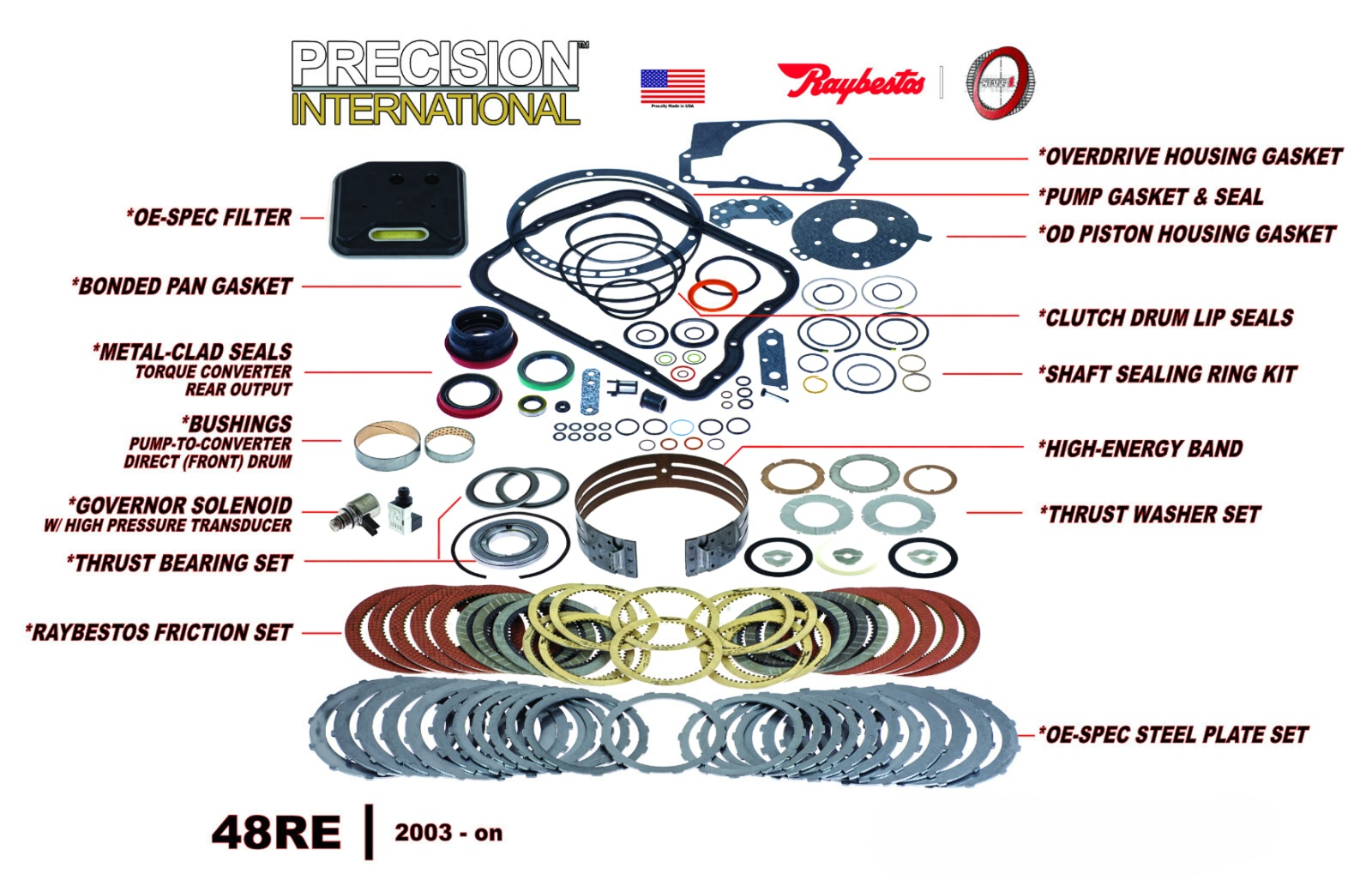

Overhaul Kit Details:

• Heavy Duty Bonded Rubber Pan Gasket
• Pump Gasket and Outer O-ring
• Extension/Overdrive Housing Gasket
• Overdrive Piston Housing Gasket
• Governor Solenoid Housing Gasket
• (4) Metal-clad Seals:
  • Torque Converter "Front Seal"
  • Rear Seal with Boot (2WD Only)
  • Manual Lever
  • Overdrive Housing – 4WD
• (1) 16-Piece Complete Sealing Ring Kit
• Drum and Piston Seals
• O-rings, pump bolt washers, screen thimble filters, and more

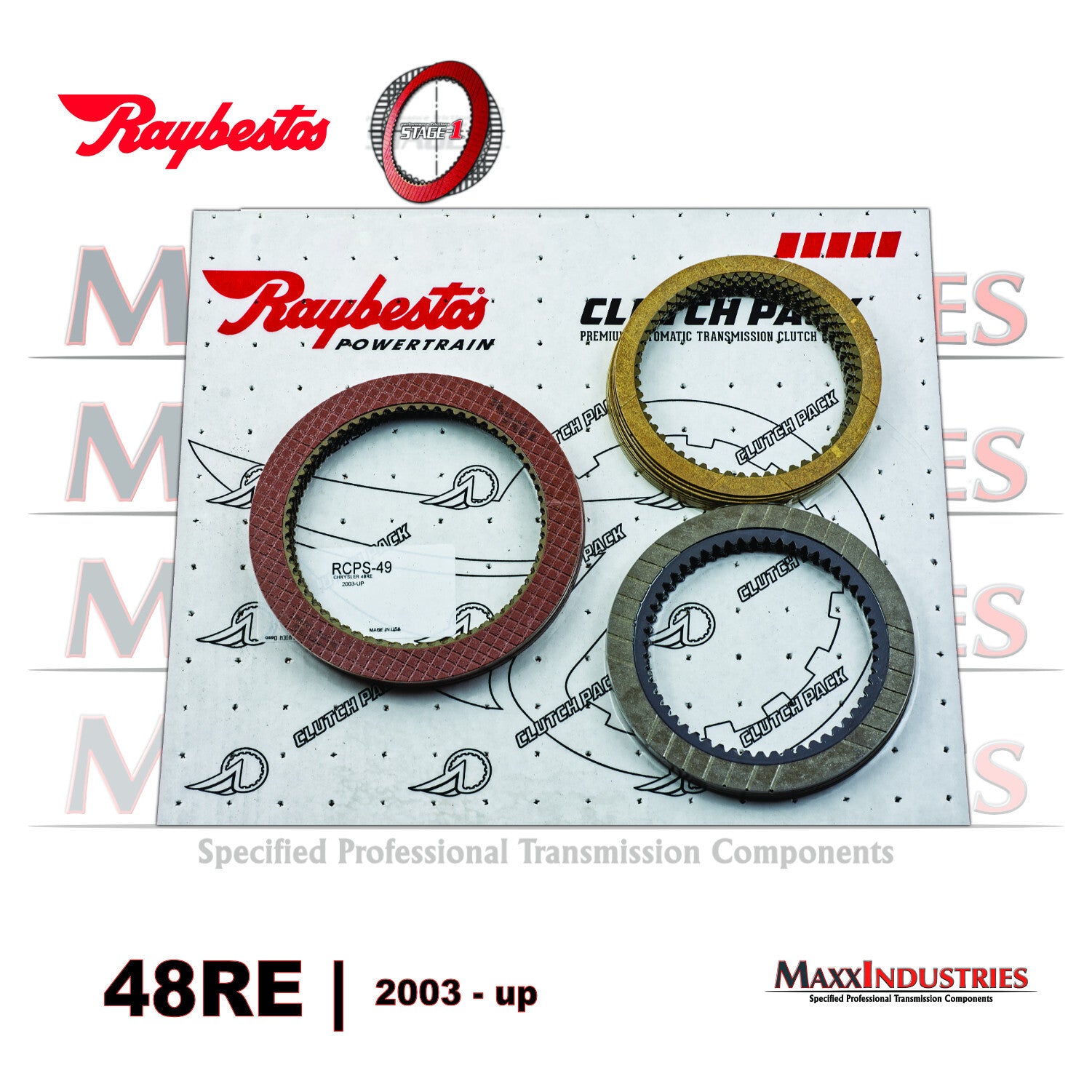

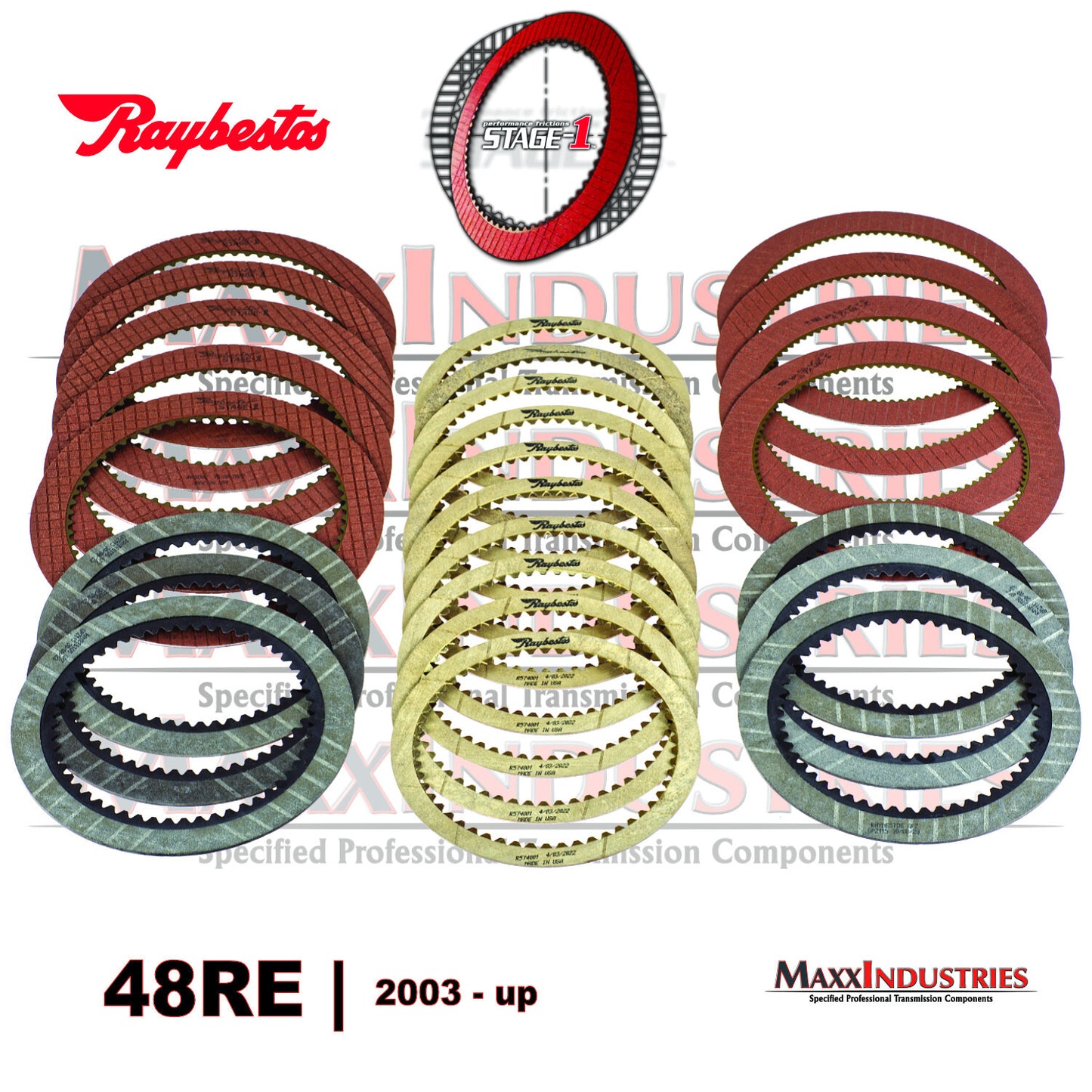

Raybestos Stage 1 Performance Friction Set Includes:

• (4) R600870 Stage 1 Red Forward (Rear) Friction Clutch Plates – 93T (0.059" / 1.50mm)
• (5) R600502 Stage 1 Red Direct (Front) Friction Clutch Plates – 62T (0.084" / 2.13mm)
• (6) GPZ115 GPZ Gray Overdrive Brake Friction Clutch Plates – (0.086" / 2.18mm)
• (9) R574001 Hi-Static Tan Overdrive Direct Friction Clutch Plates – (0.061" / 1.55mm)

Raybestos Stage 1 Performance Racing:

Stage-1 frictions are ideal for street rods, tuner cars, and mild street-strip builds. They offer increased holding capacity and heat resistance for towing and performance use. Notable applications include Ford 5R110W, GM 6L80, Honda M4TA, Mercedes 722.6, and Toyota A340.

GPZ Friction Clutch Plates – Enhanced Performance:

GPZ plates outperform OE materials by up to 20%, especially under high stress and temperature. Perfect for heavy-duty and commercial vehicles. Applications include Chrysler 68RFE, Ford 6R80/10R80, GM 10L80, Mercedes 722.6, and ZF Chrysler 8HP90.

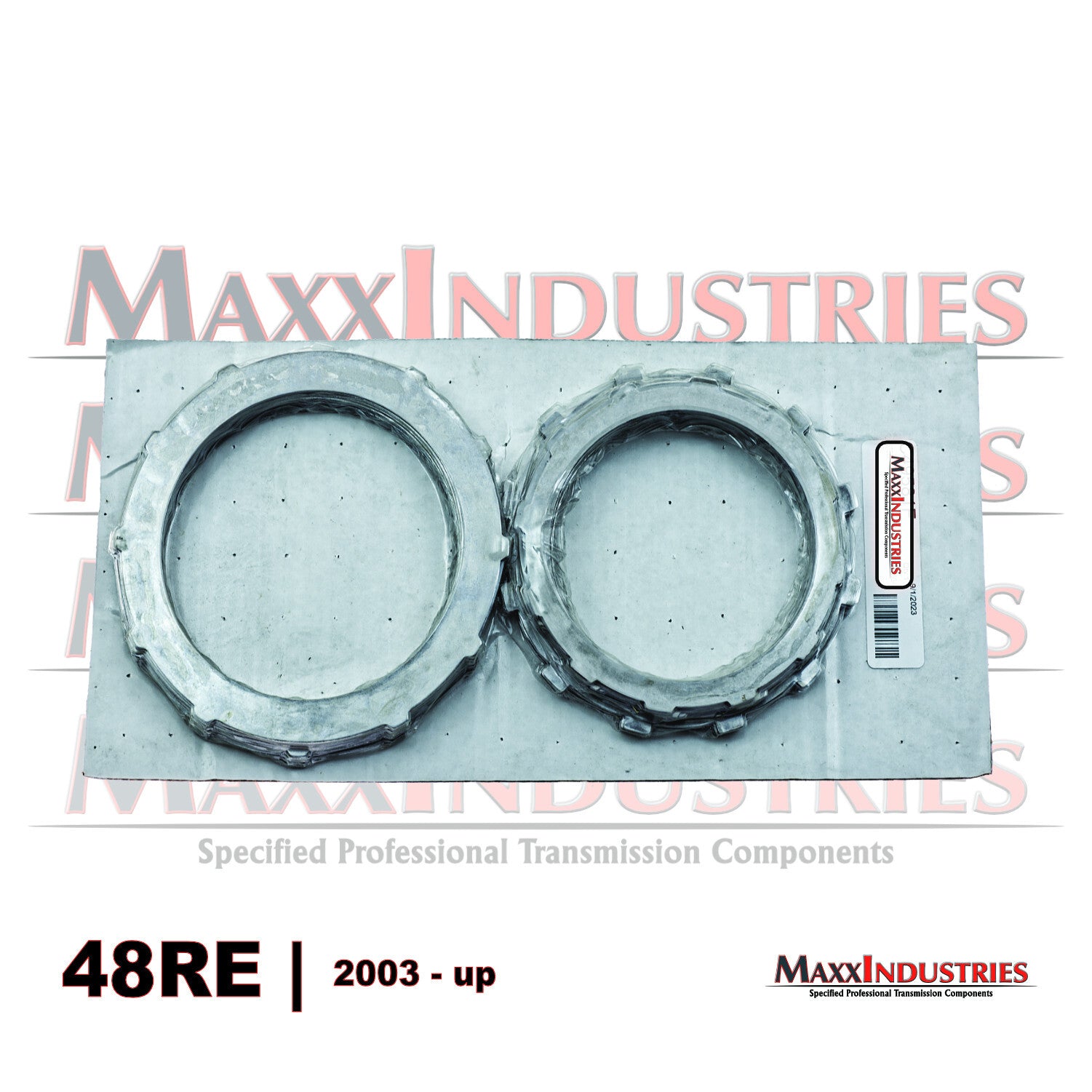

23-Piece Steel Clutch Set:

• (5) Direct (Front) Steel Clutches
• (4) Forward (Rear) Steel Clutches
• (5) Overdrive Brake Steel Clutches
• (9) Overdrive Direct Steel Clutches
