48RE Ram Truck Transmission Performance Rebuild Kit
Transtec and Raybestos High Energy Friction Set RCP96-233 and Bands!
Fits 2003–2008 Dodge Ram 5.9L Cummins and V10
Professional OE-Spec Quality from Transtec
Fits V10 and Cummins Diesel RAM Truck Applications 2003-on

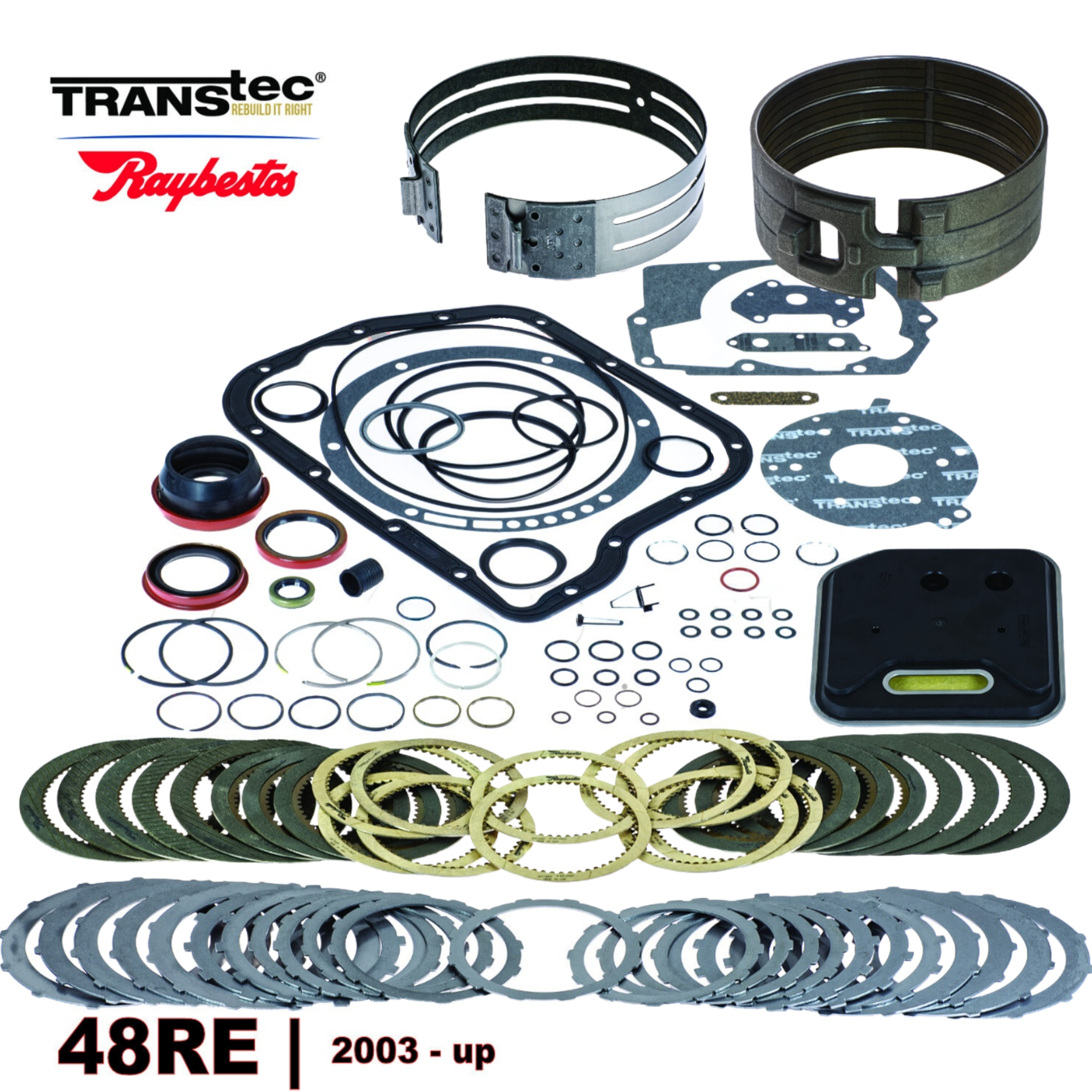

This awesome kit contains all pictured:
- (1) Heavy Duty Bonded Rubber Pan Gasket
- (1) Pump Gasket and Outer O-ring
- Extension Housing Gasket
- Overdrive Piston Housing Gasket
- Governor Solenoid Housing Gasket
- (4) Metal-clad seals:
- Torque Converter "Front seal"
- Rear Seal with Boot (2WD Only)
- Manual Lever
- Overdrive Housing – 4WD
- (1) 13-piece Complete Sealing Ring Kit
- Drum and Piston Seals
- O-rings, pump bolt washers, screen thimble filters and more
Complete Heavy Duty Friction Set!
Includes:
- (4) R560140 High Energy Gray Forward (Rear) Friction Clutch Plates – 93T (0.059" / 1.50mm)
- (5) R560157 High Energy Gray Direct (Front) Friction Clutch Plates – 62T (0.084" / 2.13mm)
- (6) R574020 High Energy Gray Overdrive Brake Friction Clutch Plates – (0.086" / 2.18mm)
- (9) R574001 Hi-Static Tan Overdrive Direct Friction Clutch Plates – (0.061" / 1.55mm)
GPZ Friction Clutch Plates
Enhanced Performance
Raybestos Powertrain GPZ friction clutch plates greatly increase transmission performance and durability. This state-of-the-art friction material far exceeds OE material to withstand high stress, high temperatures, and repeated cycling. GPZ's outstanding performance benefits are perfect for heavy-duty vehicles and high-stress driving. Testing of GPZ revolutionary friction material shows that it outperforms OE materials by as much as 20%. Plus, its performance improves as the power increases. Notable available applications include Chrysler 68RFE, Ford 6R80, Ford 10R80, GM 10L80, Mercedes 722.6, and ZF Chrysler 8HP90.
Recommended Use:
Heavy-duty vehicles, commercial vehicles, and high-stress driving
23-Piece Steel Clutch Set
- (5) Direct (Front) Steel Clutches
- (4) Forward (Rear) Steel Clutches
- (5) Overdrive Brake Steel Clutches
- (9) Overdrive Direct Steel Clutches
(1) OE-Spec Filter from Raybestos
(1) Intermediate/Kickdown Band (Front) – Raybestos Pro Series High Energy
(1) Reverse Multi-Wrap Band (Rear) – by Raybestos
