48RE Ram Transmission Master Rebuild Raybestos GPZ HD Friction Clutch Set 2003+

48RE Ram Truck Transmission Performance Rebuild Kit

Transtec and Raybestos GPZ RGPZ-16 — with Bands!

Fits: 2003–2008 Dodge Ram 5.9L Cummins and V10

Professional OE-Spec Quality from Transtec

• Fits V10 and Cummins Diesel RAM Truck Applications 2003-on

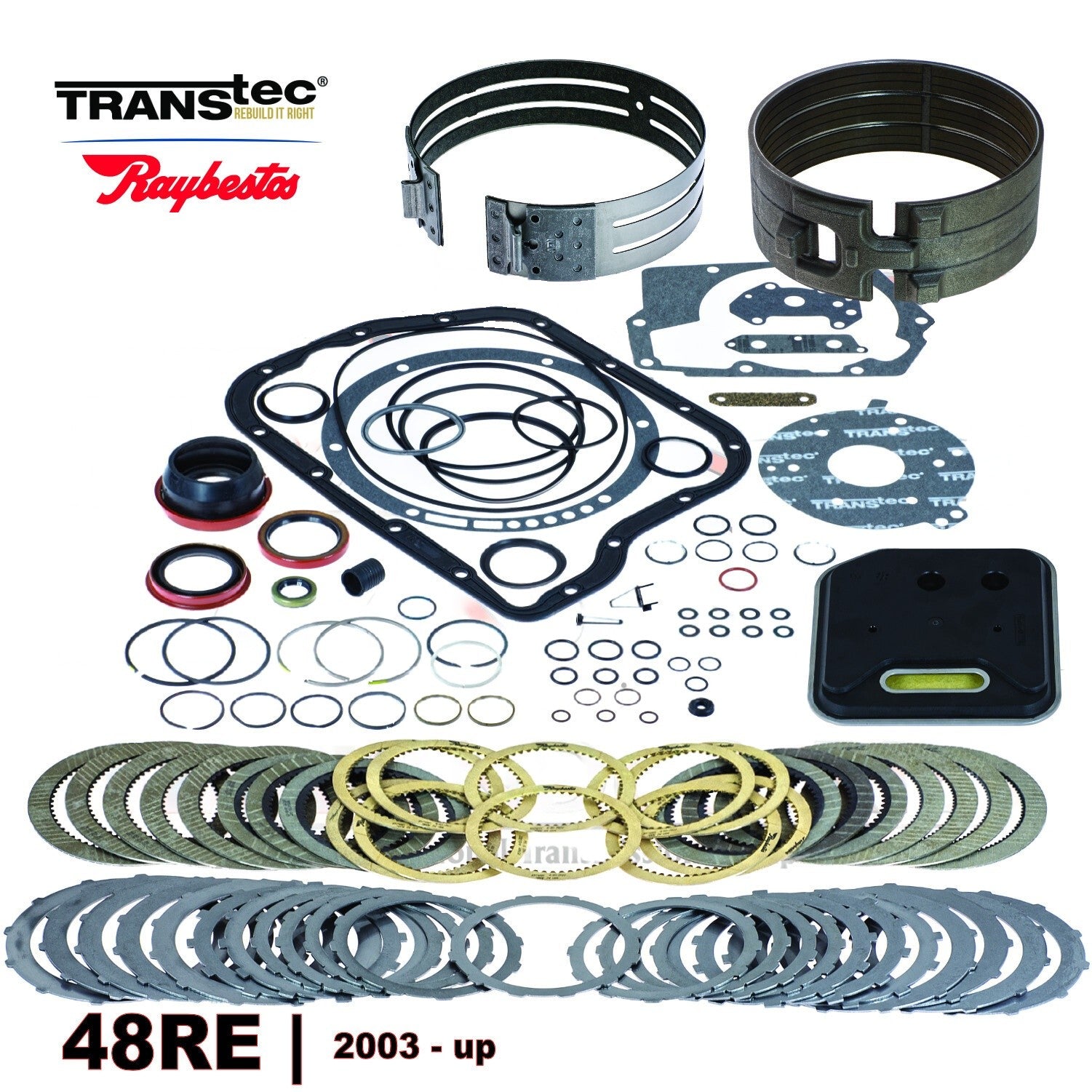

This Awesome Kit Contains All Pictured:

• Heavy Duty Bonded Rubber Pan Gasket
• Pump Gasket and Outer O-ring
• Extension Housing Gasket
• Overdrive Piston Housing Gasket
• Governor Solenoid Housing Gasket
• 4 Metal-clad seals:
  • Torque Converter "Front Seal"
  • Rear Seal with Boot (2WD Only)
  • Manual Lever
  • Overdrive Housing – 4WD
• 13-piece Complete Sealing Ring Kit
• Drum and Piston Seals
• O-rings, pump bolt washers, screen thimble filters, and more

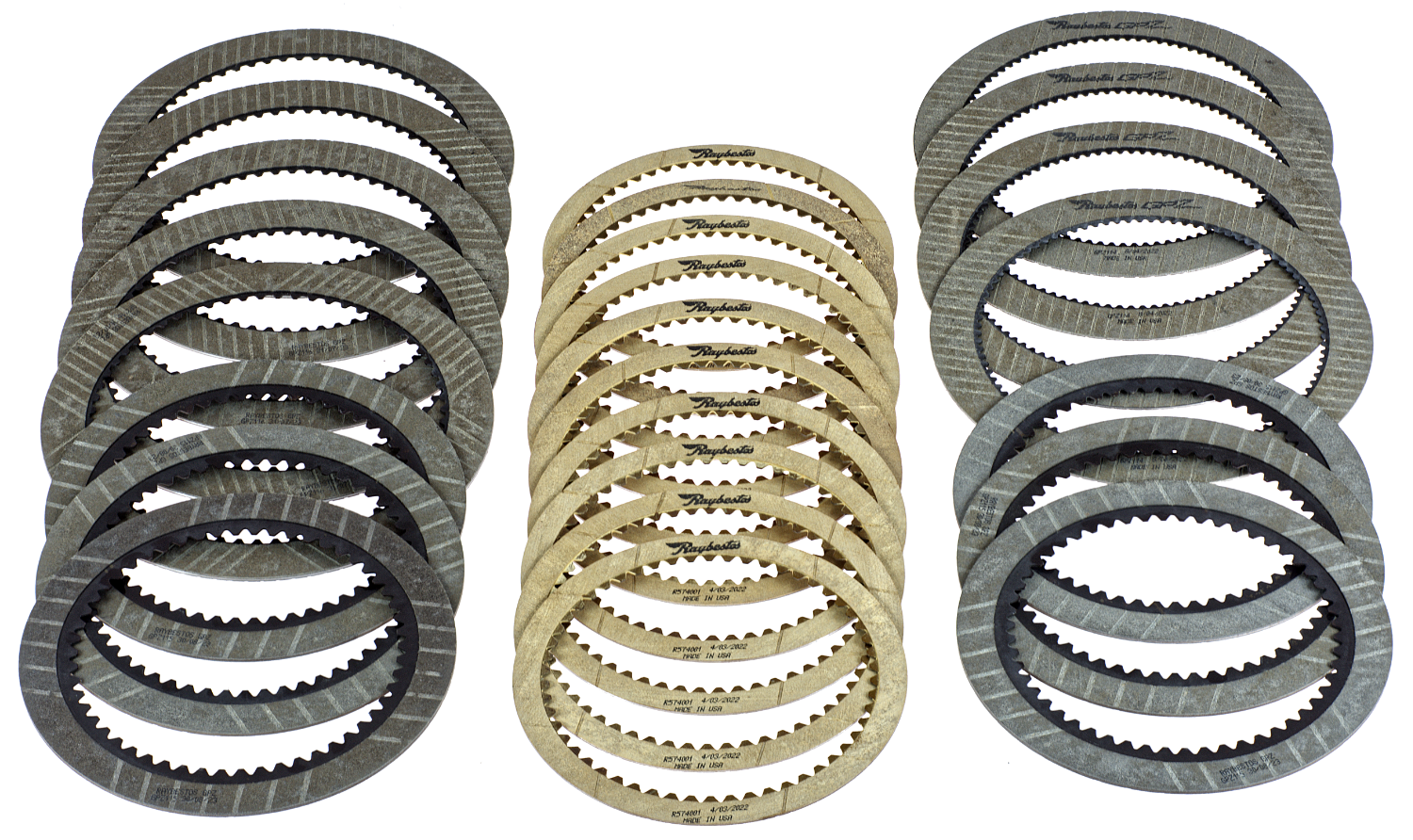

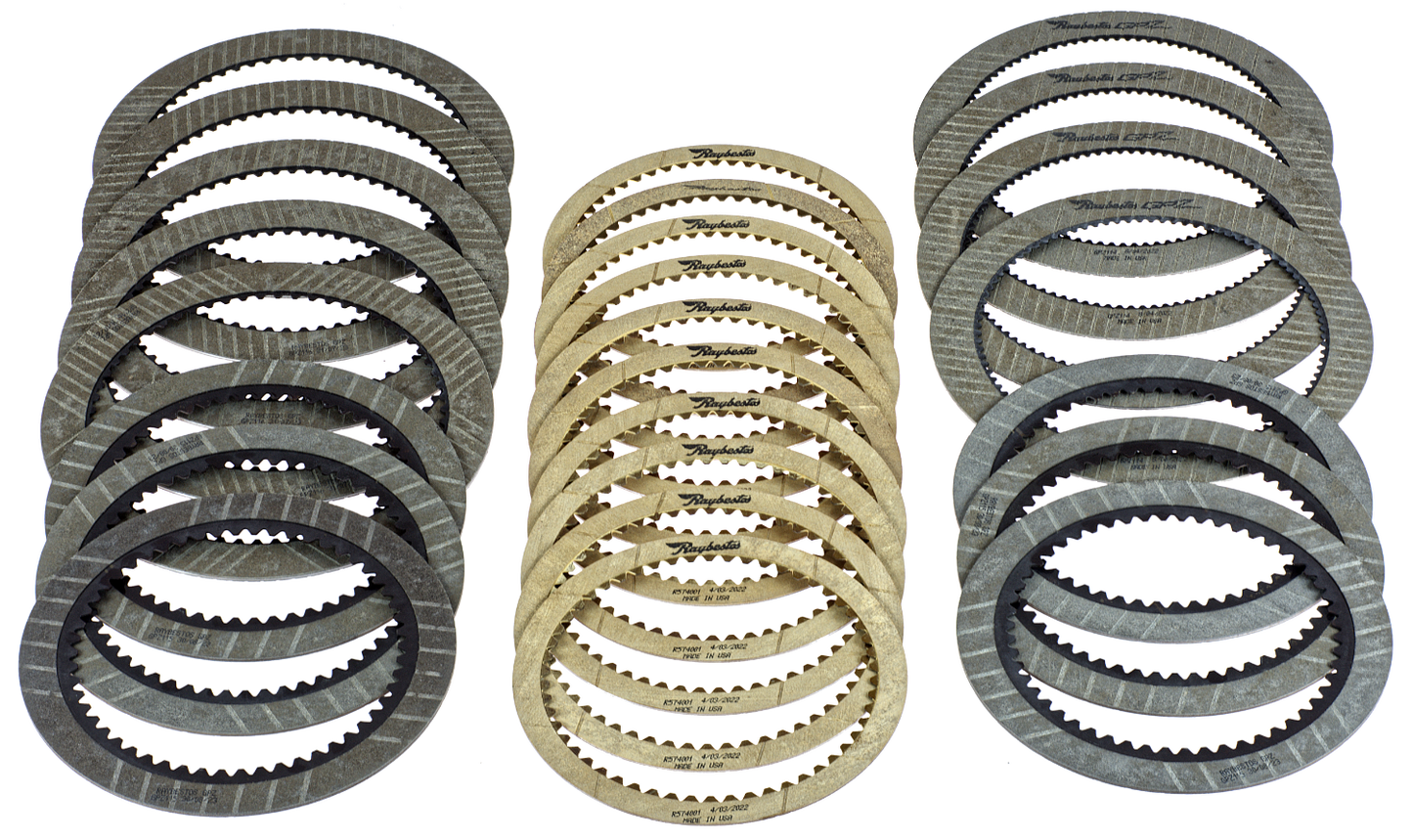

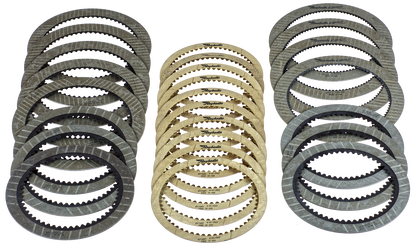

Complete Performance Friction Set

• (4) R600870 Stage1 Red Forward (Rear) Friction Clutch Plates – 93T (0.059" / 1.50mm)
• (5) R600502 Stage1 Red Direct (Front) Friction Clutch Plates – 62T (0.084" / 2.13mm)
• (6) GPZ115 GPZ Gray Overdrive Brake Friction Clutch Plates – (0.086" / 2.18mm)
• (9) R574001 Hi-Static Tan Overdrive Direct Friction Clutch Plates – (0.061" / 1.55mm)
• (4) GPZ114 GPZ Gray Forward (Rear) Friction Clutch Plates – 93T (0.059" / 1.50mm)
• (5) GPZ116 GPZ Gray Direct (Front) Friction Clutch Plates – 62T (0.084" / 2.13mm)

GPZ Friction Clutch Plates – Enhanced Performance

Raybestos Powertrain GPZ friction clutch plates greatly increase transmission performance and durability. This state-of-the-art friction material far exceeds OE material to withstand high stress, high temperatures and repeated cycling.

Benefits:

• Outperforms OE materials by up to 20%
• Performance improves as power increases

Recommended Use: Heavy-duty vehicles, commercial vehicles, and high-stress driving

Notable Applications: Chrysler 68RFE, Ford 6R80, Ford 10R80, GM 10L80, Mercedes 722.6, ZF Chrysler 8HP90

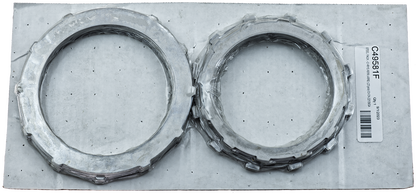

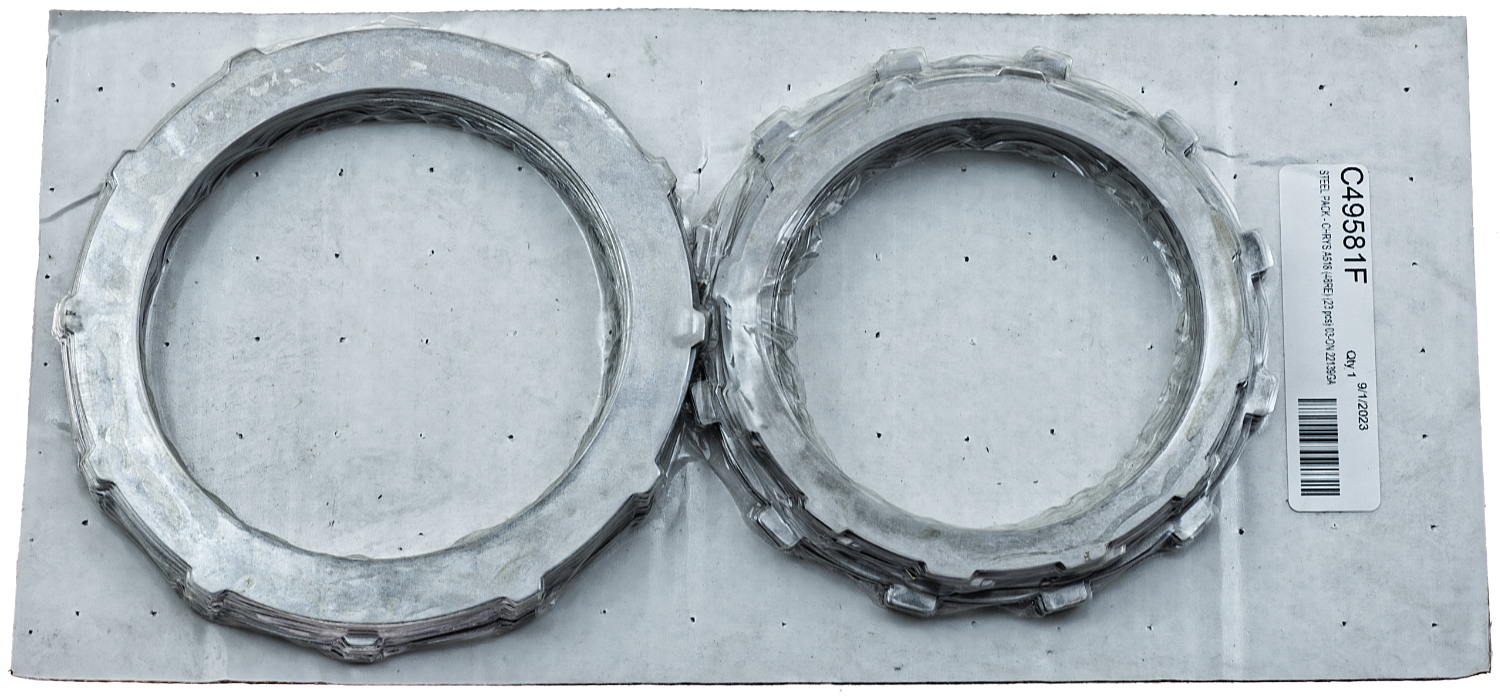

23-Piece Steel Clutch Set

• (5) Direct (Front) Steel Clutches
• (4) Forward (Rear) Steel Clutches
• (5) Overdrive Brake Steel Clutches
• (9) Overdrive Direct Steel Clutches

Additional Components

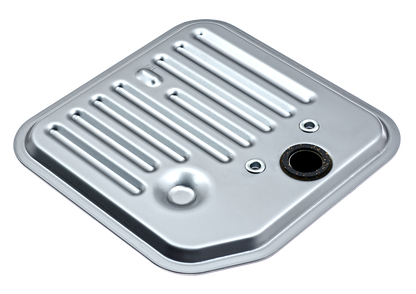

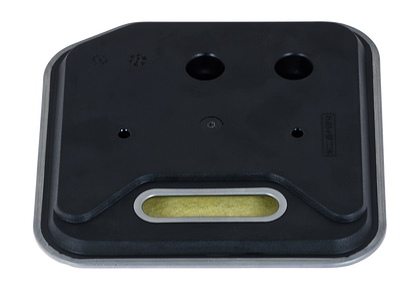

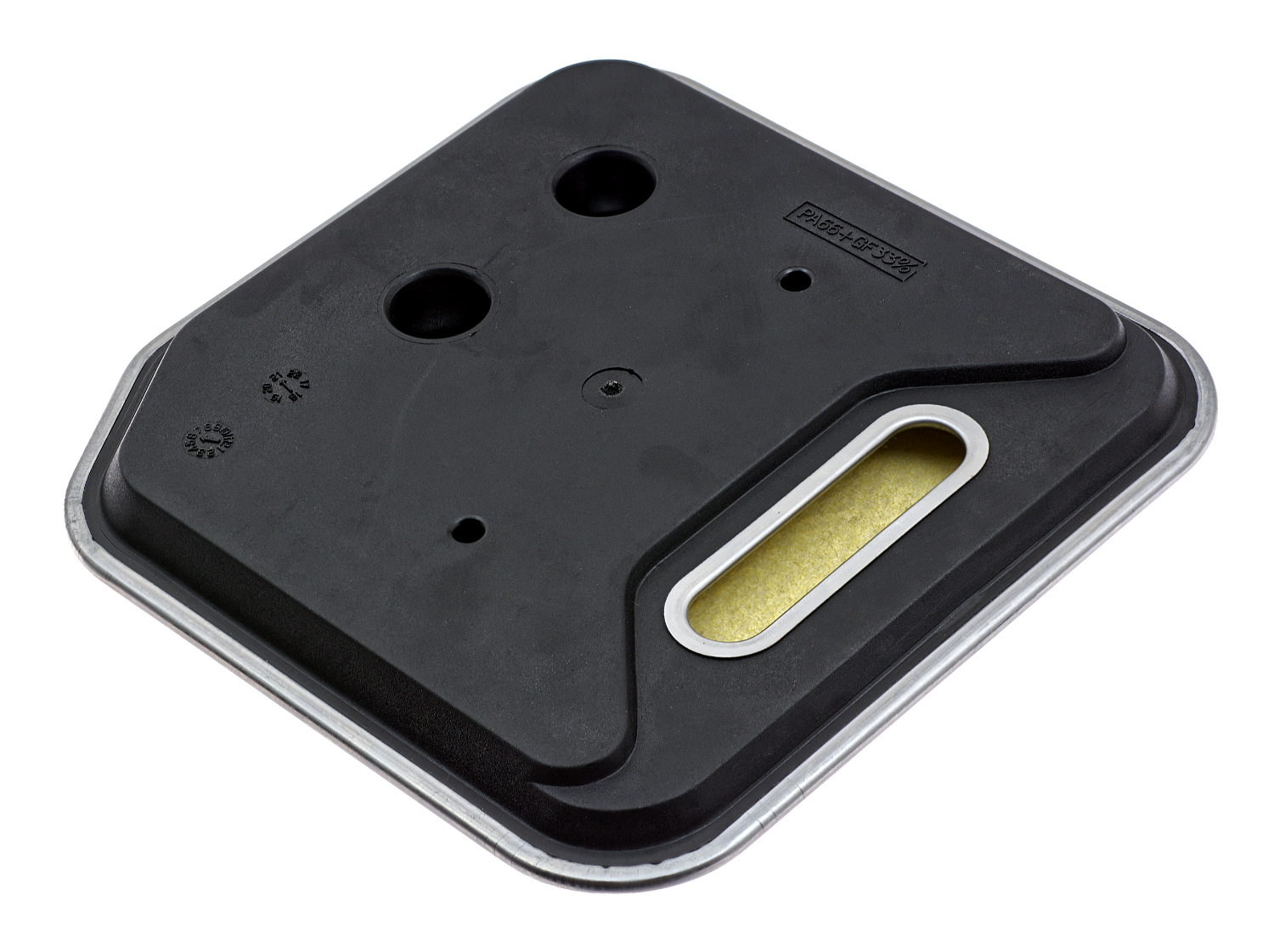

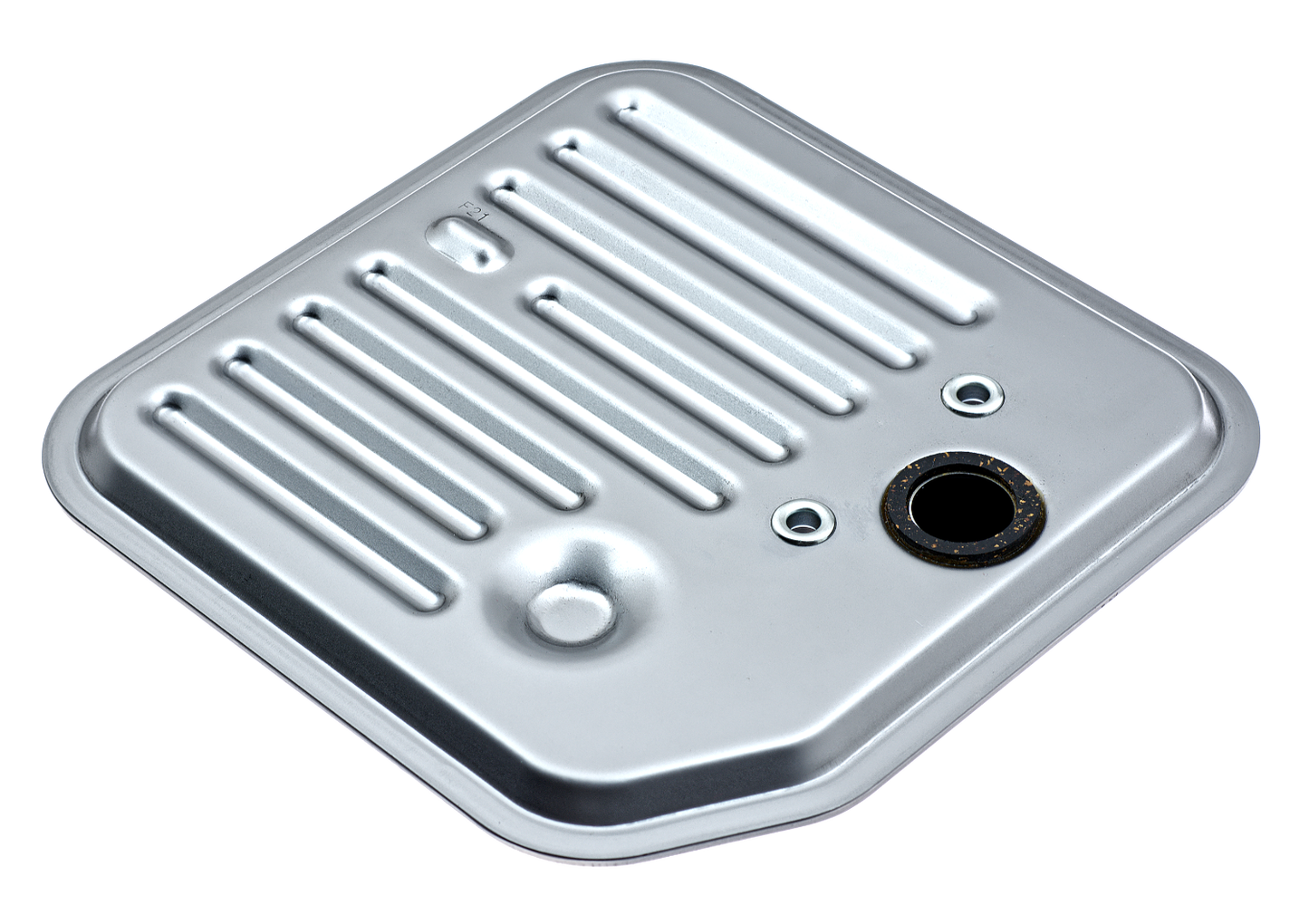

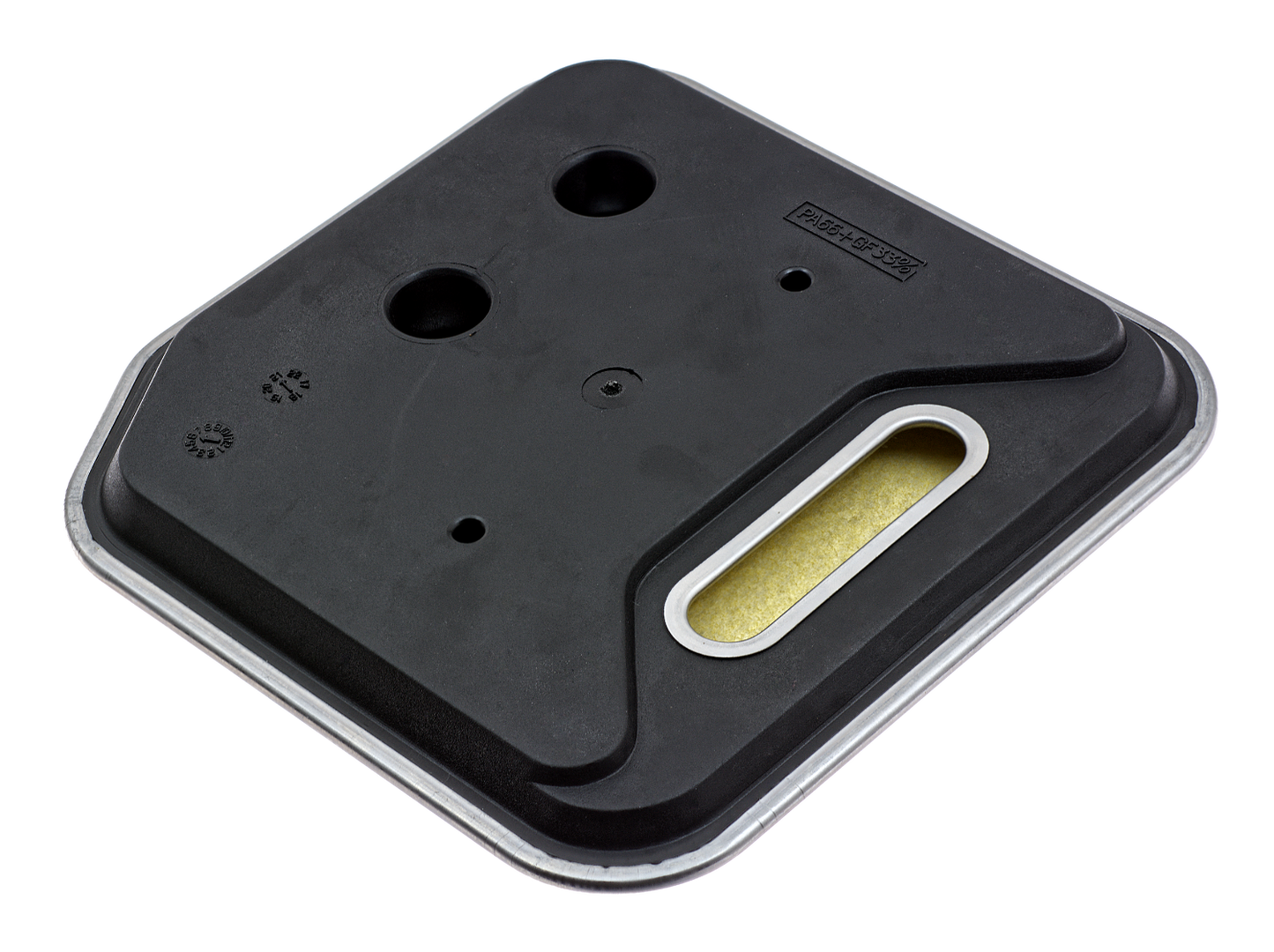

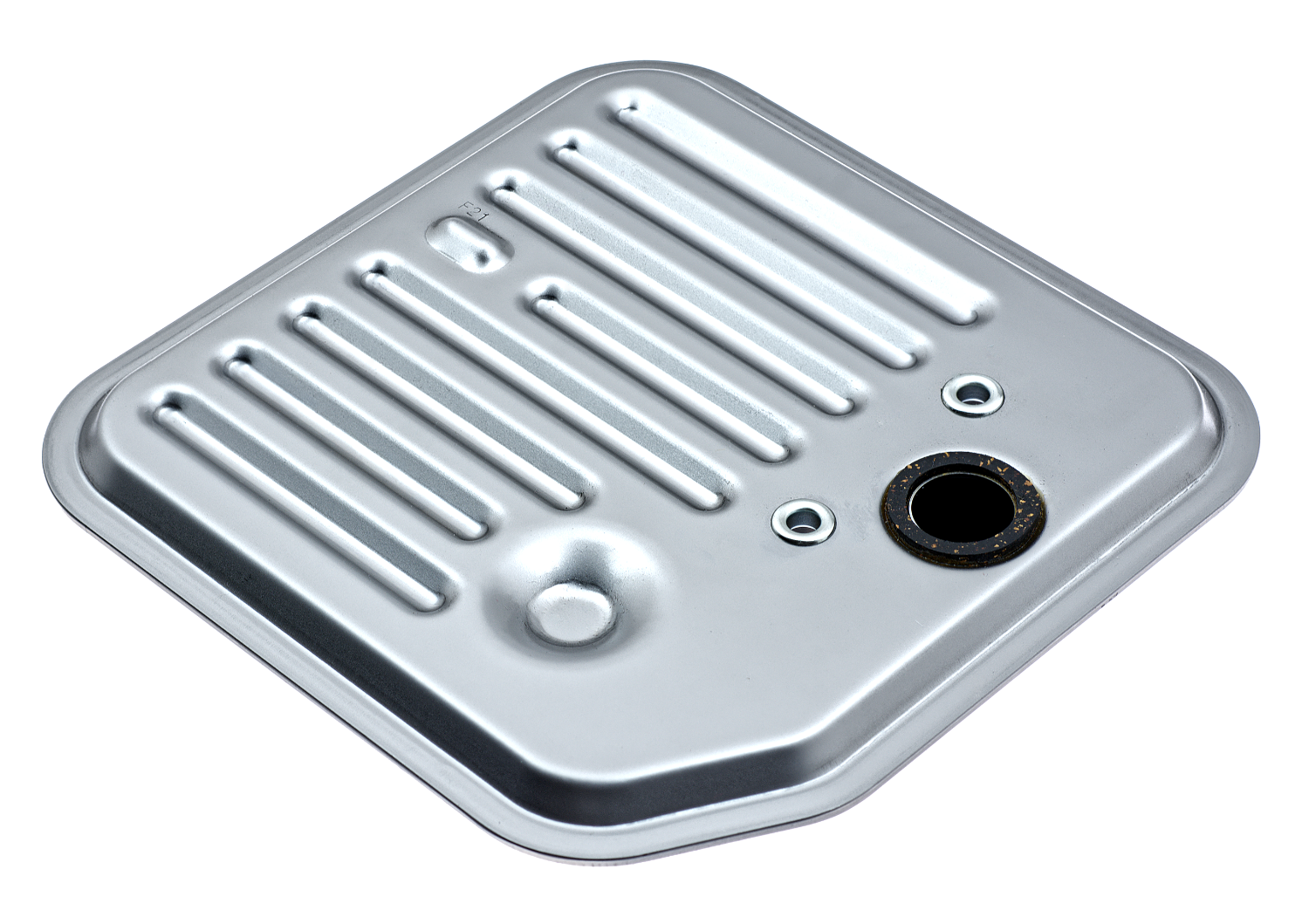

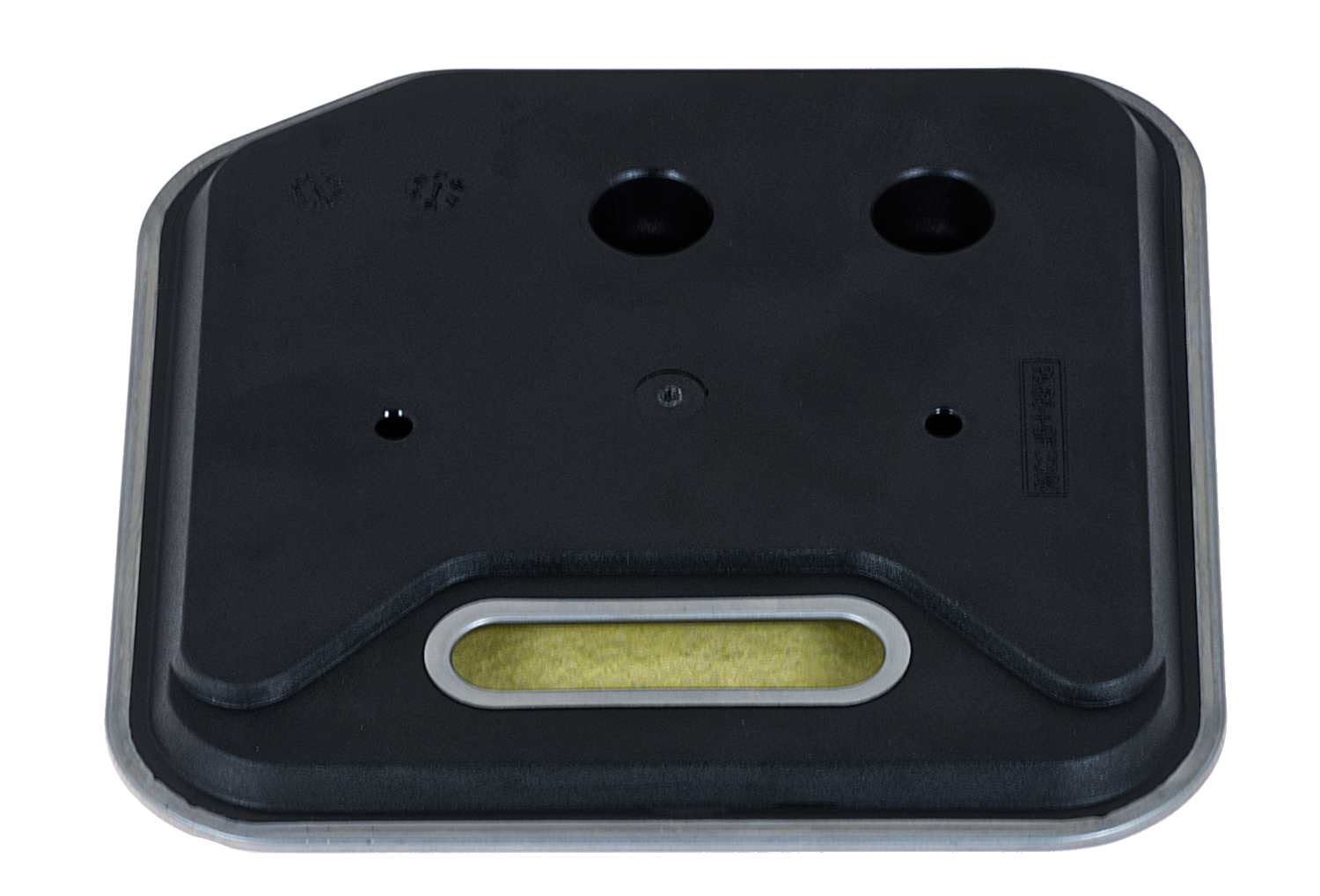

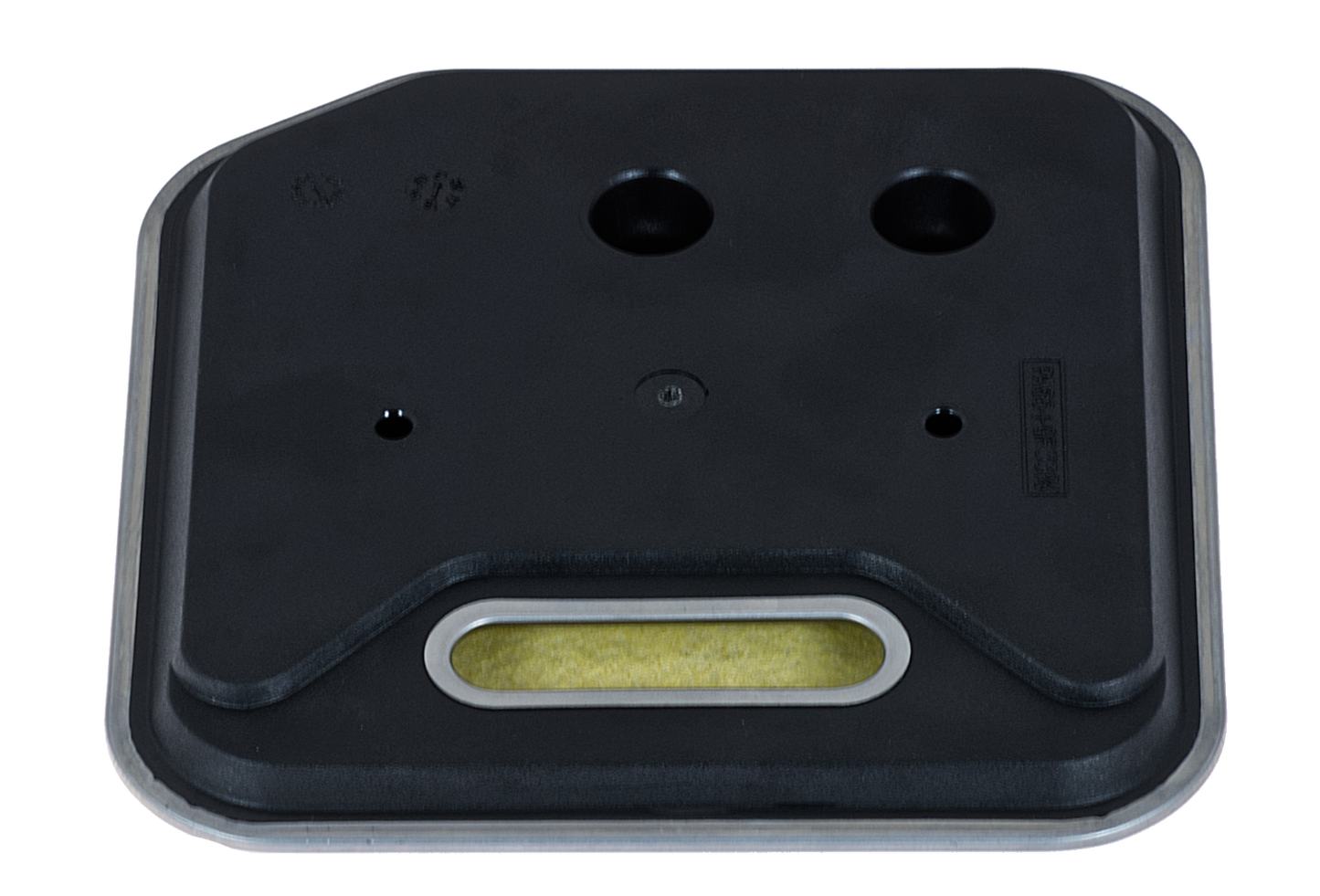

• (1) OE-Spec Filter from Raybestos

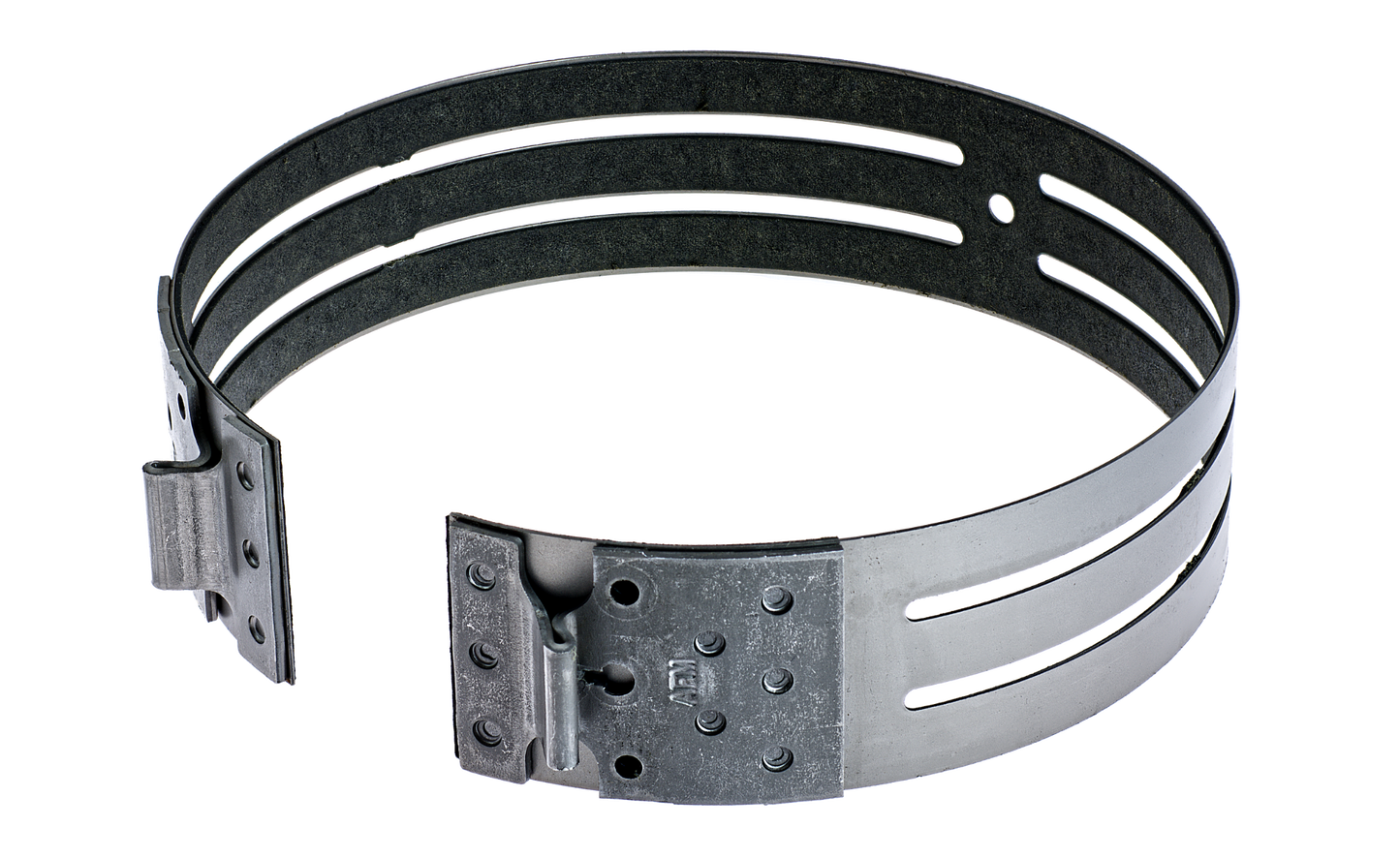

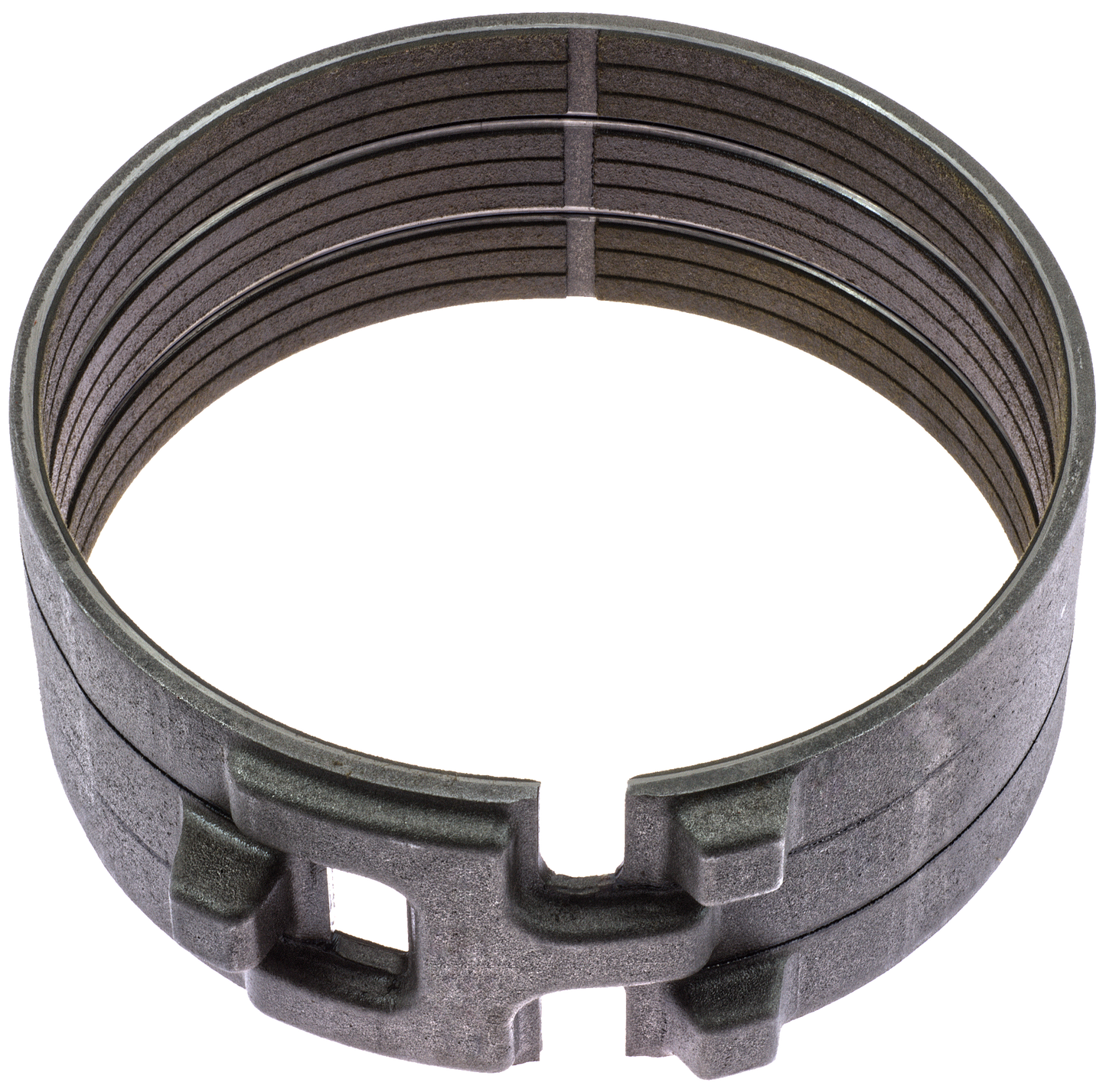

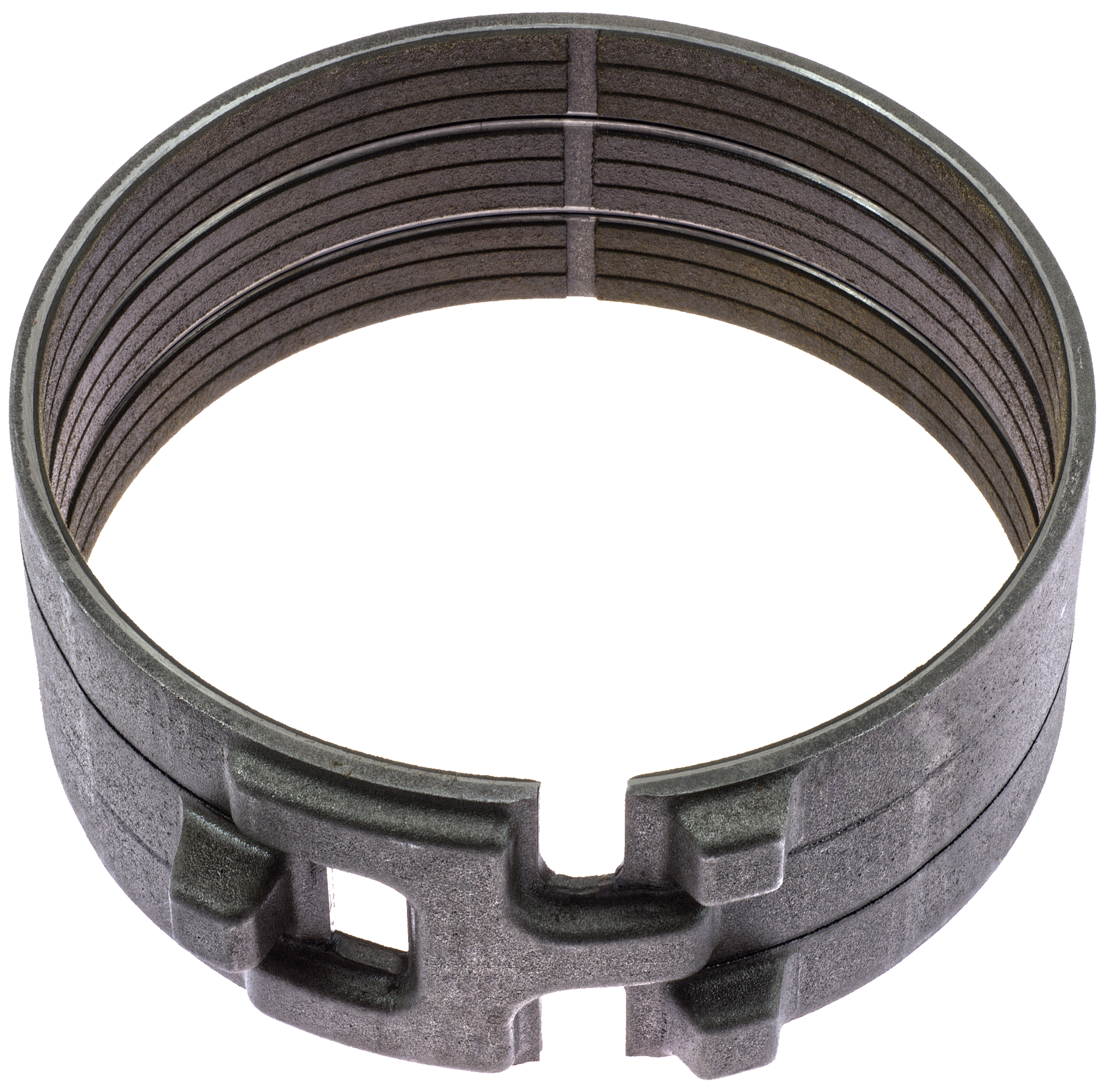

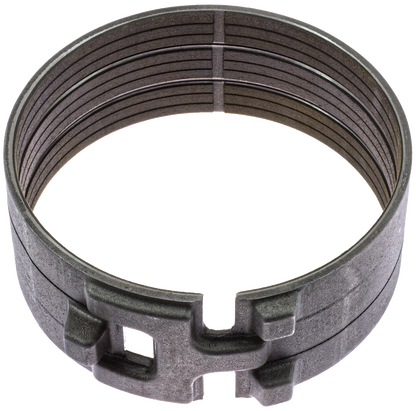

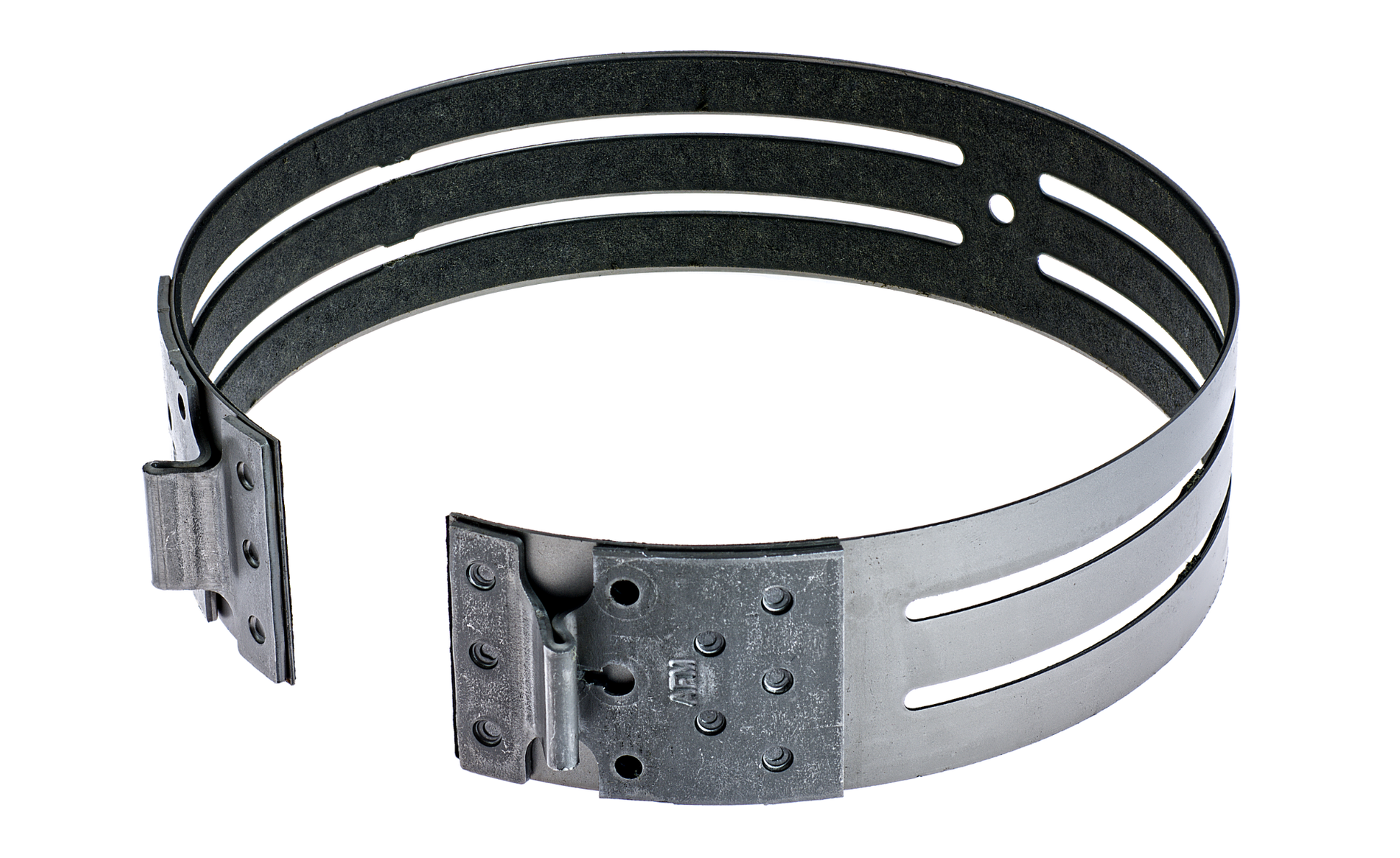

• (1) Intermediate/Kickdown Band (Front) – Raybestos Pro Series High Energy

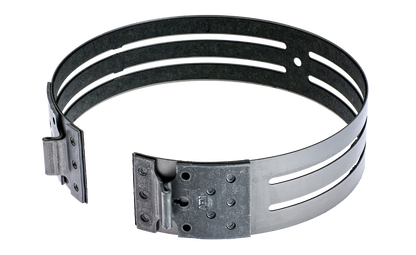

• (1) Reverse Multi-Wrap Band (Rear) – by Raybestos
