48RE 48RE 2003-2008 Cummins Diesel Transfer Case Support Mount Kit | Adapt-A-Case TCREAC

Failure is typically due to the lacking support of the heavy transfer case (weighs about 80lbs / 36.29kg).

* TC48REAC has been engineered to solve this!

* Quick installation - a few minutes and it’s done!

* Fits between transfer case and existing skid plate.

* Uses popular universal GM RWD mount (included).

* All necessary hardware is included.

Most truck are equipped with the skid plate required to make this work!

* Great add-on to transmission service: Your Customer will easily see and understand how failures occur and how this will save them big money with prevention.

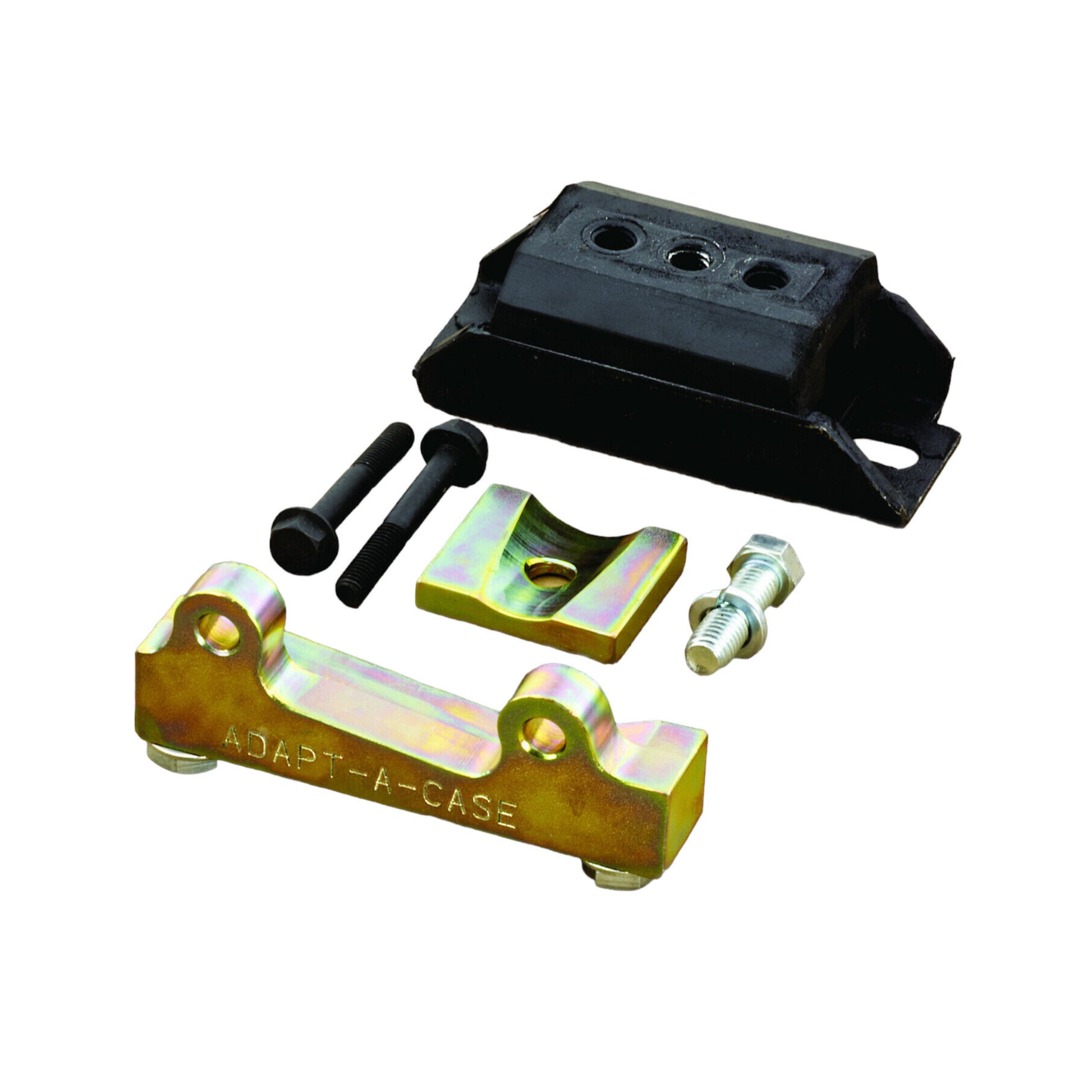

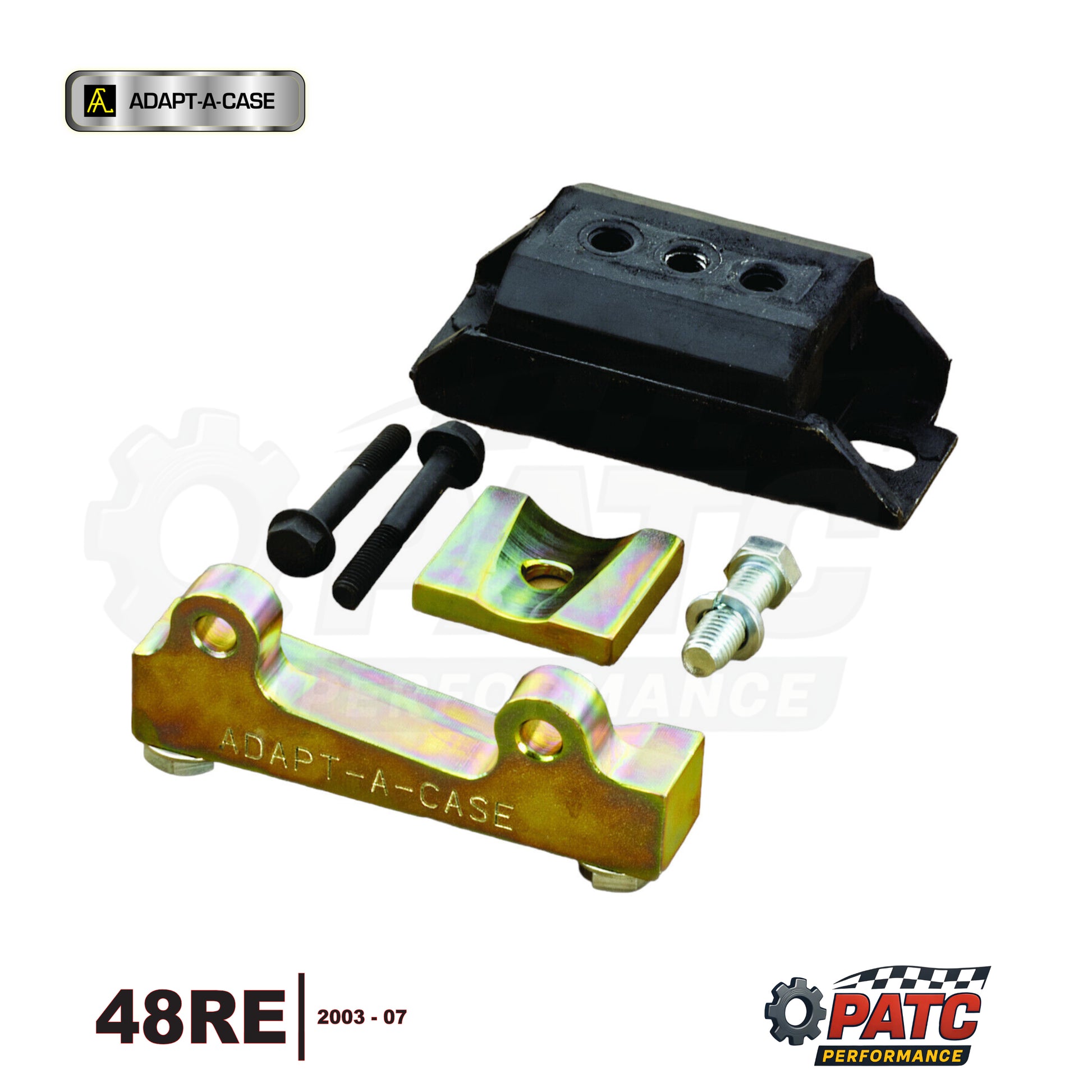

The ‘03-up Dodge Diesel 4wd trucks, equipped with the 48RE, have problems with cracking the overdrive housing. Their t-cases, mated to the overdrive housing, weigh about 80 lbs but have nothing in place to support them. TC48REAC solves this problem. A specially designed steel bracket installs in place of the lower two bolts (longer bolts supplied), and includes the common GM universal mount. As if it were meant for this, the factory skid plate has an existing hole!

TC48REAC includes a machined steel spacer/washer (fits below skid plate) with tapered groove to clear OEM stamping.
