48RE Transmission Performance Clutch Pack Alto Red Eagle 2003-up RAM Cummins

A618 47RE - 48RE Ram Transmission
Alto Extreme Performance Friction and Steel Kit
028750FHPPWR

Fits 2003-up

(Also fits 47RE when using HD Input Shaft and Hub)

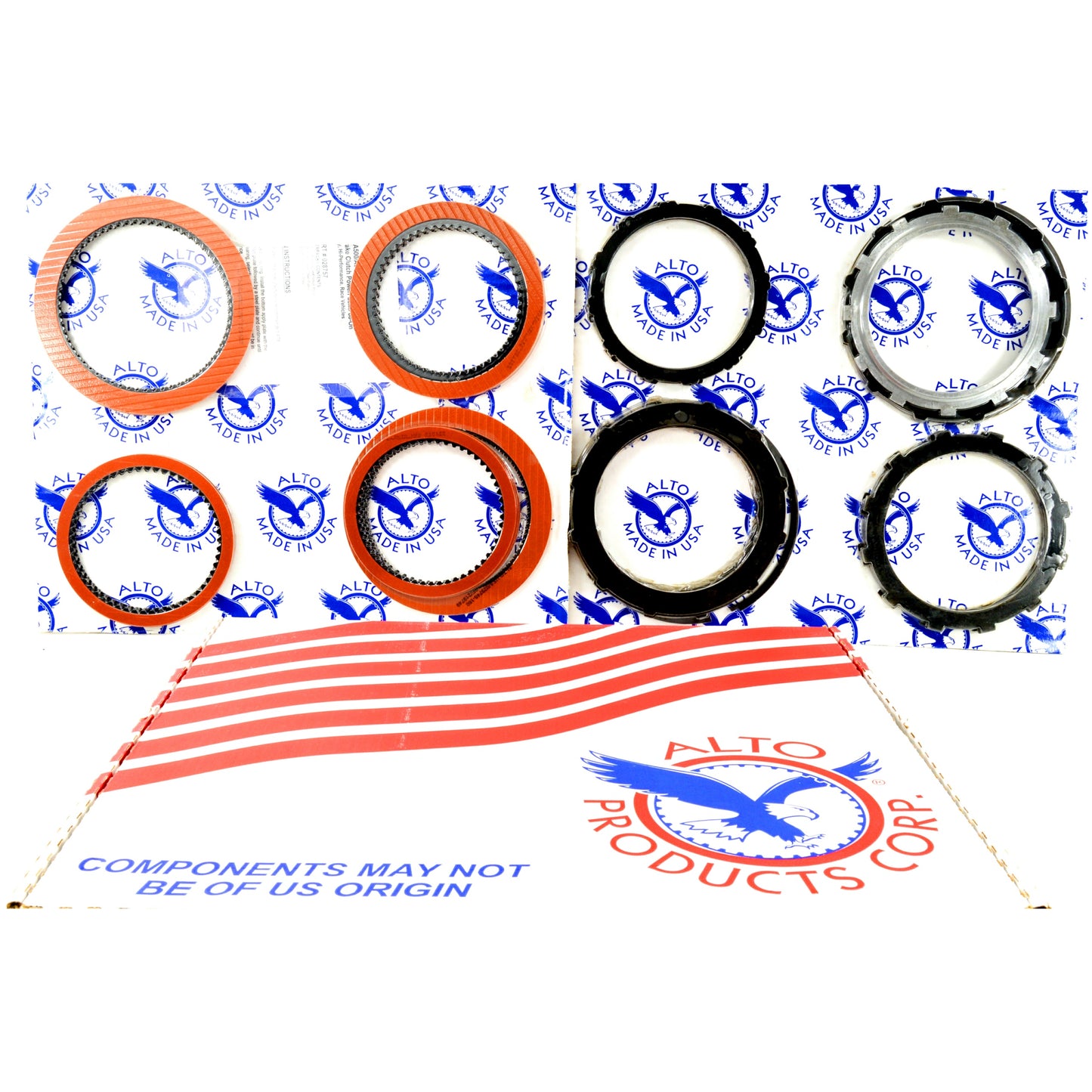

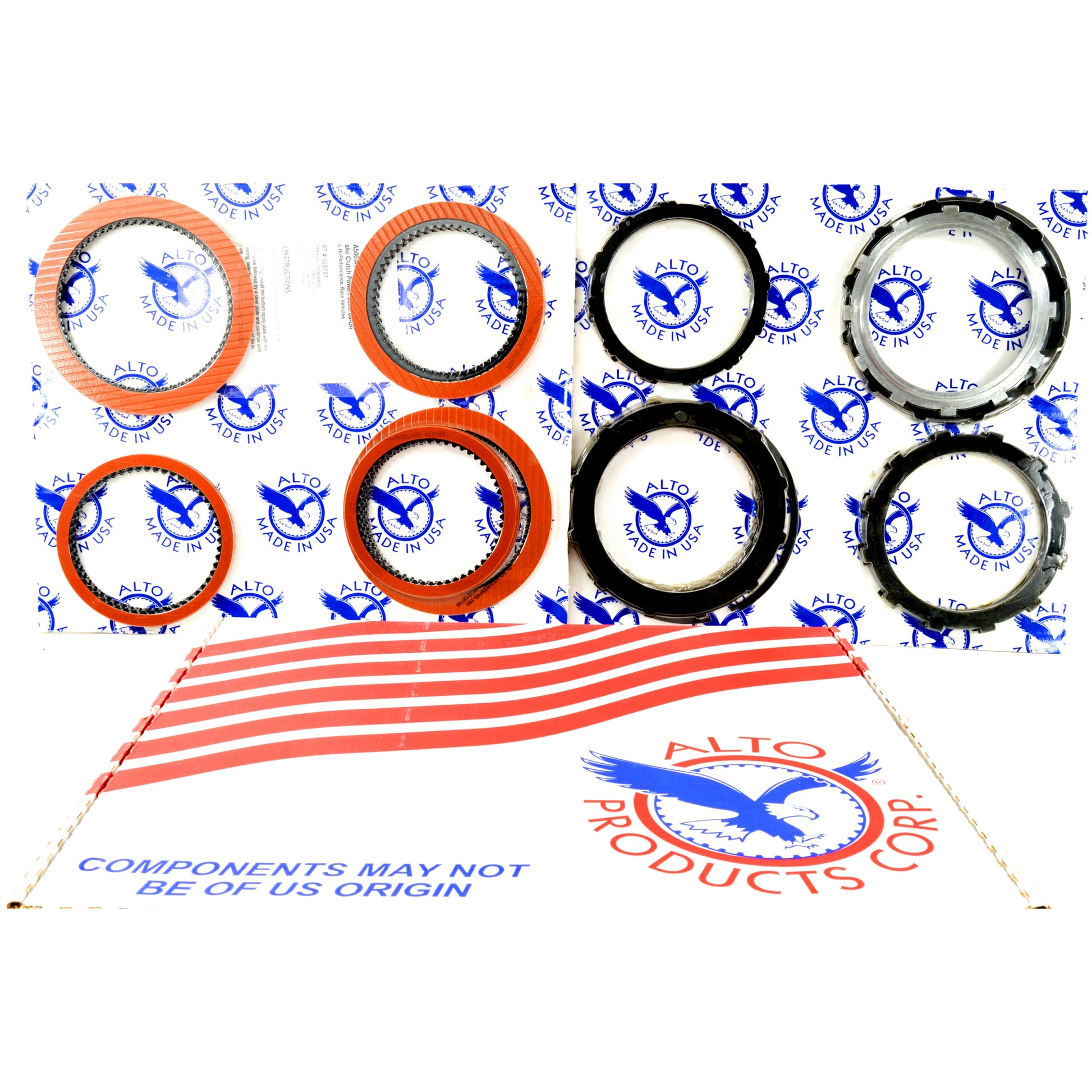

This awesome setup includes Forward, Direct, and Overdrive PowerPacks!

028755 Direct (Front Clutch) PowerPack:
(7) 028742A155 (.061" / 1.55mm) Red Eagle Friction Plates
(6) 028701K (.068" / 1.72mm) Kolene Steel Plates
(2) 028701K216 (.085" / 2.15mm) Kolene Steel Plates
(1) 028761X (0.170" / 4.32mm) Pressure Plate

028756A Forward (Rear Clutch) PowerPack:
(4) 028748-160 (0.63" / 1.60mm 93 Teeth) Red Eagle Friction Plates
(3) 028701K (0.068" / 1.73mm) Kolene Steel Plates
(1) 028252-060 (0.060" / 1.52mm) Snap Ring
(1) 028252-074 (0.074" / 1.88mm) Snap Ring

028757 Overdrive Brake Clutch PowerPack:
(7) 027746-165 (0.065" / 1.65mm) Red Eagle Friction Plates
(7) 027723K (.068" / 1.73mm) Kolene Steel Plates
(1) 027763A Stepped Bottom Pressure Plate

Overdrive Direct Pack:
(10) 027744 (0.063" / 1.60mm) Red Eagle Friction Plates
(8) Kolene Steel Plates

Red Eagle Friction

Red Eagle Friction is the go-to material for most performance applications.

The lining has a unique dual saturation, which imparts high friction coefficients and high heat resistance. Red Eagle clutches are designed to limit the amount of "slip" by providing a shorter lock-up time, generating less heat.

Our proprietary process starts with the friction paper saturated in a phenolic resin, cured, and then saturated a second time in a silicate. The silicate imparts high heat resistance.

Red Eagle clutches:

    Are designed with a softer, more resilient base paper.
    Assure less wear against opposing steel plates.
    Reduce the incidence of steel plates burning and warping.

Kolene® Steel

Kolene® is a salt bath nitriding process. In generic terms, it is a thermochemical diffusion process, whereby ferrous parts are processed in molten salt with a specific nitrogen potential. In plain English, it provides a surface treatment that enhances wear and fatigue resistance from 200% to 500% which offers higher heat resistant and increased lubricity.

Kolene® Steel

    Strengthen wear characteristics
    Increase fatigue strength
    Enhance lubricity

Kolene is a registered trademark of Kolene Corporation.

PowerPacks®

Alto created extra capacity clutches. The concept was originally developed for the TH700R4 3/4 pack.

It has since been enhanced for many of todays High Energy applications.

PowerPacks®

    Increased surface area for increased holding
    Increased surface area for increased heat absorption
    Increased surface area for shorter lock-up time - decreasing "slippage"

    Made In USA
