2020up 10R140 Ford Super Duty Transmission Oil Pan Deep Aluminum F250 F350 F450

2020up 10R140 Ford Super Duty Transmission Oil Pan Deep Aluminum F250 F350 F450

A316765AHP

Low stock! Only 8 left
$388.34
$388.34
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

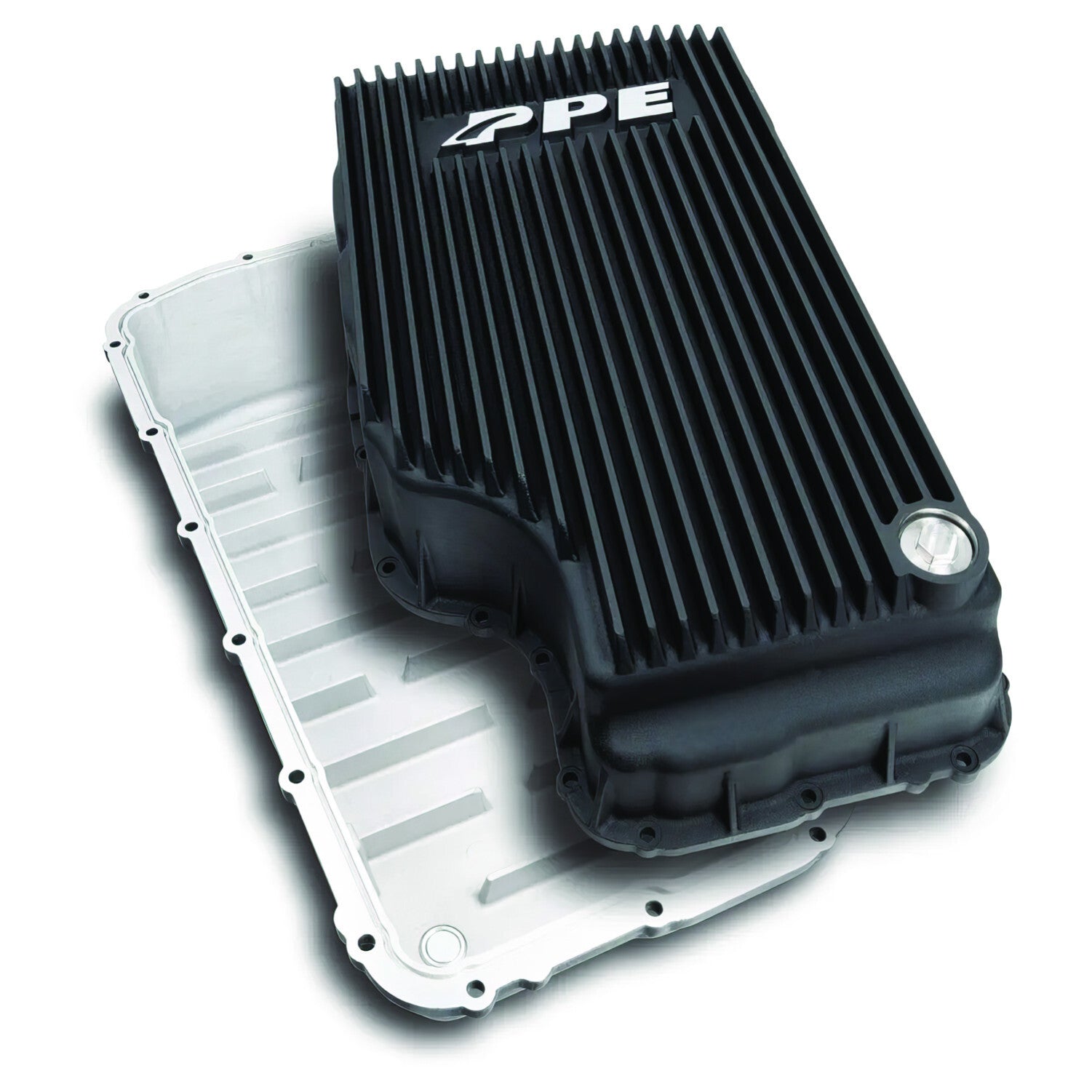

Deep Transmission Pan - Ford Super Duty 10R140

Heavy-Duty Cast A356.0-T6 Aluminum




Fits:

Beginning with 2020 model year trucks, the 10R140 is standard on all 7.3L gas and 6.7L turbodiesel equipped Super Duty trucks in addition to all F-350 models equipped with the 6.2L gas V-8; the 10R140 is optional on F-250 models equipped with the 6.2L V-8, however the 6R140 is the standard transmission on these models. The 10 speed transmission is also standard on all F-350/F-450/F-550 chassis cab trucks

(1) PPE Transmission Pan # 328053320 (BLACK)

Features:

  • Deep design increases fluid capacity by 8 quarts
  • Made from thick, heat-treated, cast A356.0-T6 aluminum alloy
  • .75’’ inch external fins improve heat dissipation, lower transmission fluid temperature, and increase strength
  • 1’’ internal baffles increase heat dissipation and reduce fluid sloshing
  • Gussets provide support to the top flange and increases overall robustness
  • Flat bottom allows for complete fluid drainage
  • One-inch Neodymium magnet equipped 304 stainless steel drain plug with Viton O-ring
  • Tapped and plugged 1/8-inch NPT port for optional fluid temperature monitoring sensor
  • Available in Raw, Brushed, and Black powder coat finish
  • Compatible with OEM gasket and filter
  • Limited lifetime warranty
PPE’s Heavy-Duty DEEP 10R140 Transmission Pan holds an extra 8 quarts of fluid and is cast from high-quality A356.0-T6 aluminum alloy for strength and optimum heat dissipation.


The intelligent flat bottom design allows for a complete fluid drain. This new design also features thick, cast external fins and internal baffles that increase surface area and reduce fluid temps. Gussets provide strength and support to the top flange, increasing overall robustness.


The drain port features a one-inch, high-power Neodymium magnet-equipped stainless steel drain plug. Both plugs catch and hold harmful ferrous particles and keep them out of the transmission internals.


Run cooler and stronger with this easy upgrade to your Super Duty.
