2020up 10L1000 GM Silverado HD Transmission Oil Pan Upgrade Aluminum 2500 3500

GM Allison 10L1000 Durability Upgrade Package

Includes Deep Transmission Pan, Filter, OE Bonded Pan Gasket, and Ratiotek Valve Body Tuner Kit

Fits:

2020–Current Chevrolet Silverado 2500 HD & 3500 HD pickups
2020–Current GMC Sierra 2500 HD & 3500 HD pickups
2020–Current Chevrolet Silverado 3500 HD chassis cabs
2020–Current GMC Sierra 3500 HD chassis cabs

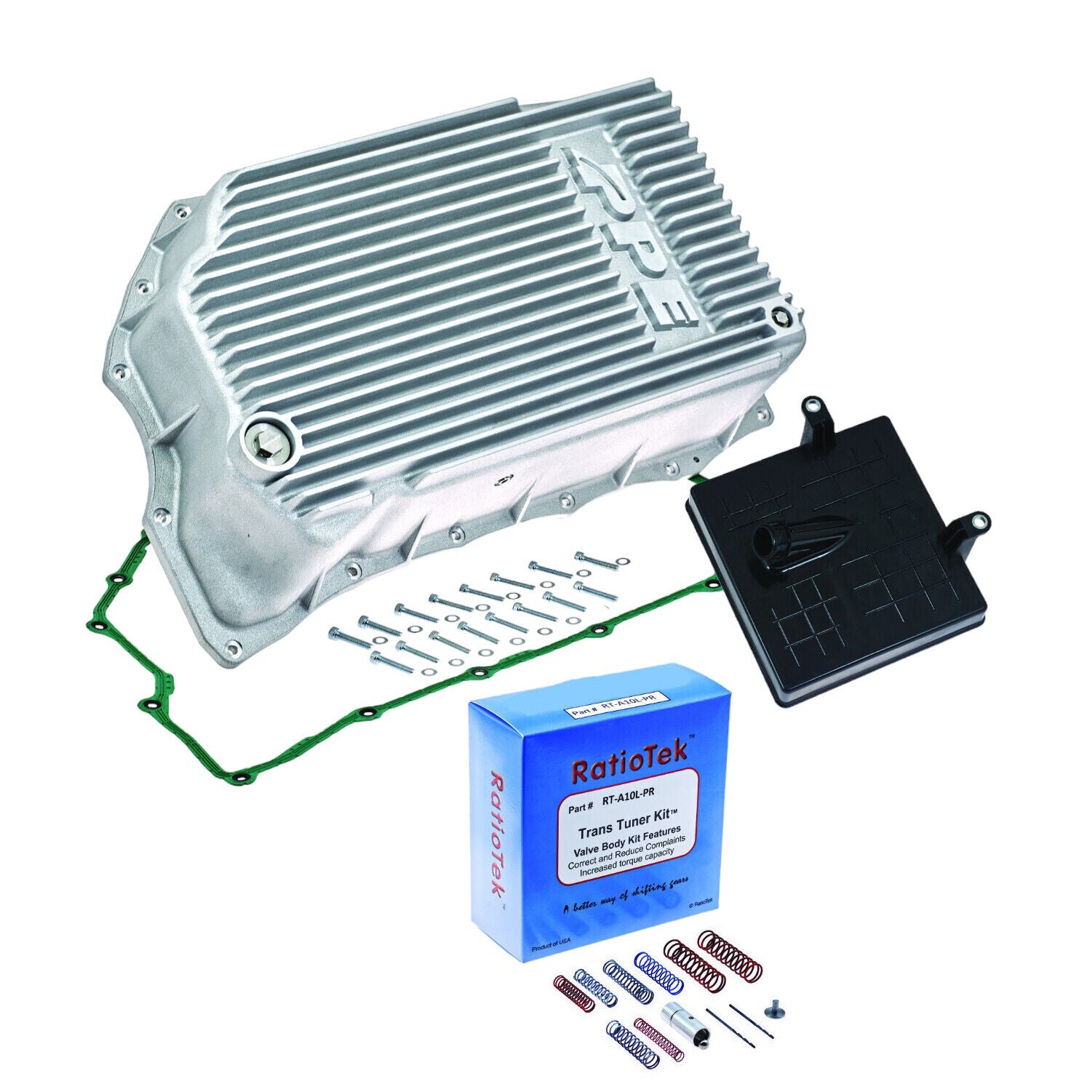

Kit Includes:

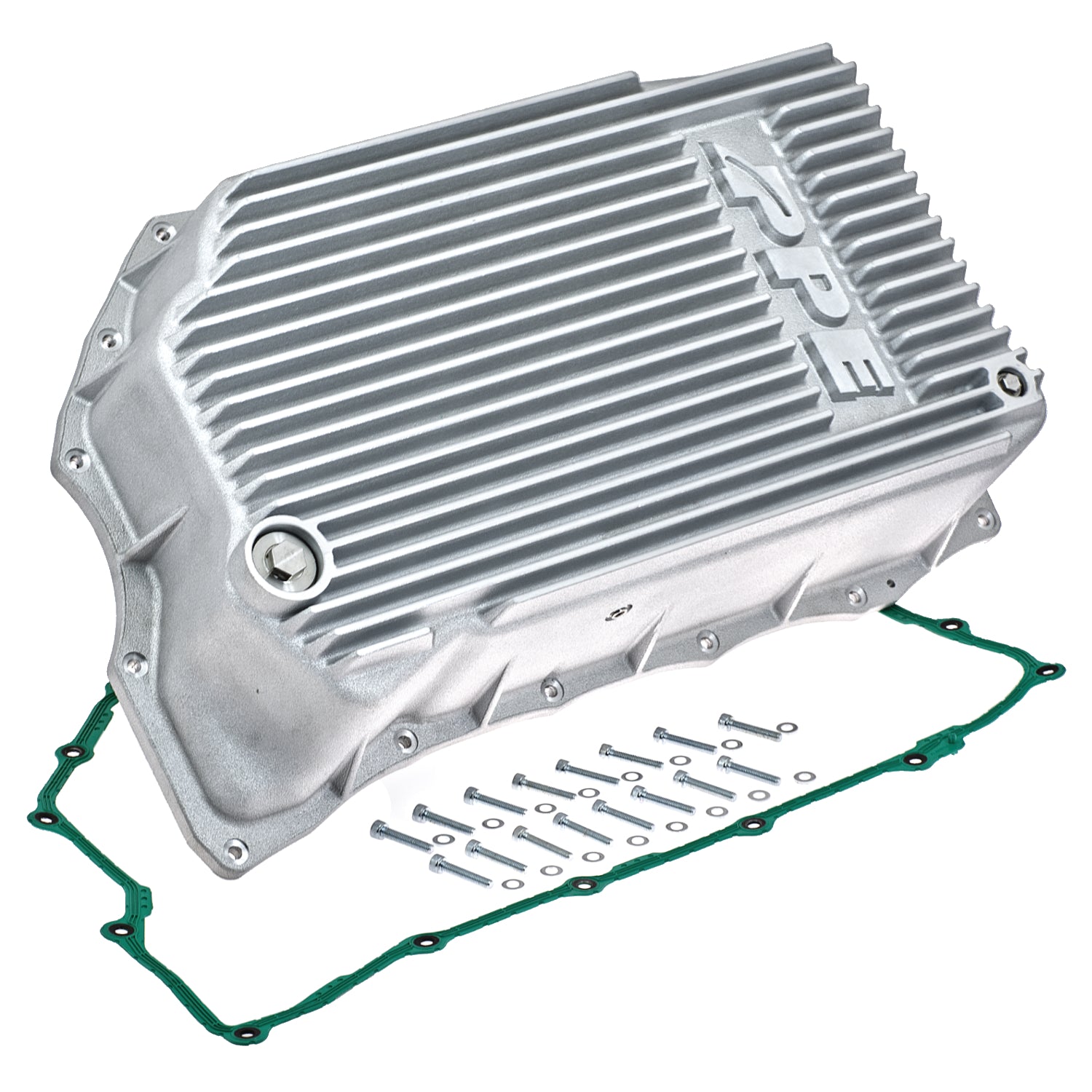

• PPE Deep Aluminum Transmission Pan (#128051400)
• Bonded Aluminum Pan Gasket

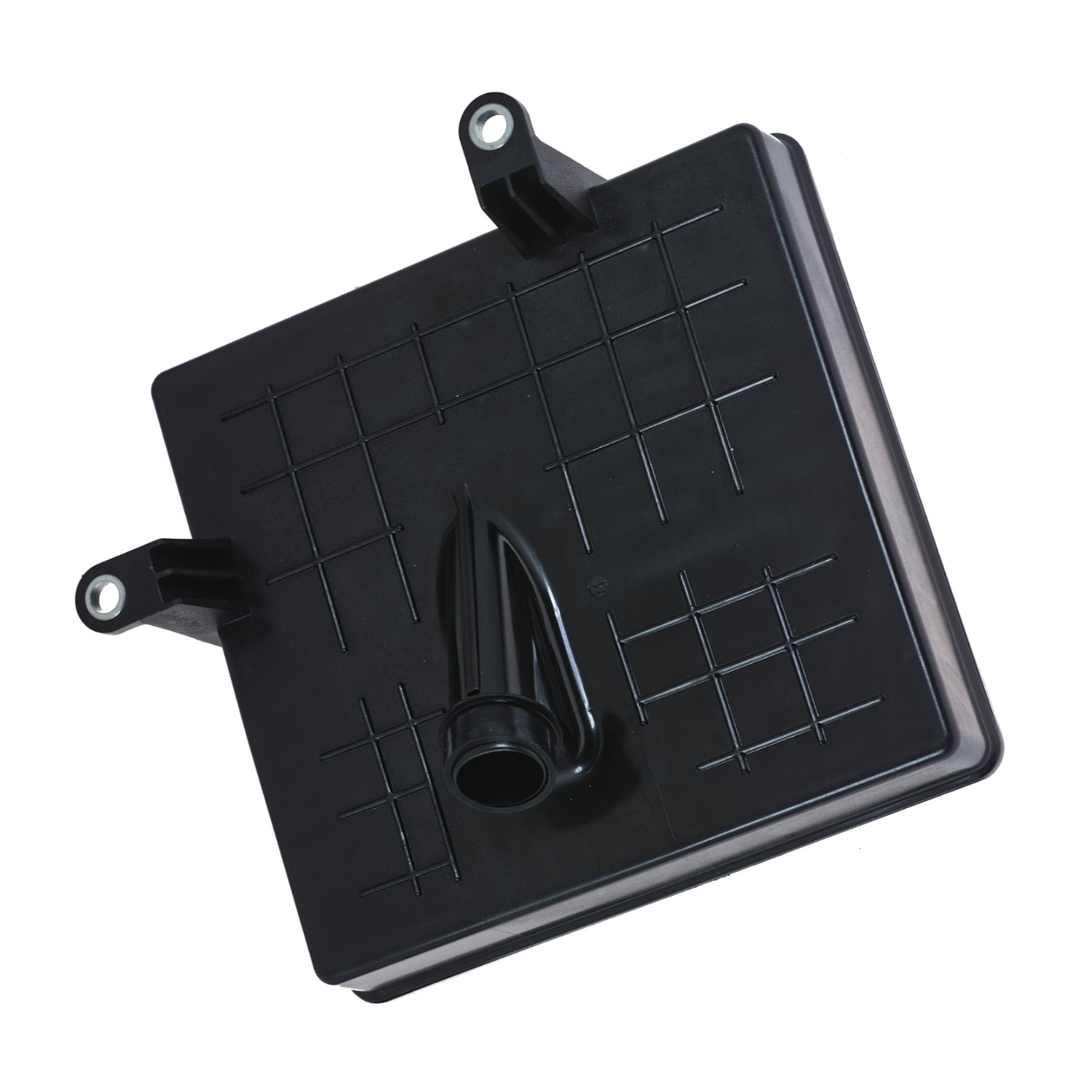

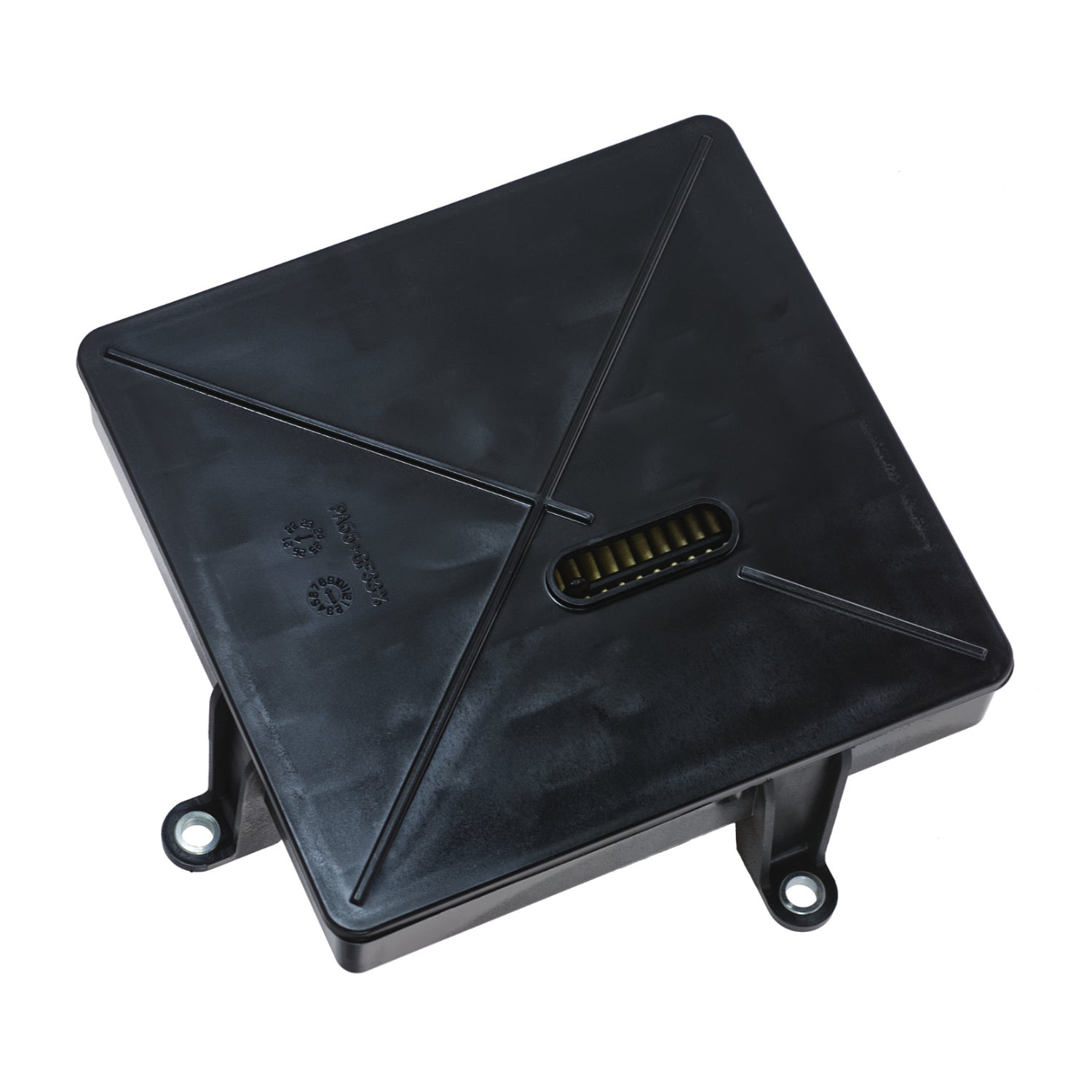

• OE-spec Filter Assembly
• RatioTek Valve Body Tuner Kit (Increases torque capacity)

Features:

• Increases fluid capacity by 4 quarts to lower transmission fluid temperature
• Thick cast A356.0 T6 aluminum alloy construction
• External fins (.75") and internal heat sinks (.75" & 1.2") for improved heat dissipation
• Neodymium magnet-equipped 304 stainless steel drain plug with Viton O-ring
• 9/16" ORB magnetic plug seals fluid level check port
• 1/8" NPT port for optional fluid temperature sensor
• External gussets for added flange support
• Compatible with OEM gasket (included)
• Limited lifetime warranty

The Allison 10L1000 continues its legacy of durability. This upgrade package enhances performance and protection with a deep PPE pan that increases fluid capacity by a full gallon. Engineered fins and heat sinks improve thermal management, while powerful magnets remove harmful metal particles.

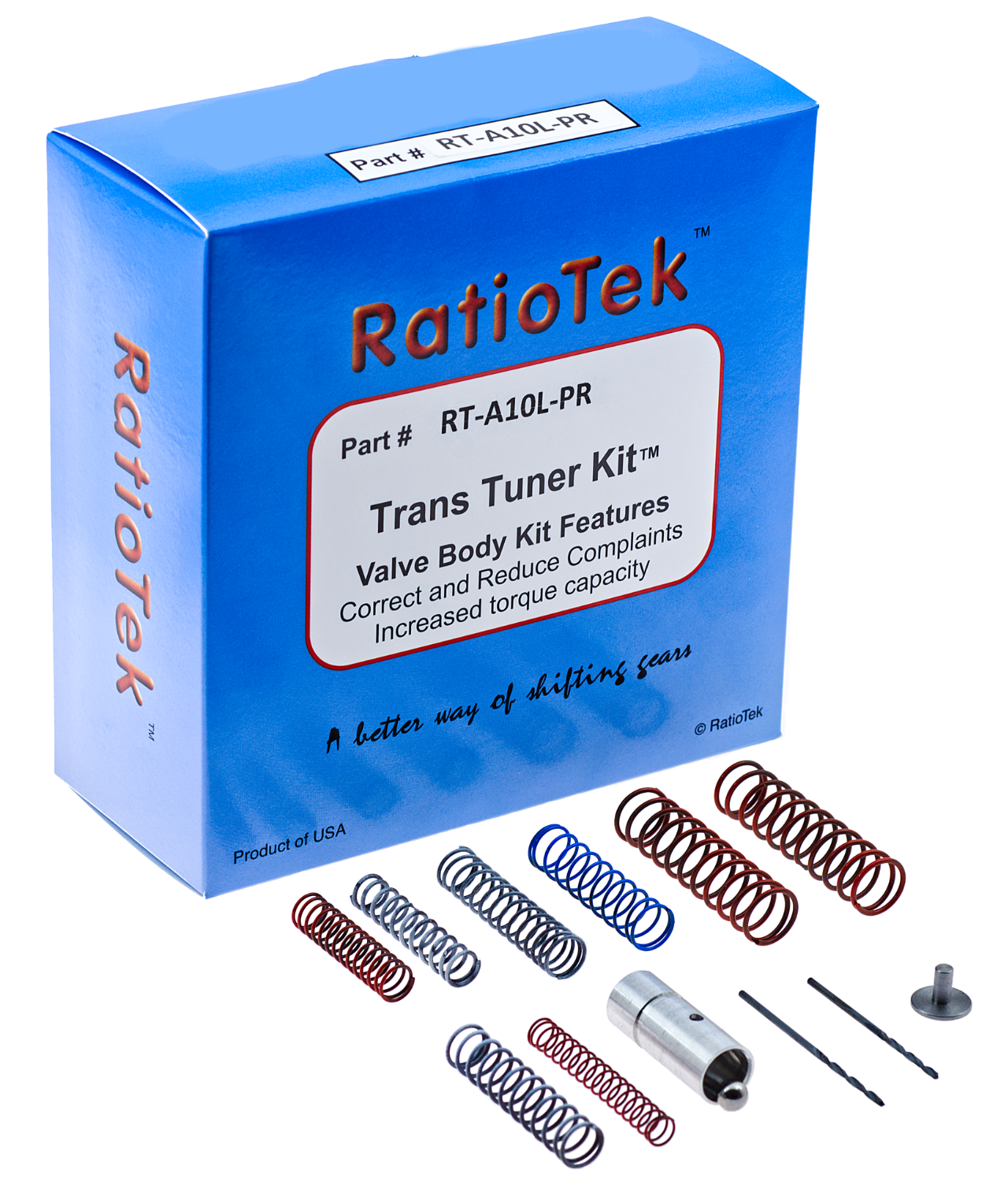

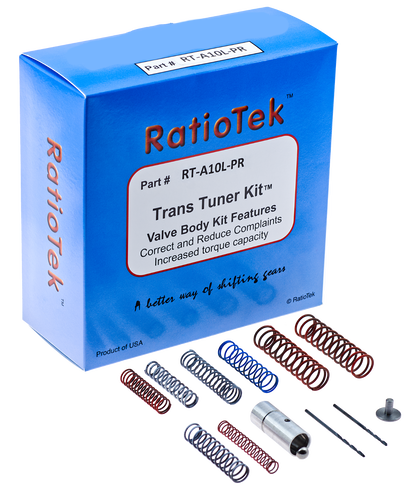

Valve Body Tuner Kit Includes:

• Pressure Regulator Spring
• High Feed Limit Valve Springs (Inner & Outer)
• Low Feed Limit Valve Springs (Inner & Outer)
• Lube Control Valve Spring
• LPC Regulator Valve, Steel Ball & Spring
• Patented EPC Regulator Valve System
• Pump Pressure Spring Shim
• Two Drill Bits

This professional-level kit increases torque capacity and installs from the bottom—no transmission removal required.
