2019-24 68RFE Transmission Master Rebuild Kit OEM Clutches BorgWarner TransTec

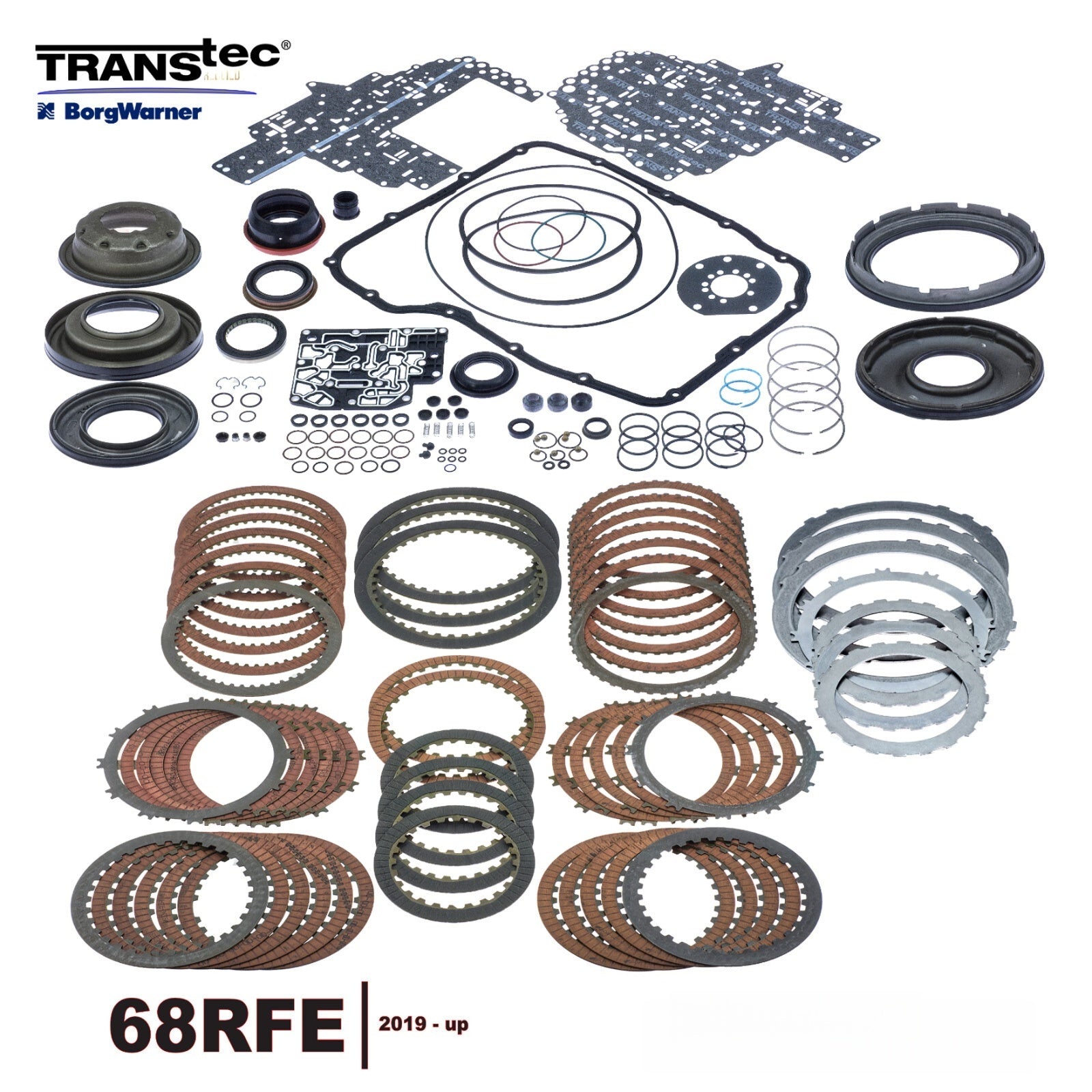

RAM 68RFE Transmission Master Rebuild Kit

Fits 2019-up RAM 6.7L Diesel

Professional OEM-Level Kit Includes:

• TransTec Overhaul Kit with Gaskets, Rings, Seals
• Bonded/Molded Rubber Clutch Apply Pistons
• BorgWarner OEM Friction Clutch Kit
• OEM-Finish Steel Clutch Set

TransTec 2791 Overhaul Kit Contents:

• Valve Body Gaskets (Pair)
• Premium Bonded Rubber Pan Gasket with Integral Torque Limiters
• Pre-lubed Converter Hub Seal (fits into Pump Cover) + Outer O-ring
• Metal-Clad Seal for Rear Output (2WD with Boot)
• Metal-Clad Seal for Rear Output (4WD Extension Housing to Transfer Case)
• Filler Tube Boot
• Metal Pump Stator Gasket (prevents cross leaks)
• Input Clutch Drum Lip Seals and O-rings Sub-Kit
• Cooler Line O-rings with Clips Sub-Kit
• Solenoid Pack Rebuild/Reseal Kit
• Sealing Ring Kit with Plated Stator Rings and Accumulator Seals (Teflon/PTFE)
• Small Parts Kit (Valve Body Seals, Imidized Check Balls, O-rings)
• Orifice Plugs Sub-Kit

Bonded/Molded Clutch Piston Kit Contents:

• 2nd Clutch Piston – 0.945" Thick, 12 Notches
• Underdrive Clutch Piston (Outer) – 6.125" OD
• Underdrive Clutch Piston (Inner) – 5.78" OD
• 2-4 Clutch Piston – 0.650" Thick
• Low/Reverse Clutch Piston – 6.875" OD, 2.570" ID

BorgWarner OEM Friction Clutch Kit:

• (6) Overdrive Friction Clutches – 0.052"/1.32mm, Internal Spline, 30T, 6.36" OD
• (6) Overdrive Friction Clutches – 0.052"/1.32mm, External Spline, 12T, 6.87" OD
• (5) Underdrive Friction Clutches – 0.057"/1.47mm, Internal Spline, 32T, 6.36" OD
• (5) Underdrive Friction Clutches – 0.057"/1.32mm, External Spline, 12T, 6.87" OD
• (7) Low/Reverse Friction Clutches – 0.057"/1.47mm, Internal Spline, 48T, 6.81" OD
• (7) Low/Reverse Friction Clutches – 0.057"/1.32mm, External Spline, 45T, 7.08" OD
• (4) 4th Friction Clutches – 0.090"/2.29mm, 24T, 5.33" OD
• (3) 2nd Friction Clutches – 0.090"/2.29mm, 40T, 8.11" OD
• (2) Reverse Friction Clutches – 0.078"/1.98mm, 32T, 6.36" OD

OEM-Finish Steel Clutch Kit Contents:

• (3) 4th Clutch Steels – 0.099"/2.51mm, 20T, 4.24" ID
• (3) 2nd Clutch Steels – 0.127"/3.23mm, 10T, 6.77" ID
• (1) Reverse/Underdrive Clutch Steel – 0.068"/1.73mm, 12T, 5.4" ID
