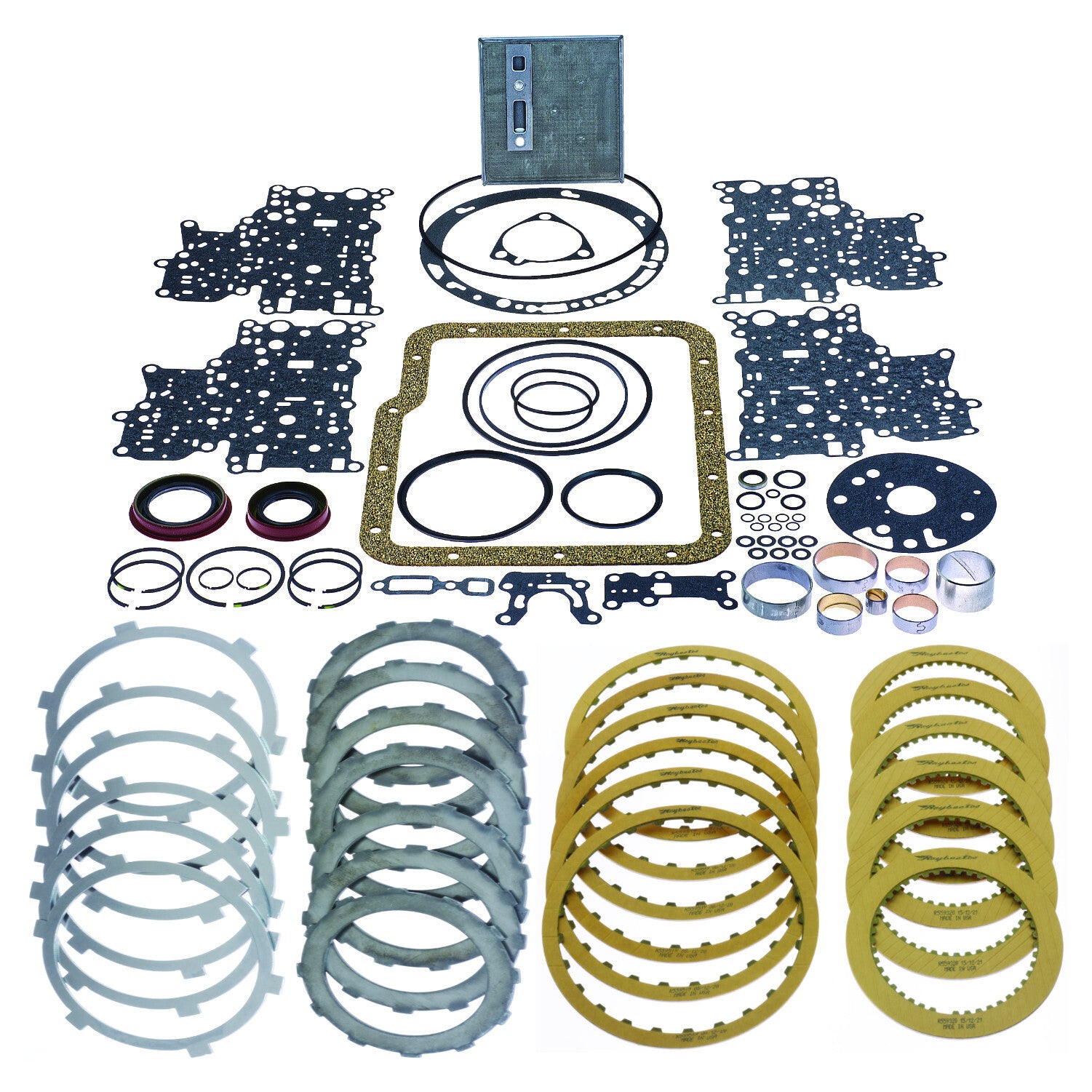

196273 Aluminum Powerglide Master Rebuild Kit complete with Filter Bushing Kit

This super great kit includes the following components:

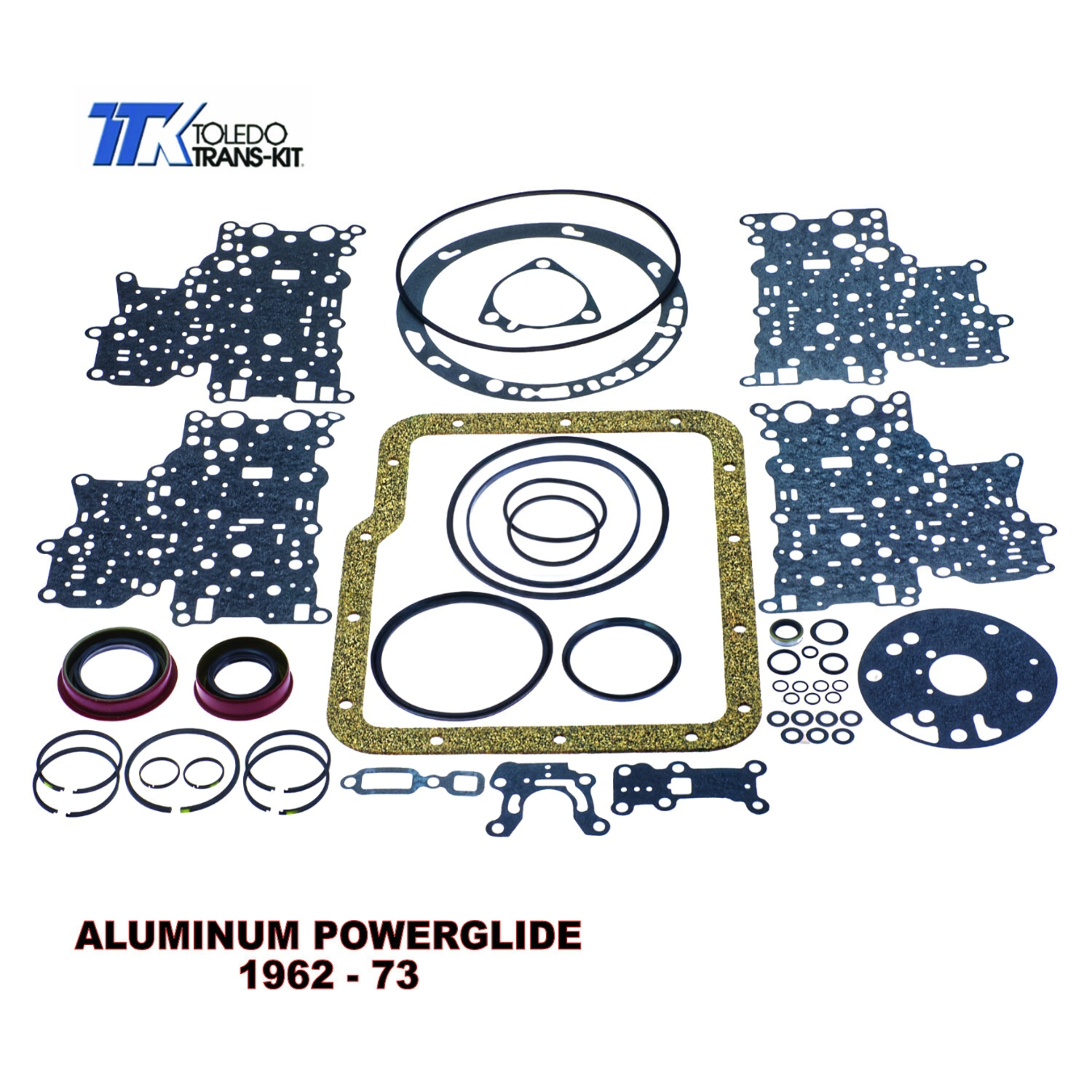

TTK Overhaul Kit:

• Pump Gasket
• Servo Cover Gasket and Seal
• Governor Support / Rear Pump Gaskets
• Filter Gasket
• 4-piece Valve Body Gasket Set
• All Rubber/Viton Seals
• All Rubber/Viton O-rings
• All Metal-clad Seals
• Drum Lip Seals
• Complete Sealing Ring Kit
• Small Seals Sub-kit
• Cork-Rubber Pan Gasket

Raybestos Friction Clutch Set:

• (6) High (Direct) Clutch Frictions (0.098"/2.49mm)(43T)(5.06"OD)
• (6) Reverse (Rear) Clutch Frictions (0.098")(25T)(6.47"OD)

Steel Clutch Set:

• (7) High (Direct) Clutch Steel Plates (0.071"/1.8mm)(12T)(3.87"ID)
• (6) Reverse (Rear) Clutch Steel Plates (0.071"/1.8mm)(6T)(5.73"ID)

Bushing Kit:

• (1) Front Pump (to converter hub) – Babbit
• (1) High Clutch Drum – Bronze
• (1) Output Shaft (Pilot) – Bronze with Oil Groove
• (1) Governor Support / Rear Pump – Bronze
• (1) Rear Case / Housing – Bronze with Oil Groove
• (1) Tail Housing (to Driveshaft yoke) – Babbit with Oil Groove

Alto Filter:

• (1) Square Type Screen – Large for higher volume
